Jeep Builds Make your own jeep build thread here, discuss and view jeeps here. All Jeep models are welcome here.

Project Frankenstein

Old 04-12-2010, 01:33 PM
  #1
Senior Member
Thread Starter

Chex_Mex's Avatar

Join Date: Apr 2010
Location: Houston, Tx
Posts: 646
Year: 1999
Model: Cherokee
Engine: 4.0L
Default Project Frankenstein

noob to the forum, thought i'd post my build, here is the rear
Attached Images
Chex_Mex is offline
Old 04-12-2010, 01:39 PM
  #2
Senior Member

KTMrider's Avatar

Join Date: Sep 2008
Location: MD
Posts: 504
Year: 2000
Model: Cherokee
Engine: 4.0
Default

How high are you going there cheif?
KTMrider is offline
Old 04-12-2010, 01:44 PM
  #3
Senior Member
Thread Starter

Chex_Mex's Avatar

Join Date: Apr 2010
Location: Houston, Tx
Posts: 646
Year: 1999
Model: Cherokee
Engine: 4.0L
Default Frankenstein cont'd

The rear is a rough country 4.5" pack and iron man fab adjustable schackles....very stout
Attached Images
Chex_Mex is offline
Old 04-12-2010, 01:46 PM
  #4
Senior Member
Thread Starter

Chex_Mex's Avatar

Join Date: Apr 2010
Location: Houston, Tx
Posts: 646
Year: 1999
Model: Cherokee
Engine: 4.0L
Default

8" rear, 8.5" front.... have 4.5" leafs, 3.5" schackles in the rear, have 6.5" coils and 2" spacers in the front
Chex_Mex is offline
Old 04-12-2010, 01:52 PM
  #5
Senior Member

KTMrider's Avatar

Join Date: Sep 2008
Location: MD
Posts: 504
Year: 2000
Model: Cherokee
Engine: 4.0
Default

Looks like your gonna have a nice rig. Aren't you gonne need new drive shafts?
KTMrider is offline
Old 04-12-2010, 01:57 PM
  #6
Senior Member
Thread Starter

Chex_Mex's Avatar

Join Date: Apr 2010
Location: Houston, Tx
Posts: 646
Year: 1999
Model: Cherokee
Engine: 4.0L
Default now for the front

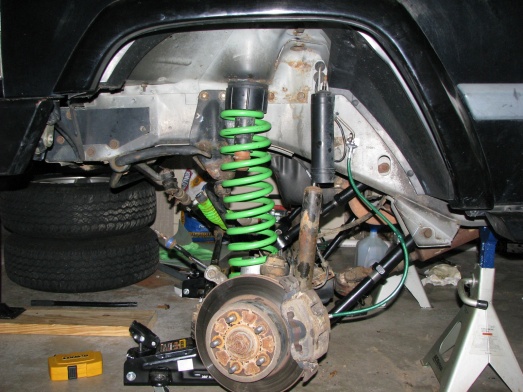

the front has 6.5" coils with 2" spacers, and iron man fab adjustable upper and lower control arms (short arms)
Attached Images
Chex_Mex is offline
Old 04-12-2010, 02:04 PM
  #7
Senior Member
Thread Starter

Chex_Mex's Avatar

Join Date: Apr 2010
Location: Houston, Tx
Posts: 646
Year: 1999
Model: Cherokee
Engine: 4.0L
Default

Yup, still need to lengthen to front shaft for max flex, but have a new one in the rear, pics to come shortly
Chex_Mex is offline
Old 04-12-2010, 02:12 PM
  #8
Senior Member
Thread Starter

Chex_Mex's Avatar

Join Date: Apr 2010
Location: Houston, Tx
Posts: 646
Year: 1999
Model: Cherokee
Engine: 4.0L
Default now for the hack n' tap

thought i'd get my 4x4 back, was able to drive it around in front wheel drive w/o the rear driveshaft (have the newer np242, no spillage and part time 4x4). just had to make sure and keep off the skinny pedal
Attached Images

Last edited by Chex_Mex; 04-12-2010 at 04:55 PM.
Chex_Mex is offline
Old 04-12-2010, 02:14 PM
  #9
Senior Member
Thread Starter

Chex_Mex's Avatar

Join Date: Apr 2010
Location: Houston, Tx
Posts: 646
Year: 1999
Model: Cherokee
Engine: 4.0L
Default hack n' tap finished

all said n' done, the hack n' tap was fairly easy
Attached Images
Chex_Mex is offline
Old 04-12-2010, 02:23 PM
  #10
Honorary Moderator

96_xj's Avatar

Join Date: Mar 2010
Location: Gilbert AZ/Las Cruces NM
Posts: 8,135
Year: 1996
Model: Cherokee
Engine: 4.0 upgraded
Default

nice looking rig! looks like you have done a good build so far, but why did you do with a 8.5" lift in the front on short arms? thats a rough ride isnt it? It has to be putting alot of stress on your uni-body right?
96_xj is offline
Old 04-12-2010, 02:26 PM
  #11
Senior Member
Thread Starter

Chex_Mex's Avatar

Join Date: Apr 2010
Location: Houston, Tx
Posts: 646
Year: 1999
Model: Cherokee
Engine: 4.0L

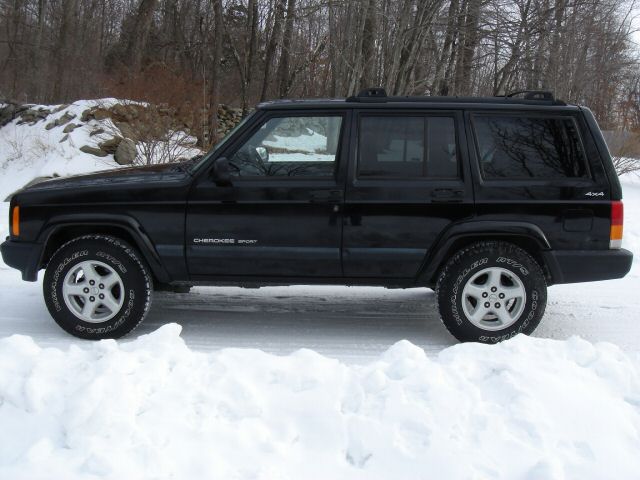

Default b4 and after shots of frankenstein

looked nice when i got her (the previous owner lived in NY and had the bottom coated with rhino liner), but something was missing, so i thought i'd tinker.....the little donuts made it look terribly mis-proportioned, so in came some 35" mickey mtz's on the new pro comp flat black streetlocks
Attached Images
Chex_Mex is offline
Old 04-12-2010, 02:32 PM
  #12
Senior Member
Thread Starter

Chex_Mex's Avatar

Join Date: Apr 2010
Location: Houston, Tx
Posts: 646
Year: 1999
Model: Cherokee
Engine: 4.0L
Default

you are completely right 96 xj, i went with the short arm due to costs, but as of now have to lay off the gas in bumpy areas. One benefit of the short arms (never thought i'd say it) is that it allows me to run a shorter wheelbase. I say this because with that high angle on the arms, when ever i get off camber or hit a bump, it moves the axle forward, which gives me the needed clearance i need from in wheel wells to turn.

i hope that one day in the not too distant future i can upgrade to a long arm (if i feel it is just too bumpy). I think iron man fab makes a pretty good 3 link kit, but any long arm is just a bit too pricey as of now. before that, i need to get in some new gears...then i can keep the ride smooth by just crawling, thinking of running 4.10s, any thoughts?

Last edited by Chex_Mex; 04-12-2010 at 05:08 PM.
Chex_Mex is offline
Old 04-12-2010, 02:45 PM
  #13
Junior Member

NosferatuMan's Avatar

Join Date: Mar 2010
Location: Bakersfield, CA
Posts: 58
Year: 1993
Model: Cherokee
Engine: I6 4.0L HO
Default

that looks really good. good job. im super jealous.
NosferatuMan is offline
Old 04-12-2010, 02:51 PM
  #14
Senior Member
Thread Starter

Chex_Mex's Avatar

Join Date: Apr 2010
Location: Houston, Tx
Posts: 646
Year: 1999
Model: Cherokee
Engine: 4.0L
Default

with hard work comes the benefits, been workin with my dad on it for about 6 months now (bit by bit when i could afford the parts). I should name it ebay crawler though....just about everything on it was purchsed from ebay haha, made for a cheap builld though. took it out to test all the parts (see if they were cheaply made) held up great, so far, i'll post pics later tonight
Chex_Mex is offline
Old 04-12-2010, 05:34 PM
  #15
Seasoned Member

moundhill's Avatar

Join Date: Mar 2010
Location: SE OHIO
Posts: 466
Year: 1999
Model: Cherokee
Engine: Inline 6
Default

wow man, looks awsome! sweet build
