View Poll Results: What color should I paint it for Hawaii?
Khaki or Tan
40.00%
Olive Drab
13.33%
Semi Gloss Black
6.67%
Desert Cammo pattern
13.33%
Woodland Tiger Stripe Pattern
26.67%
Voters: 15. You may not vote on this poll

Pathkiller

Old 11-07-2015, 07:02 PM
  #1
Junior Member
Thread Starter

Deltatech's Avatar

Join Date: Nov 2015
Posts: 44
Year: 1992
Model: Cherokee
Engine: 4.0
Default Pathkiller



quick shot, I'll get better ones soon.


1992 Jeep Cherokee, 4.0 I6 Bone stock.
Initial purchase $800

I searched for a Jeep on Craigslist for over a year, I saw YJ's pop up on a weekly basis but were always out of my price range or not worth the price asked.
One day I walk over to the local coffee shop like I do most days and while on my way home my neighbor at the Harley shop has this 92 Cherokee sitting outside, I sit and talk story with him for a minute and
he says"you still looking for a Jeep?"
"Yup"
"this runs, is legal and $800 takes it"
"I'll be right back!"
Bank,Back,Cash in Hand....Left with the 92' Cherokee
Didn't even look at it first.

I had always heard Xj's were junk and figured it was why they were always so cheap, now I've got one and I'll see for myself.It's one of the best kept secrets, the XJ's are cheaper, more fun and easier to work on than the YJ. I see stock XJ's for $1500 every week here.
Even saw an 05' for $500 with a good body.

So far,
The fourth day of ownership my distributor pickup went out so I ordered a new one online and proceeded to uninstall the broken one.
The bolt broke off that holds the pickup inside the distributor, then I cancelled the order for the pickup and ordered a used distributor for $29 saving me about $40. I hope the rest of the build goes like this!! Break a bolt save Money!!

Named it after the famous Cherokee
Pathkiller,(1749 to January 1827)
Pathkiller was the Principal Chief of the Cherokee Nation, fought in the Revolutionary War for Britain and in the wars against American frontiersmen from 1783 through 1794. Pathkiller, a "fullblood," unacculturated Cherokee, became principal chief in 1811 and was the last individual from a conservative background to hold that office. Although Pathkiller remained principal chief through 1827, authority in the Cherokee Nation, after 1813, shifted to Charles Hicks.

Pathkiller was the mentor to John Ross, identifying the young Cherokee of Scotch-Irish descent as the future leader of the Cherokee people. Pathkiller is buried in New Echota Cemetery in New Echota, Georgia.


Future Upgrade list
Brakes
Rims/Tires
Lift
Bumpers/Winch
Roof rack
Snorkel

Repair list
Floor pans (THERE ARE NONE!!!)
Suspension Bushings
E brake line
Exhaust leak/hole @ header collector
New Distributor(pickup went out)
Headliner
Ac unit
Tranny line leak(from the quick connector)
oil adapter leak
valve cover gasket leak(guess)
Left speaker wiring either has a short or isn't connected.
Rust holes
rear hatch lift supports
Working on Photos, will have posted soon.

Last edited by Deltatech; 11-08-2015 at 02:18 AM. Reason: Spelling corrections
Deltatech is offline
Old 11-07-2015, 10:21 PM
  #2
HUH? WHAT?

XJwonders's Avatar

Join Date: Jan 2013
Location: west chester, pa
Posts: 19,100
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0
Default

Awesome backstory
XJwonders is offline
Old 11-08-2015, 02:25 AM
  #3
Junior Member
Thread Starter

Deltatech's Avatar

Join Date: Nov 2015
Posts: 44
Year: 1992
Model: Cherokee
Engine: 4.0
Default

Originally Posted by XJwonders View Post
Awesome backstory
Thanks, this is more to track my own progress ,but I am adding content as I go.
While it's down (parts come in on the 19th) I'm trying to find a short or disconnection in the left side speaker wires, neither the front nor back left side work, I changed out the Head Unit thinking it would fix it but It didn't, oh well , Now I have Bluetooth!!
While I'm at it I'll take some more pics tomorrow, I already took the console out to clean it, it's now sitting in my shower,I may take the seats out to clean the carpet tomorrow so that would probably be the best time to find the disconnection/short.

Last edited by Deltatech; 11-08-2015 at 02:37 AM.
Deltatech is offline
Old 11-08-2015, 06:53 PM
  #4
Junior Member
Thread Starter

Deltatech's Avatar

Join Date: Nov 2015
Posts: 44
Year: 1992
Model: Cherokee
Engine: 4.0
Default Meanwhile in Hawaii....

Took a better look around Pathkiller today...Found a few things that need addressed before i can go mudding...

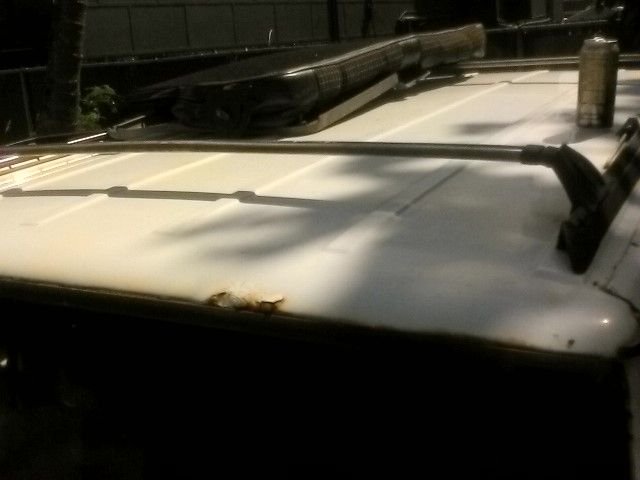

A great rust repair by the last owner....more holes than a golf course...
The rust is pretty bad but nothing that can't be fixed...













AAAND it looks like drag and dropping images doesn't work here!!!

While looking for floor pans on Amazon today I saw what I've been needing to find, there is a speaker connector under neath the drivers side carpet next to the tranny tunnel and I'd bet THAT is where mine are disconnected or shorted!!!

Last edited by Deltatech; 11-24-2015 at 07:52 AM. Reason: drag and drop images only showed code
Deltatech is offline
Old 11-10-2015, 03:22 AM
  #5
Junior Member
Thread Starter

Deltatech's Avatar

Join Date: Nov 2015
Posts: 44
Year: 1992
Model: Cherokee
Engine: 4.0
Default

Didn't get pics today but I got all but one trim panel out today, my floor pans are non existent! Found out while sitting in the drivers seat waiting the rain out,I have a leak in the windshield and drivers side door top rubber seal. Got a little overwhelmed by the size of this project today. But If anyone can get this XJ put back in running order it's me and the guys on this forum!!! As soon as I get the seats and carpet out I'll post pics of the floorpans or lack there of!
Still didn't find the short in the left speakers....still waiting on the distributor, coming to a decision on what size lift and tires, flares and in what order to get them in, Logic states lift, flares,tires. but my tires are bald and I'm not sure they will last long enough to get the lift in.
I may as well go 4.5 with 32x11.5 with 5 inch flares.Ther are not many places to go mudding here and it will see more street than mud. But it's always nice to have options!!
Deltatech is offline
Old 11-10-2015, 03:24 AM
  #6
Junior Member
Thread Starter

Deltatech's Avatar

Join Date: Nov 2015
Posts: 44
Year: 1992
Model: Cherokee
Engine: 4.0
Default

pics not working

Last edited by Deltatech; 11-10-2015 at 03:31 AM.
Deltatech is offline
Old 11-10-2015, 11:35 AM
  #7
CF Veteran

jay_sco's Avatar

Join Date: Dec 2011
Location: IE (SoCal)
Posts: 1,080
Year: 1994 SE
Model: Cherokee
Engine: 4.0
Default

Great score, congrats on finally becoming an XJ owner. With a name and story like that, I'd have to pick turquoise as the color.
jay_sco is offline
Old 11-10-2015, 06:03 PM
  #8
Junior Member
Thread Starter

Deltatech's Avatar

Join Date: Nov 2015
Posts: 44
Year: 1992
Model: Cherokee
Engine: 4.0
Default Thank you

Originally Posted by jay_sco View Post
Great score, congrats on finally becoming an XJ owner. With a name and story like that, I'd have to pick turquoise as the color.
I'm painting it with Military Carc paint, easy to paint and can repaint over scratches with a brush. The build I'm doing is mainly utilitarian.
Deltatech is offline
Old 11-10-2015, 06:42 PM
  #9
CF Veteran

jay_sco's Avatar

Join Date: Dec 2011
Location: IE (SoCal)
Posts: 1,080
Year: 1994 SE
Model: Cherokee
Engine: 4.0
Default

In that case, desert cammo. Olive and tan have been done too many times on XJs, semi black has been done too much on everything, tiger stripe just sounds weird.
jay_sco is offline
Old 11-10-2015, 09:16 PM
  #10
Junior Member
Thread Starter

Deltatech's Avatar

Join Date: Nov 2015
Posts: 44
Year: 1992
Model: Cherokee
Engine: 4.0
Default New Distributor fixed the no start

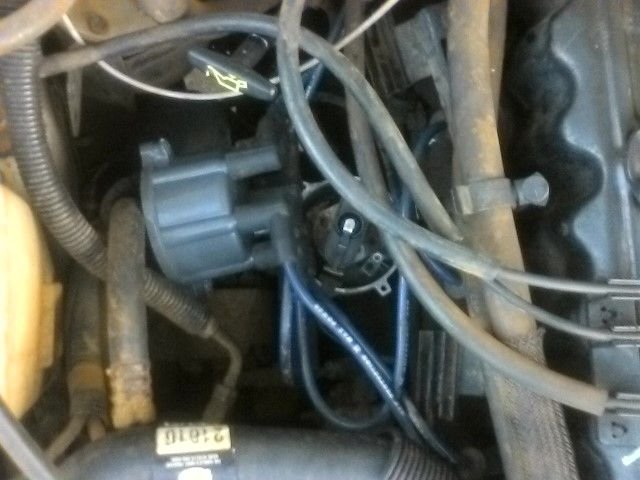

Put the new Distributor in and it fired right up!


Instead of marking the cap I took a reference pic



Now waiting on a multimeter from Amazon to trace the speaker wire problem.

Last edited by Deltatech; 11-24-2015 at 07:45 AM. Reason: spelling error
Deltatech is offline
Old 11-24-2015, 07:37 AM
  #11
Junior Member
Thread Starter

Deltatech's Avatar

Join Date: Nov 2015
Posts: 44
Year: 1992
Model: Cherokee
Engine: 4.0
Default

Originally Posted by jay_sco View Post
In that case, desert cammo. Olive and tan have been done too many times on XJs, semi black has been done too much on everything, tiger stripe just sounds weird.
Thinking chocolate chip or cookie dough....

  1. *Engine and tranny mounts are broken-edit fixed the engine mounts
  2. * belt squeak-Edit FIXED
  3. * Back brakes

    rear brake lines,Capped and not hooked up
  4. *Header is cracked at the collector
  5. *New floor pans-Edit FIXED
  6. *take out and clean the fuse box and patch the hole behind it.
  7. *Tranny line leak-Edit fixed
  8. *oil change(seal leaking)-Edit FIXED
  9. *rear main (leaking)
  10. *valve cover gasket-(guess...)
  11. *Stereo wiring-no power to accessory wire
  12. *Harmonic balancer(rubber protruding)
  13. *New Injectors( going to change to the Dodge Neon 4 hole)
  14. fuel filter
  15. remove seats and carpet, headliner-Edit FIXED
  16. roof rack-Edit Built
  17. 4.5 lift
  18. tires-Edit fixed
  19. bumper
  20. winch
  21. cool ****
  22. paint/body
  23. Profit!!
The list-
*Engine- Edit FIXED and tranny mounts (broken bolt) are broken
- caused the header crack- fix before the header & exhaust...

* Back brakes..
-weren't even hooked up to the lines
& pull the wheels and inspect the components
Edit- inspected the drums-you've got to see these- I'll post pics
& wheel cycl are probably leaking
*Parts list
rear hose*
25 ft 3/16 break line coated-*
adapters*
rent a flare tool*
wheel cyl x2*
pads*
spring kit
drums x2
E brake cables-edit all bought from Amazon


Accomplished
#installed new headlight bezel
# installed new turn signal lens

#interior gutted
#New Distributor
#Temporarily waterproofed

Got a lot accomplished today, found out a lot about Pathkiller's quirks, the back breaks are not even hooked up, the hard line is plugged, I've been driving with only the front 's working.
Also found that my accessory wire to the stereo has no power while the key is on, the fuse is good, taking out the fuse panel tomorrow, on the same note the firewall is rusted out behind the fuse box, have to patch it as well.
As a quick fix I used some spray foam and calk to waterproof all of the rust holes, it's only till I have the time to cut out and weld or braze in new sheet metal, I haven't uploaded the pics yet, but will in the next few days.
Found a few XJ's for parts, If one of them has good sheetmetal it may become a doner.
Considering doing the break swap since I'm replacing all of the hardware on the back.
The doner is a 97 WJ, 318,with a bad tranny,If all goes right I should be firing up the grinder soon.

Last edited by Deltatech; 03-11-2016 at 10:59 PM. Reason: updated content
Deltatech is offline
Old 12-02-2015, 03:40 AM
  #12
Junior Member
Thread Starter

Deltatech's Avatar

Join Date: Nov 2015
Posts: 44
Year: 1992
Model: Cherokee
Engine: 4.0
Default

A NOGO on the doner, they want me to take two XJ's, I don't have room for three, the price seemed good but they wanted too much of both cash and work. In stead of giving them away because it would cost over $300 to tow them both to the junk yard , they want me to PAY and put up with the hassle of towing them both.....
In the long run new parts are worth it. They wanted $600 for one XJ with a bad tranny, a v8 in it, and none of the body parts swap cause it's a Grand Cherokee,they also wanted an undisclosed price for the second, add about $400 to $600 for towing for both, we're looking at over $2000 I can fix everything that needs it with new parts for that amount and way less hassle.
My second Amazon order today,I put the console back in even though the floor pans are going to be tore out. and DUN TA DUN.... A NEW CUP HOLDER!!!!! WTF were the Engineers thinking back in 92, hey, It's a utilitarian vehicle... Why put a cup holder in it....FACEPALM.

Last edited by Deltatech; 12-02-2015 at 03:58 AM.
Deltatech is offline
Old 01-24-2016, 11:43 PM
  #13
Junior Member
Thread Starter

Deltatech's Avatar

Join Date: Nov 2015
Posts: 44
Year: 1992
Model: Cherokee
Engine: 4.0
Default Stock Jeep Wheel Specifications

Stock 92 XJ wheel specs
15 inch
5 on 4.5 bolt pattern
4.5 inch backspace
1/2 inchx20 studs
2.78" or 71.5mm center hole

Vehicles/Year Ranges--------Wheel Size--------Lug Pattern-------Stud Size-------Hub/Center Bore
  1. 1987-2006 Jeep Wranglers 15"-16"--- 5x114.3mm--- 5x4.5in--- 1/2x20--- 71.5
  2. 2007-2016 Jeep Wranglers 17"-18" 5x127mm 5x5in 1/2x20 71.5
  3. 1955-1986 Jeep CJ5, CJ7, CJ8 Scrambler 15x6 5x139.7mm 5x5.5in 1/2-RH 108
  4. 1993-1998 Jeep Grand Cherokee 15x7 5x114.3mm 5x4.5in 1/2-RH 71.5
  5. 1999-2010 Jeep Grand Cherokee 16"-20" 5x127mm 5x5in 1/2x20 71.5
  6. 2011-2016 Jeep Grand Cherokee 16"-20" 5x127mm 5x5in 14mm x 1.50 71.5
  7. 1974-1992 Jeep Cherokee, Commanche, Wagoneer 15x6 6x139.7mm 6x5.5in 7/16-RH 108
  8. 1981-2001 Jeep Cherokee, Commanche, Wagoneer 15x6 5x114.3mm 5x4.5in 1/2-RH 71.5
  9. 1980-1993 Jeep Cherokee, Commanche, Wagoneer 15x6 5X114.3mm 5x4.5in 1/2-RH 71.5
  10. 2007-2016 Jeep Compass, Patriot 17"-18" 5x114.3mm 5x4.5in 12x1.5 67.1
  11. 2007-2016 Jeep Compass, Patriot 16"-17" 5x114.3mm 5x4.5in 12x1.5 67.1
  12. 2002-2012 Jeep Liberty 16"-18" 5x114.3mm 5x4.5in 1/2x20 71.5
  13. 2006-2010 Jeep Commander 17"-18" 5x127mm 5x5in 1/2x20 71.5

Last edited by Deltatech; 01-25-2016 at 12:07 AM. Reason: formating
Deltatech is offline
Old 03-11-2016, 10:43 PM
  #14
Junior Member
Thread Starter

Deltatech's Avatar

Join Date: Nov 2015
Posts: 44
Year: 1992
Model: Cherokee
Engine: 4.0
Default

I've done a lot to Pathkiller since my last post, I installed a new distributor, replaced the floorpans, cut out all of the rust and daimandplated the panels, put in a new stereo, got new rims and tires. replaced both radiator hoses and the heater valve. Built a roofrack and a lot more.

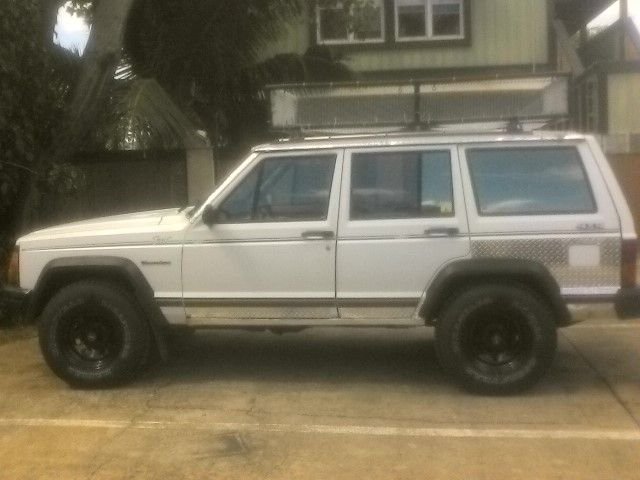

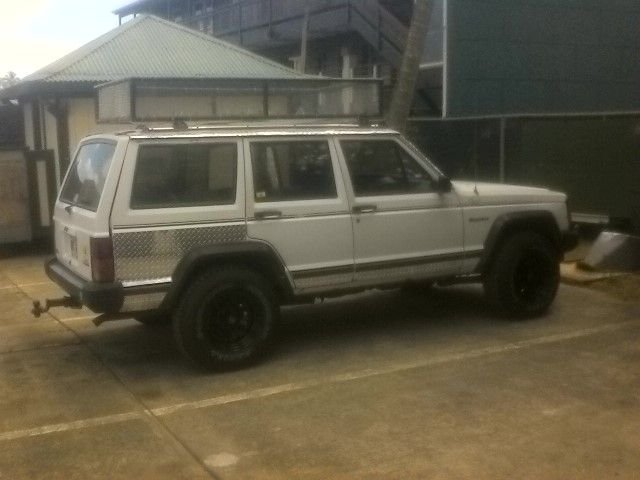

starting to look like a decent XJ.








the roofrack is made of steel pipe and concrete mesh




235/75 15 with procomps all new




I cut and rivoted daimond plate after cutting out and rustproofing the rust holes.

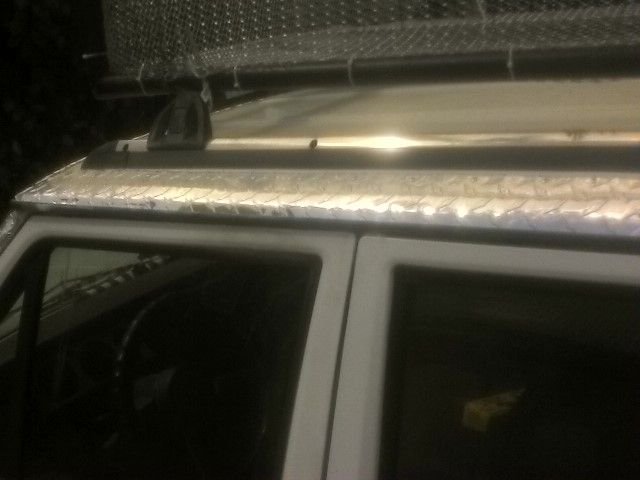

did the same to the top rails
Deltatech is offline
Old 03-11-2016, 10:44 PM
  #15
Junior Member
Thread Starter

Deltatech's Avatar

Join Date: Nov 2015
Posts: 44
Year: 1992
Model: Cherokee
Engine: 4.0
Default

currently waiting on one e brake cable from Amazon to start on the brakes. Should be here Monday. Edit: well the cable showed up on time but after I took the drums off I found out that all of the internals are missing so now I have to track down the

parking brake actuator levers for 9 inch rear drum brakes...
OEM REAR PARKING BRAKE LEVER 1987-2006 DODGE CHRYSLER JEEP PLYMOUTH LH #4313811, RH #4313810 can't seem to find the RH anywhere online.

now to get a part number for the right side...

Last edited by Deltatech; 03-19-2016 at 10:36 PM.
Deltatech is offline
