Default Little Red The Xj Build

I'd like to start off with some history of the jeep, it was originally a DNR fleet car. Then our local fire station bought it for $2000 with next to no miles on it. It was the fire chiefs jeep (my grandma) and in 2004 the fire department sold it for $800 and my parents bought it with 80-100k miles. And then my girl friend bought it from my parents 4 years for $500 with 140k on it.

Up until last fall it was all stock. Until my girlfriend and I graduated from high school and moved in together… During high school I build my truck which is an 83 Toyota pick up so I was familiar with building off-road rigs.

So here is what's done so far, and what I have planned for it.

Haves

3inch rustys offroad lift
Smitty built bumpers
Safari rack( EMT conduit)
Sway bar disconnects (homemade)
Cut down Toyota Rock sliders
32 led light bar
Shackle relocation brackets (homemade)
Air compressor
33x12.5r15 maxxis bighorns

Want to haves

Rear qt pannel armor
Chrysler 8.25 97+ 29 spline, or preferably Dana 44
Rear locker. 4.88 gears
Adjustable LCA
adjustable Track bar
Steering box brace
Winch bumper with winch
Neon injectors
99+ intake manifold
Manual transmission

I'll keep up posting pictures new things we do it it, and I'll get a picture of it from 2001 so you can see how far it came! Let me know if you have any question or advice!
LittleRed1996 is offline
Old 07-21-2015, 03:36 PM
  #2
Junior Member
Thread Starter

LittleRed1996's Avatar

Join Date: Jul 2015
Posts: 47
Model: Cherokee
Default

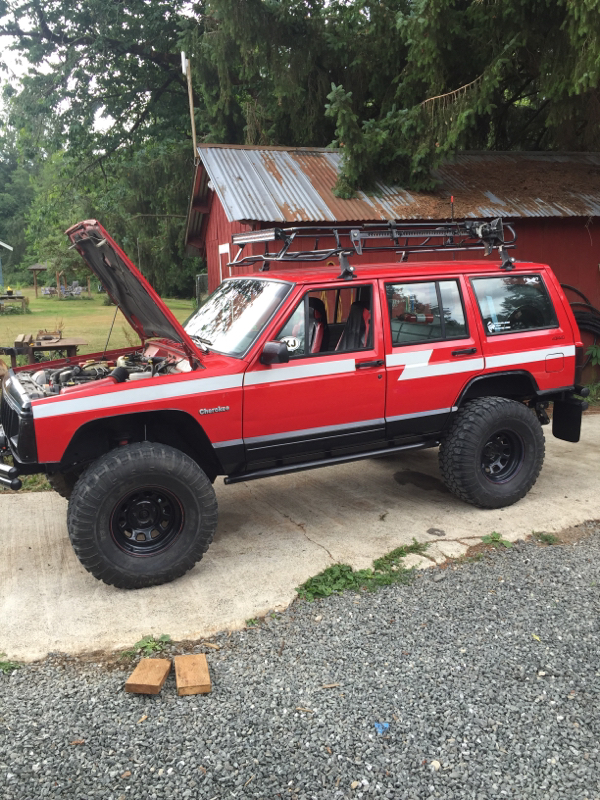

How it sits today
Attached Thumbnails Little Red The Xj Build-image-2947265336.jpg
LittleRed1996 is offline
Old 07-21-2015, 03:37 PM
  #3
Junior Member
Thread Starter

LittleRed1996's Avatar

Join Date: Jul 2015
Posts: 47
Model: Cherokee
Default

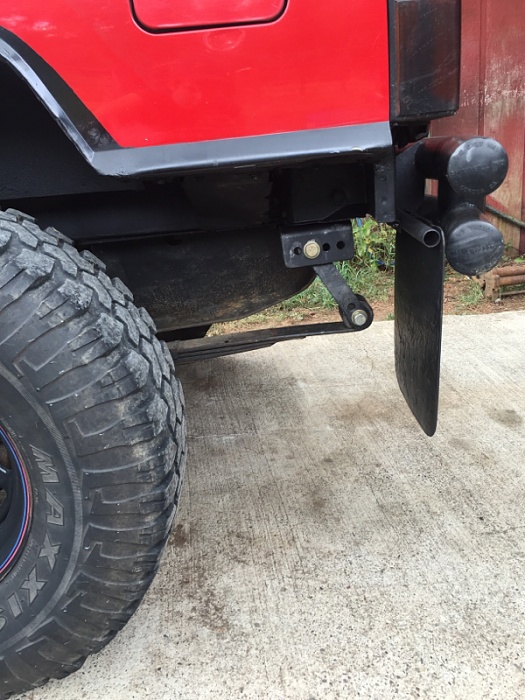

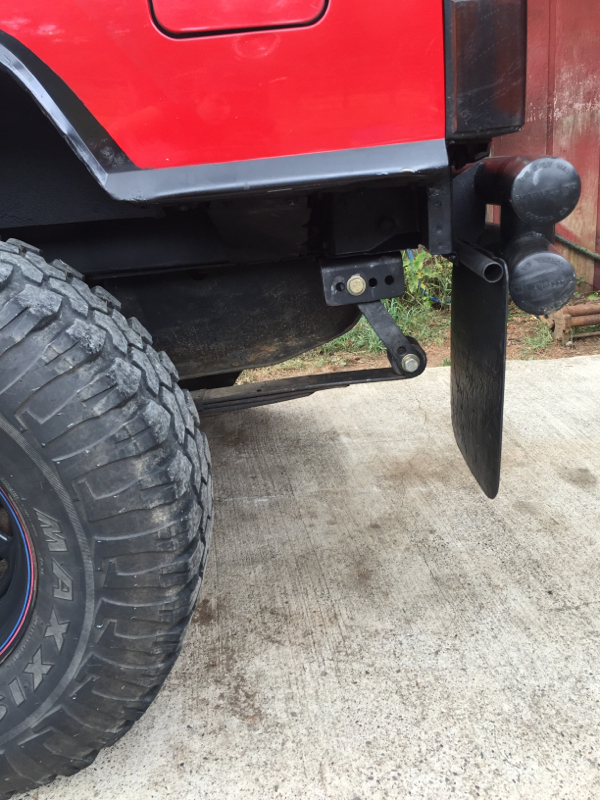

Shackle relocation brackets that I made this weekend
Attached Thumbnails Little Red The Xj Build-image-473517038.jpg
LittleRed1996 is offline
Old 07-21-2015, 03:38 PM
  #4
Junior Member
Thread Starter

LittleRed1996's Avatar

Join Date: Jul 2015
Posts: 47
Model: Cherokee
Default

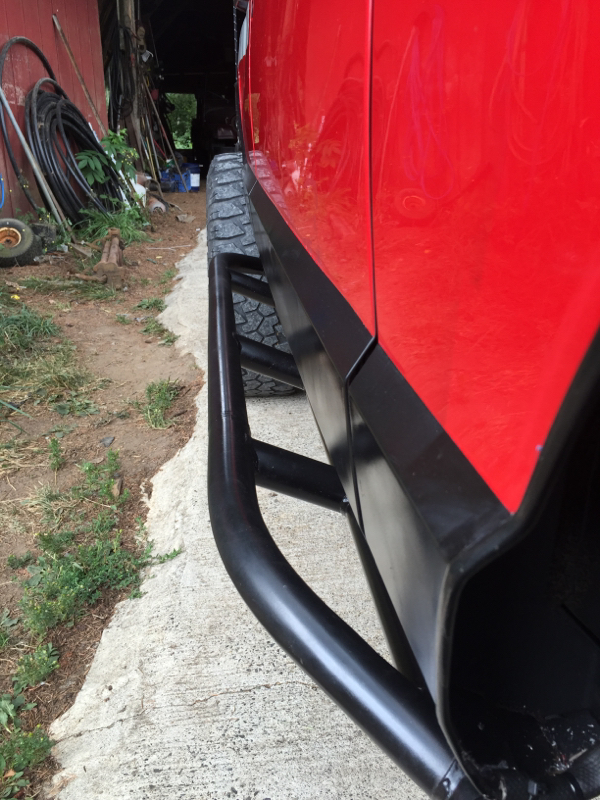

These are Toyota rock sliders that I bought at a swap meet and cut down to fit the jeep
Attached Thumbnails Little Red The Xj Build-image-1488010376.jpg
LittleRed1996 is offline
Old 07-21-2015, 03:43 PM
  #5
Junior Member
Thread Starter

LittleRed1996's Avatar

Join Date: Jul 2015
Posts: 47
Model: Cherokee
Default

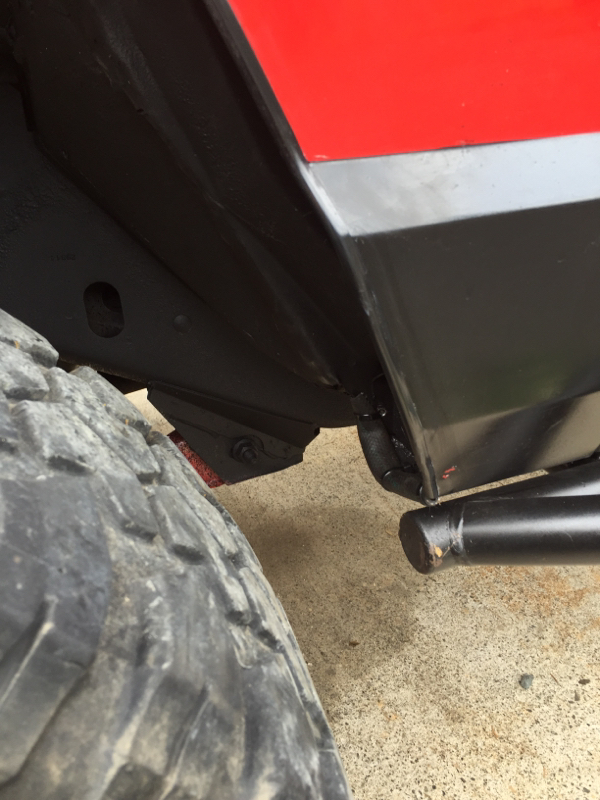

Trimmed fenders and inner fender for some more room.
Attached Thumbnails Little Red The Xj Build-image-2360557220.jpg
LittleRed1996 is offline
Old 07-21-2015, 08:03 PM
  #6
Junior Member
Thread Starter

LittleRed1996's Avatar

Join Date: Jul 2015
Posts: 47
Model: Cherokee
Default

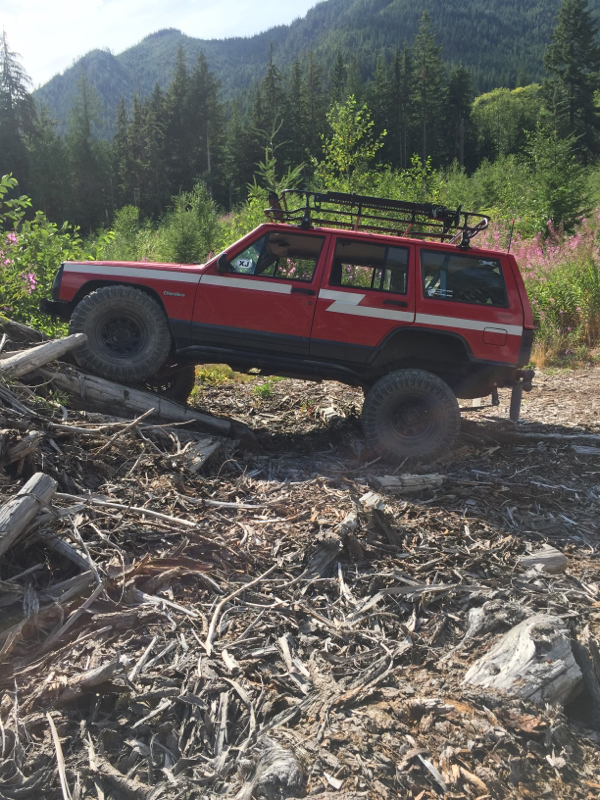

Little test
Attached Thumbnails Little Red The Xj Build-image-1839496717.jpg
LittleRed1996 is offline
Old 07-21-2015, 08:08 PM
  #7
Junior Member
Thread Starter

LittleRed1996's Avatar

Join Date: Jul 2015
Posts: 47
Model: Cherokee
Default

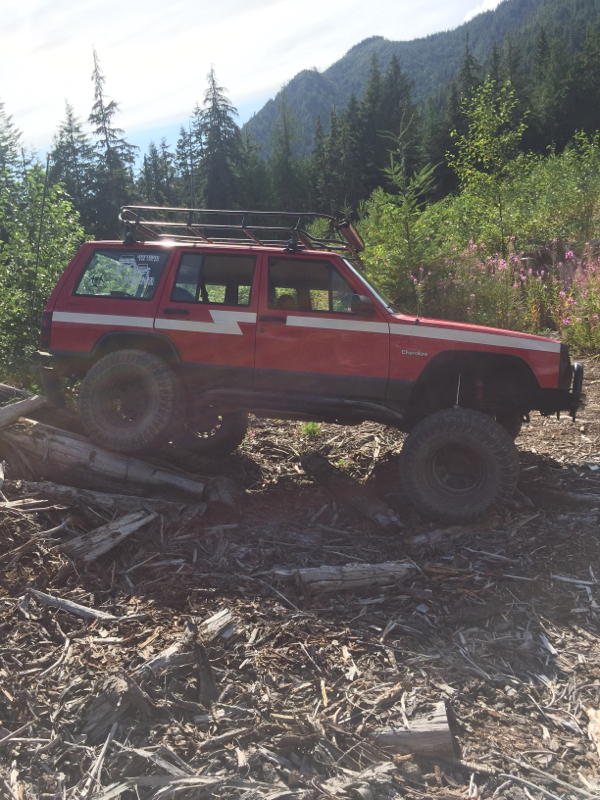

I don't think it's bad for a 3"
Attached Thumbnails Little Red The Xj Build-image-2510050470.jpg
LittleRed1996 is offline
Old 07-21-2015, 08:27 PM
  #8
Seasoned Member

Join Date: Oct 2014
Location: Buffalo NY
Posts: 383
Year: 2000 shell
Model: Cherokee
Engine: 1998 4.0l I6
Default

looks pretty good so far! deffinitly subbed. where ya from if you dont mind me askin?
jswift716 is offline
Old 07-21-2015, 08:47 PM
  #9
Junior Member
Thread Starter

LittleRed1996's Avatar

Join Date: Jul 2015
Posts: 47
Model: Cherokee
Default

Bellingham Washington.
LittleRed1996 is offline
Old 07-21-2015, 09:01 PM
  #10
Junior Member

Join Date: Sep 2013
Location: Big Rapids, MI
Posts: 44
Year: 1999
Model: Cherokee
Engine: 4.0
Default

looking good. I love the white with the red, very unique.
Mitch XJ is offline
Old 07-21-2015, 09:07 PM
  #11
Junior Member
Thread Starter

LittleRed1996's Avatar

Join Date: Jul 2015
Posts: 47
Model: Cherokee
Default

Yeah it's a white reflective stripe that the fire department put on. Same stuff that fire truck run, so it really durable!
LittleRed1996 is offline
Old 07-21-2015, 09:17 PM
  #12
Seasoned Member

StuckBuck's Avatar

Join Date: Mar 2015
Location: Oregon
Posts: 453
Year: 1995
Model: Cherokee
Engine: 4.0 I6
Default

Looks really good! Subbed! Just curious though when you installed the sliders did you mount them to the pinch seam and the frame or just to the frame. I'm pretty sure on yotas you just weld or bolt the slider to the side of the frame rail but with the xj being a uni-body we have to bolt our sliders to the frame rail and the pinch seam to prevent them from just ripping out or bending up. BleepinJeep on YouTube demonstrates this well in this video.
StuckBuck is offline
Old 07-21-2015, 09:22 PM
  #13
Junior Member
Thread Starter

LittleRed1996's Avatar

Join Date: Jul 2015
Posts: 47
Model: Cherokee
Default

Yeah I mounted them to the "frame" and have it bolted through the pinch seem with an angle iron, with one of the sides running along the floor board for extra upward strength
LittleRed1996 is offline
Old 07-21-2015, 09:35 PM
  #14
Seasoned Member

StuckBuck's Avatar

Join Date: Mar 2015
Location: Oregon
Posts: 453
Year: 1995
Model: Cherokee
Engine: 4.0 I6
Default

Ok cool i guess I just figured a yota guy goin to an xj might not think of the pinch seam and I would hate to have you rip one of those beauties off!
StuckBuck is offline
Old 07-21-2015, 09:37 PM
  #15
Junior Member
Thread Starter

LittleRed1996's Avatar

Join Date: Jul 2015
Posts: 47
Model: Cherokee
Default

Yeah thanks man! I appreciate it feel free to chime in if ever you see me doing anything too redneck. Haha
