Hey guys! First time Jeep owner here and I've got to say, I love my little Cherokee. I wanted to start a build thread so I can see how far the Jeep has come and maybe others will get some enjoyment out of it.
I've built a few GMC Jimmy's and one Blazer but they were always so big and heavy. I sold my last Jimmy because I couldn't get the motor running right after it sat in the previous owners yard with no axles for a year. I ended up bringing this '96 XJ home the same day for half of what I sold the Jimmy for.

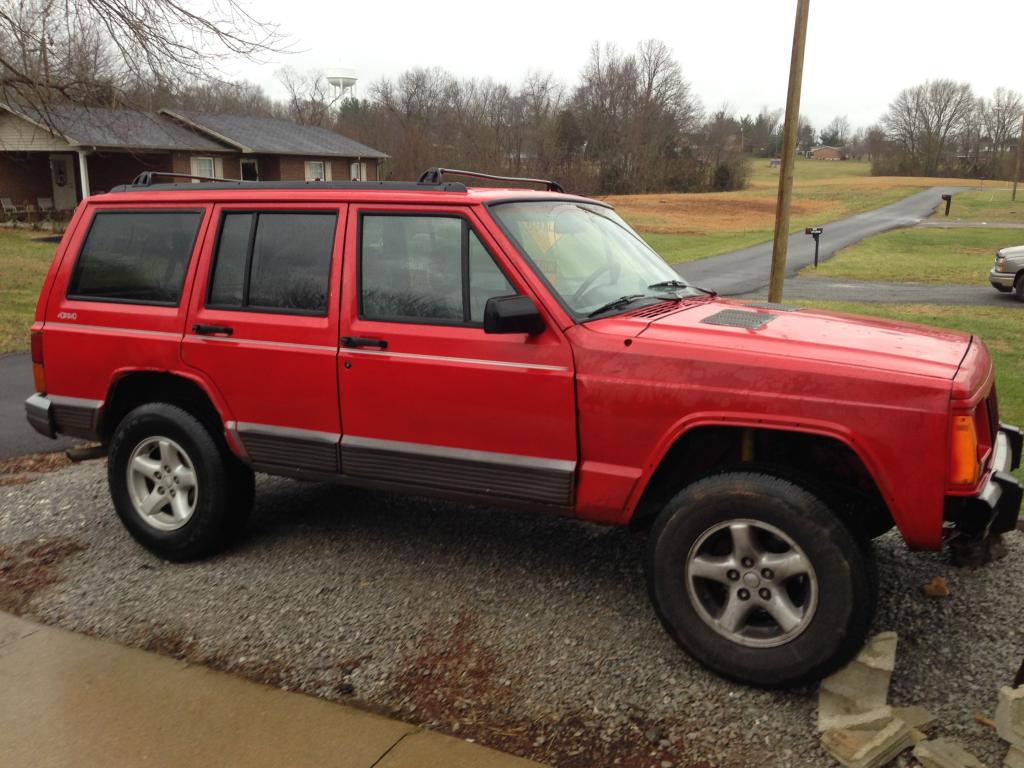

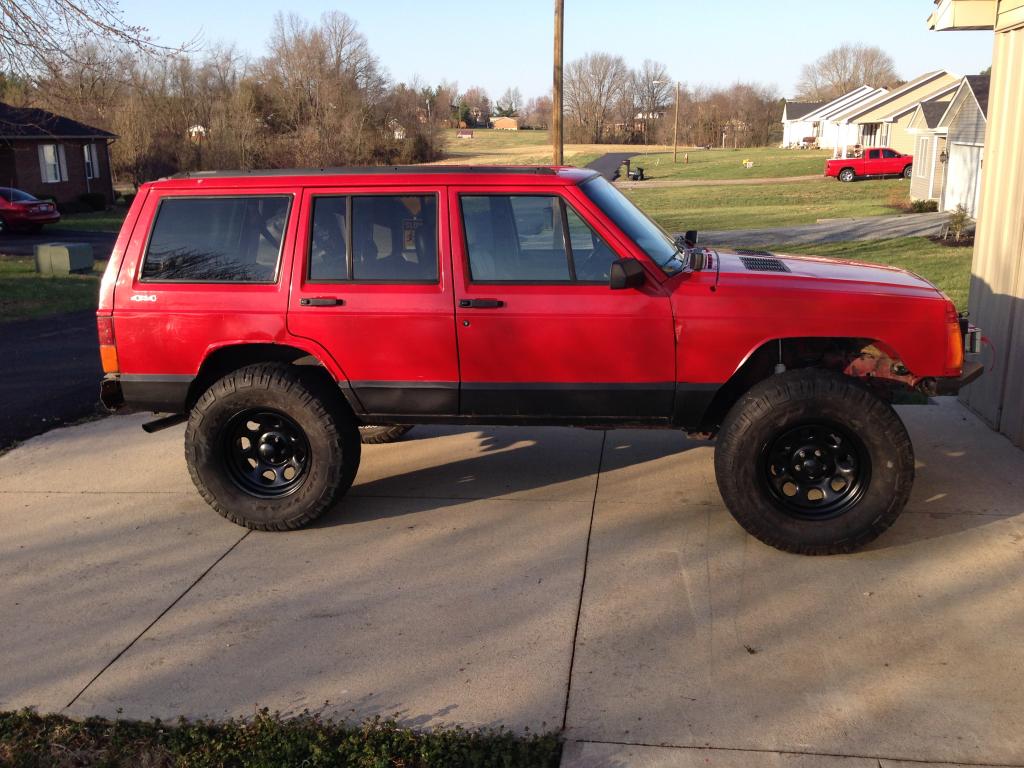

The day I brought it home

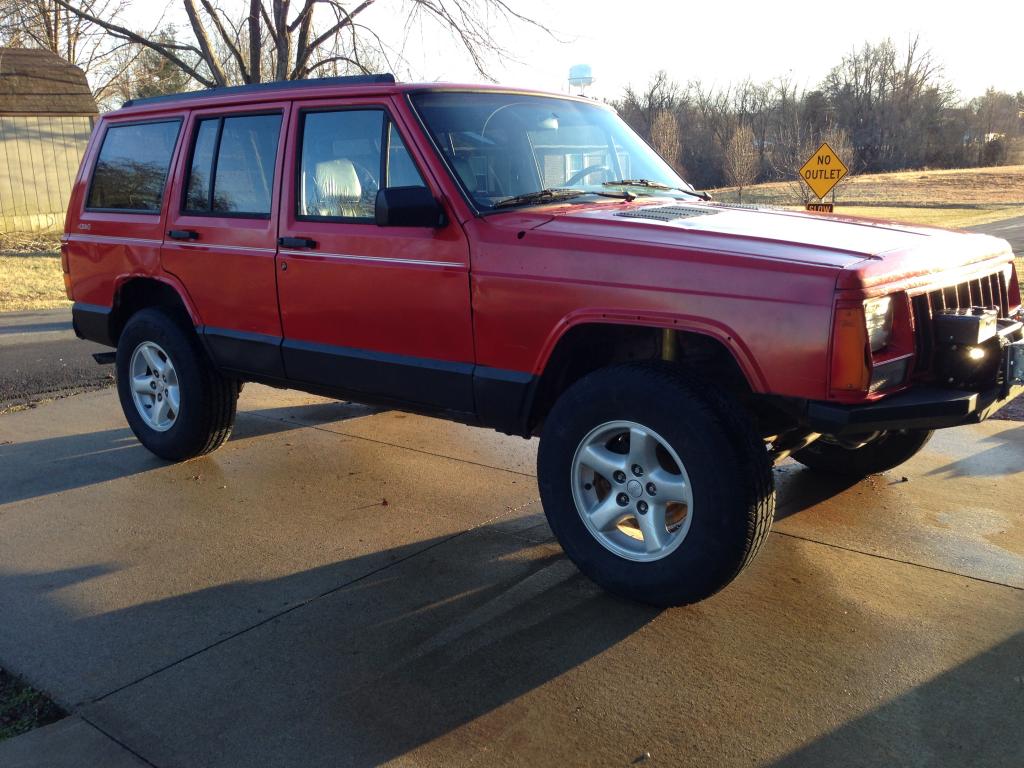

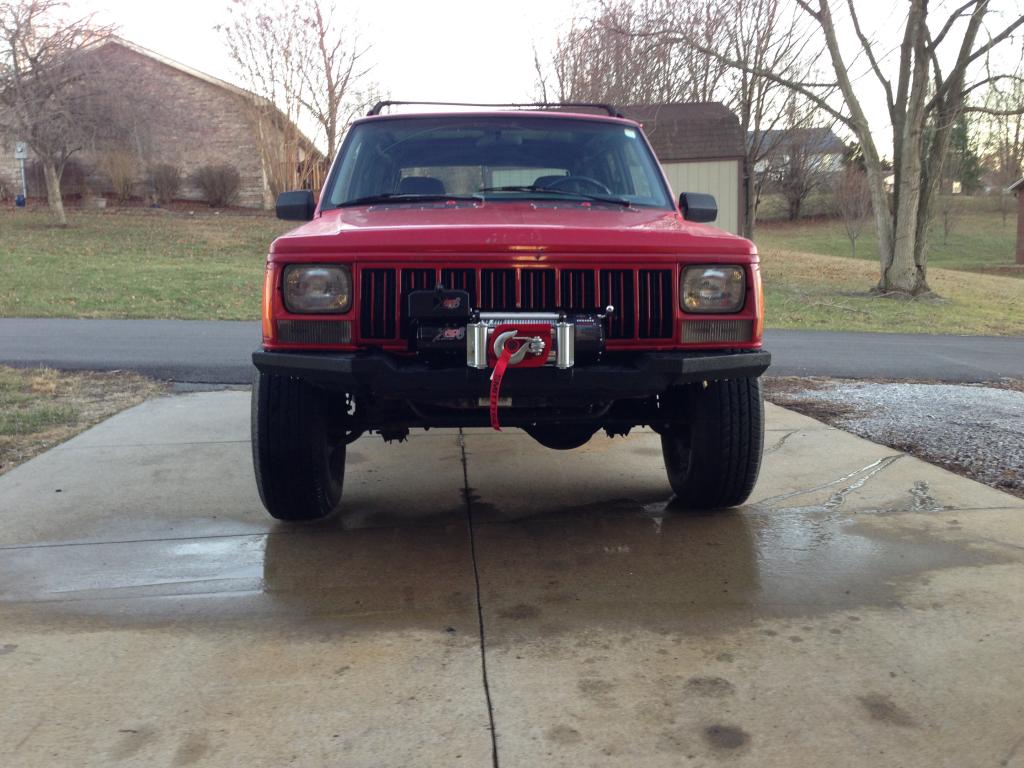

It was pretty nasty on the inside but it ran great and had a bunch of new parts (tires, battery, full exhaust, crank position sensor, shocks, and brakes). I built a bumper for it and ordered a winch pretty quick.

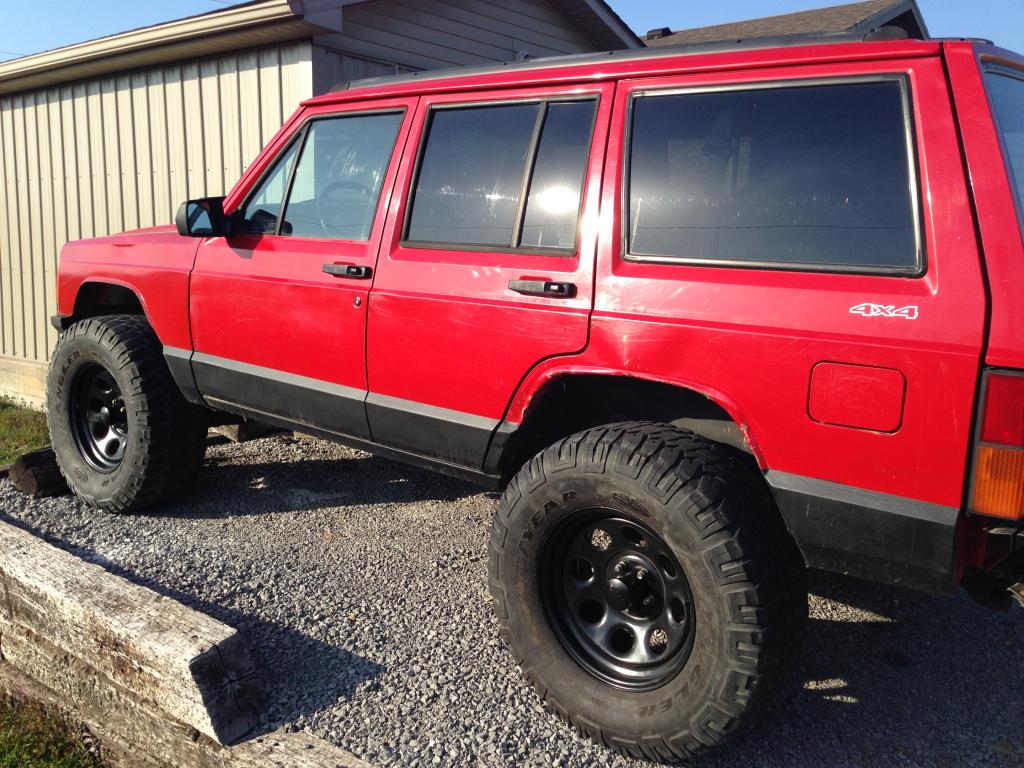

Next was the 3" Rough Country lift and I crammed some bald 34" MTR's on it.

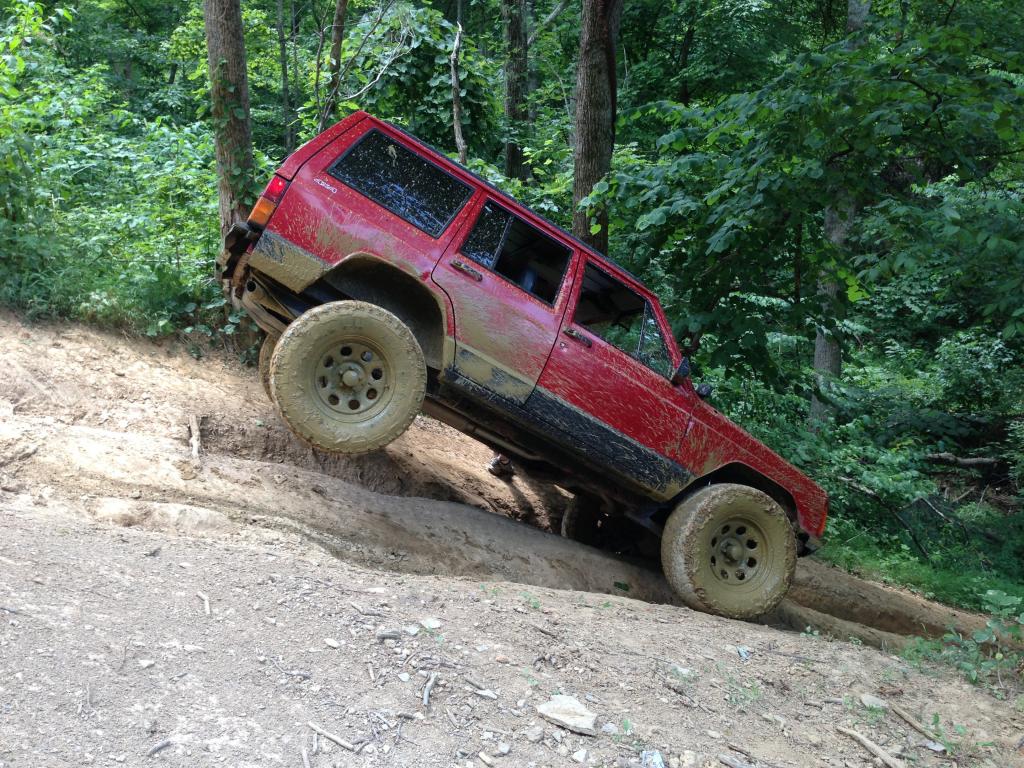

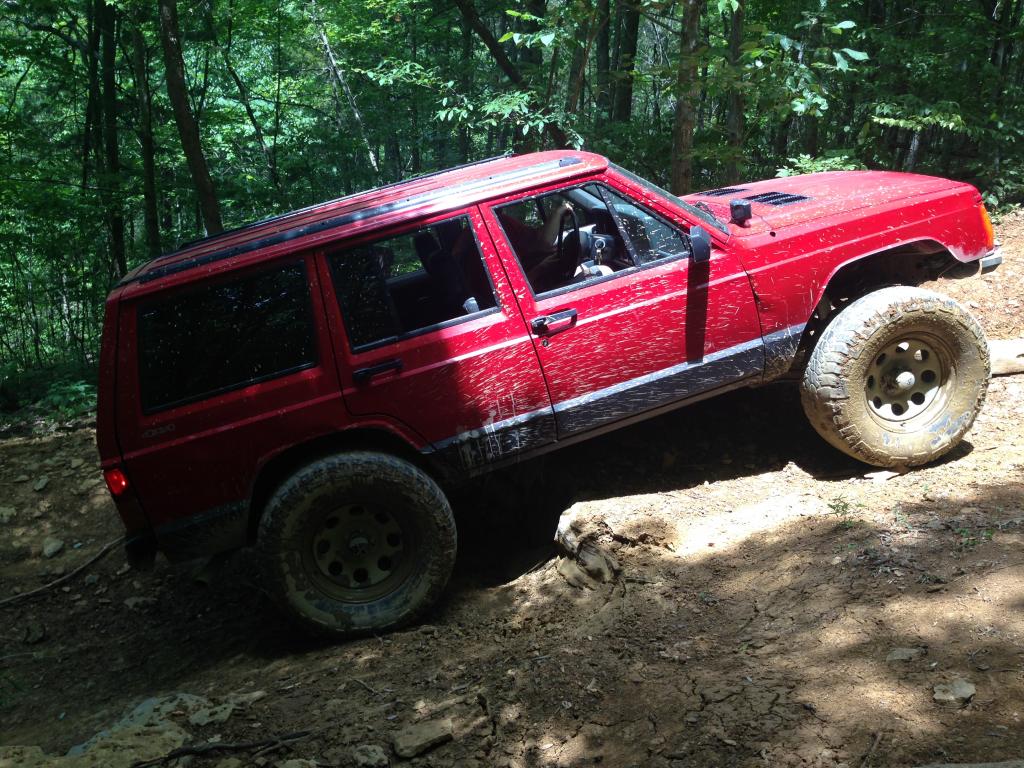

I took it four wheelin' a few times at a local place which has now officially opened as an offroad park.

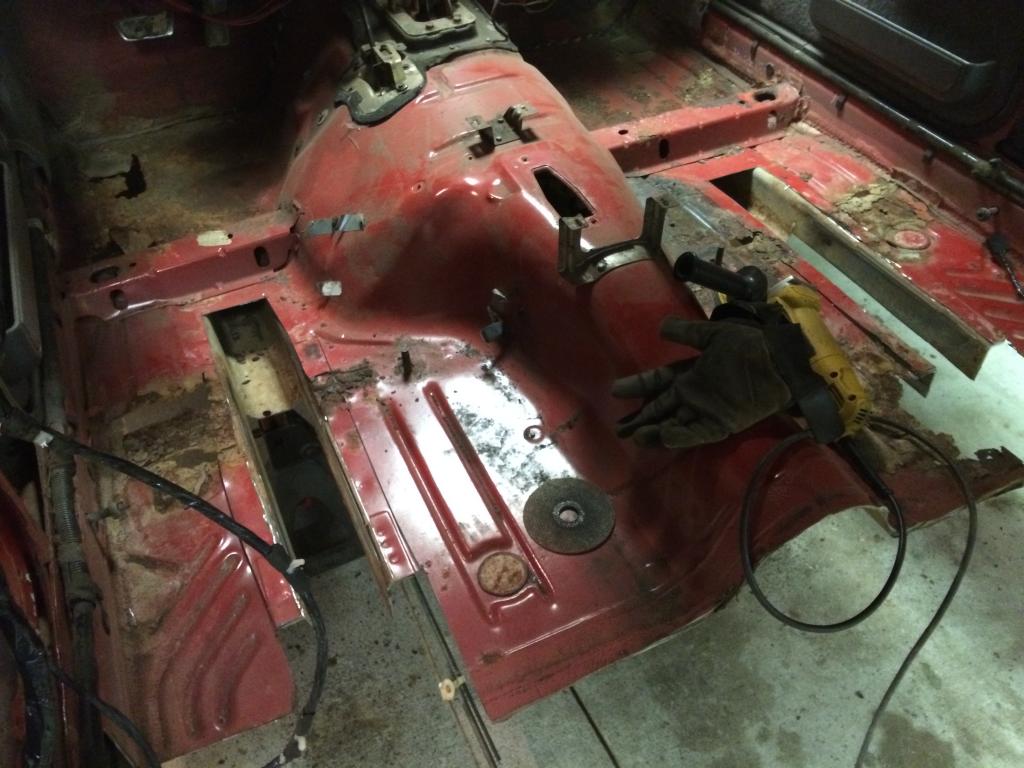

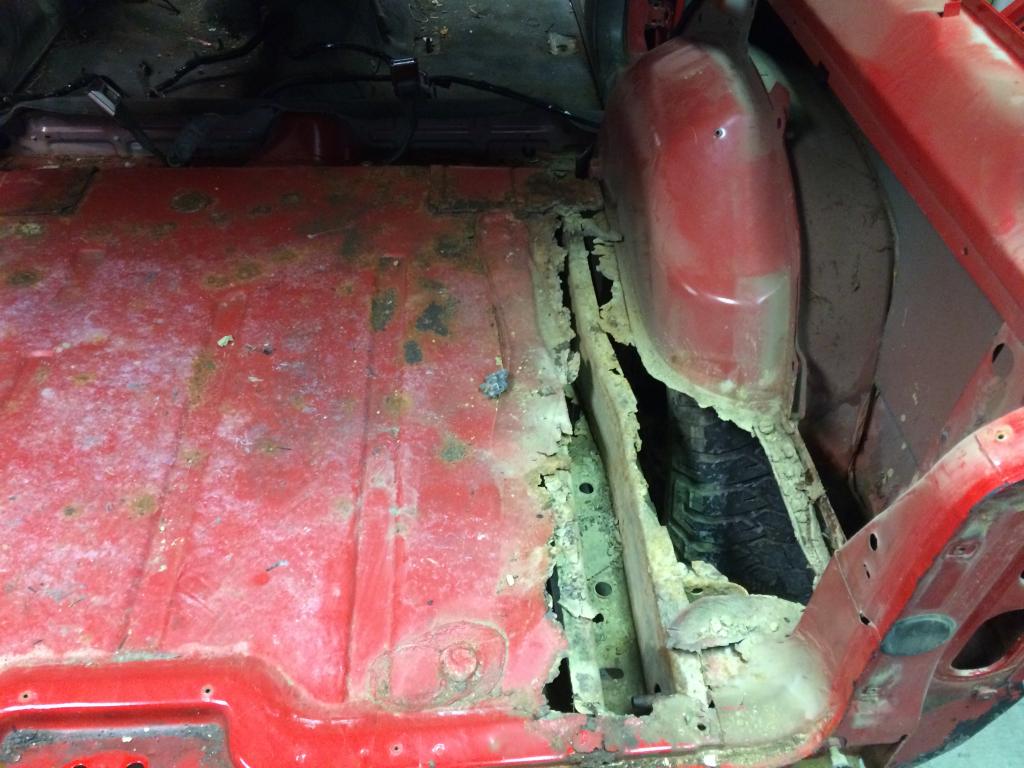

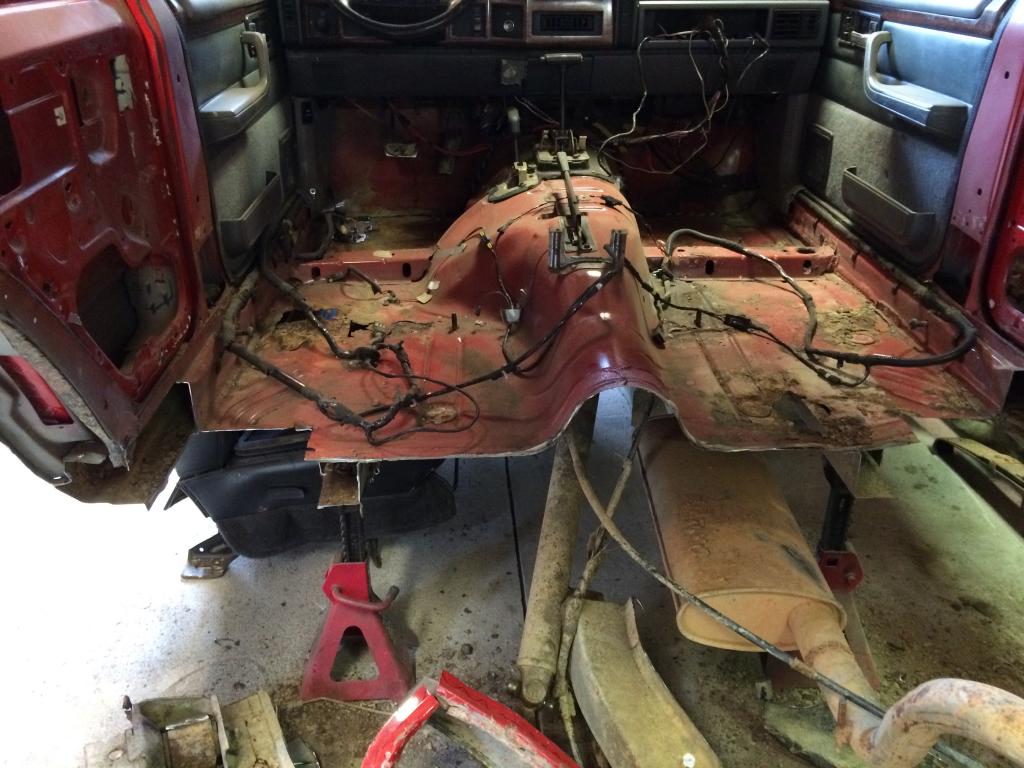

It became clear pretty quick that I bought a rust bucket. I didn't think to look at the floor pans the day I bought it since there was no signs of rust in the rockers or anywhere else.

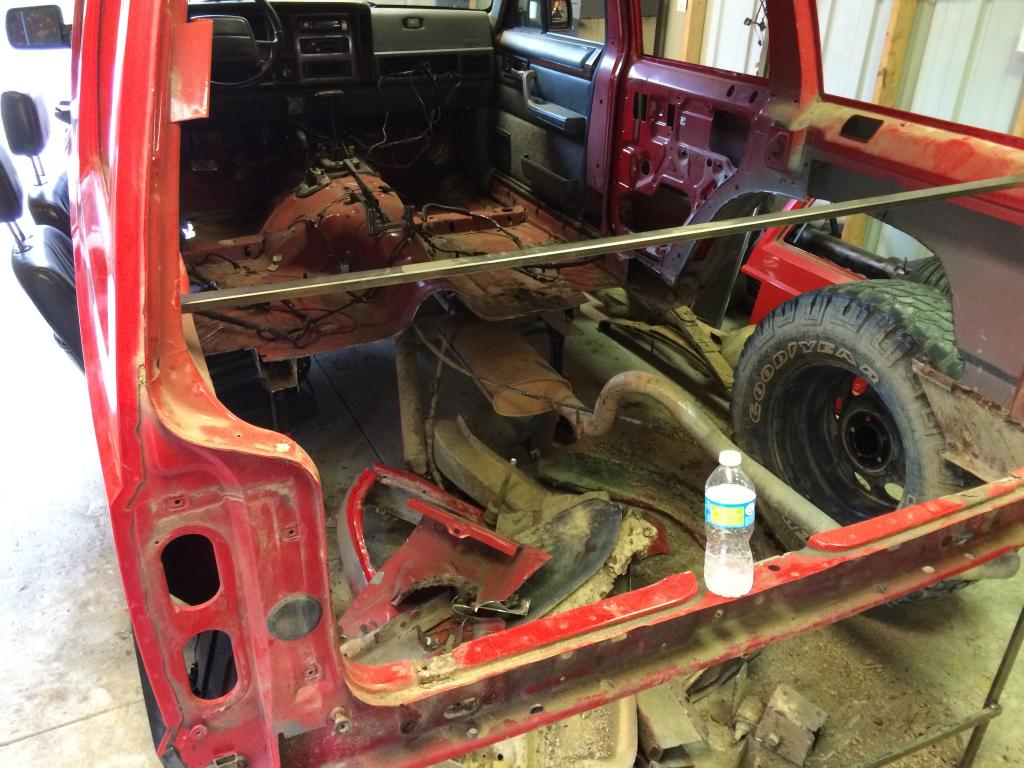

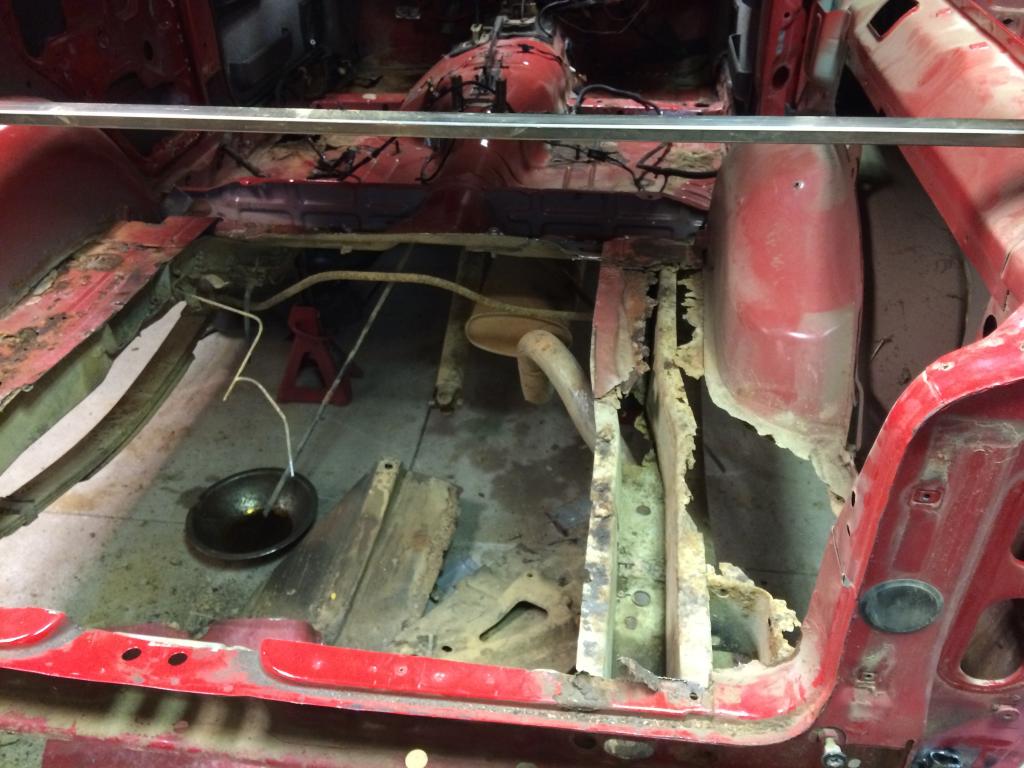

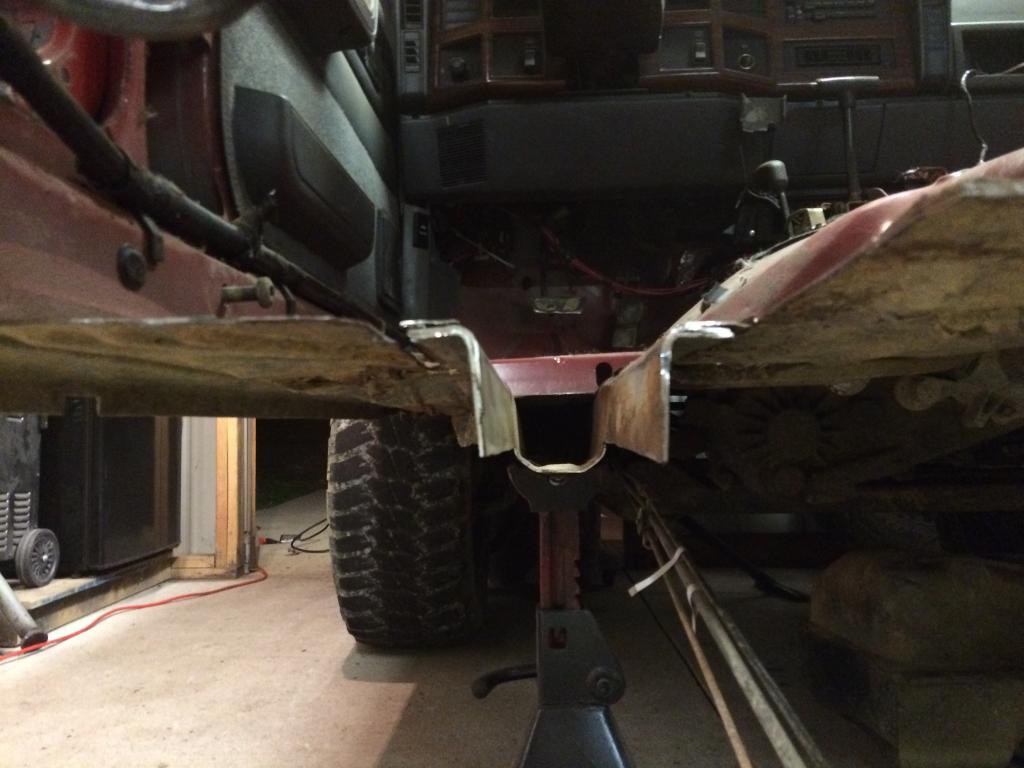

The rust runs along both sides of the unibody from front to back. It also ate through part of the frame right above the rear axle. This is when I decided to start cutting.

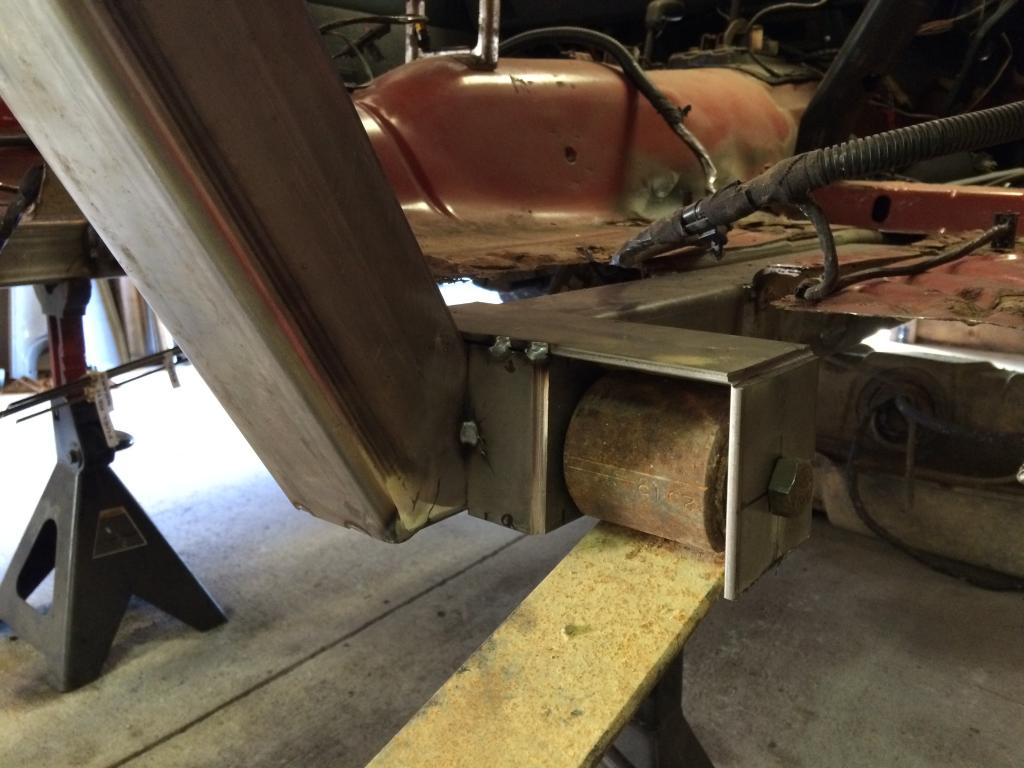

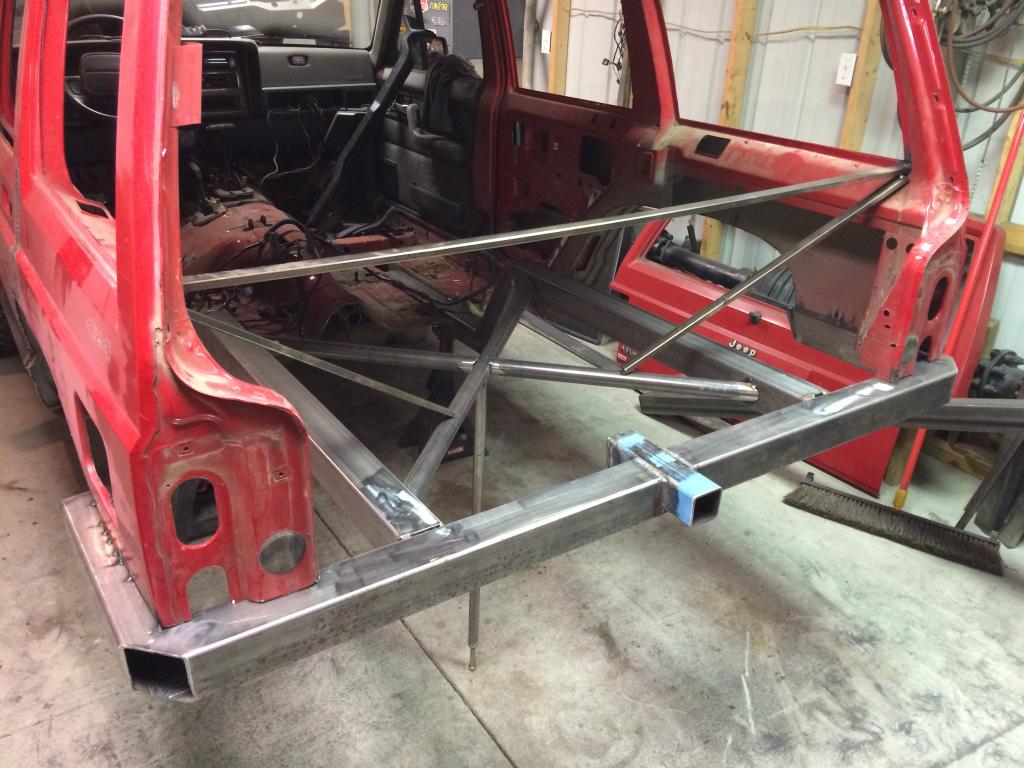

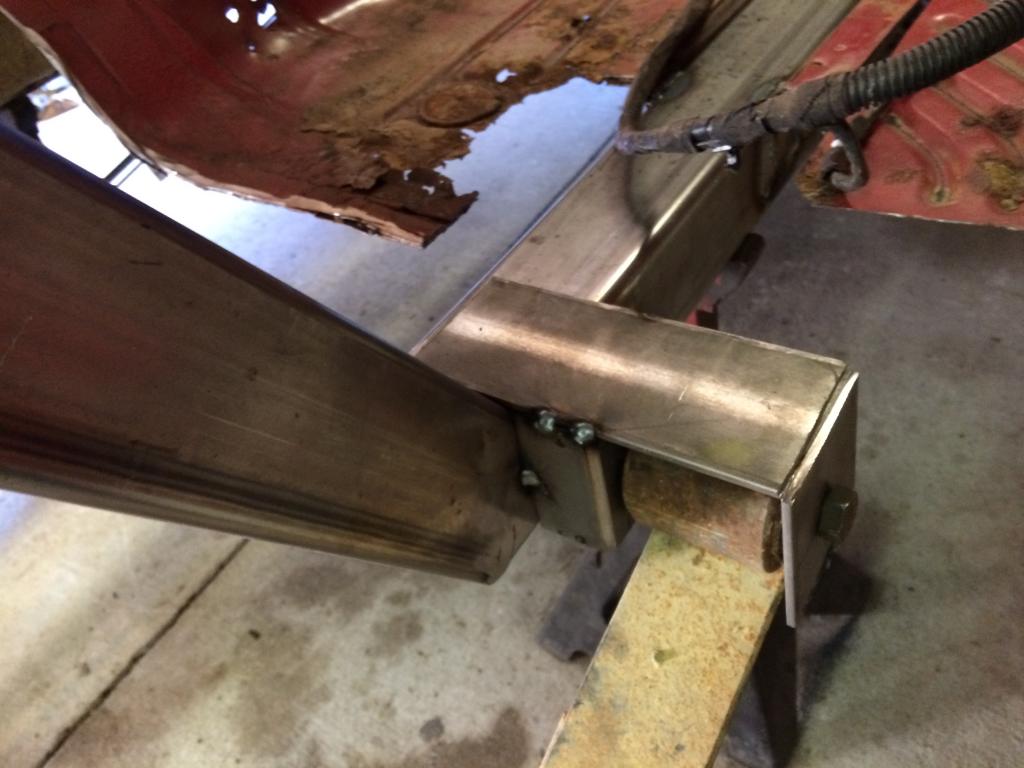

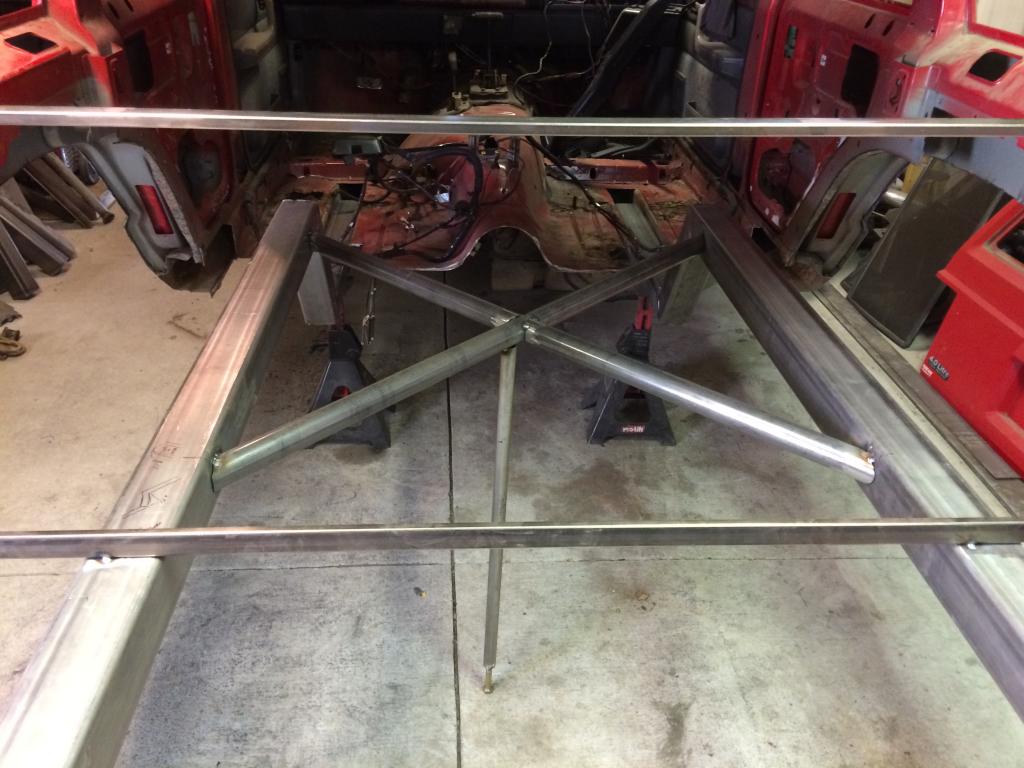

I chopped the bottom part of the frame and slid in some 3x3 tube and started reworking the rear end.
This pretty much brings me to up today. I just got my rear leaf spring bushings in the mail today so hopefully I can get the axle back in it tonight.
I've built a few GMC Jimmy's and one Blazer but they were always so big and heavy. I sold my last Jimmy because I couldn't get the motor running right after it sat in the previous owners yard with no axles for a year. I ended up bringing this '96 XJ home the same day for half of what I sold the Jimmy for.
The day I brought it home
It was pretty nasty on the inside but it ran great and had a bunch of new parts (tires, battery, full exhaust, crank position sensor, shocks, and brakes). I built a bumper for it and ordered a winch pretty quick.
Next was the 3" Rough Country lift and I crammed some bald 34" MTR's on it.
I took it four wheelin' a few times at a local place which has now officially opened as an offroad park.
It became clear pretty quick that I bought a rust bucket. I didn't think to look at the floor pans the day I bought it since there was no signs of rust in the rockers or anywhere else.
The rust runs along both sides of the unibody from front to back. It also ate through part of the frame right above the rear axle. This is when I decided to start cutting.
I chopped the bottom part of the frame and slid in some 3x3 tube and started reworking the rear end.
This pretty much brings me to up today. I just got my rear leaf spring bushings in the mail today so hopefully I can get the axle back in it tonight.
Last edited by kmk523; 11-10-2014 at 11:26 AM.
#2
Member
Thread Starter
Join Date: Jun 2014
Location: Columbia, KY
Posts: 136
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0

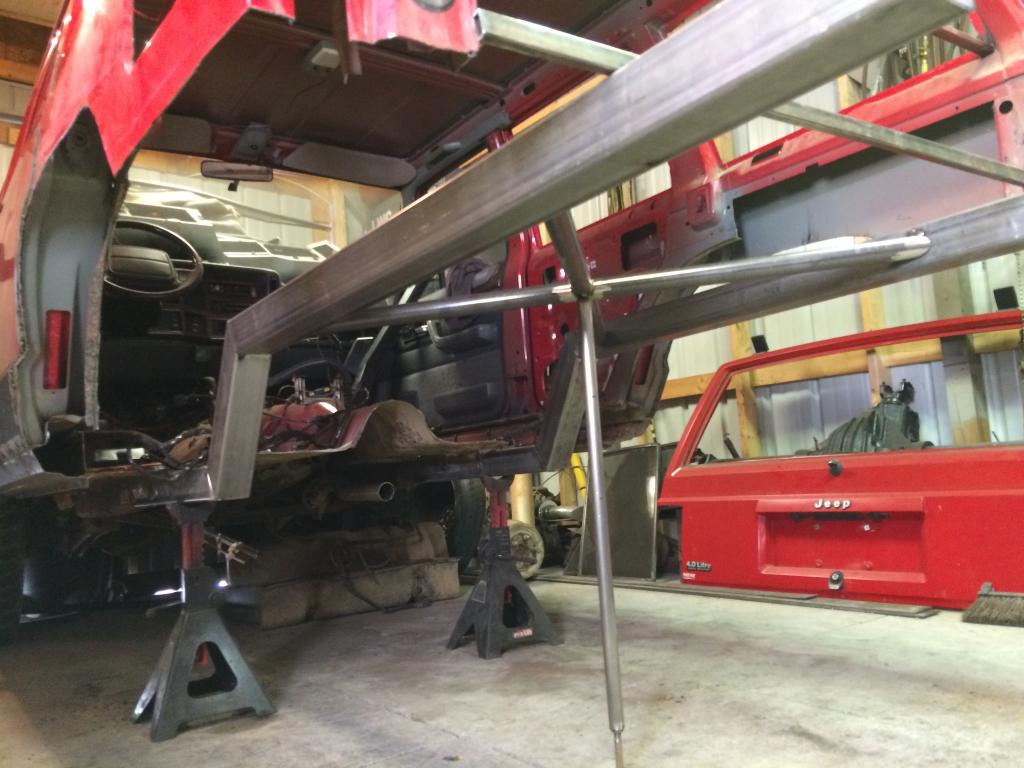

I'd really like to keep this thing light and compact. Most of the trails we run are 4 wheeler trails so they are pretty tight. So the plan now is to finish up the rear end with original axle and s-10 leaf springs for now. I do have a 14 bolt rear axle waiting but I haven't come across the right front axle that I can afford. It's also going to get 2x6 rockers tied into the old and new sections of frame. Chop the top, finish the floor pans, put a fuel cell in the bed then find someone with a bender to do a roll cage. I hope between the roll cage and 2x6 rockers, that will stiffen everything up and not put too much stress on the section of frame that's been welded in.

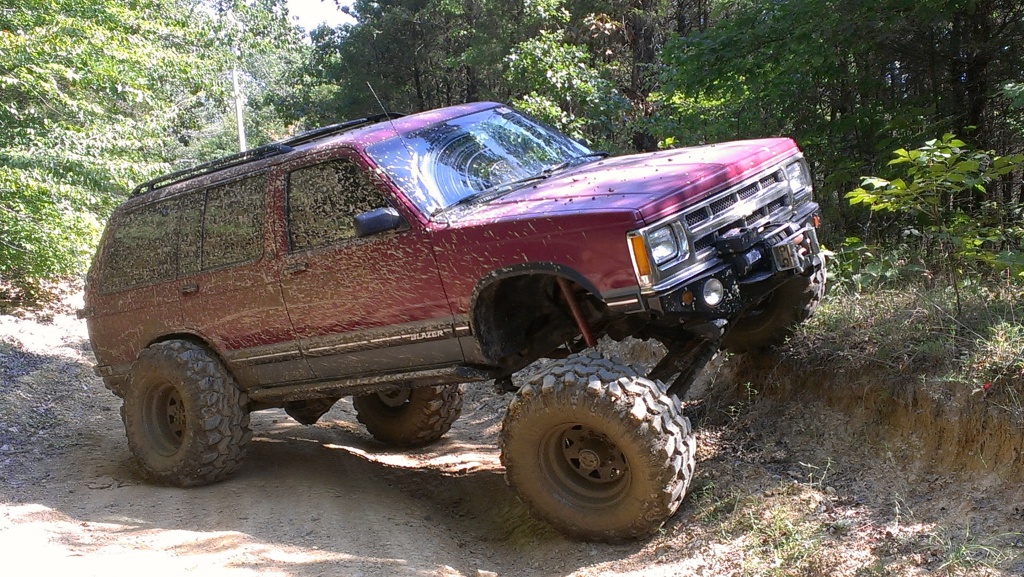

Here is the Jimmy that I sold to get the Jeep. It was pretty much stock except a dana 44 front and 9" rear axle.

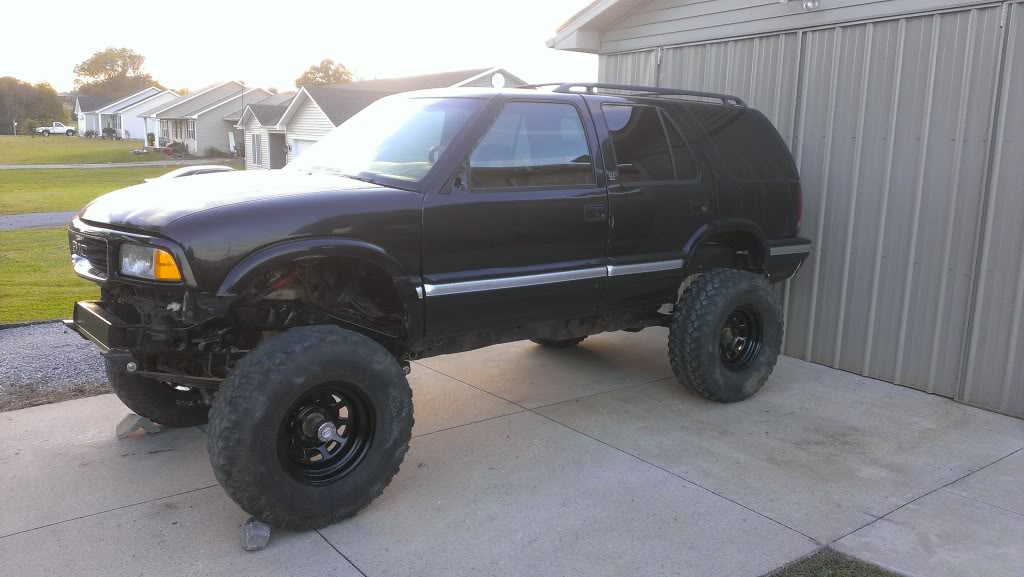

And the Blazer that I wish I could get back. It had a dana 60 and 14 bolt rear with 35" TSL's.
Here is the Jimmy that I sold to get the Jeep. It was pretty much stock except a dana 44 front and 9" rear axle.
And the Blazer that I wish I could get back. It had a dana 60 and 14 bolt rear with 35" TSL's.
#5
Member
Thread Starter
Join Date: Jun 2014
Location: Columbia, KY
Posts: 136
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0

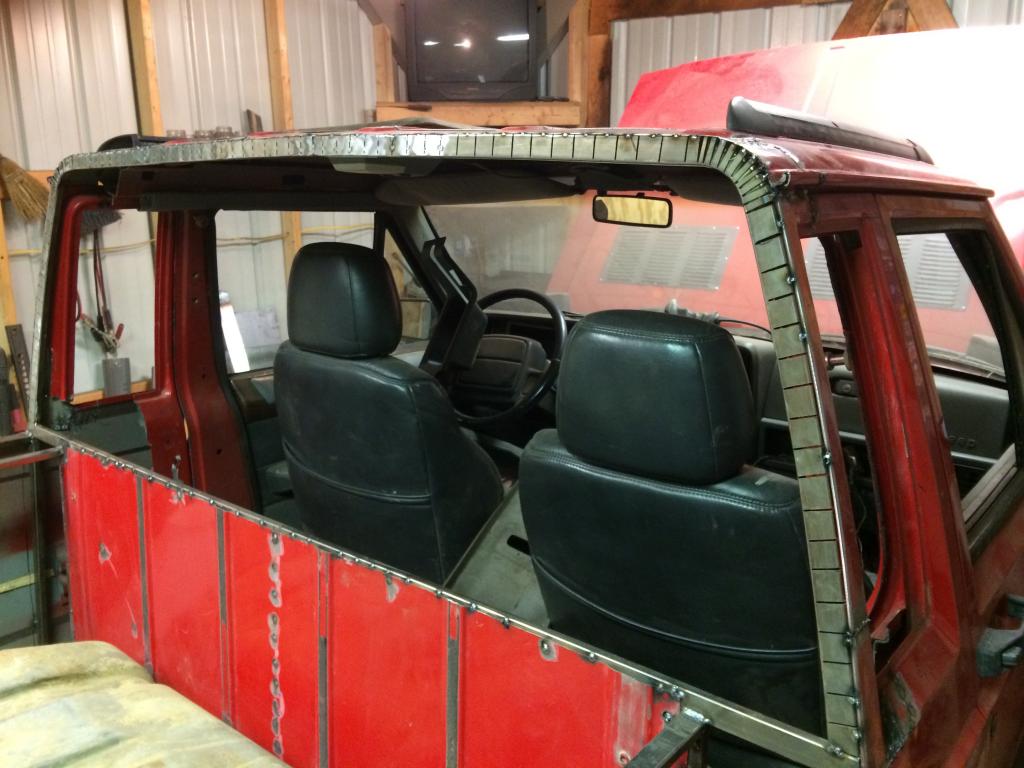

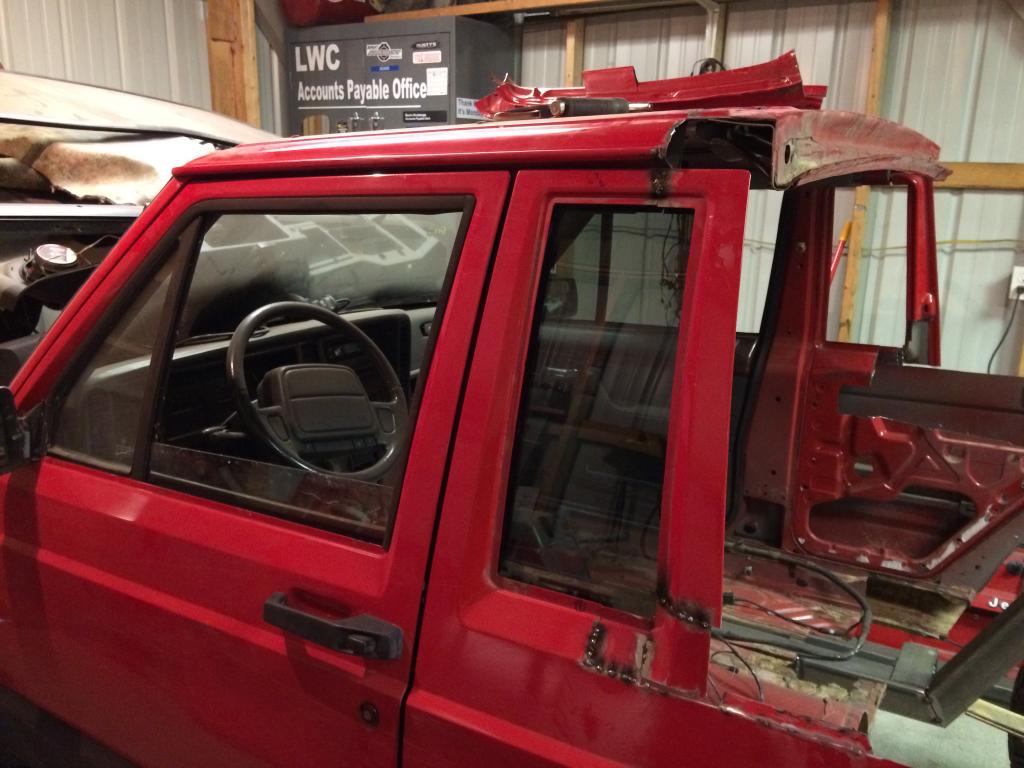

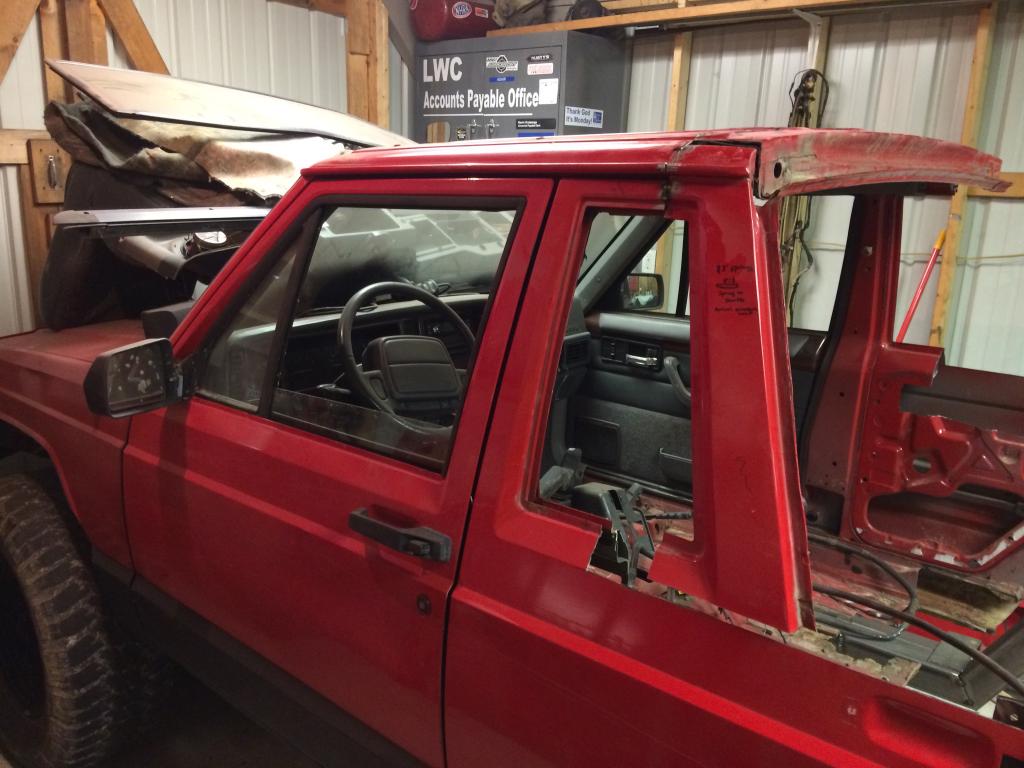

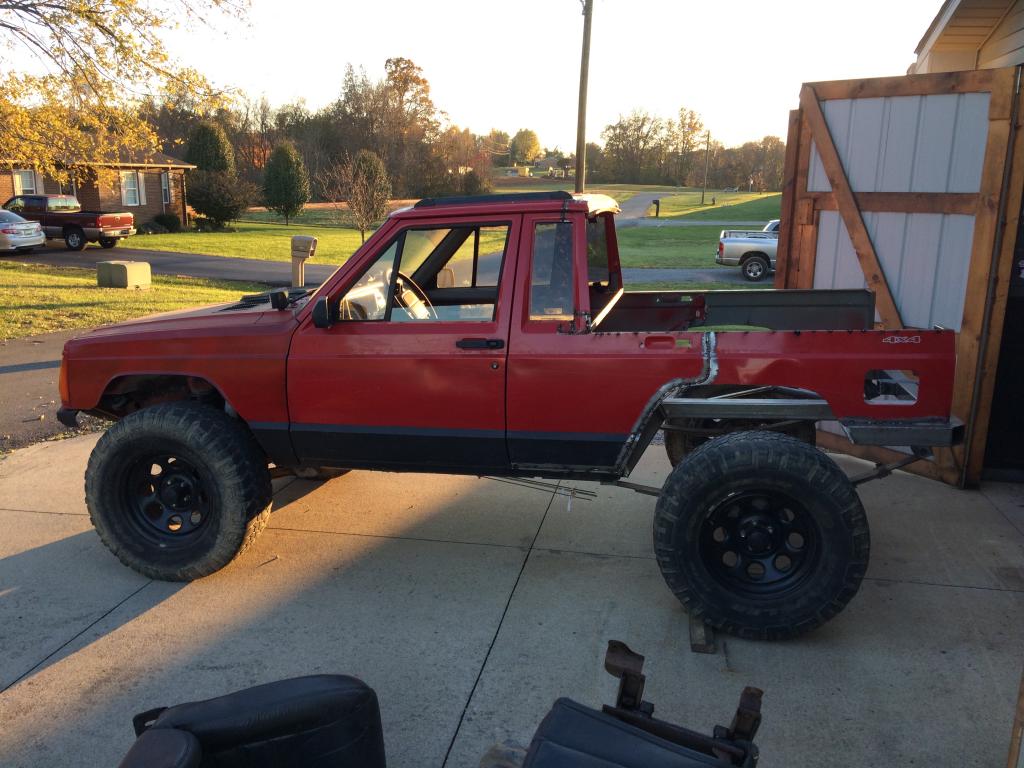

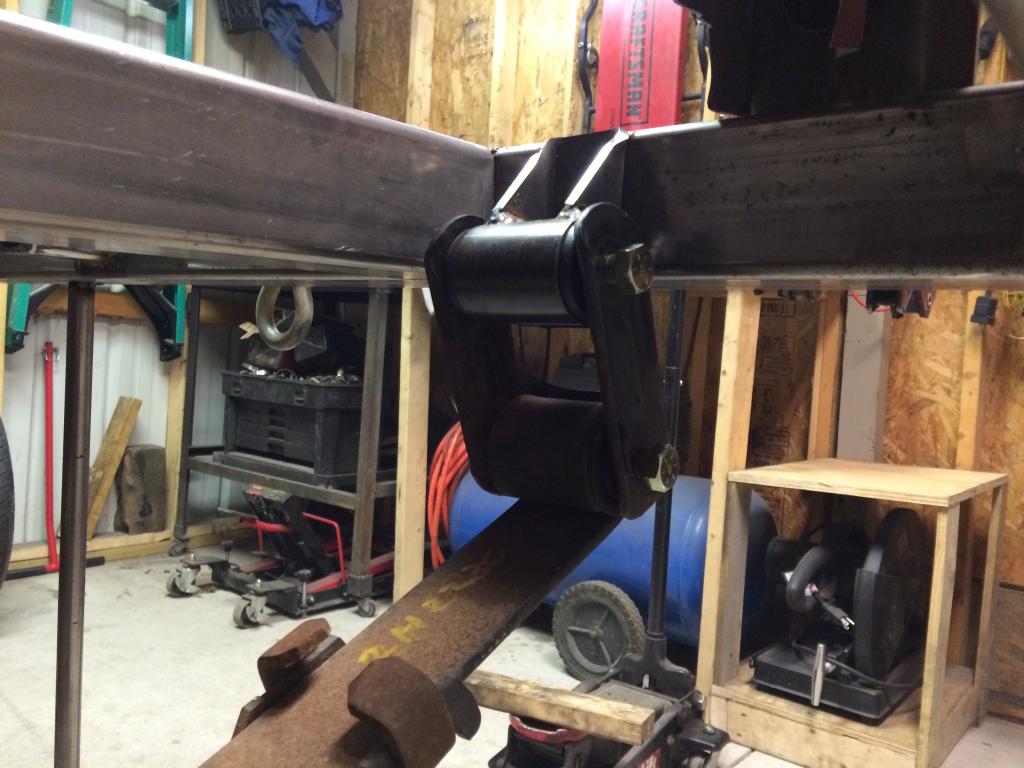

This weekend I got the rear spring bushings mounted then started working on chopping the top. I was going to use the original d pillar but didn't like the angle of the rear so I switched it up and was able to use part of the c pillar and the original windows. I've also started framing in my bed rails. It's starting to look like the extended cab Cherokee I've been wanting to build.
#6
Member
Thread Starter
Join Date: Jun 2014
Location: Columbia, KY
Posts: 136
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0

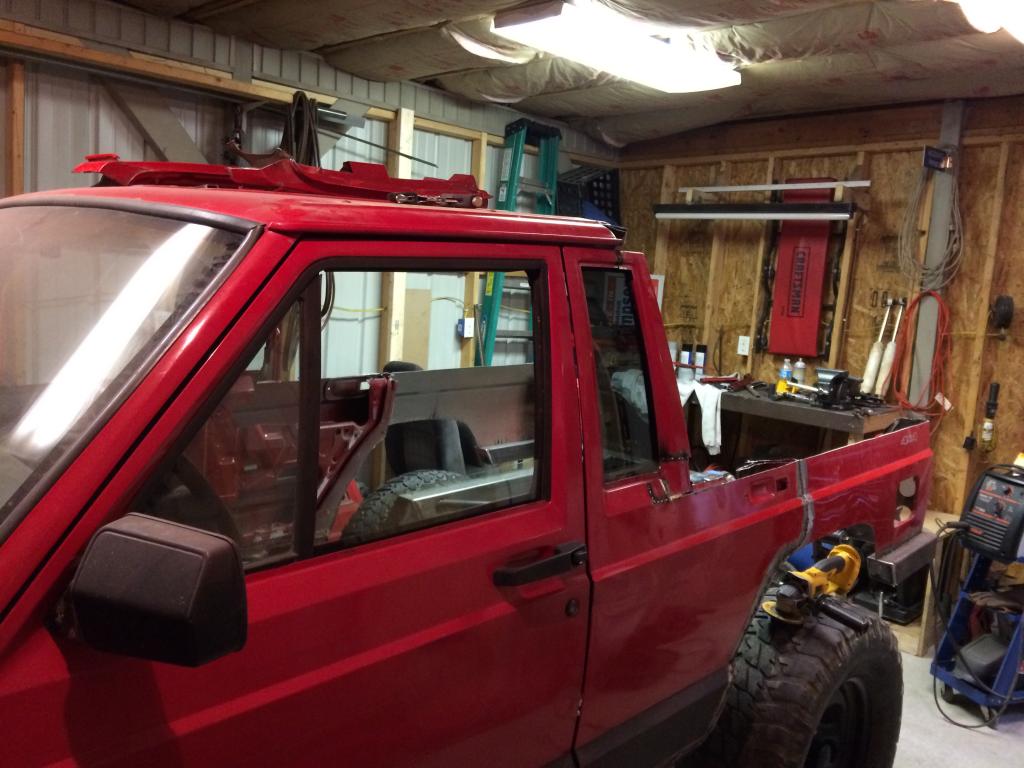

I was also able to cut down the original roof rails for the roof rack and use them. Not sure if I want to keep them or not.
#7
Member
Join Date: Aug 2012
Location: Concord, NC
Posts: 225
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998 Sport
Model: Cherokee
Engine: 4.0
Looking good.
I have the cajones to cut, but lack the fabbing skills to complete it. (I was set on doing it to my last xj before I got rid of it.) The one I have now is too nice to cut.
I have the cajones to cut, but lack the fabbing skills to complete it. (I was set on doing it to my last xj before I got rid of it.) The one I have now is too nice to cut.
Trending Topics
#9
Member
Thread Starter
Join Date: Jun 2014
Location: Columbia, KY
Posts: 136
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
Thanks guys! I generally just get an eye roll from my wife so it's nice to know that other people like it too.
This may be my first and only project with sheet metal fab, it's kicking my butt...
This may be my first and only project with sheet metal fab, it's kicking my butt...
#13
Member
Thread Starter
Join Date: Jun 2014
Location: Columbia, KY
Posts: 136
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0

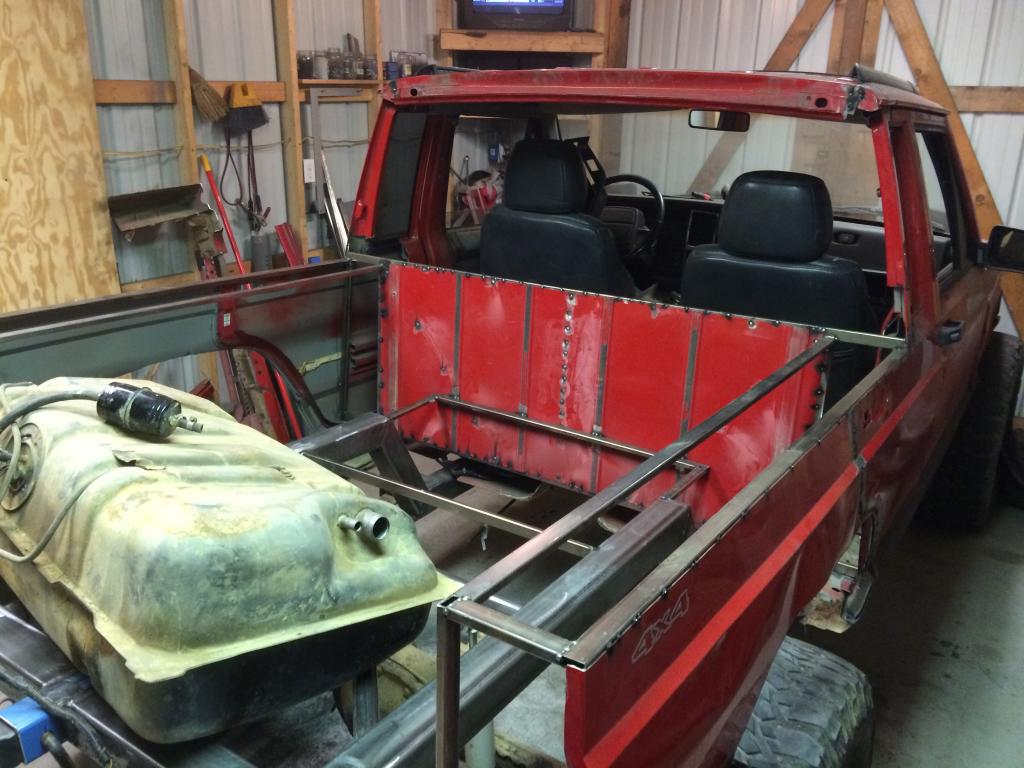

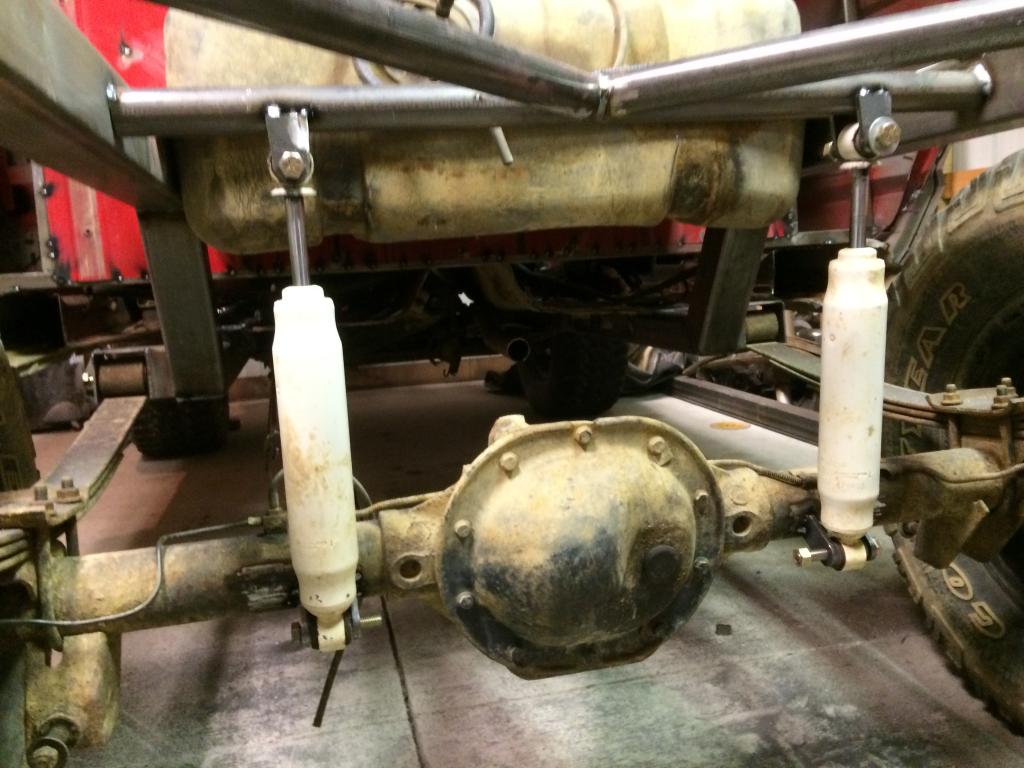

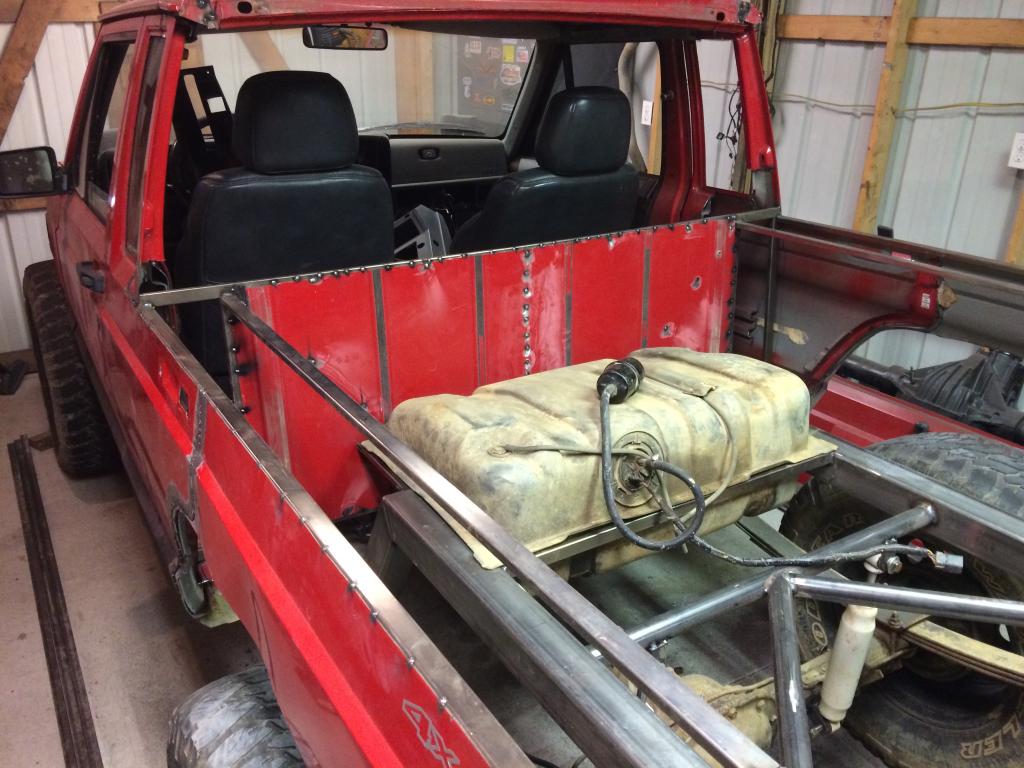

Didn't get any pictures last night but I've decided to reuse the stock fuel tank and mount it in front of the rear axle, recessed down into the bed floor. I've also started closing in the back of the cab which I knew was going to be hardest part.
#15
Member
Thread Starter
Join Date: Jun 2014
Location: Columbia, KY
Posts: 136
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0

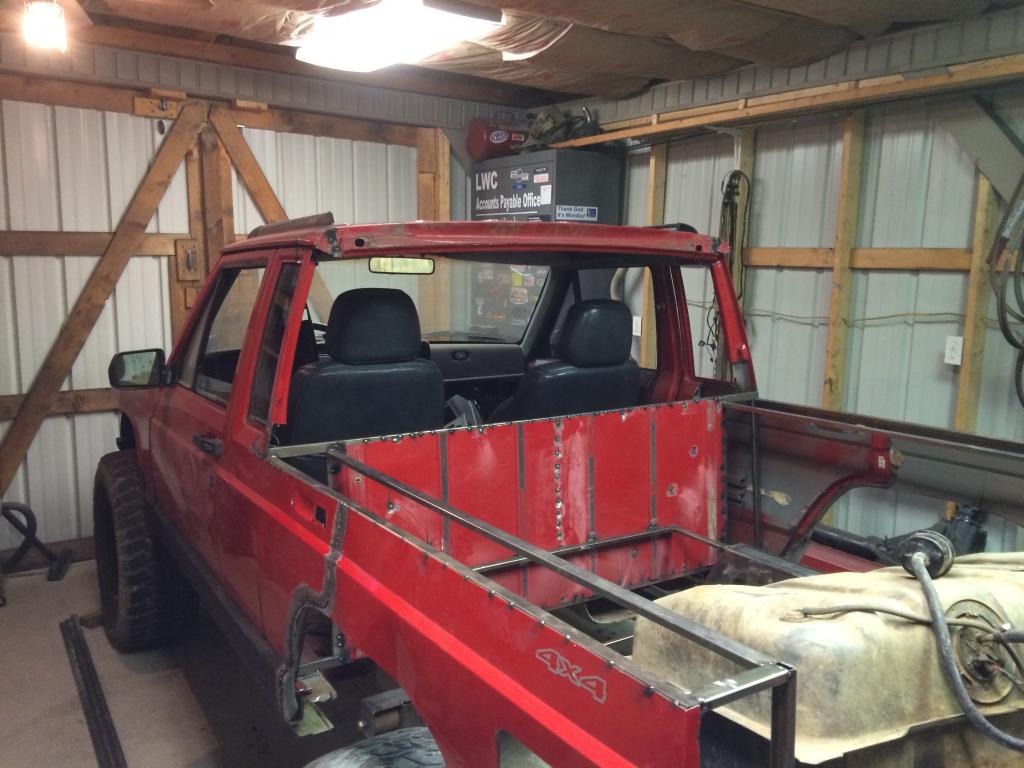

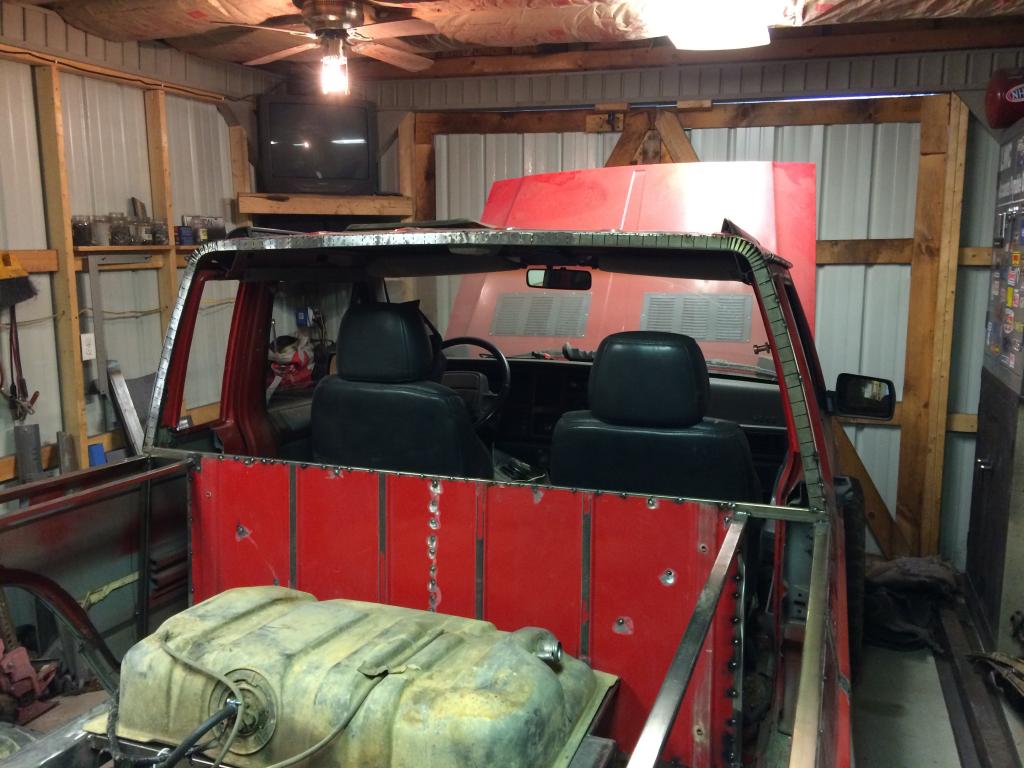

The roof is cut and braced but I ran out of gas while welding up my relief cuts. Also got the gas tank filler neck ran up to the bed rail for mounting.
