Cool HRDROKN's 87' XJ build...

So it begins....

Picked up this 1987 Jeep Cherokee from my Dad a few weeks ago. He had owned it since new, so I figure it would be a good candidate for my next crawler... she has had less than 100K easy miles on her.






Last edited by HRDROKN; 01-09-2012 at 06:32 PM.
HRDROKN is offline
Old 01-02-2012, 05:58 AM
  #2
Member
Thread Starter

HRDROKN's Avatar

Join Date: Nov 2011
Location: Northern Kalifornia
Posts: 180
Year: 1987
Model: Cherokee
Engine: 4.0
Default

To get this going, the build plans include....

D60 front on a 3 link.
14 bolt rear w/ disc on leafs for now, possible 4 link later.
NP435
NP241/NP205 doubler
110" wheelbase +/-
Comp cut....
HRDROKN is offline
Old 01-02-2012, 03:38 PM
  #3
Member
Thread Starter

HRDROKN's Avatar

Join Date: Nov 2011
Location: Northern Kalifornia
Posts: 180
Year: 1987
Model: Cherokee
Engine: 4.0
Default

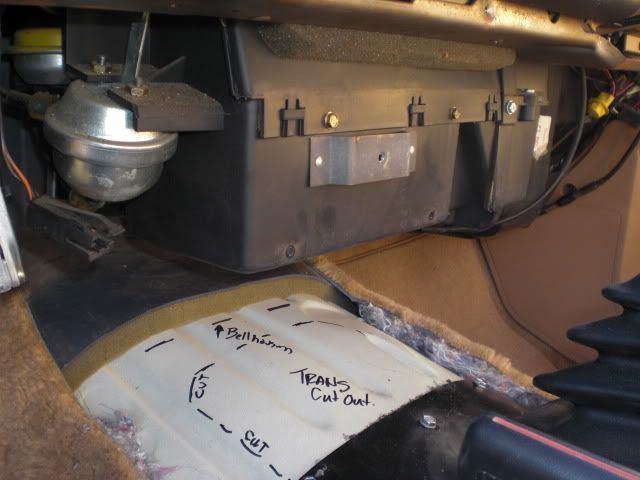

Looks like the top of the NP435 will require some heater duct mods... anyone done one of these or similar in their XJ? Pics?



HRDROKN is offline
Old 01-02-2012, 06:10 PM
  #4
Seasoned Member

N8-96XJ's Avatar

Join Date: Aug 2010
Location: Galax Virginia
Posts: 298
Year: 1996
Model: Cherokee
Engine: 4.0
Default

Sweet lookin 2 door! Shoujd be a really cool build
N8-96XJ is offline
Old 01-02-2012, 06:50 PM
  #5
Member
Thread Starter

HRDROKN's Avatar

Join Date: Nov 2011
Location: Northern Kalifornia
Posts: 180
Year: 1987
Model: Cherokee
Engine: 4.0
Default

Originally Posted by N8-96XJ View Post
Sweet lookin 2 door! Shoujd be a really cool build
Thanks!

I promised the wife that I would keep it drivable during the build, so that should be interesting as it usually isn't my style.
HRDROKN is offline
Old 01-02-2012, 06:59 PM
  #6
Seasoned Member

Join Date: Jul 2009
Location: Bremerton
Posts: 398
Year: 87
Model: Cherokee
Engine: 4.0
Default

Rip the heater out and put in a mojave or similar...
jon_89 is offline
Old 01-02-2012, 07:08 PM
  #7
Member
Thread Starter

HRDROKN's Avatar

Join Date: Nov 2011
Location: Northern Kalifornia
Posts: 180
Year: 1987
Model: Cherokee
Engine: 4.0
Default

Originally Posted by jon_89 View Post
Rip the heater out and put in a mojave or similar...
Since I was planning on converting the A/C to OBA.... that might be the way to go! Sure will get rid of a bunch of crap under the dash and simplify things. Hmmmmmm...
HRDROKN is offline
Old 01-02-2012, 09:04 PM
  #8
Member
Thread Starter

HRDROKN's Avatar

Join Date: Nov 2011
Location: Northern Kalifornia
Posts: 180
Year: 1987
Model: Cherokee
Engine: 4.0
Default First things first....

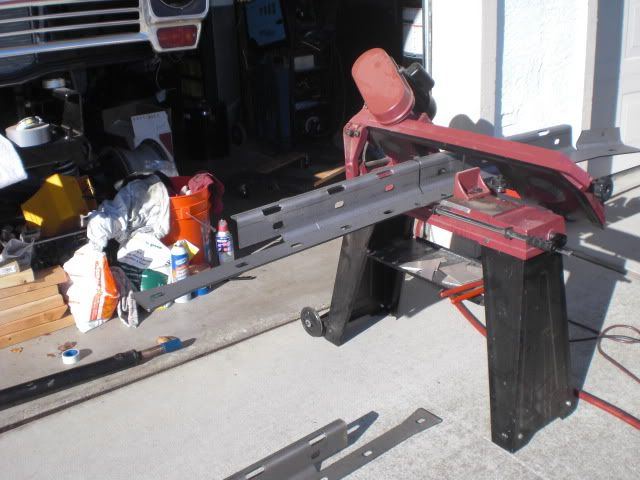

Need to get some uni-body reinforcemnt completed. I ordered up these stiffeners from Ruffstuff and had to make some minor changes for fittment, but overall a nice product.

HRDROKN is offline
Old 01-02-2012, 09:21 PM
  #9
Seasoned Member

Join Date: Jul 2009
Location: Bremerton
Posts: 398
Year: 87
Model: Cherokee
Engine: 4.0
Default

I ripped the stock one out and used a heatercraft. I got all sorts of room under there now. Super simple to. If it burns up undo 4 bolts, disconnect the 4 wires, and two hose clamps and its out.
jon_89 is offline
Old 01-09-2012, 09:25 AM
  #10
Member
Thread Starter

HRDROKN's Avatar

Join Date: Nov 2011
Location: Northern Kalifornia
Posts: 180
Year: 1987
Model: Cherokee
Engine: 4.0
Default

I was able to get a little work done this weekend in preperation for welding up the Ruffstuff stiffeners.

Started with stripping the undercoat and welding up the factory seem....



Decided to do these in two pieces as I wasn't ready to cut the LCA mounts off yet...

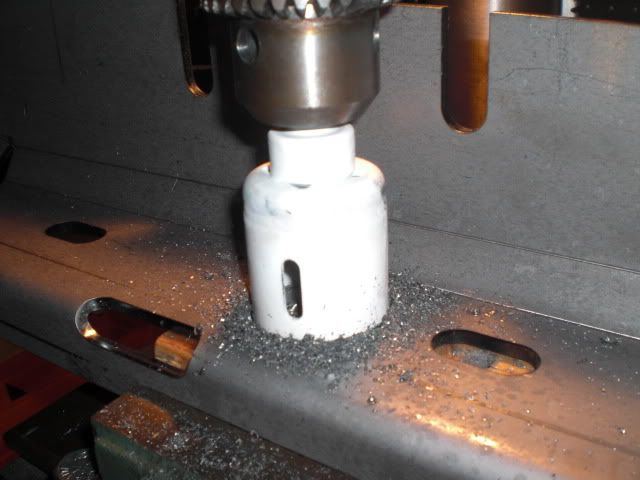

Drilled some extra holes for more weld area....



Completed one side and ran out of Argon on the weekend!


Last edited by HRDROKN; 01-09-2012 at 09:30 AM.
HRDROKN is offline
Old 01-09-2012, 09:28 AM
  #11
Member
Thread Starter

HRDROKN's Avatar

Join Date: Nov 2011
Location: Northern Kalifornia
Posts: 180
Year: 1987
Model: Cherokee
Engine: 4.0
Default

Working on some temporary LCA mounts with some Ballistick joints and 2x.250" DOM....



HRDROKN is offline
Old 01-09-2012, 09:29 PM
  #12
Member
Thread Starter

HRDROKN's Avatar

Join Date: Nov 2011
Location: Northern Kalifornia
Posts: 180
Year: 1987
Model: Cherokee
Engine: 4.0
Default

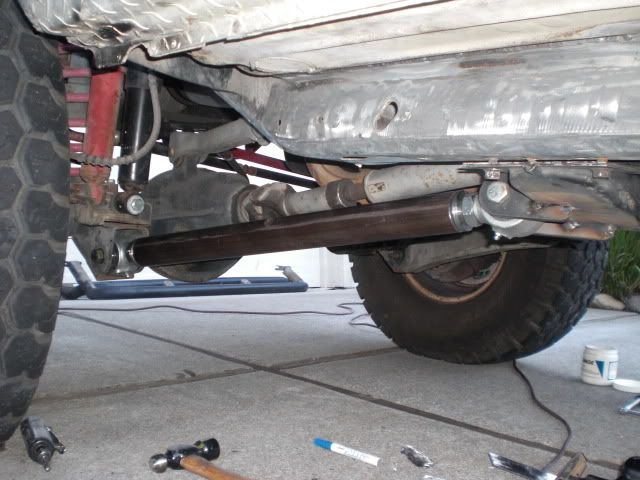

This will be the temporary lowers until I get a D60 ready to go in...





HRDROKN is offline
Old 01-11-2012, 10:43 PM
  #13
Member
Thread Starter

HRDROKN's Avatar

Join Date: Nov 2011
Location: Northern Kalifornia
Posts: 180
Year: 1987
Model: Cherokee
Engine: 4.0
Default

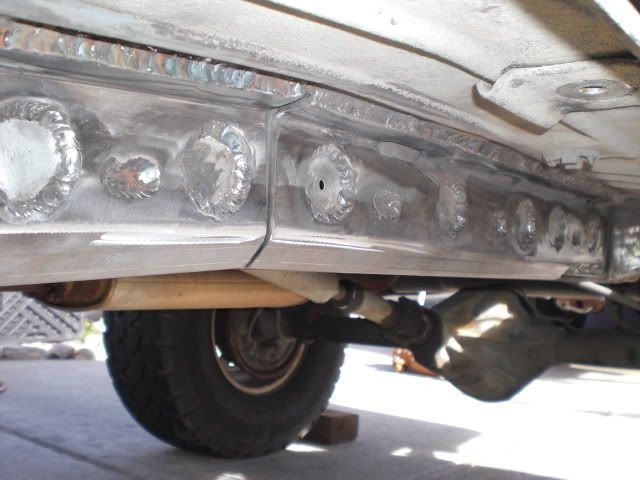

Cuting those damn stock LCA mounts off was a real pain.... the previous owner had lowered the LCA's and welded them up when he added the lift. Anyway the ruffstuff stiffeners are in....





HRDROKN is offline
Old 01-19-2012, 09:18 PM
  #14
Member
Thread Starter

HRDROKN's Avatar

Join Date: Nov 2011
Location: Northern Kalifornia
Posts: 180
Year: 1987
Model: Cherokee
Engine: 4.0
Default Injectors...

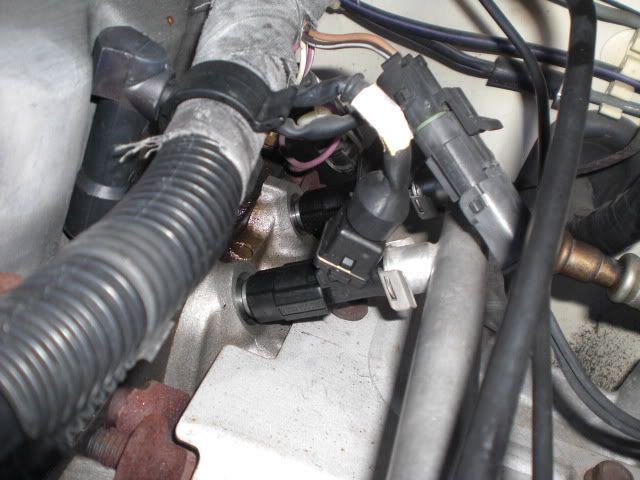

I installed a set of "703" injectors over the weekend, along with a new regulator and fuel filter (all original equipment). Nice improvement in idle and a noticeable improvement in throttle response! Only have about 5 or 6 cycles since resetting the computer... initially she was a little hard starting, but that seems to be changing as we go.

Highly recommend!






Last edited by HRDROKN; 01-25-2012 at 05:45 PM.
HRDROKN is offline
Old 01-20-2012, 10:24 PM
  #15
Member
Thread Starter

HRDROKN's Avatar

Join Date: Nov 2011
Location: Northern Kalifornia
Posts: 180
Year: 1987
Model: Cherokee
Engine: 4.0
Default

Went out to pick n pull with tape measure in hand and came home with a pair of Dodge 1/2 ton 60" leafs for a 5" stretch out the rear. This will ultimately be a temporary modification as I want to do a four link with coilovers.




Last edited by HRDROKN; 01-20-2012 at 10:26 PM.
HRDROKN is offline
