Jeep Builds Make your own jeep build thread here, discuss and view jeeps here. All Jeep models are welcome here.

Gunmetal Daily

Old 03-07-2016, 03:10 PM
  #1
CF Veteran
Thread Starter

JPXJMOAB's Avatar

Join Date: Jan 2015
Location: Minnesota
Posts: 2,152
Year: 1999
Model: Cherokee
Engine: 4.0L
Default Gunmetal Daily

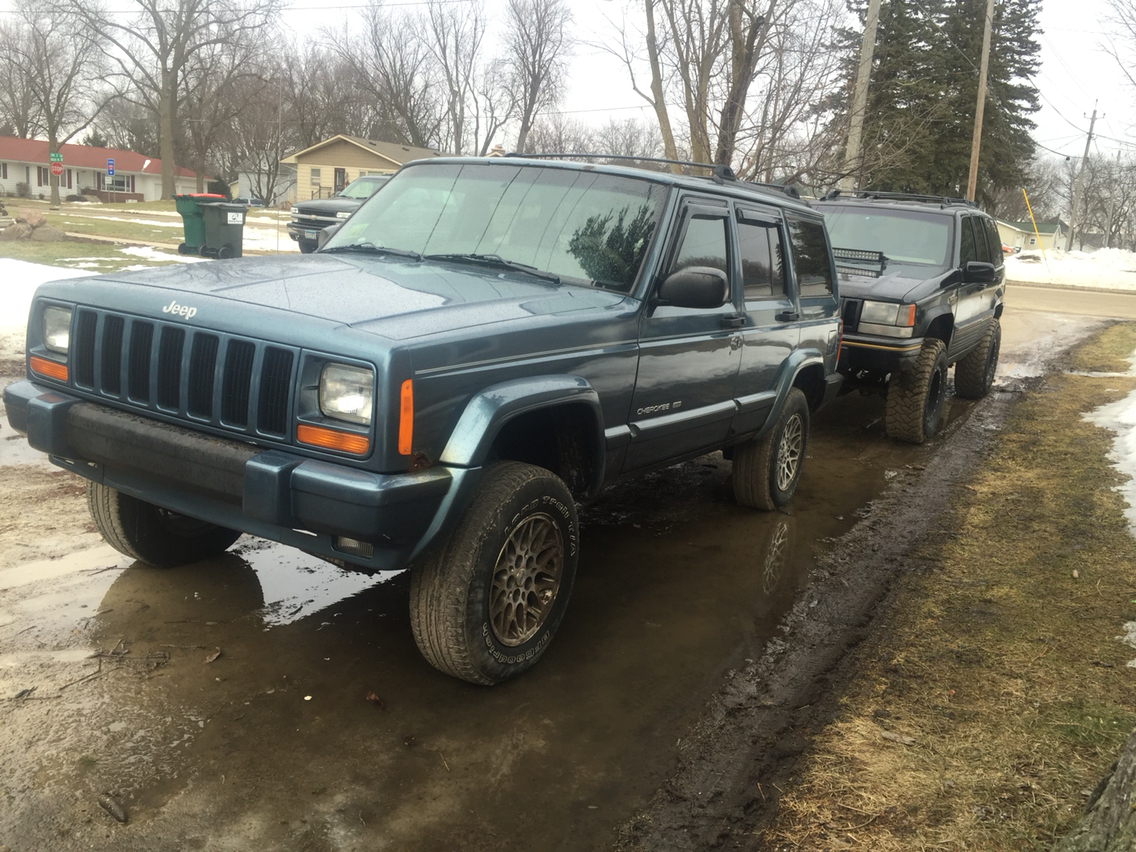

Well I present to you my new DD. A '99 Cherokee limited with 208k miles. All leather interior in immaculate shape. Runs and drives extremely well! I paid $1800 for it with a saggy skyjacker 3" lift. This will be a somewhat slow build but many mods are planned.
Attached Thumbnails Gunmetal Daily-photo205.jpg
JPXJMOAB is offline
Old 03-07-2016, 05:40 PM
  #2
HUH? WHAT?

XJwonders's Avatar

Join Date: Jan 2013
Location: west chester, pa
Posts: 19,078
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0
Default

Awesome find
XJwonders is online now
Old 03-07-2016, 06:43 PM
  #3
CF Veteran
Thread Starter

JPXJMOAB's Avatar

Join Date: Jan 2015
Location: Minnesota
Posts: 2,152
Year: 1999
Model: Cherokee
Engine: 4.0L
Default

Thanks man! Biggest reason I picked it up is the floors are 99% solid, just some surface rust from what I can see as of now, planning to fix all the rust, the roof has a little starting and it needs the rear 2 doors. Luckily I know where a set of doors are. This summer it'll have 2x6 rockers installed. Big plans!
JPXJMOAB is offline
Old 03-07-2016, 07:01 PM
  #4
CF Veteran
Thread Starter

JPXJMOAB's Avatar

Join Date: Jan 2015
Location: Minnesota
Posts: 2,152
Year: 1999
Model: Cherokee
Engine: 4.0L
Default

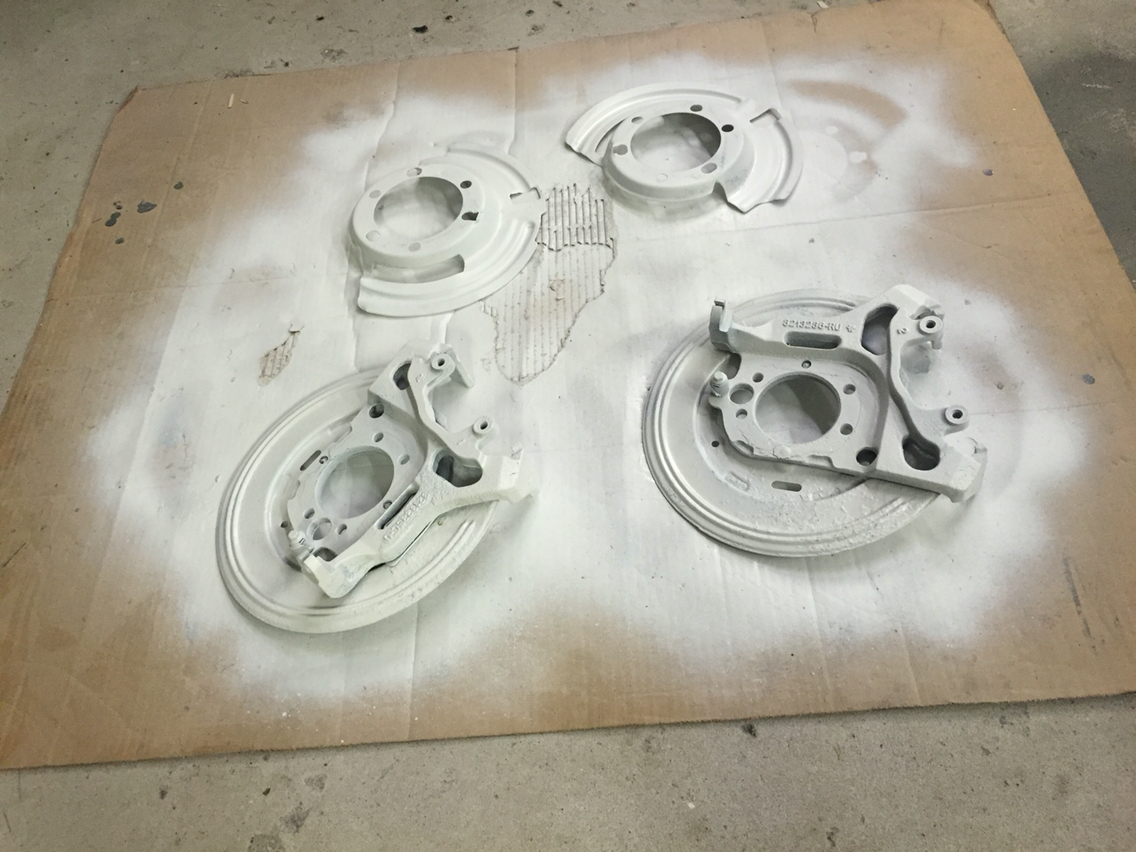

Well I went to inspect brakes on the jeep about a week ago and it needs rears. Bad. It has a Dana 35 and I didn't really want to put $150-$200 into new brakes on a junk axle, so I found a 29 spline 8.25 I'm picking up next week for $100! I visited a U Pull this past weekend and found some ZJ disc brakes, I already had some pads and rotors so I'm prepping the parts for the axle. Pretty it up! Getting backing plates in primer.
Attached Thumbnails Gunmetal Daily-photo122.jpg
JPXJMOAB is offline
Old 03-07-2016, 07:30 PM
  #5
HUH? WHAT?

XJwonders's Avatar

Join Date: Jan 2013
Location: west chester, pa
Posts: 19,078
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0
Default

Originally Posted by JPXJMOAB View Post
Well I went to inspect brakes on the jeep about a week ago and it needs rears. Bad. It has a Dana 35 and I didn't really want to put $150-$200 into new brakes on a junk axle, so I found a 29 spline 8.25 I'm picking up next week for $100! I visited a U Pull this past weekend and found some ZJ disc brakes, I already had some pads and rotors so I'm prepping the parts for the axle. Pretty it up! Getting backing plates in primer.
good plan
XJwonders is online now
Old 03-08-2016, 09:43 PM
  #6
CF Veteran
Thread Starter

JPXJMOAB's Avatar

Join Date: Jan 2015
Location: Minnesota
Posts: 2,152
Year: 1999
Model: Cherokee
Engine: 4.0L
Default

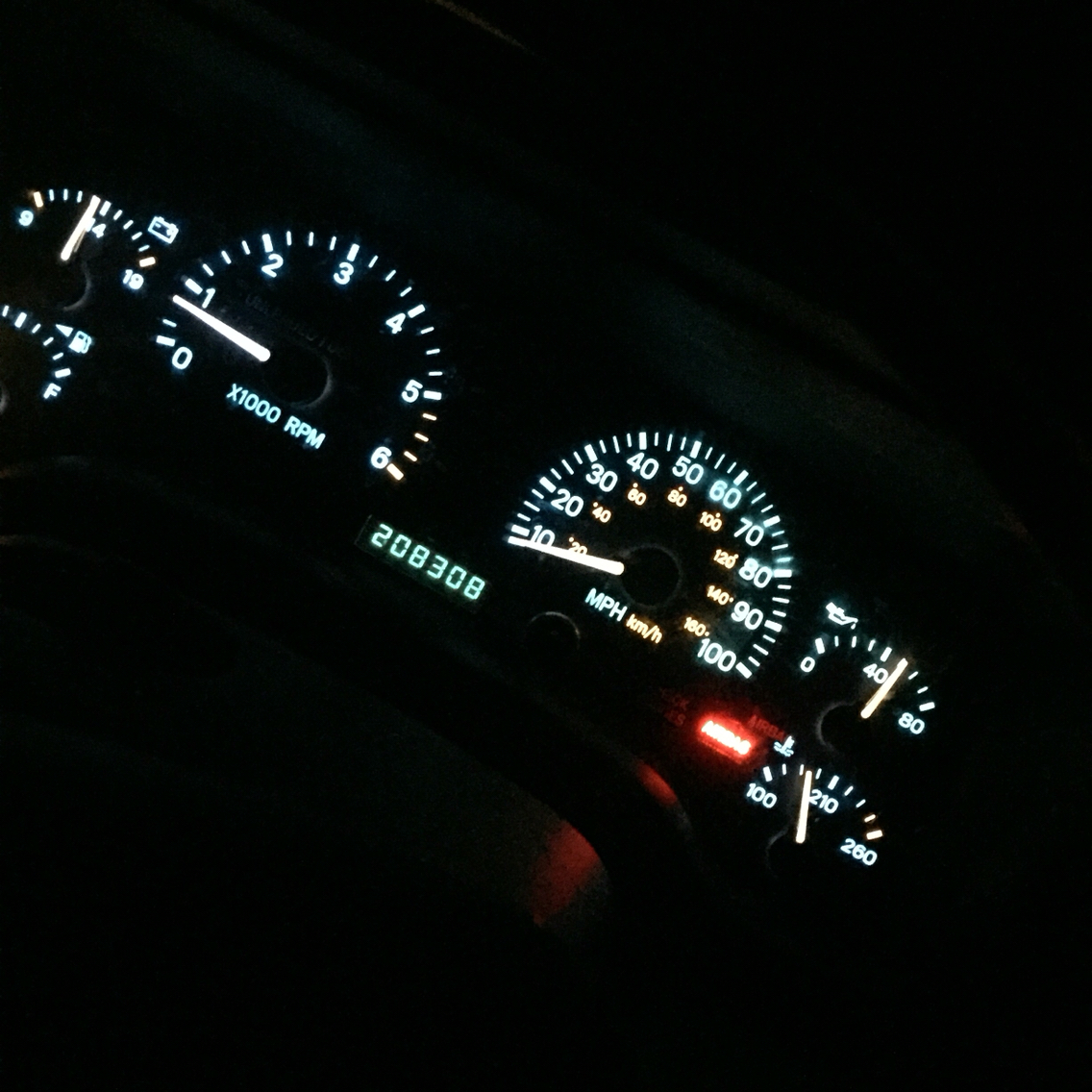

Swapped in some LEDs in the gauge cluster, interior lamps and I have some exterior bulbs on the way! I love having more light on the interior. A much more modern look.
Attached Thumbnails Gunmetal Daily-photo55.jpg
JPXJMOAB is offline
Old 03-10-2016, 10:16 AM
  #7
CF Veteran
Thread Starter

JPXJMOAB's Avatar

Join Date: Jan 2015
Location: Minnesota
Posts: 2,152
Year: 1999
Model: Cherokee
Engine: 4.0L
Default

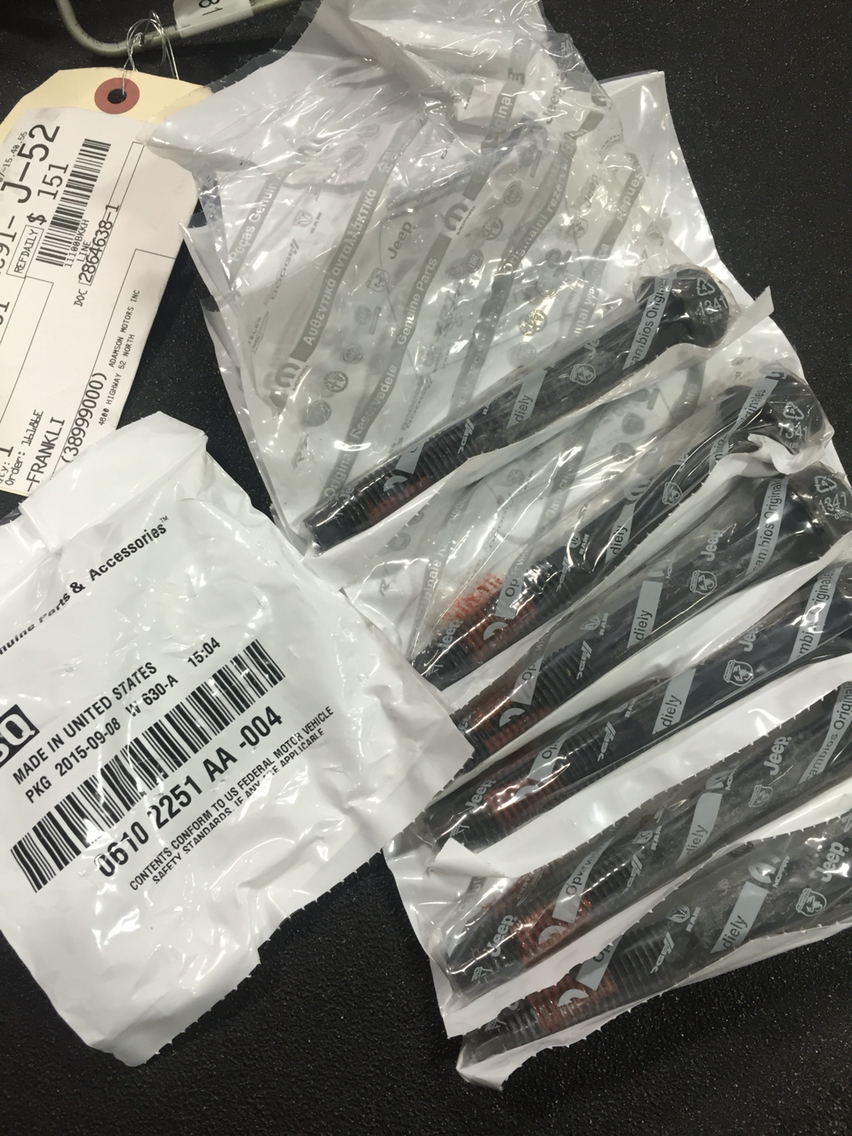

Well being the rear springs sag like a **** I'm replacing them with some 3.5" procomp springs. I'm not taking any chances on broken bolts so I bought new nuts and bolts for the shackles and leafs
Attached Thumbnails Gunmetal Daily-photo406.jpg
JPXJMOAB is offline
Old 03-13-2016, 05:40 PM
  #8
CF Veteran
Thread Starter

JPXJMOAB's Avatar

Join Date: Jan 2015
Location: Minnesota
Posts: 2,152
Year: 1999
Model: Cherokee
Engine: 4.0L
Default

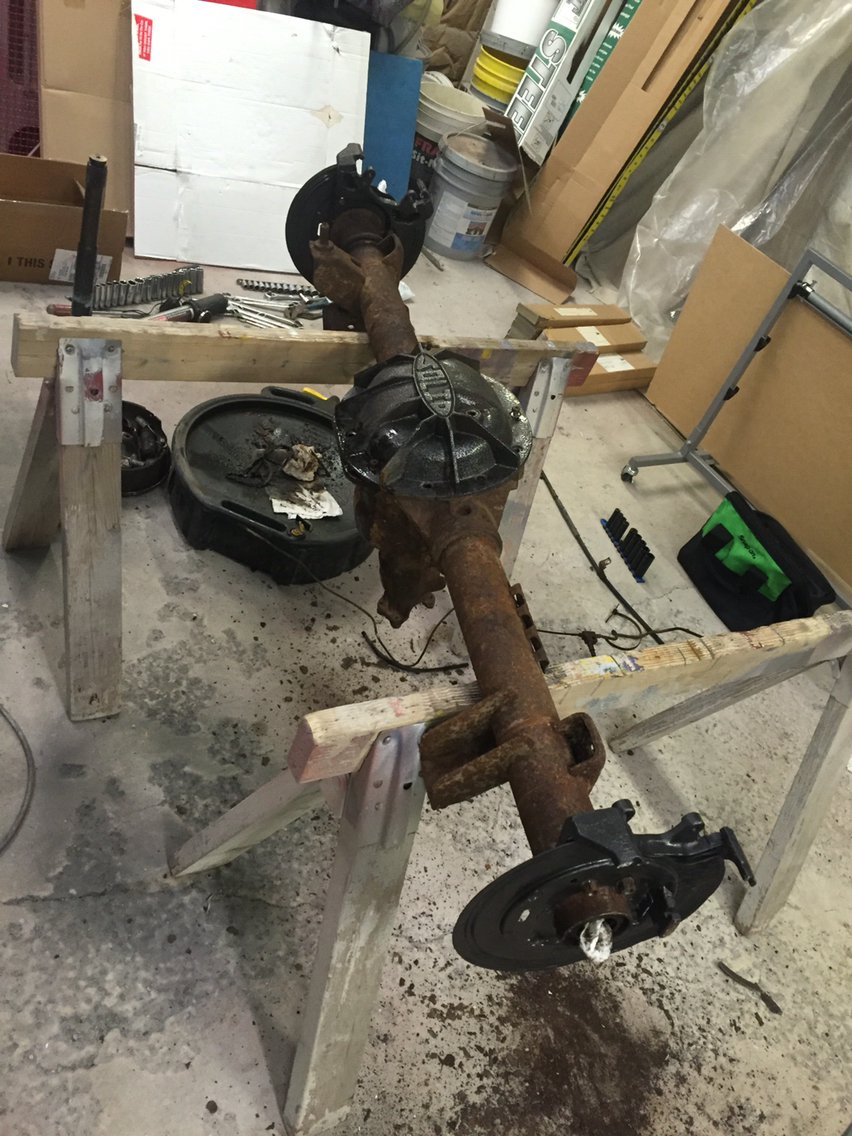

Tomorrow is the day I lift the rear and swap in an 8.25. Today I deleted ABS but the bleeder screws were seized so I decided to do the axle swap sooner... Picked up this 8.25 with a solid cover for $150! I'm swapping in ZJ discs.
Attached Thumbnails Gunmetal Daily-photo500.jpg
JPXJMOAB is offline
Old 03-13-2016, 05:49 PM
  #9
Senior Member

kyle96xj's Avatar

Join Date: Jul 2015
Location: Southern Maryland
Posts: 550
Year: 1993
Engine: 4.0
Default

Originally Posted by JPXJMOAB View Post
Tomorrow is the day I lift the rear and swap in an 8.25. Today I deleted ABS but the bleeder screws were seized so I decided to do the axle swap sooner... Picked up this 8.25 with a solid cover for $150! I'm swapping in ZJ discs.
Any details on the ABS delete? I'm going to be swapping mine when ever I find time and I've heard some varying things about how to go about removing the ABS, thanks
kyle96xj is online now
Old 03-13-2016, 09:03 PM
  #10
CF Veteran
Thread Starter

JPXJMOAB's Avatar

Join Date: Jan 2015
Location: Minnesota
Posts: 2,152
Year: 1999
Model: Cherokee
Engine: 4.0L
Default

Yea actually I was going to do a write up but of course it was raining and I had to do it outside.. I can take some pictures and show you tomorrow!
JPXJMOAB is offline
Old 03-13-2016, 09:05 PM
  #11
Senior Member

kyle96xj's Avatar

Join Date: Jul 2015
Location: Southern Maryland
Posts: 550
Year: 1993
Engine: 4.0
Default

Originally Posted by JPXJMOAB View Post
Yea actually I was going to do a write up but of course it was raining and I had to do it outside.. I can take some pictures and show you tomorrow!
Sounds great! Thanks
kyle96xj is online now
Old 03-14-2016, 10:15 PM
  #12
CF Veteran
Thread Starter

JPXJMOAB's Avatar

Join Date: Jan 2015
Location: Minnesota
Posts: 2,152
Year: 1999
Model: Cherokee
Engine: 4.0L
Default

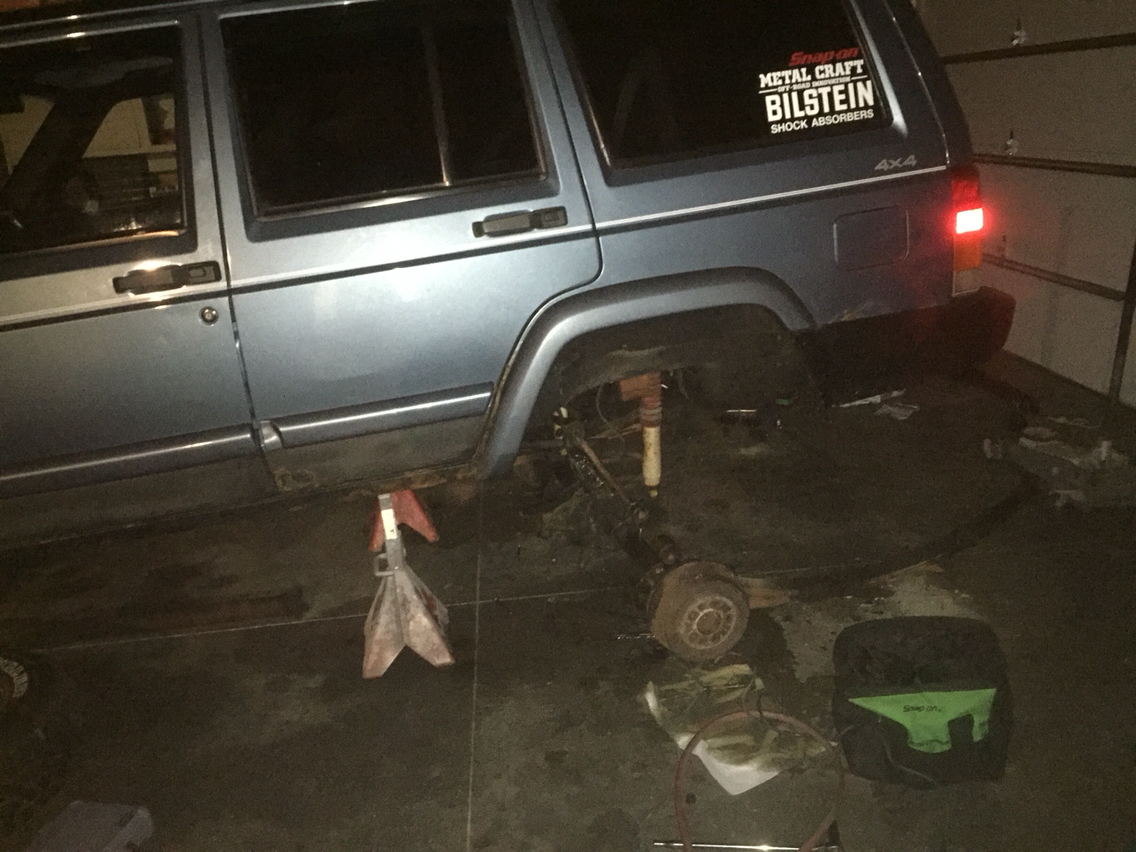

Well the Dana 35 and old saggy leafs are OUT!
Attached Thumbnails Gunmetal Daily-photo512.jpg
JPXJMOAB is offline
Old 03-14-2016, 10:56 PM
  #13
TIME TO GET SCHWIFTY

roninofako's Avatar

Join Date: Feb 2011
Location: Apple Valley, CA
Posts: 13,074
Year: 97
Model: Cherokee
Engine: 4.6 stroker
Default

NICE
roninofako is offline
Old 03-15-2016, 05:30 PM
  #14
CF Veteran
Thread Starter

JPXJMOAB's Avatar

Join Date: Jan 2015
Location: Minnesota
Posts: 2,152
Year: 1999
Model: Cherokee
Engine: 4.0L
Default

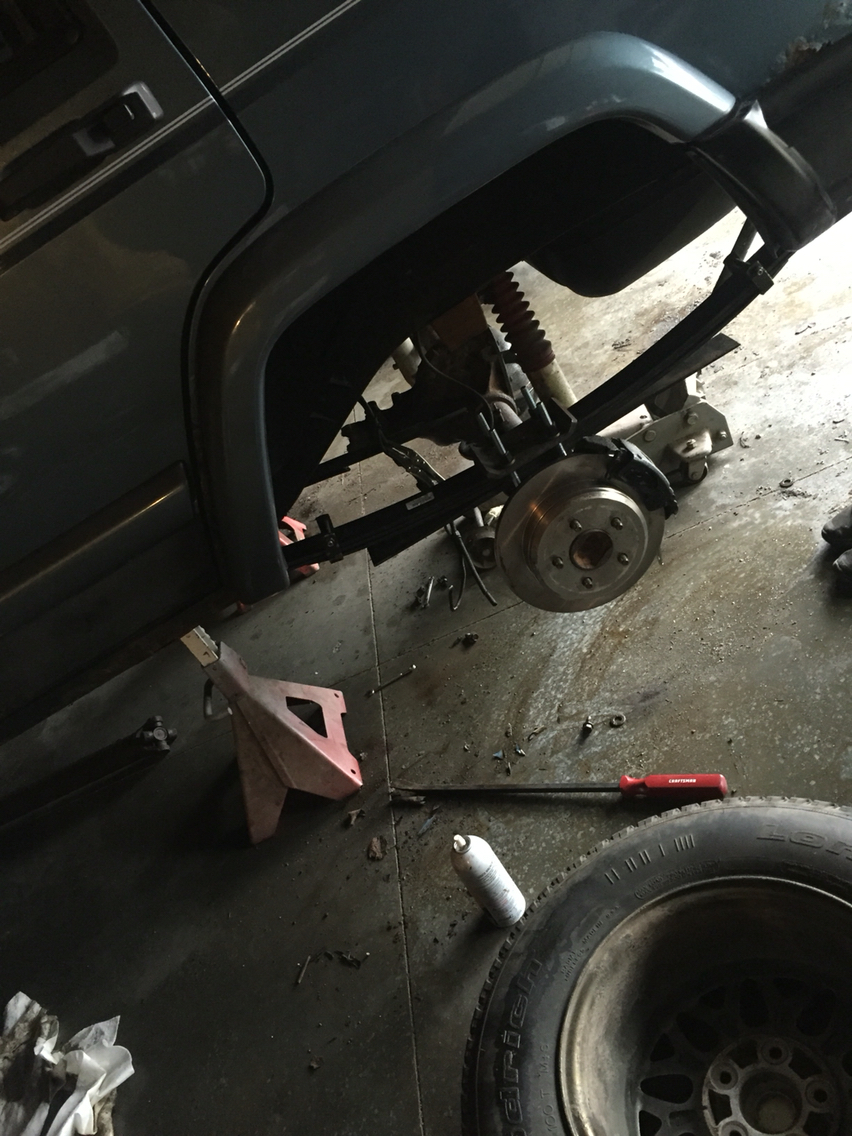

This morning a buddy and I got the leafs in with 1" extended shackles and the 8.25 is bolted in. Next are the brake lines and bleeding the brakes.
Attached Thumbnails Gunmetal Daily-photo566.jpg
JPXJMOAB is offline
Old 03-17-2016, 04:33 PM
  #15
CF Veteran
Thread Starter

JPXJMOAB's Avatar

Join Date: Jan 2015
Location: Minnesota
Posts: 2,152
Year: 1999
Model: Cherokee
Engine: 4.0L
Default

Alright I was asked for a write up for my ABS delete. I did it the "right" way.

Step 1: disconnect battery & remove brake lines going from proportioning valve to the ABS module

Step 2: remove ABS module (disconnect the harness and just put it aside)

Step 3: remove ABS fuse/relay (I had 1 relay and 2 fuses)

Step 4: get a proportioning valve from a non ABS XJ, (unscrew the threaded fitting on the back and put it in place of the plug on your proportioning valve)

Step 5: route new brake lines. You need to replace the 2 lines on the bottom of the proportioning valve and the insert the line into the new port on the back of the valve. (Part numbers from MOPAR are listed below)

Step 6: bleed the brakes & triple check everything for leaks. DONE!

MOPAR brake line part numbers:

52128381 - $8.75
52128170 - $4.10
52127988AC - $12.00
JPXJMOAB is offline
