jrodmk2

nice easy install on those plates for sure.

aka"dude"

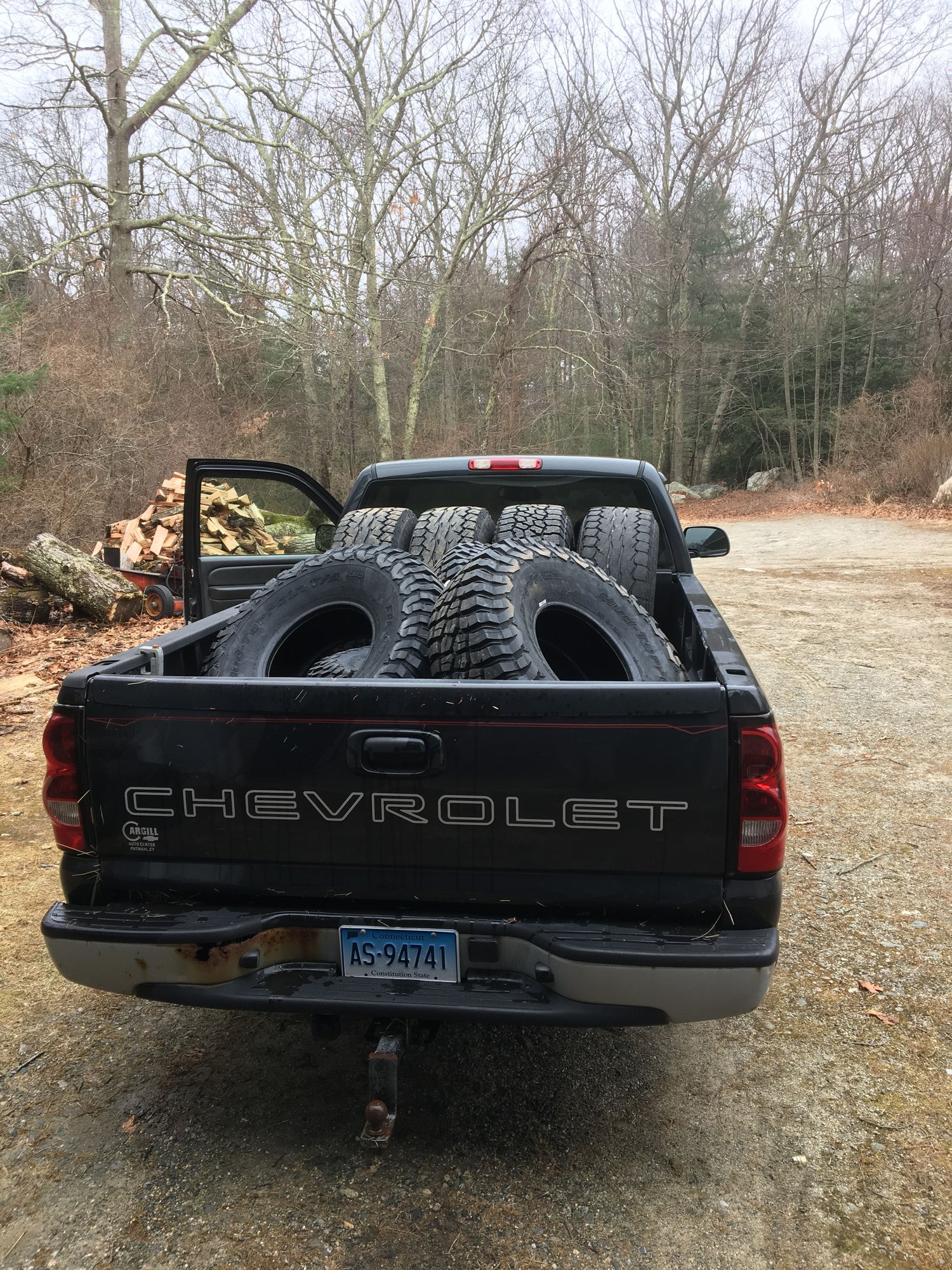

I had some plans fall through on my day off, so I decided it was time to put the 35's on the Jeep.

First it was time to cut as the 33's where hitting the body with the 15 by 10s


Unfortunately my phone died while I was doing the trim job

and then presto chango they were changed.

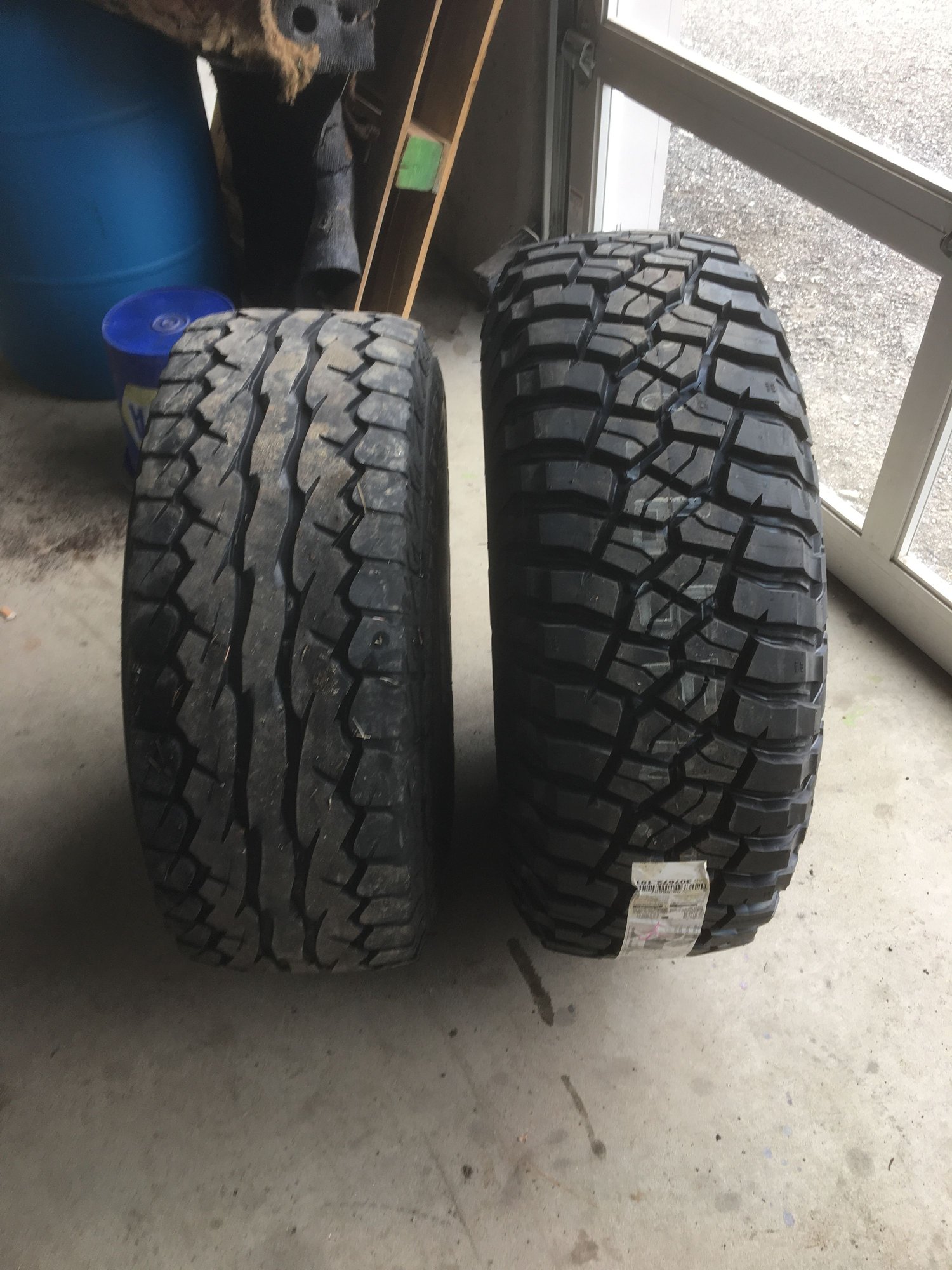

but on a serious note, they did get 8oz each of balance beads and I used RTV on the bead of the wheel as an extra sealing insurance. just in case you don't think 35's are much bigger than 33's




Man I wish I had made the jump last time, this thing looks awesome on 35's

unidentifiedbomb

HUBBA HUBBA

aka"dude"

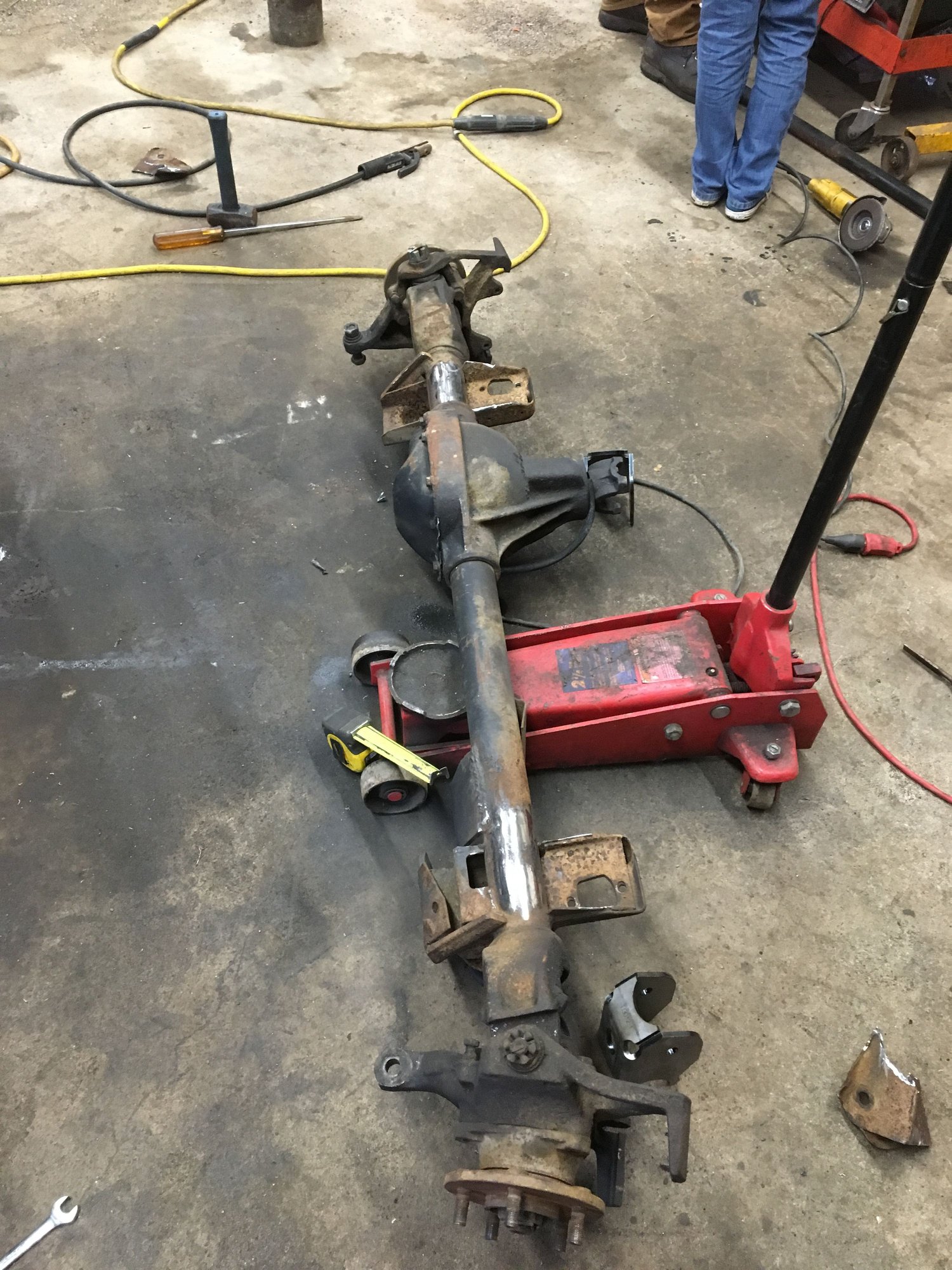

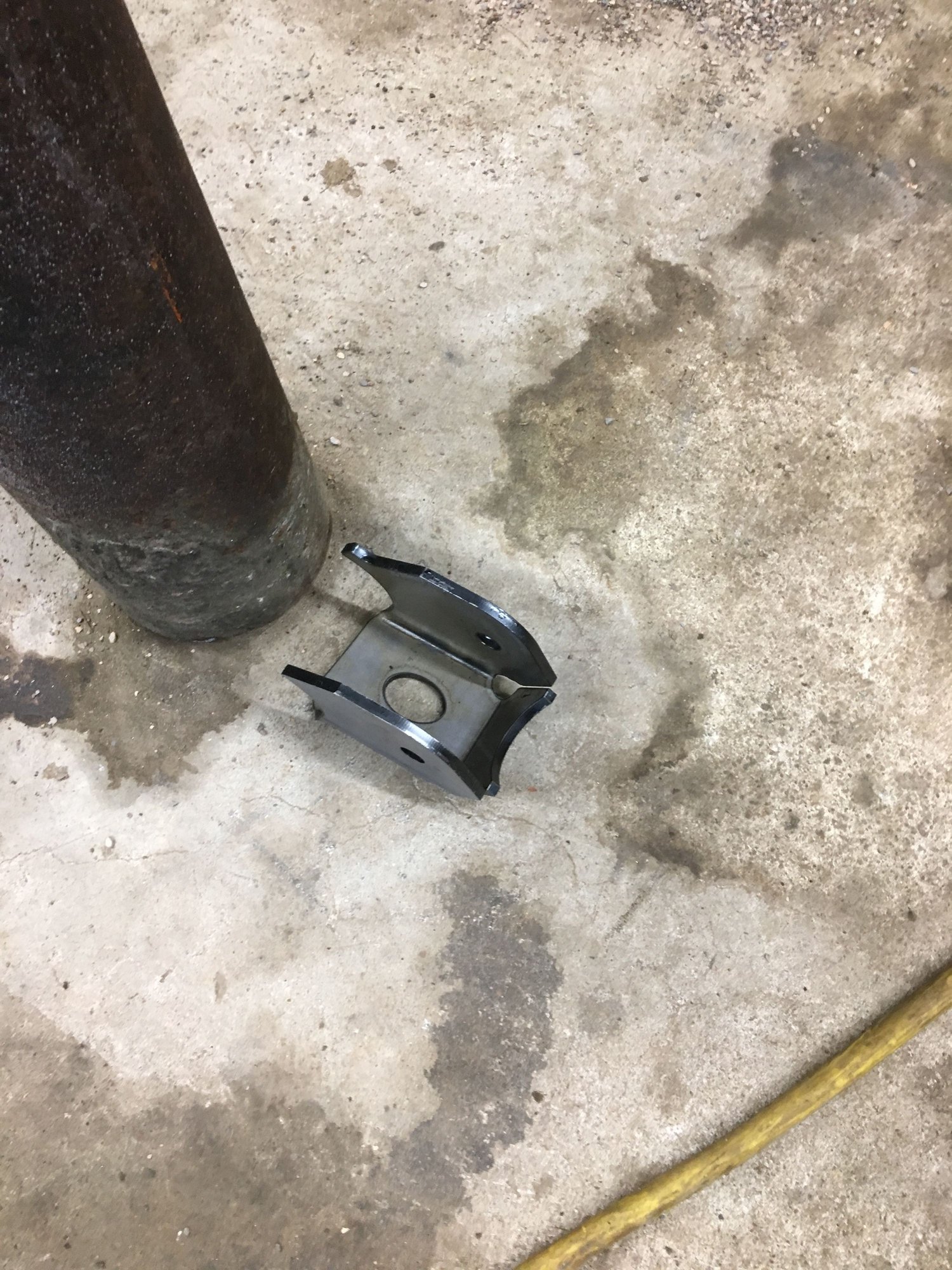

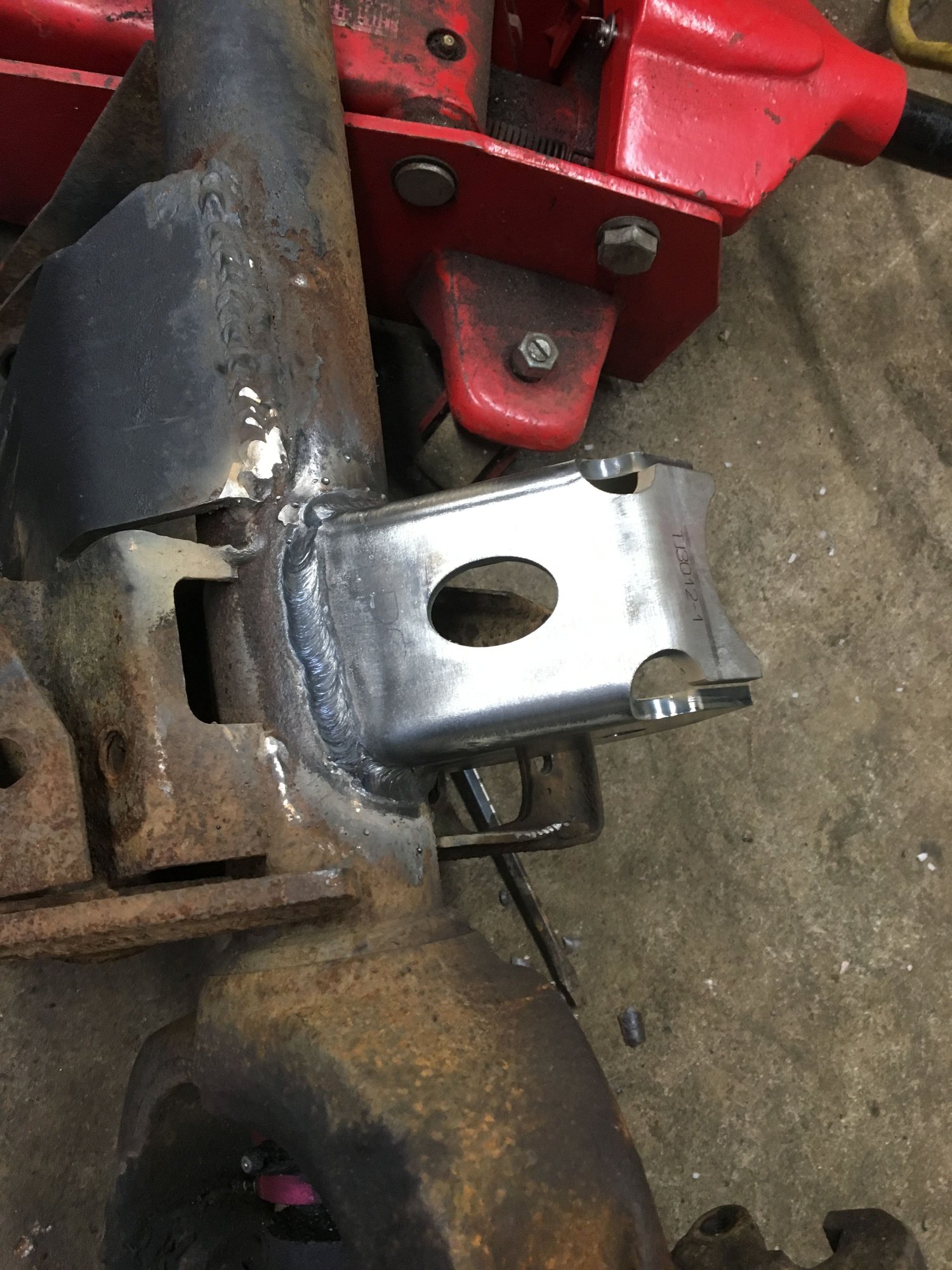

Serving up the pre Easter Beef with some new lca mounts from Artec.




and then somehow we found to the energy to go try them out and the new 35's

unidentifiedbomb

They roll over rocks much better don't they?

aka"dude"

Yeah man! It actually drives better on 35's than it did on 33's even on the road. Its a beautiful thing when a plan comes together.

mv040558

Sweet video and nice rig!

aka"dude"

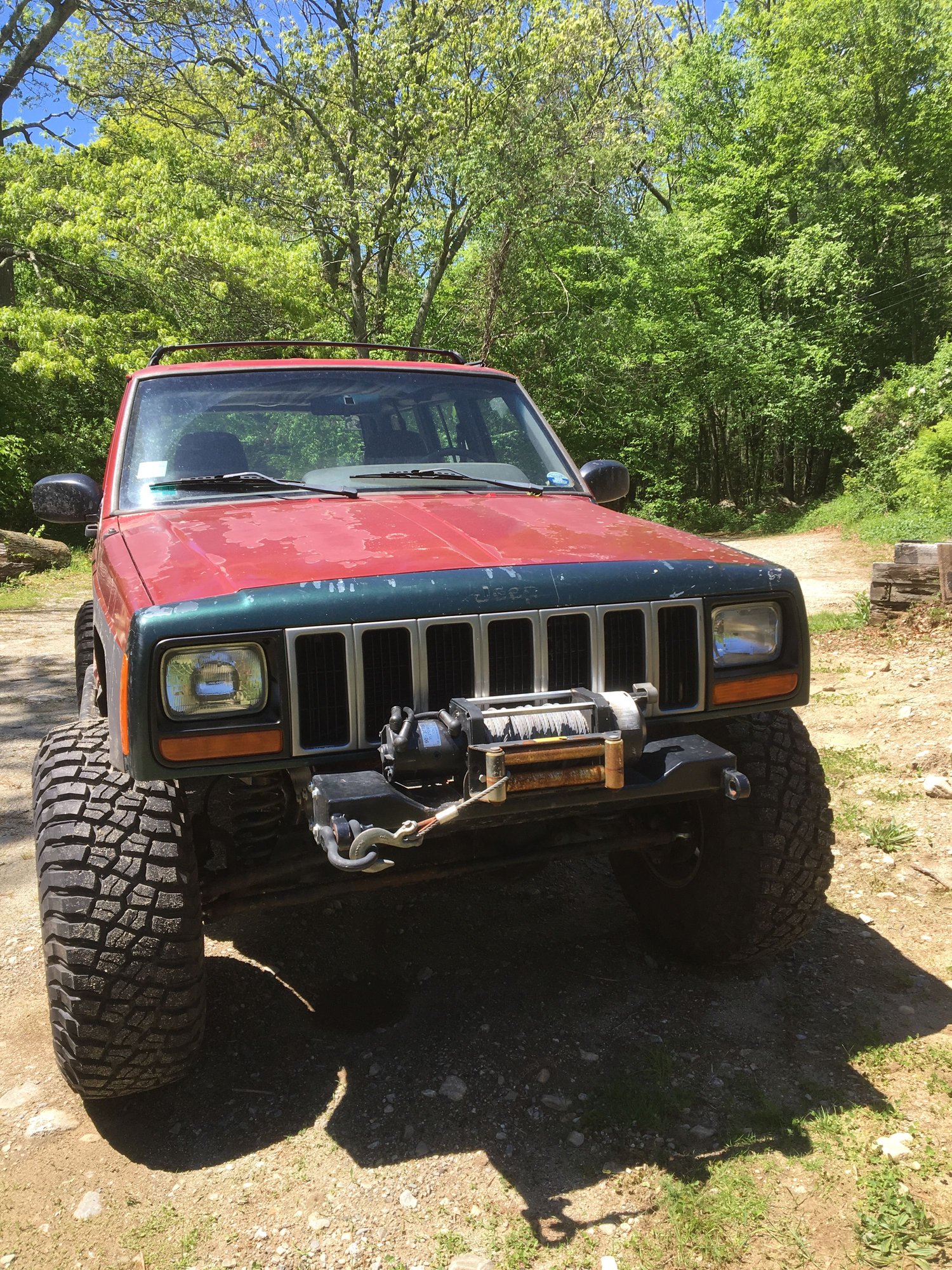

Now with 2 grills I decided to paint one set black and the other set of headlight buckets I would leave body color. I threw the black headlight buckets on yesterday and the spare header panel got a fresh squirt of chili pepper red. Hopefully I can swap that over soon with the condenser from the parts Jeep. The A/c mysteriously died after the deer punting incident.

aka"dude"

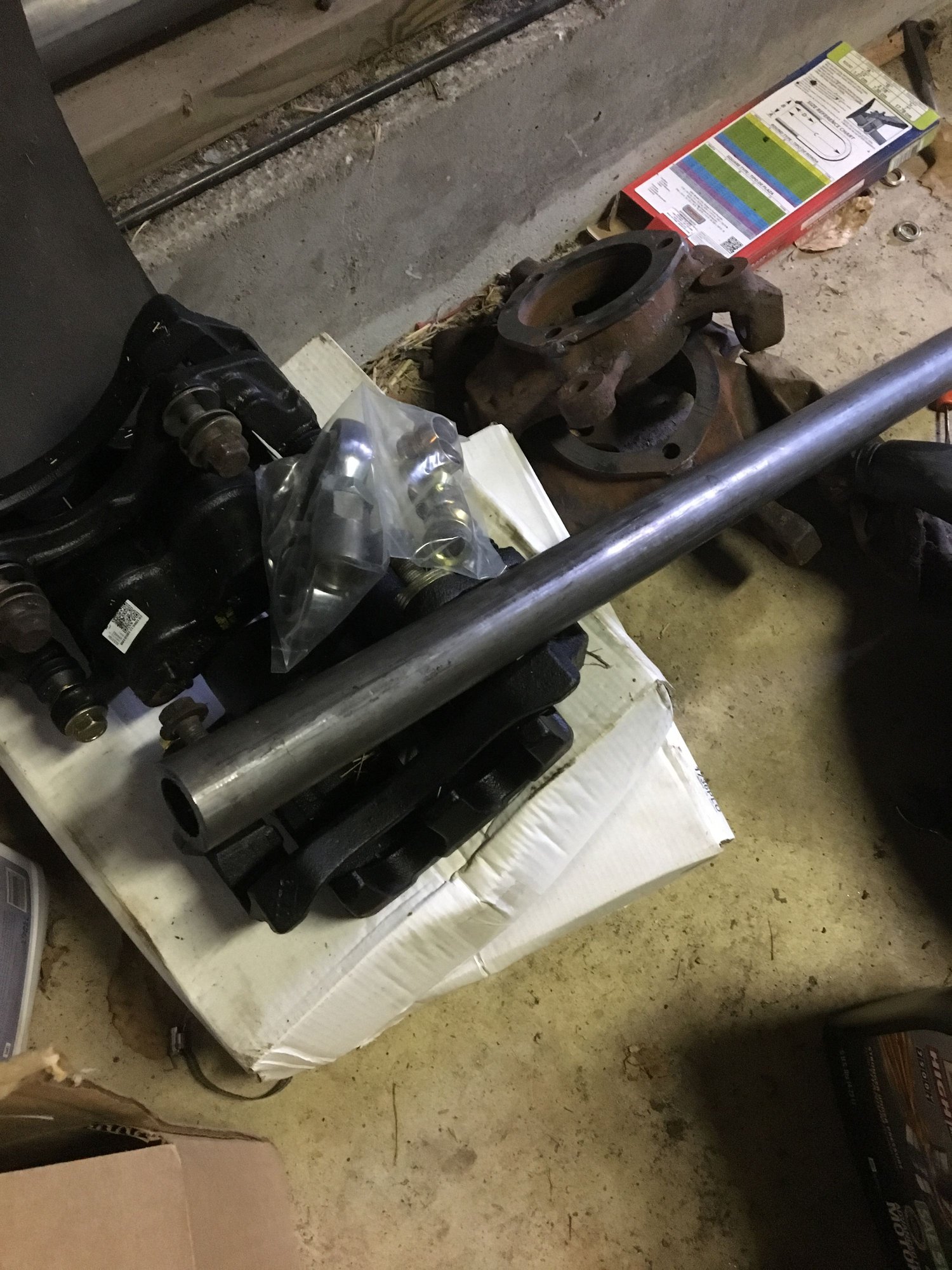

time to install this pile

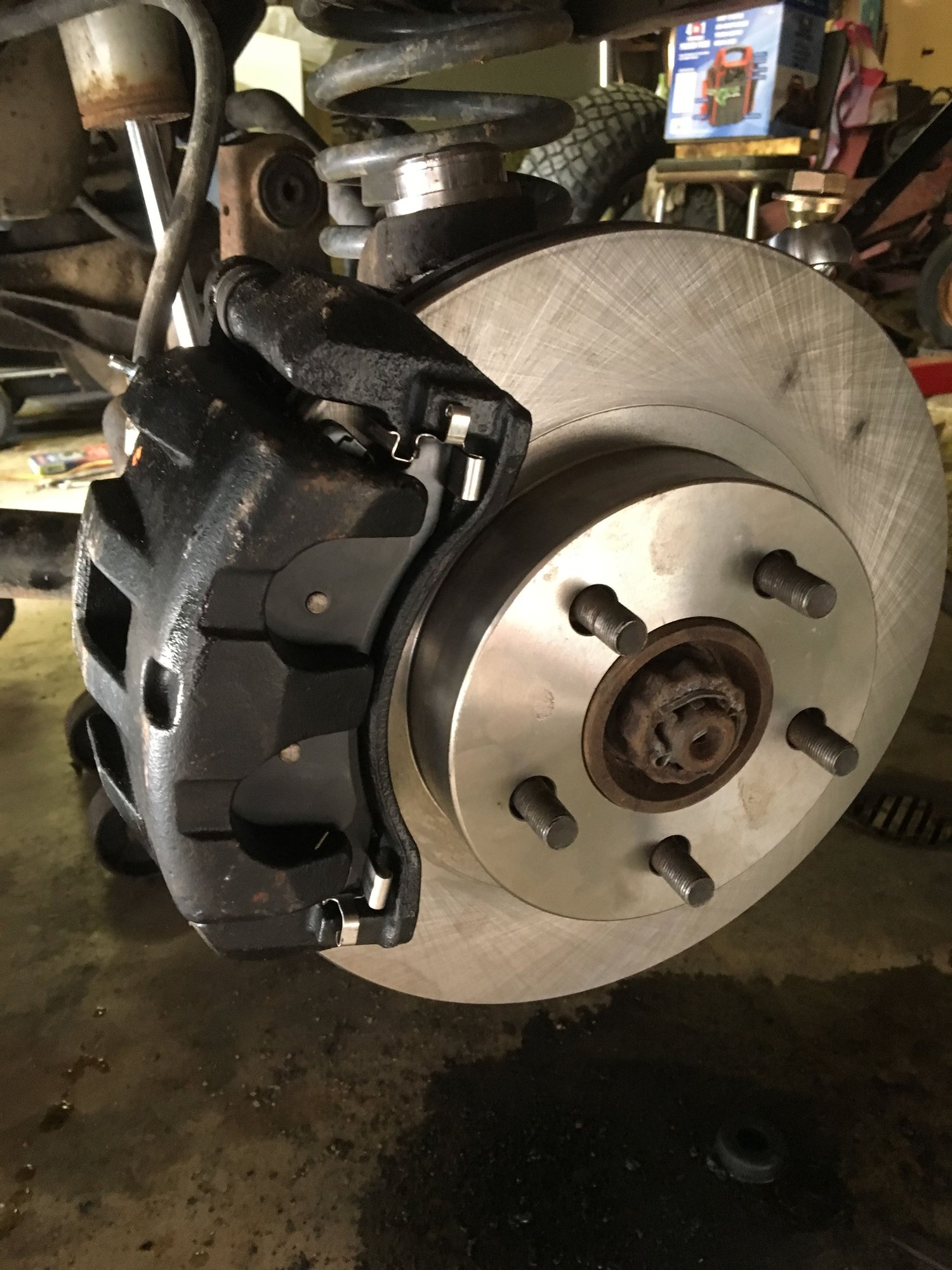

Big brakes are big. Its amazing how well this thing stops now.

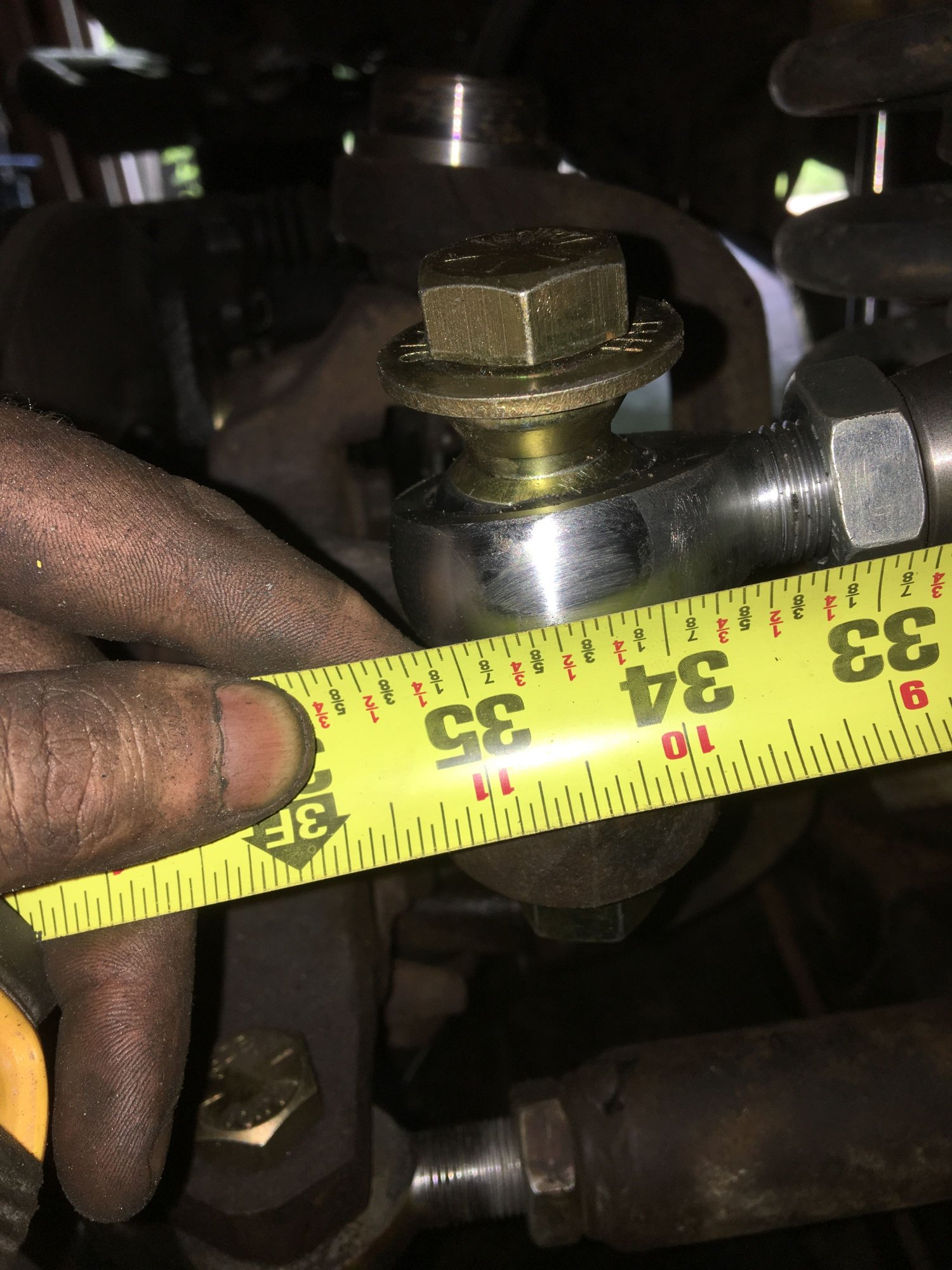

So we all know that the drag link needed to be cut down, but I didn't expect to need a longer tie rod. Luckly I got away with welding bigger tube adapters into my existing tie rod. heres what i ended up with for measurements.


Also no pictures of it but I used ford sport-trac rotors and I had to grind off quite a bit of the hub flange for the rotor to slip over it. Also I had to grid the calipers a bit to clear the wheels.

Finished product is great, a more controlled and direct steering feel and much much better brakes. the brakes alone make it worth it.

unidentifiedbomb

I wonder how fast they stop, my 35s stop nice with the WJ booster. There is a write-up on using WJ calipers with Ford rotors and Renix knuckles. I have a question, thoughts on getting an aftermarket rear bumper?

aka"dude"

I would love to get a rear bumper, but unfortunately its not a priority right now. New drive shafts and fender flares are a bit higher up on the list as well as a bunch of little fiddly things that have been bother me. I've started to get pulled over for the tires hanging to far out of the body for the state of CT's liking.

unidentifiedbomb

Have you read my build recently where I made my own flat flares that actually look good for less than $100?

CSpeade51

are those the WJ knuckles. ??

aka"dude"
