Default bobbed 89 comanche build

figured its about time i start a build thread for my comanche. don't really feel like doing a whole timeline so I'm going to start from how it sits now and just go from there

heres a quick run down of the jeep as of 5/6/18
1989 comanche. originally was a long bed i bobbed it to just about short bed length
4.0/AX15
241OR from a rubicon

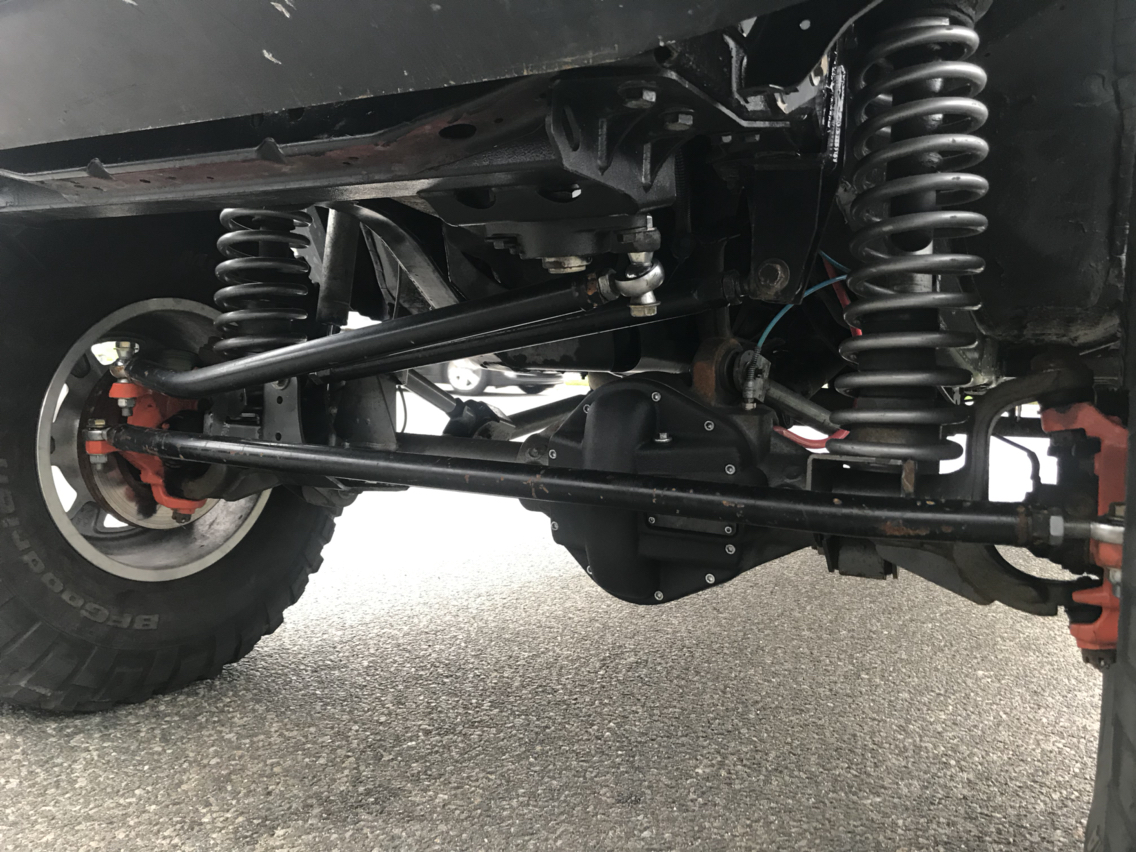

5.5 inch rubicon express coils and long arms. SOA rear on stock leafs
bilstien shocks all around
currie rockjock 44 with ARB and WJ knuckle swap, cavfab steering and 4:88s

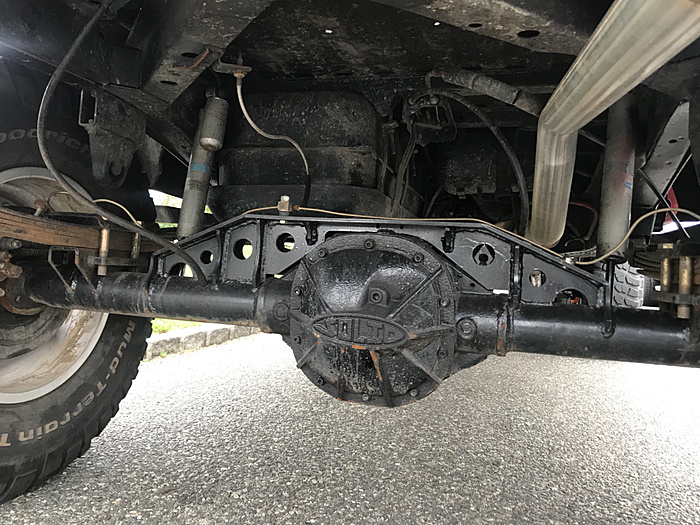

ford 8.8 with a detriot, yukon C clip elim, artec truss and ruff stuff u bolt elim with 4:88s
37 inch KM2s on ATX beadlocks
ARB on board air compressor

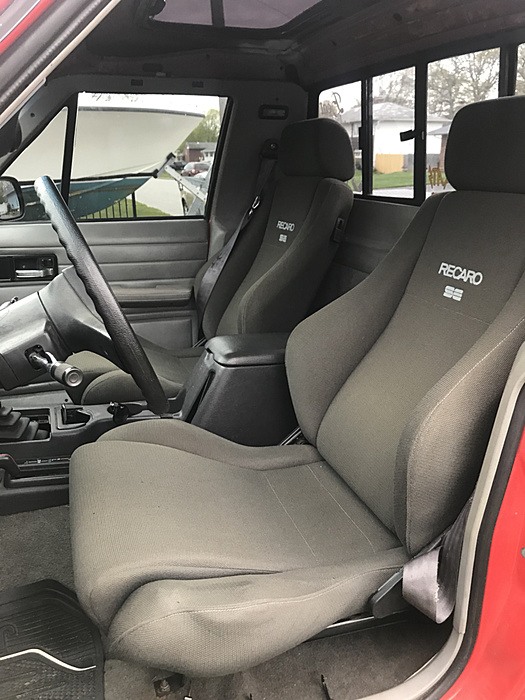

recaro seats
truck lite LED headlights
97+ header panel
dirtbound E fans
unkown front bumper, custom rear bumper
T&M fab frame stiffeners the entire length of the jeep
nates 4x4 rock sliders
bushwacker fender flares
I'm sure theres some other little odds and ends I'm forgetting but thats just a general over view

i post a lot more of the build over on IG but ill try to keep up with this thread as well

Last edited by billytoad631; 05-06-2018 at 01:54 PM.
billytoad631 is offline
Old 05-06-2018, 01:54 PM
  #2
Senior Member
Thread Starter

billytoad631's Avatar

Join Date: Oct 2011
Location: islip terrace NY
Posts: 522
Year: 1995
Model: Cherokee
Default

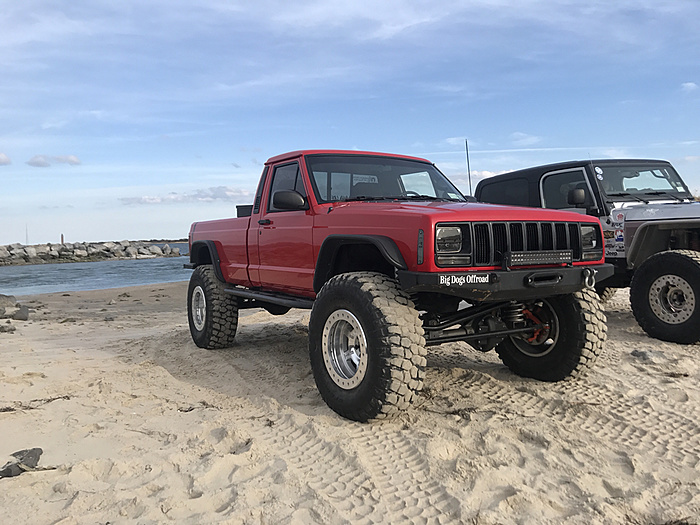

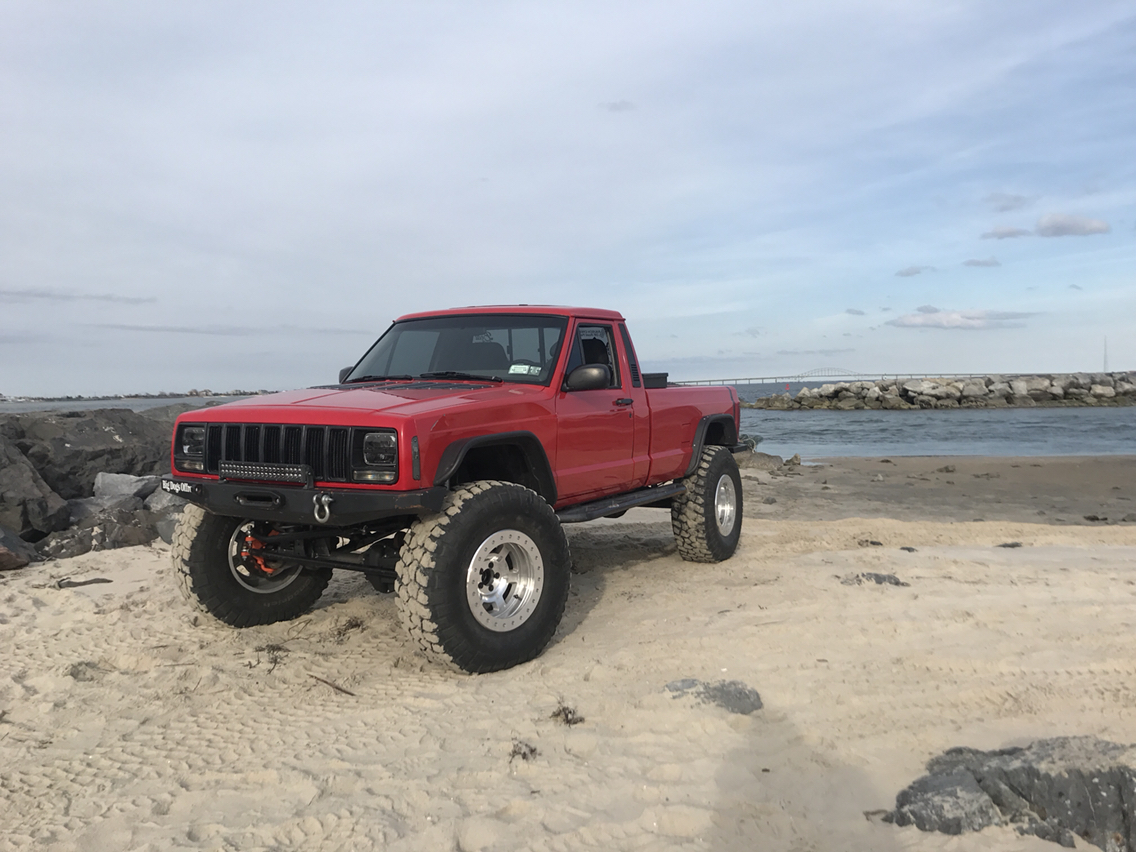

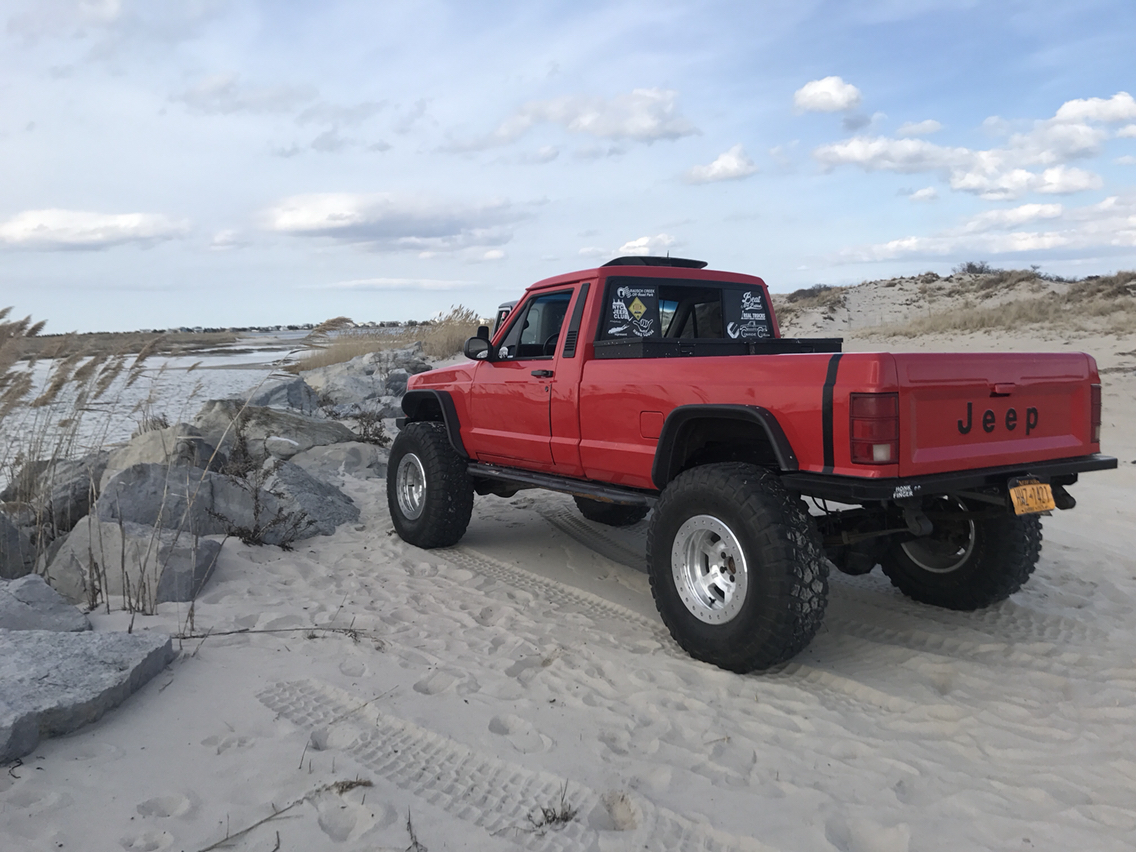

Few pics for now
Attached Thumbnails bobbed 89 comanche build-photo645.jpg   bobbed 89 comanche build-photo810.jpg   bobbed 89 comanche build-photo71.jpg   bobbed 89 comanche build-photo299.jpg   bobbed 89 comanche build-photo992.jpg

bobbed 89 comanche build-photo421.jpg   bobbed 89 comanche build-photo698.jpg
billytoad631 is offline
Old 05-07-2018, 11:53 AM
  #3
Newbie

billyv's Avatar

Join Date: Jun 2017
Location: Vancouver Island, BC
Posts: 16
Year: 1998
Model: Cherokee
Engine: 4.0
Default

very very nice.
billyv is offline
Old 05-07-2018, 02:40 PM
  #4
CF Veteran

4.3L XJ's Avatar

Join Date: Aug 2008
Location: Chico, CA
Posts: 4,412
Year: 1986
Model: Cherokee
Engine: 4.3L with headers and full 3" exhaust system
Default

Nice ride, has all the goodies
4.3L XJ is offline
Old 05-07-2018, 08:38 PM
  #5
Seasoned Member

TrailerTrash's Avatar

Join Date: Jun 2017
Location: Hangover, PA
Posts: 483
Year: 1998
Model: Cherokee(XJ)
Engine: 4.0L
Default

Looks incredible with the newer front end and just the whole package overall
TrailerTrash is offline
Old 07-04-2018, 01:35 PM
  #6
Senior Member
Thread Starter

billytoad631's Avatar

Join Date: Oct 2011
Location: islip terrace NY
Posts: 522
Year: 1995
Model: Cherokee
Default

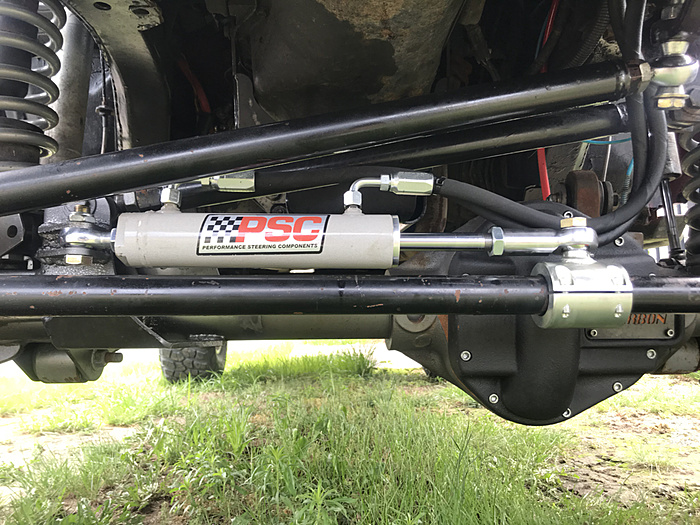

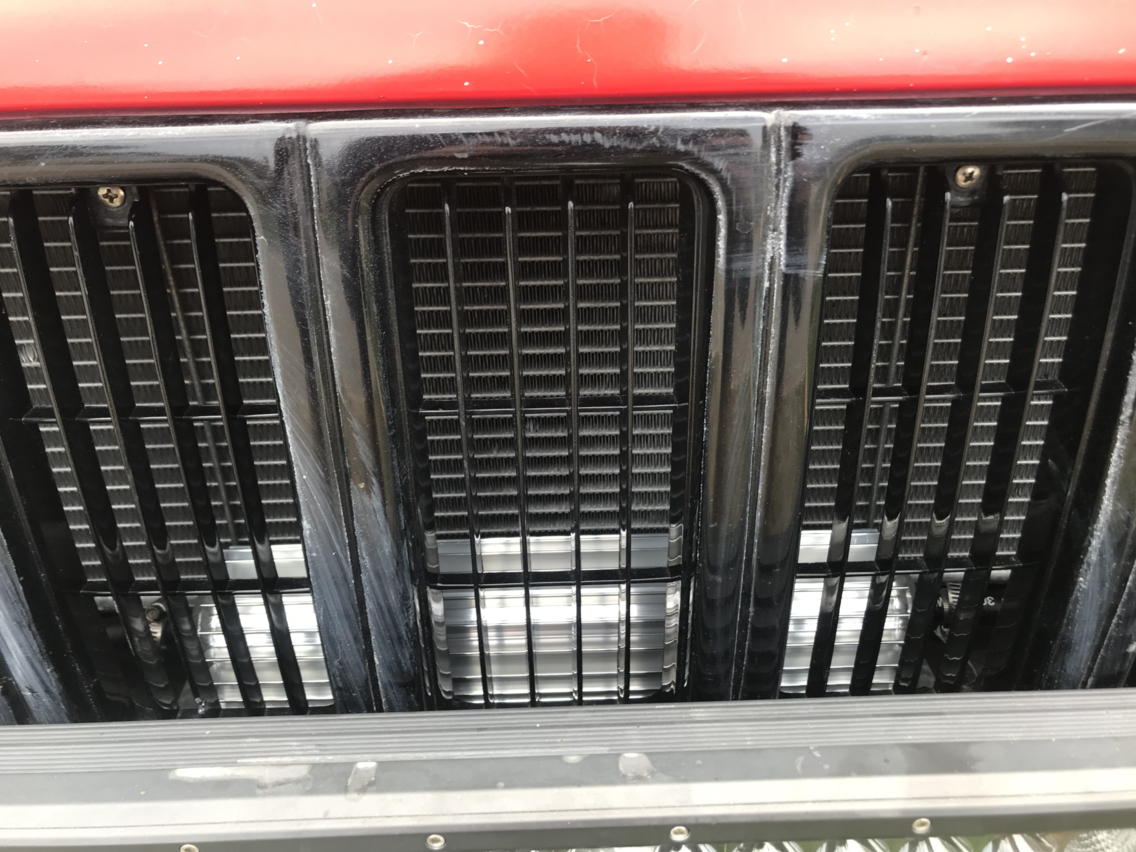

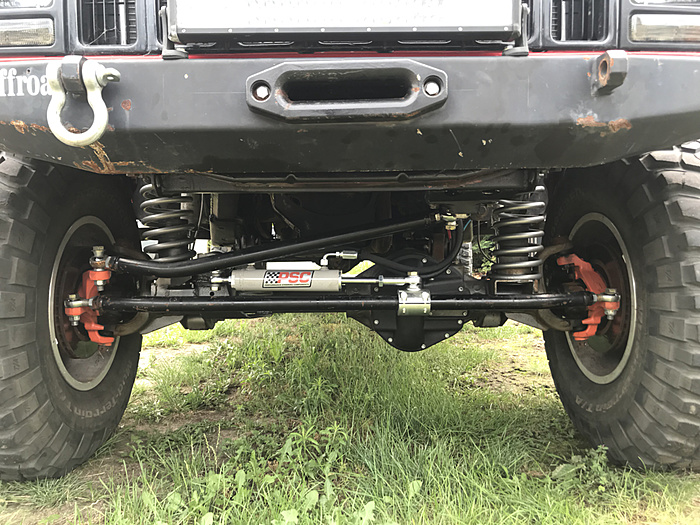

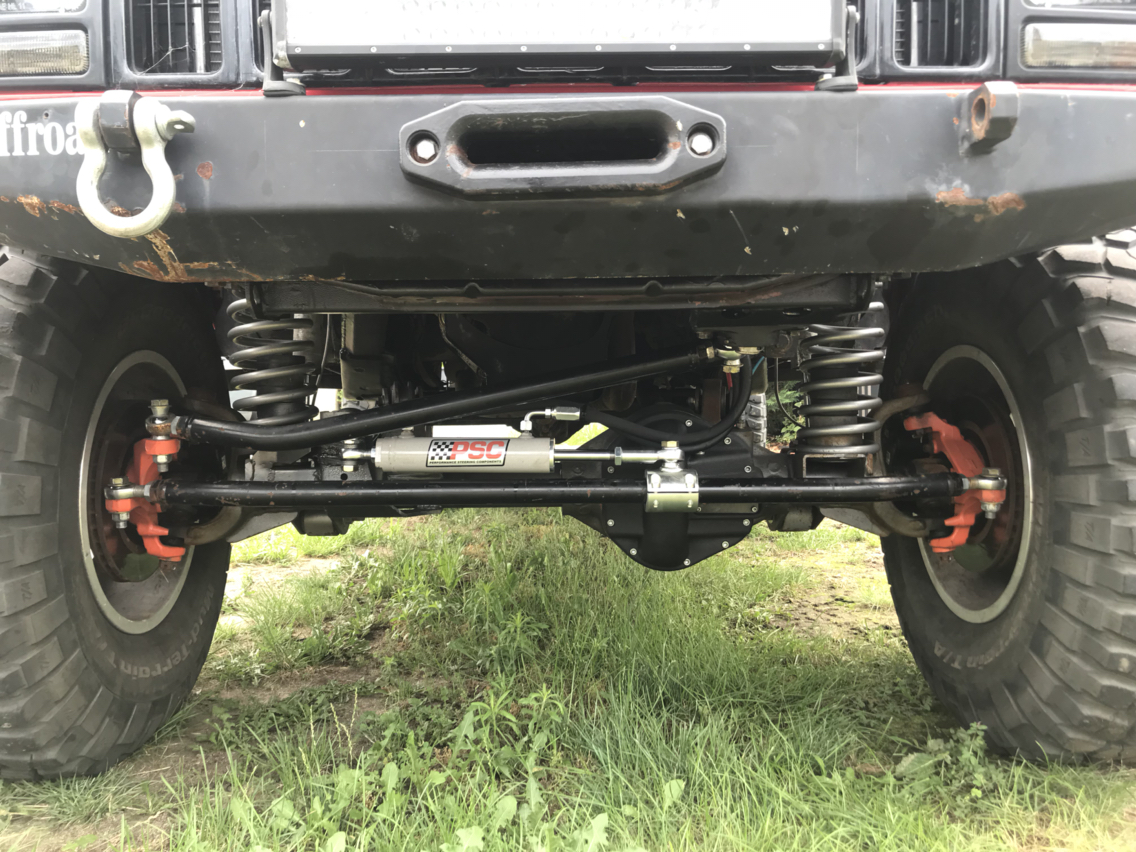

Got my hydro assist installed. Went with the PSC box and ram along with a PS cooler that fit nicely behind the grille. definitely feels a lot better turning the 37s now
Attached Thumbnails bobbed 89 comanche build-photo945.jpg   bobbed 89 comanche build-photo729.jpg   bobbed 89 comanche build-photo3.jpg
billytoad631 is offline
Old 07-04-2018, 03:00 PM
  #7
CF Veteran

4.3L XJ's Avatar

Join Date: Aug 2008
Location: Chico, CA
Posts: 4,412
Year: 1986
Model: Cherokee
Engine: 4.3L with headers and full 3" exhaust system
Default

Nice job
4.3L XJ is offline
Old 07-05-2018, 10:43 AM
  #8
CF Veteran

WyoCherokee's Avatar

Join Date: Jan 2015
Location: Gillette Wyoming
Posts: 1,278
Year: 1990
Model: Comanche (MJ)
Engine: 4.0
Default

The perfect MJ Build. Simple, clean, effective! someday ill get ahold of a rock jock 44 for mine.

Last edited by WyoCherokee; 07-05-2018 at 03:48 PM.
WyoCherokee is offline
Old 07-05-2018, 02:28 PM
  #9
CF Veteran

Desertfox1023's Avatar

Join Date: Apr 2008
Location: Burlington, NC
Posts: 2,332
Year: 1994...mostly...
Model: Cherokee (XJ)
Engine: 4.0L I6 HO, Lot's of Bolt Ons
Default

Very Nice Build
Desertfox1023 is offline
Old 07-05-2018, 05:49 PM
  #10
CF Veteran

unidentifiedbomb's Avatar

Join Date: May 2011
Location: DE
Posts: 5,547
Year: 1988
Model: Cherokee
Engine: I6 4.0
Default

Gorgeous
unidentifiedbomb is offline
Old 07-06-2018, 11:45 AM
  #11
CF Veteran

Batman33165's Avatar

Join Date: Apr 2013
Location: Rowlett, Texas
Posts: 1,131
Year: 1988
Model: Cherokee
Engine: 4.0 Inline 6
Default

awesome looking comanche!!!
Batman33165 is offline
Old 08-03-2018, 03:25 PM
  #12
Senior Member
Thread Starter

billytoad631's Avatar

Join Date: Oct 2011
Location: islip terrace NY
Posts: 522
Year: 1995
Model: Cherokee
Default

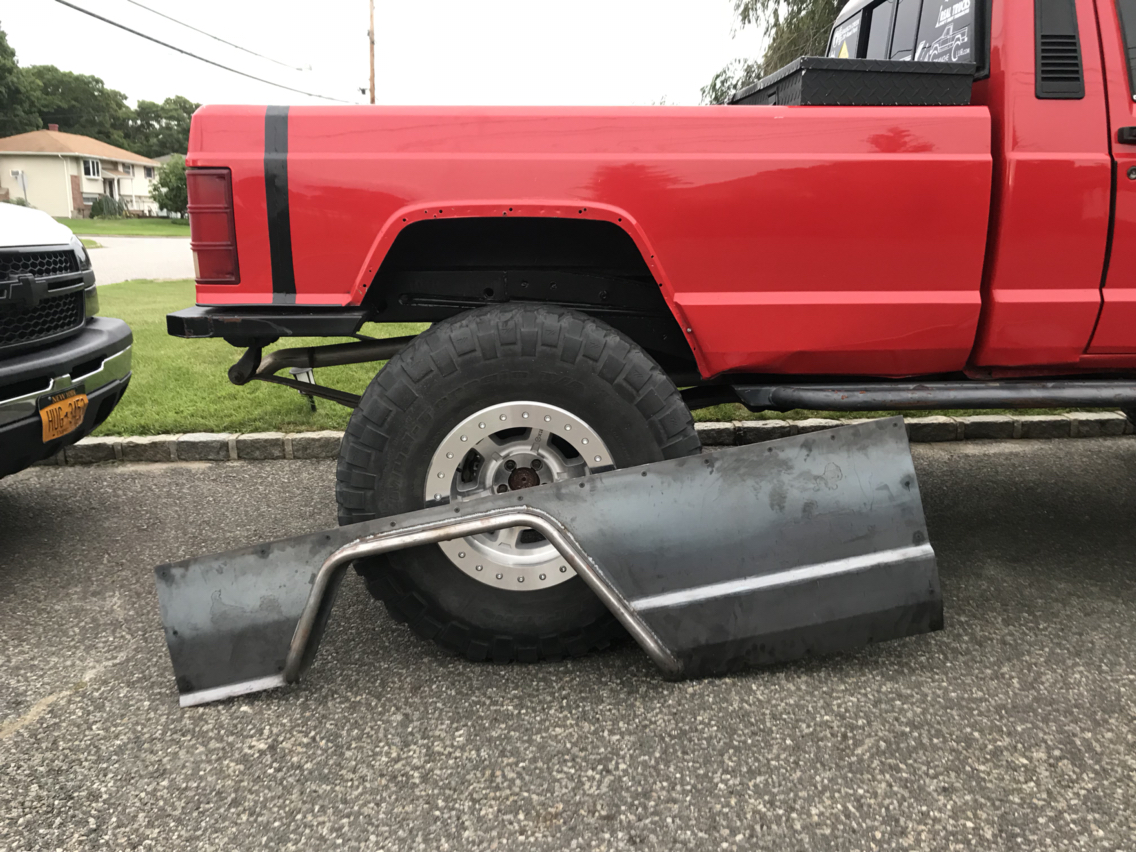

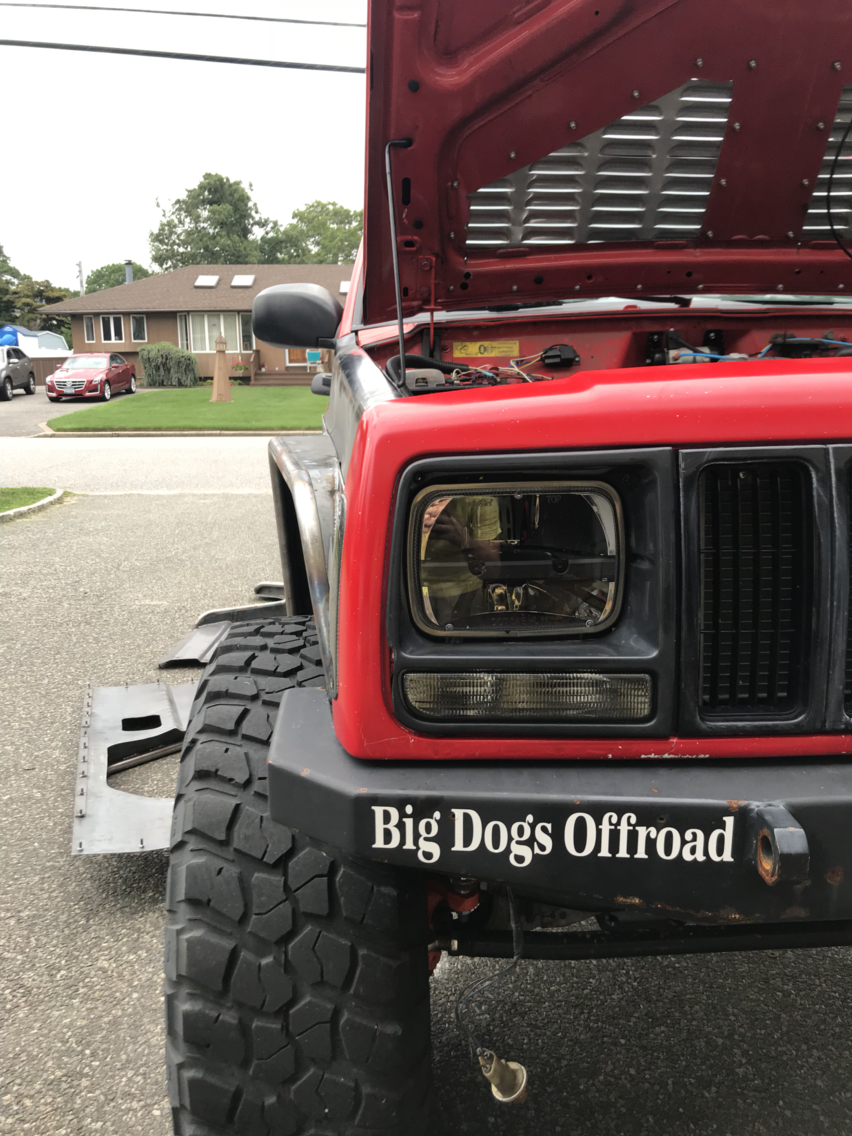

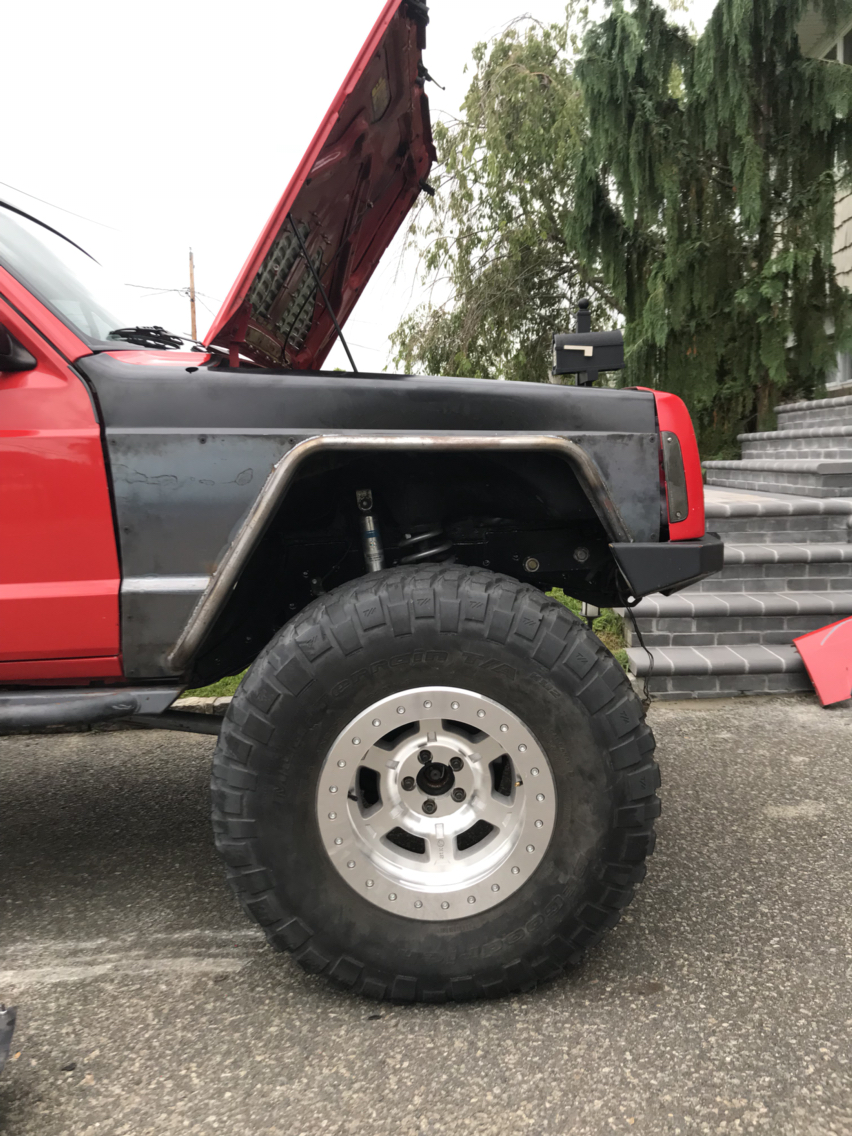

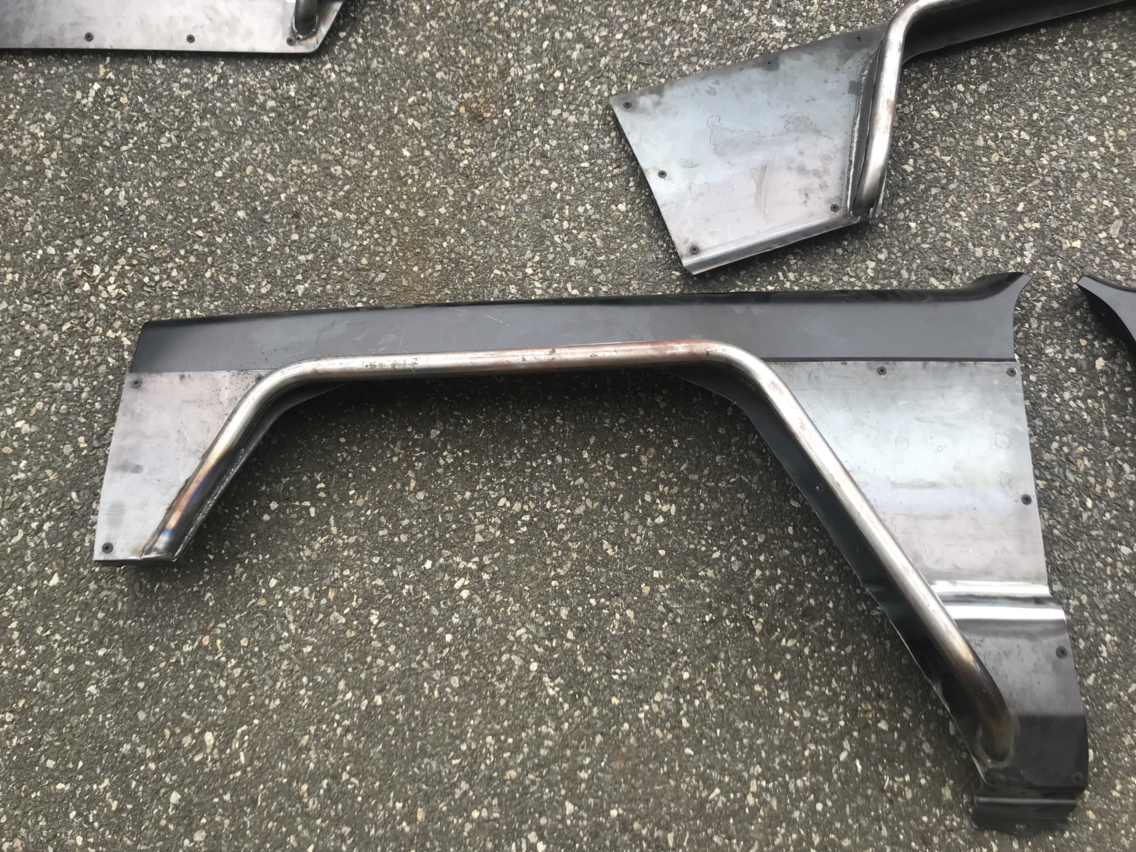

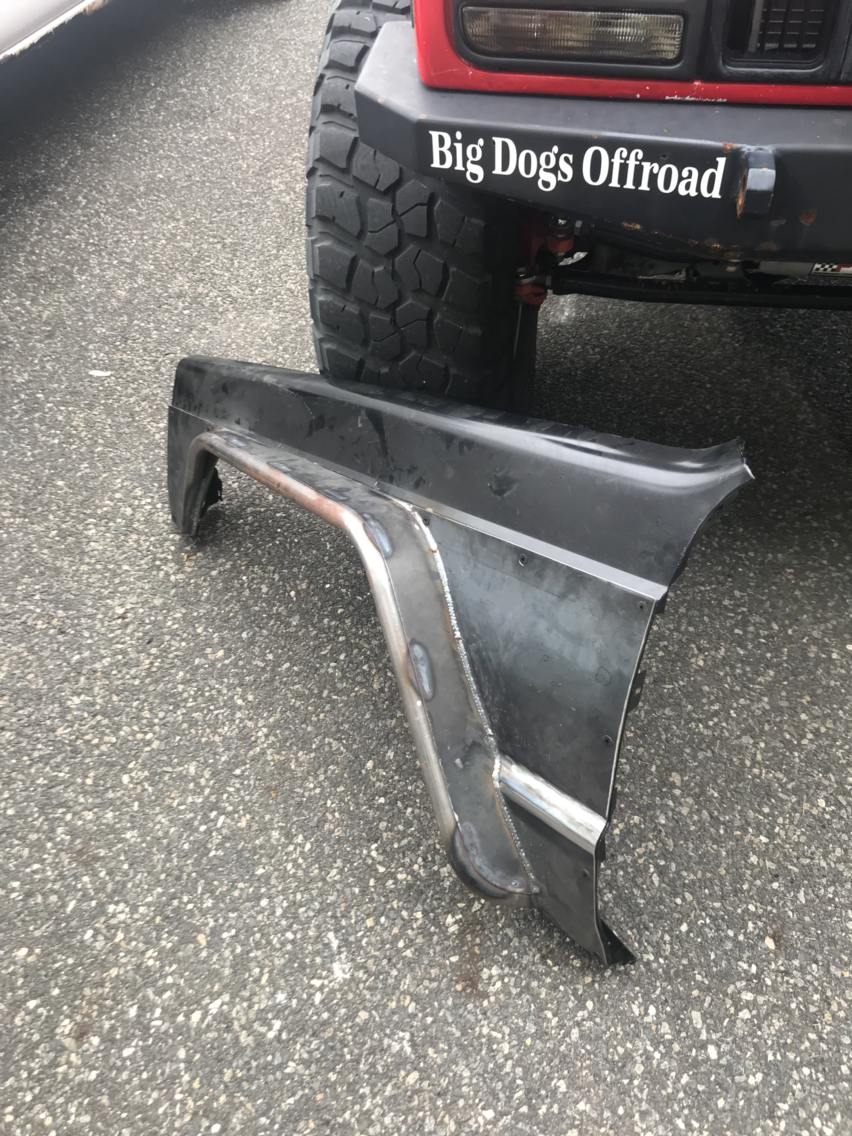

Had Some custom fenders and besides with tube flares built. Got the fronts mocked up. Still need to get the rears mocked up then they'll be ready for paint and final installation
Attached Thumbnails bobbed 89 comanche build-photo539.jpg   bobbed 89 comanche build-photo419.jpg   bobbed 89 comanche build-photo162.jpg   bobbed 89 comanche build-photo587.jpg   bobbed 89 comanche build-photo872.jpg


Last edited by billytoad631; 08-03-2018 at 06:07 PM.
billytoad631 is offline
Old 08-03-2018, 04:46 PM
  #13
CF Veteran

4.3L XJ's Avatar

Join Date: Aug 2008
Location: Chico, CA
Posts: 4,412
Year: 1986
Model: Cherokee
Engine: 4.3L with headers and full 3" exhaust system
Default

Very nice
4.3L XJ is offline
Old 08-03-2018, 05:53 PM
  #14
CF Veteran

unidentifiedbomb's Avatar

Join Date: May 2011
Location: DE
Posts: 5,547
Year: 1988
Model: Cherokee
Engine: I6 4.0
Default

Those look BA. Very nice craftsmanship
unidentifiedbomb is offline
Old 08-13-2018, 04:09 PM
  #15
Senior Member
Thread Starter

billytoad631's Avatar

Join Date: Oct 2011
Location: islip terrace NY
Posts: 522
Year: 1995
Model: Cherokee
Default

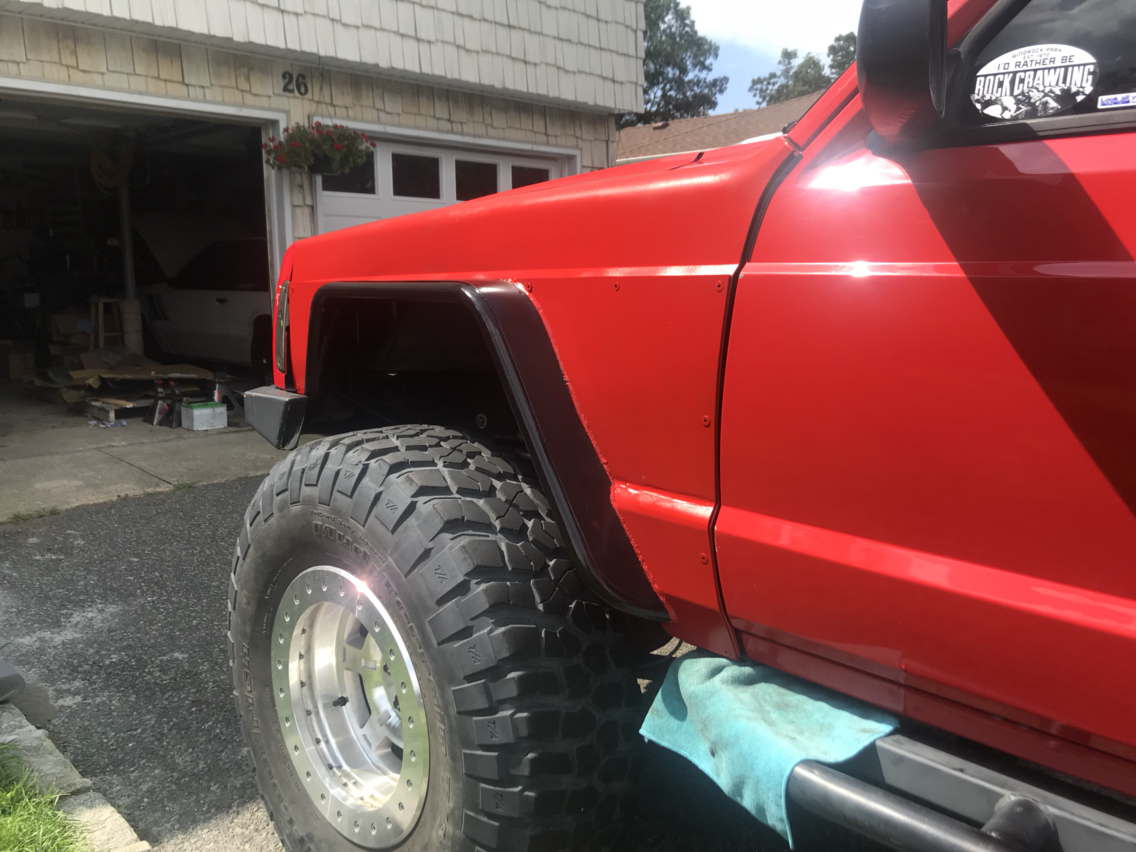

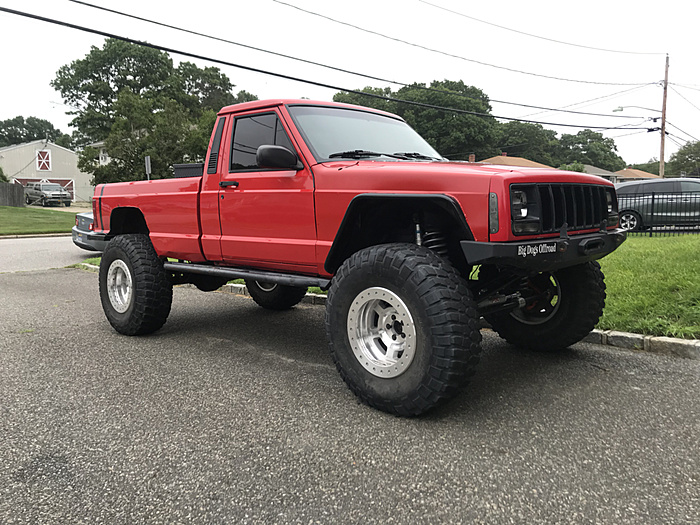

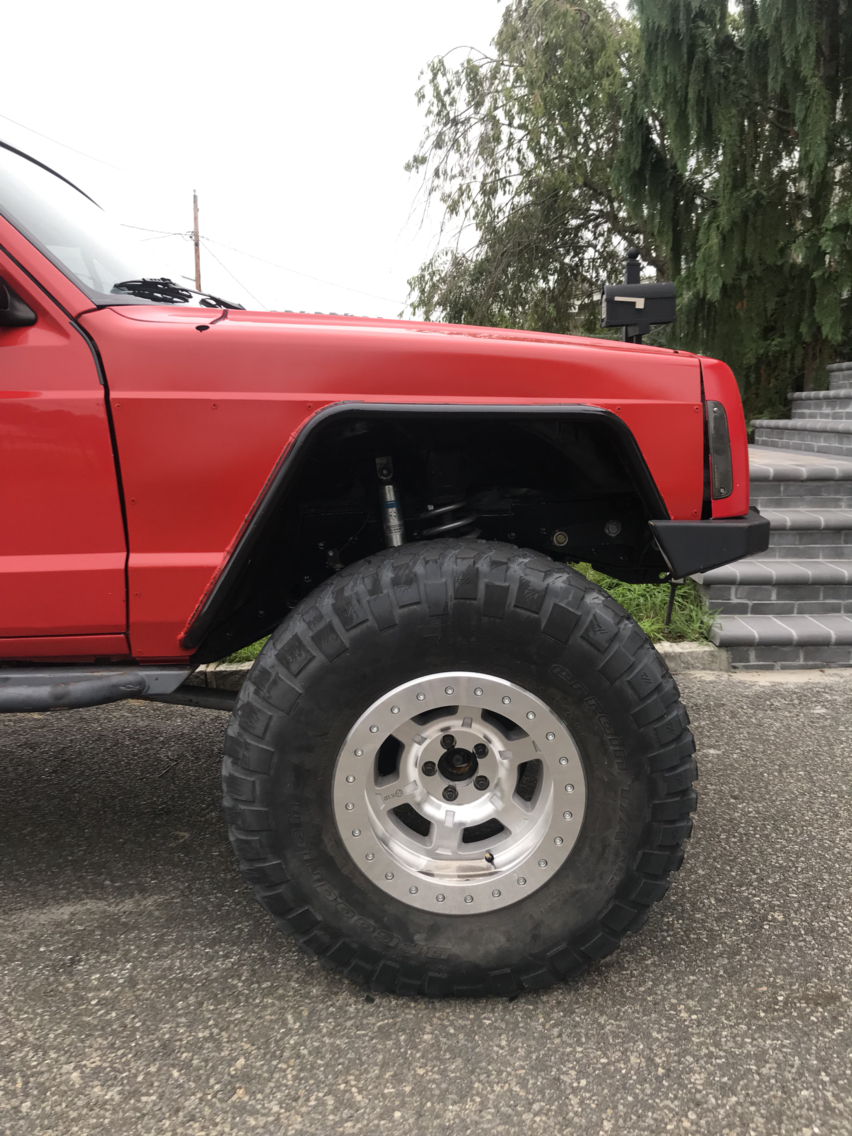

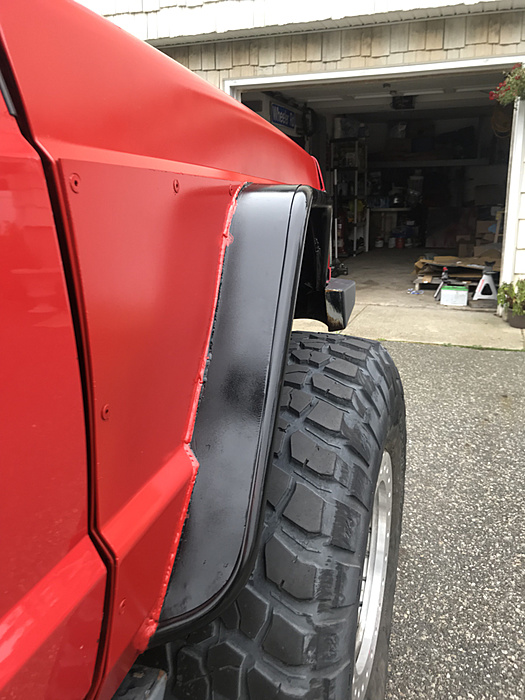

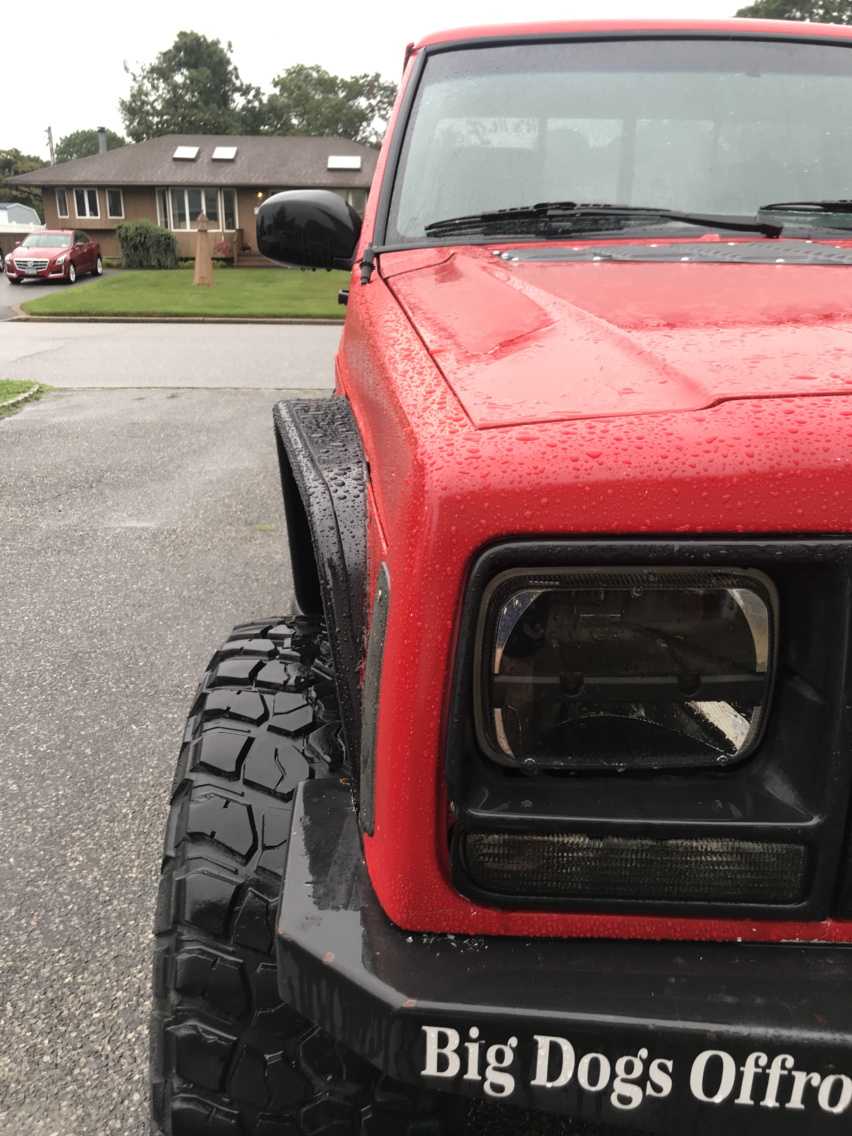

Got the front fenders painted and installed. Rears to come soon
Attached Thumbnails bobbed 89 comanche build-photo98.jpg   bobbed 89 comanche build-photo918.jpg   bobbed 89 comanche build-photo534.jpg   bobbed 89 comanche build-photo670.jpg   bobbed 89 comanche build-photo852.jpg
