Jeep Builds Make your own jeep build thread here, discuss and view jeeps here. All Jeep models are welcome here.

Barney grows up

Old 02-05-2010, 12:01 AM
  #1
CF Veteran
Thread Starter

xjmarc's Avatar

Join Date: Feb 2010
Location: Soddy Daisy TN
Posts: 5,420
Year: 97
Model: Cherokee
Engine: 4.0L
Default Barney grows up

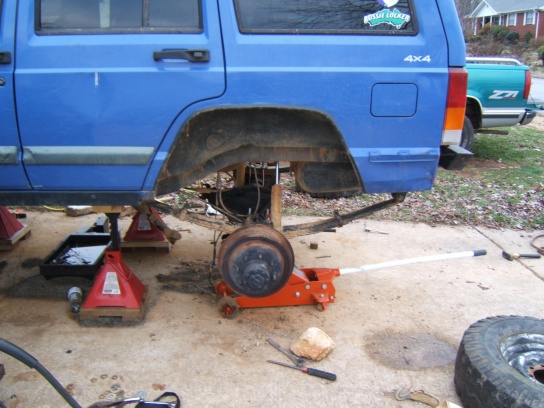

This is my 97 XJ we call him Barney. Got tire of breaking shafts in the 35 (even tried alloys) so I upgraded to Ford HP44 and 60 out of a 79 F250. Build is pretty much done but here are some before during and after shots. Running Rubicon Express short arms and Rough Country drop brackets up front with 6.5" Rock Krawler TJ coils and Rubicon Express 5.5" leaves with a 2" shackle rear. Track width is 80" and wheelbase is 104". Long arms are coming as soon as I get some free time to build them. Also going to replace the 35 MTZs with 37 Iroks and weld on some bead locks. And then..........
Attached Images
xjmarc is offline
Old 02-05-2010, 12:18 AM
  #2
CF Veteran

nick_n_ii's Avatar

Join Date: Mar 2008
Location: North Muskegon, Michigan
Posts: 5,894
Year: 1997
Model: Cherokee
Engine: 5.2L
Default

I'd like to see a front on shot..
nick_n_ii is offline
Old 02-05-2010, 12:23 AM
  #3
CF Veteran
Thread Starter

xjmarc's Avatar

Join Date: Feb 2010
Location: Soddy Daisy TN
Posts: 5,420
Year: 97
Model: Cherokee
Engine: 4.0L
Default

Here are the only ones I have on my laptop right now. I'll try and get a few when I get home this weekend.
Attached Images
xjmarc is offline
Old 02-05-2010, 12:24 AM
  #4
CF Veteran
Thread Starter

xjmarc's Avatar

Join Date: Feb 2010
Location: Soddy Daisy TN
Posts: 5,420
Year: 97
Model: Cherokee
Engine: 4.0L
Default

Still got to redo the steering as well to OTK.
xjmarc is offline
Old 02-05-2010, 09:27 AM
  #5
Seasoned Member

jarretthise's Avatar

Join Date: Oct 2009
Location: crawfordsville, In
Posts: 342
Year: 1996
Model: Cherokee
Engine: 4.0
Default

That's a pretty nice jeep. Sits about the same as mine only I have 33s right now. You need some bushwackers. It would make your ride look so much cleaner I think.
jarretthise is offline
Old 02-05-2010, 11:12 AM
  #6
CF Veteran

djlarroc's Avatar

Join Date: Jun 2009
Location: Denver, CO
Posts: 3,071
Year: 1997
Model: Cherokee
Engine: 4.0
Default

Nice build. Jeep looks really good. That's a clean trim job. I wouldn't put bushcrackers on there.
djlarroc is offline
Old 02-05-2010, 08:03 PM
  #7
CF Veteran
Thread Starter

xjmarc's Avatar

Join Date: Feb 2010
Location: Soddy Daisy TN
Posts: 5,420
Year: 97
Model: Cherokee
Engine: 4.0L
Default

Never been a fan of fender flares, I tend to just tear them off.
xjmarc is offline
Old 02-05-2010, 08:39 PM
  #8
Seasoned Member

ToyComa's Avatar

Join Date: Sep 2009
Posts: 314
Model: Cherokee
Default

awesome truck.
ToyComa is offline
Old 02-05-2010, 09:06 PM
  #9
Senior Member

The Black's Avatar

Join Date: Apr 2009
Location: New Waverly, Tx
Posts: 954
Year: 1997
Model: Cherokee
Engine: Custom Rebuilt Long Block, Red 4.0 Valve Cover, JeepersCreepers 60mm TB, '99-'01 intake, BorlaHeader
Default

Awesome looking rig man. My question is what did u do with the ABS system when u changed axles? I have a 97 also and was wondering If you keep it or just trash it????
The Black is offline
Old 02-05-2010, 09:27 PM
  #10
CF Veteran

posjeepxj's Avatar

Join Date: Jan 2010
Location: Indianola IOWA
Posts: 2,059
Year: 1992
Model: Cherokee
Engine: 4.0
Default

nice jeep

im looking for actual measurements of control arm drop brackets. from bolt center to bolt center how far down and forward do they move? Any help would be appreciated
posjeepxj is offline
Old 02-05-2010, 09:45 PM
  #11
Seasoned Member

dar83's Avatar

Join Date: May 2009
Location: olive branch, ms
Posts: 279
Year: 2000
Model: Cherokee
Engine: 4.0
Default

sweet jeep, any parts left over from your axle swaps?
dar83 is offline
Old 02-06-2010, 01:12 AM
  #12
CF Veteran

djlarroc's Avatar

Join Date: Jun 2009
Location: Denver, CO
Posts: 3,071
Year: 1997
Model: Cherokee
Engine: 4.0
Default

Hey, did you cut and fold the rear? And just cut the front?
djlarroc is offline
Old 02-06-2010, 08:41 PM
  #13
CF Veteran
Thread Starter

xjmarc's Avatar

Join Date: Feb 2010
Location: Soddy Daisy TN
Posts: 5,420
Year: 97
Model: Cherokee
Engine: 4.0L
Default

Bypassed the ABS by pulling relays and works fine.
Not sure exactly how much they dropped it roughly 3" and forward about an inch.
And yes I cut and folded the rear for now. Plan on reversing the rear leaves which stretches the rear 6 inches and doing a comp cut and making new inner fender wells.
xjmarc is offline
Old 02-07-2010, 02:05 PM
  #14
Senior Member

clockwise's Avatar

Join Date: Aug 2009
Location: McCall Idaho!
Posts: 674
Year: 97
Model: Grand Cherokee
Engine: 5.2
Default

hella sick xj
clockwise is offline
Old 02-07-2010, 02:32 PM
  #15
CF Veteran

offroadnut36's Avatar

Join Date: Aug 2008
Location: Hollidaysburg, PA
Posts: 5,603
Year: 1990
Model: Cherokee
Engine: 4.0 lt. 242 cu.in.
Default

Originally Posted by xjmarc View Post
Bypassed the ABS by pulling relays and works fine.
Not sure exactly how much they dropped it roughly 3" and forward about an inch.
And yes I cut and folded the rear for now. Plan on reversing the rear leaves which stretches the rear 6 inches and doing a comp cut and making new inner fender wells.
now that sounds badass! sweet jeep too!
offroadnut36 is offline
