got my knuckles back from the machine shop today all drilled for my high steer arms stoked he got them done so fast! front diff is getting closer to done!



Spent all weekend grinding and getting all the cleaning finished its the boring part of the build hopefully have some real updates soon. Also need to find a d60 carrier mine is no good center pin has wobbled the hole in the carrier out.

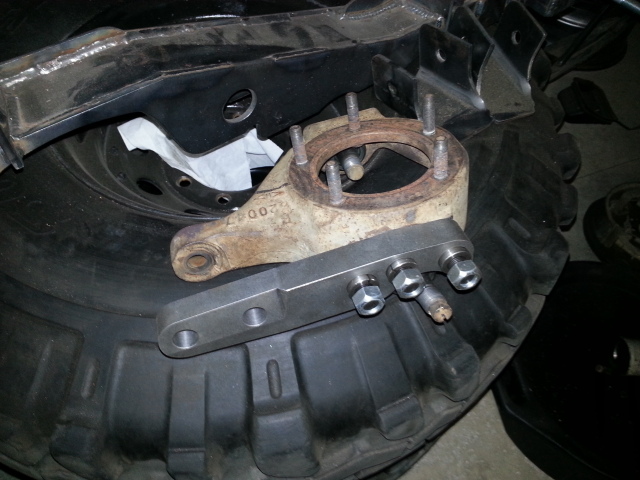

Figured throw some pics of the parts that came in parts mike highsteer arms on my drilled knuckle
Ruff stuff frame stiffeners ready to go on
Ruffstuff 1.25 heims big sobs lol my easy swap 60 kit and rod ends for my steering and track bar

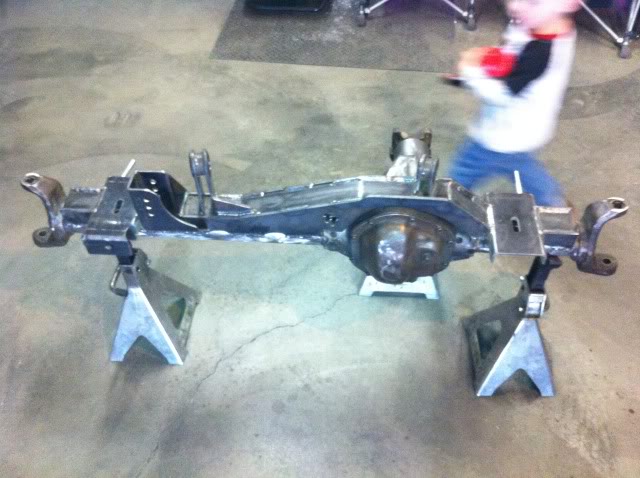

Tnt 44 truss
12k badland winch its like christmas lol



Also Saturday got my friend out to fab up the rear frame rails
figuring out our first cut to get 30° bend doing a test fit
Both rails in for testing
Pulled out for final welding and ground down all welded and done

Slid in


There not welded in yet did a 12 hour day in the shop ran out of steam lol these slid a foot into the existing frame and will be welded to that along with to the frame stiffeners and floor. The rear cross bar is the base for my bumper will be added onto down the road.



Looking great nice fab work and dedication



Thank you and it's going slow but hopefully worth it in the end. Hoping to get the spring hangers fabed up this week and get the 60 mocked up



Guess i have not updated this in awhile lol jeep still isn't done but its getting closer. Just to catch up here is a few pics. The start of the new tubs and quarter armor here is the front truss all welded on



Here is the front y link i built using 2in .250 wall stock with 1.25 heims

All bolted in the jeep doing some testing making sure it all moves right how it sits at ride height ( little lower now)
Sitting on all 4 tires again its got a little stretch lol
