Wonderful find. When I was looking for a replacement radio I wanted to have an AUX in capability, but didn't want one of those silly/ridiculous aftermarket units that have digits dancing all over the screen and flashing lights and whatnot. I ended up settling on a Jenson Heavy Duty Tractor-type radio because it was fairly close to the square-ish buttons and plain face I was looking for. Granted, it's amber instead of green, but I'm generally pretty happy with it.
I've been searching for an AMC radio that came in Cherokees for a while. Granted, some had mounting brackets for other AMC/Renault vehicles. After playing it in the garage, I'm going to have to add a 4Ω resister to each speaker. The radio produces no more than 13 watts at 8Ω, and with the 4Ω Pioneer speakers, I get to full volume at about half of the full turn of the volume ****. For one, I don't want to over-task the little transistors that produce the sound. And secondly, it's going to be a pain in the rear trying to set the volume in a bumpy Jeep while driving - one little bump of the volume and its too loud or too soft.
#33
Seasoned Member
The black, straight-blade plug should be a single wire that originates at a fusible link near the male/female plugs on the left side, on top of the wheel well behind the battery. It is 12V positive- the light itself grounds through the hood. I installed a new bond wire between where the light attaches to the hood and the body so I have a better negative for the light. I had considered LED lamps once upon a time; however, due to it's age --obviously visible by the 80s cream-colored body-- I decided to stay with incandescent bulbs on everything to keep with the vintage-age look.
So I went through and did the same thing with my light that you did, got it all cleaned up and working again. Then I went to look for the damn plug where you said it was and I simply cannot find it. You think I could bother you to take a picture of where you found it? I guess it's possible it was removed, but I'm simply not seeing any loose plugs
Greatly appreciate your help on this!
S/F,
-Matt
#34
Seasoned Member
Thread Starter

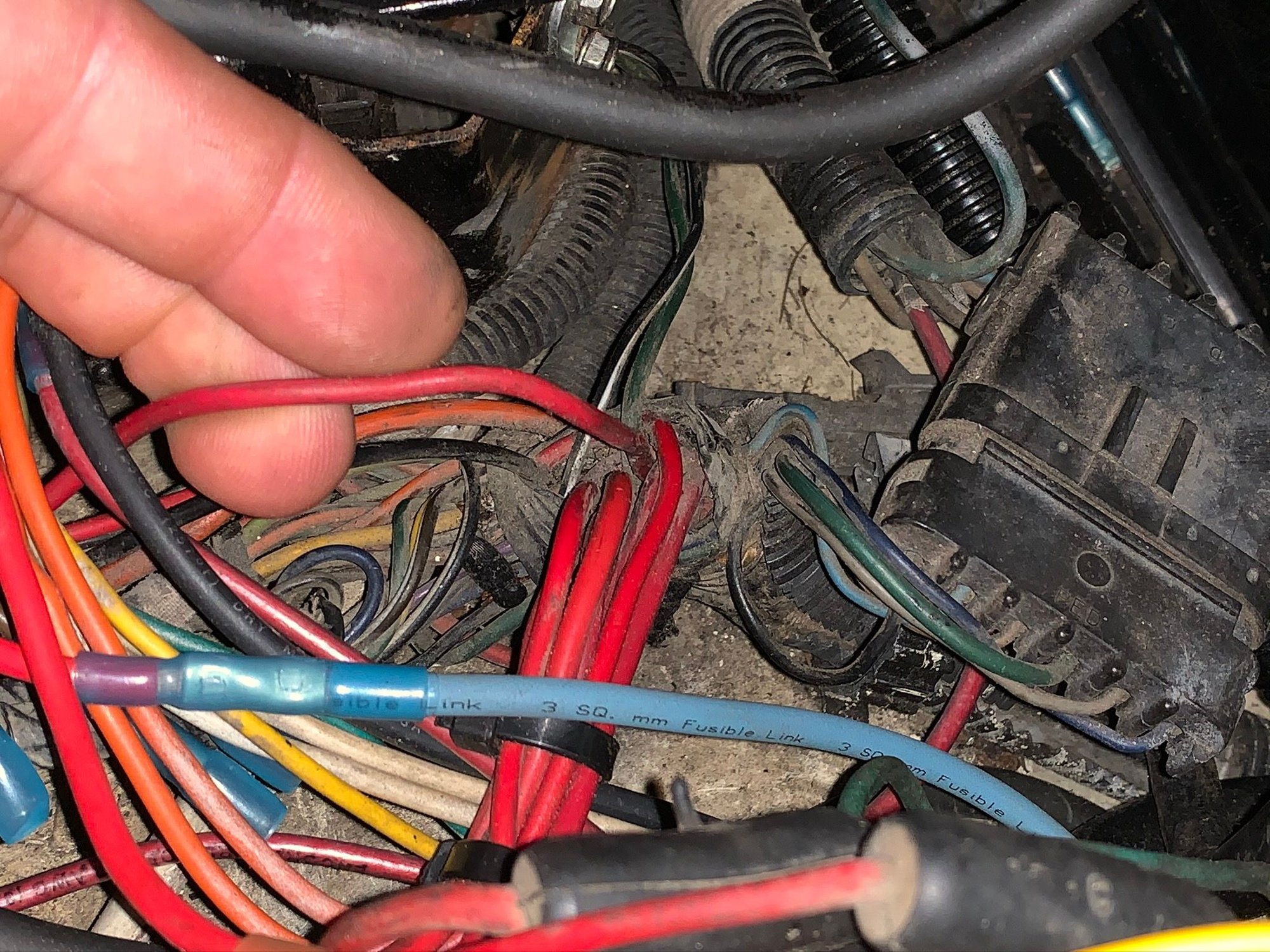

Matt, here are a few photos of what you are looking for. The black plug is at the end of a red wire that emerges from the end of a black wire loom near a few GM-style Weather Pack connectors at the rear passenger corner of the batter. The wire loom appears to run around the passenger side of the battery towards the radiator. The factory fusible links also enter the same wire loom. The wire loom is the violet arrows, and the red wire for the hood light is the lime arrows.
#35
Seasoned Member
Thread Starter
Btw, I had some new rubber runners custom made for the frame rails on the roof. Let me know if you want some. I sell them on eBay for $50/shipped, but I'll sell any CherokeeForum members some for $30/shipped!
Attachment 304247
Attachment 304247
#36
Seasoned Member
Matt, here are a few photos of what you are looking for. The black plug is at the end of a red wire that emerges from the end of a black wire loom near a few GM-style Weather Pack connectors at the rear passenger corner of the batter. The wire loom appears to run around the passenger side of the battery towards the radiator. The factory fusible links also enter the same wire loom. The wire loom is the violet arrows, and the red wire for the hood light is the lime arrows.
I still have some sets, but just to clarify; you know these are sized for the four smaller bars that are in the center between the two larger outer rails, right?
#37
Seasoned Member
Thread Starter
Got around to a few things...
Started taking apart the front end, wire brushing and painting. Getting the remainder of the old powder coating off was a chore.
Started taking apart the front end, wire brushing and painting. Getting the remainder of the old powder coating off was a chore.
#38
Seasoned Member
Thread Starter

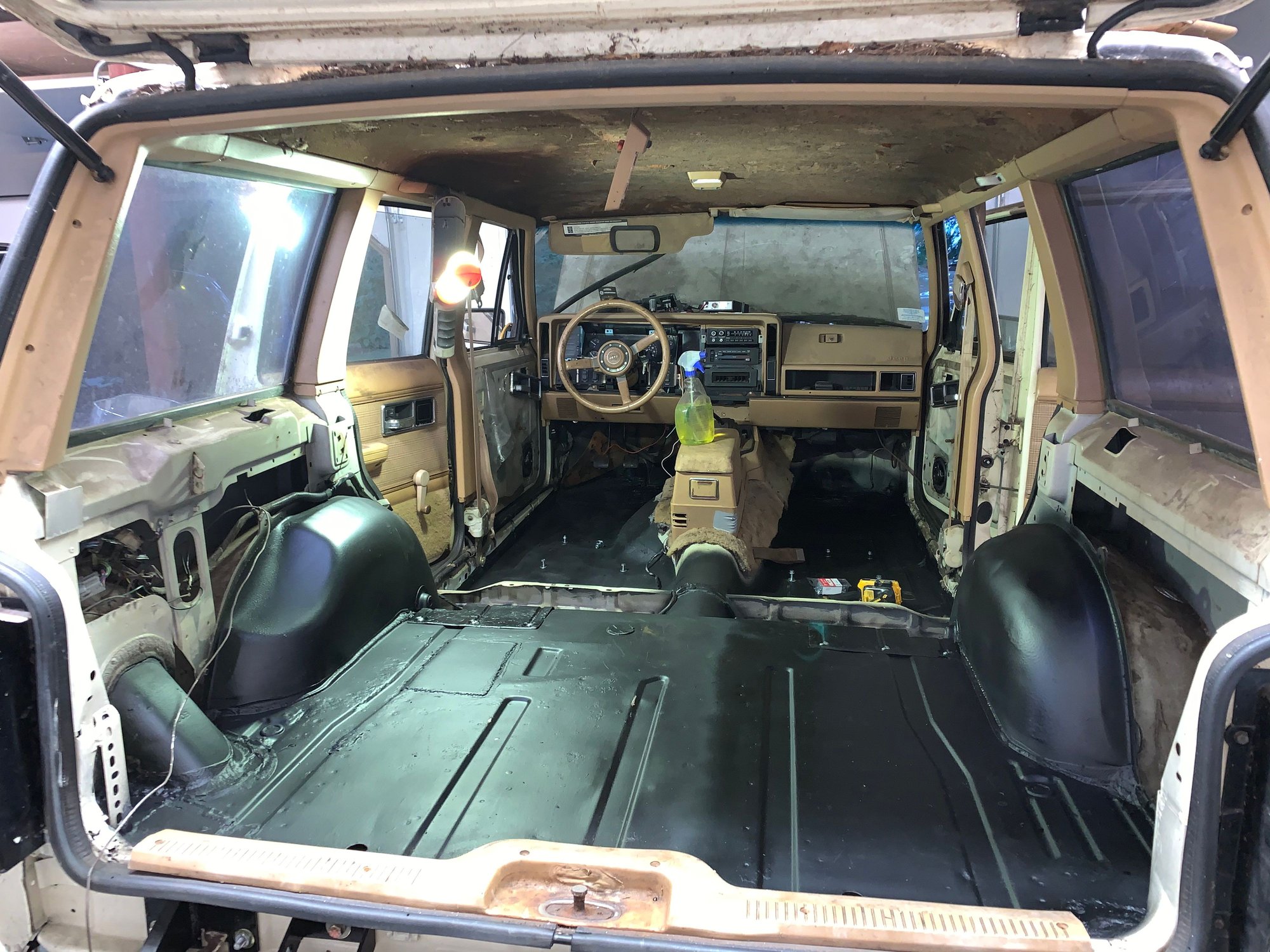

Finished the floors, sealed the seams and rubber coated.
Now, trimming the carpet kit begins.
Now, trimming the carpet kit begins.
Last edited by ajpulley; 09-06-2020 at 09:12 PM.
#39
Seasoned Member
#40
Seasoned Member
Thread Starter

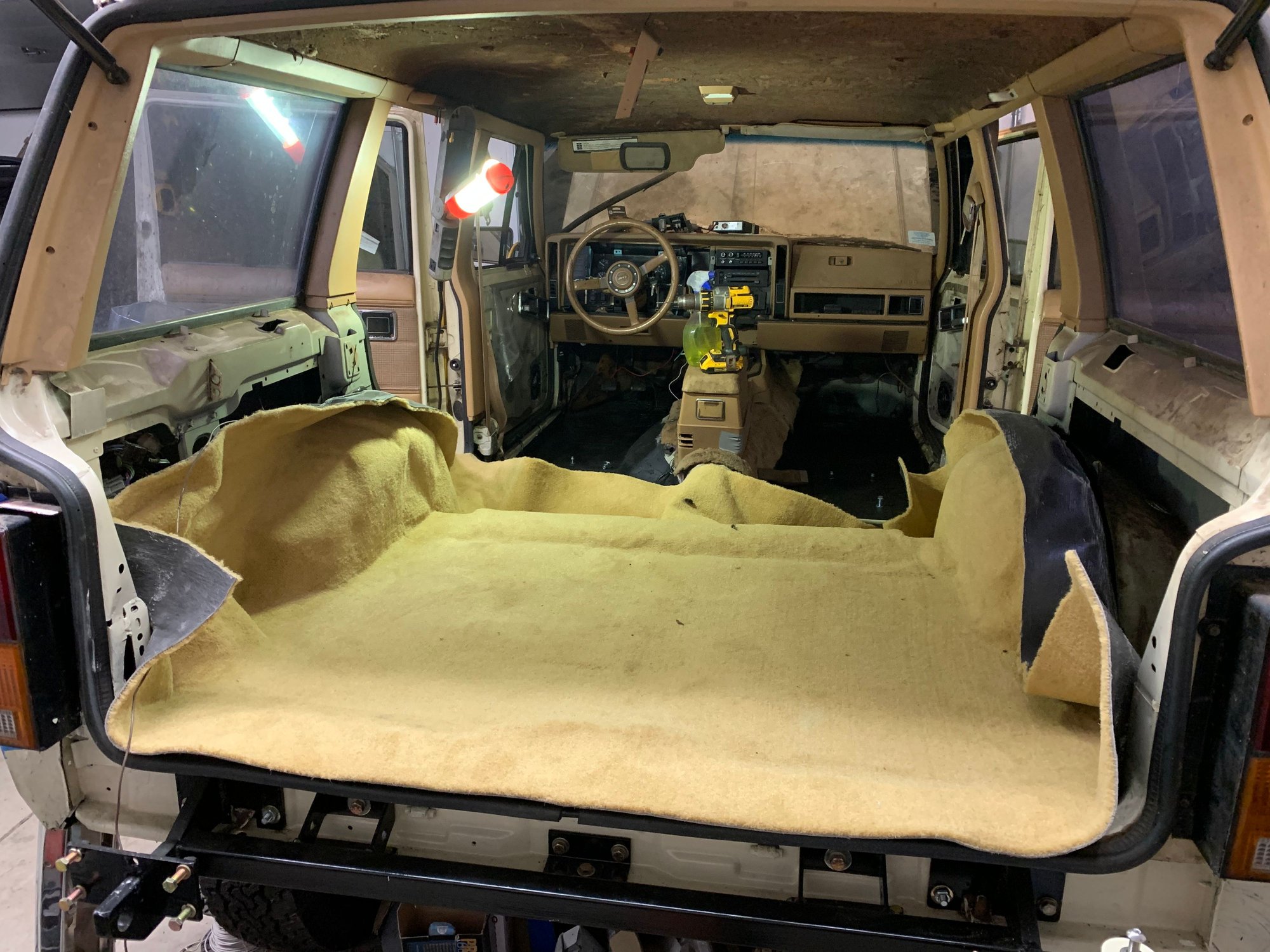

Yes. Ordered ACC carpet. I was shocked at the gold color until I pulled up the center console and realized gold WAS the factory color! Amazing what years of dirt, washing, dirt, washing, more dirt, more washing will do to the color. The back trimming wasn't bad at all. I'm not looking forward to the front section. Thank God I saved the middle piece that the console sat on as I cut out everything around it. At least I can get that part right.
ACC takes a square and forms it. It's up the the customer to trim to fit unfortunautely.
I haven't decided completely, but I'm leaning towards not re-using the center bars. I have Yakima mounts for those early-style luggage rails for my rack I'm gong to remount. It used to be a PITA to wash between them. If they were for the outers, I'd grab a set from you instantly.
ACC takes a square and forms it. It's up the the customer to trim to fit unfortunautely.
#41
Seasoned Member
Thread Starter

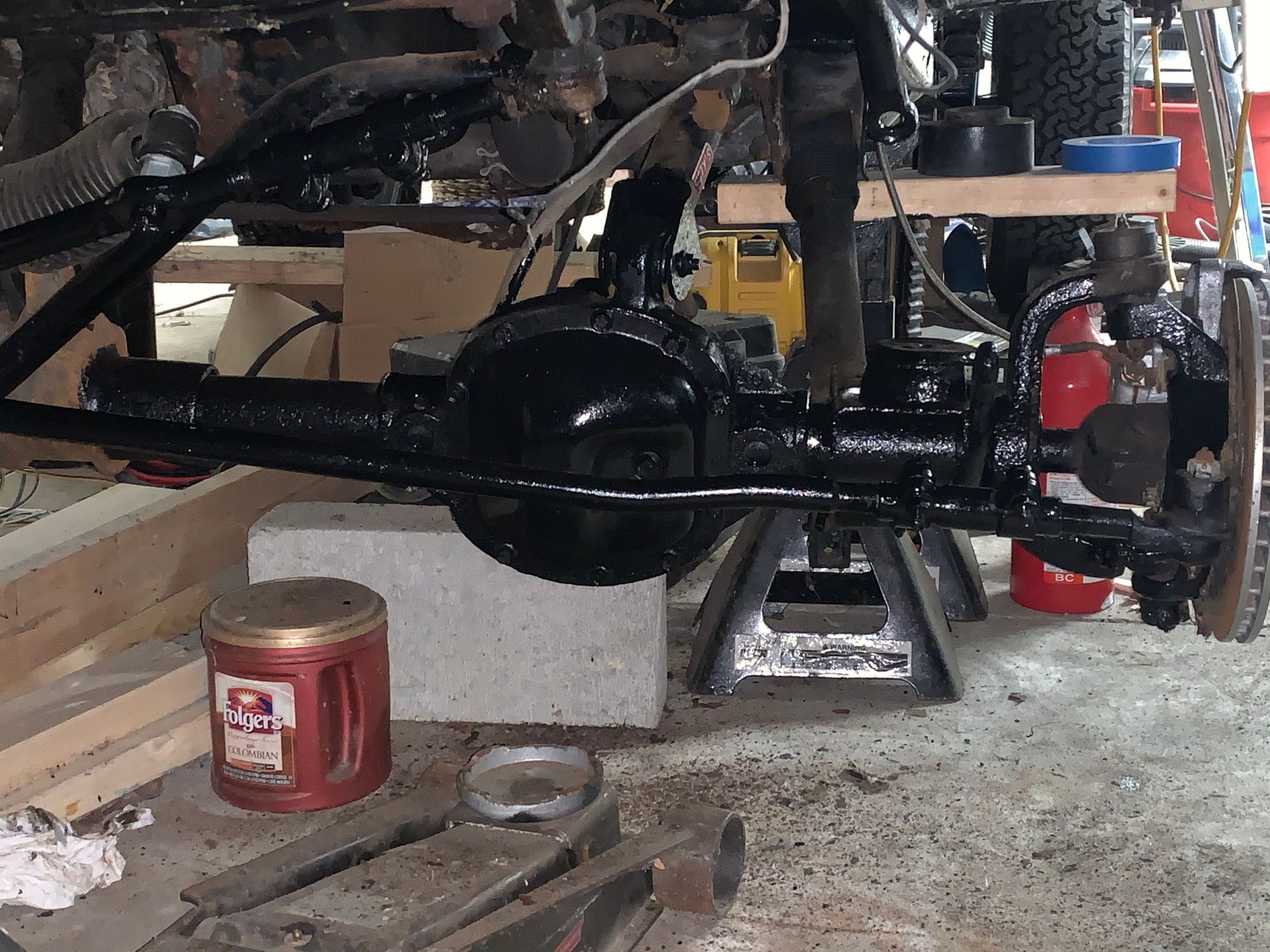

Finished putting one side back together. For 33 years old, it's better than it was. Amazing what the humid air can do... those rotors are brand new and haven't been used since I installed them. I'm glad I gave the non-contact surfaces a coat of paint.
#42
Seasoned Member
Thread Starter
Got the front carpet trimmed in, center console installed and driver's seat mounted.
The front feet of the driver's seat were so rusted, I had to fabricate new ones. Trimmed up some angle and added a cross brace.
The front feet of the driver's seat were so rusted, I had to fabricate new ones. Trimmed up some angle and added a cross brace.
#43
Seasoned Member
Thread Starter
Also moved the location of the license plate since the spare tire will partially block it in it's original location. The license plate light is the closest I could find to the one used with factory spare tire carriers. The rivets are the same Jeep parts.
#44
Seasoned Member
Thread Starter
I finished the extra electrical I wanted so I could put the drive’s side trim back in. In the rear, I installed two relays to operate a reverse light- one runs off the factory reverse circuit and the other off a dash switch. I brought back a clean circuit for the light and a 12v power outlet. Up front, I installed a switch for the driving lights as well, and a second cigarette lighter. I made a custom insert where the factory clock used to be.
#45
CF Veteran
Join Date: Sep 2017
Location: MO
Posts: 1,548
Received 303 Likes
on
252 Posts
Year: 1996
Model: Cherokee (XJ)
Engine: 4.0
I love the look of the switch panel with factory switches. I had thought about doing that a while back but completely forgot. I'll add switches to the junkyard list!
