Default 2000 Ls xj

Been wanting to do this build ever since I got this jeep two falls ago and I'm finally getting started so I figured I'd document it. I plan on going with either the 5.3 or 5.7, all depends on what I get my hands on first, with a nv4500 and flipped dana 300 behind it.

When I originally bought this jeep for $800 it was bone stock and what appeared to be spotless. But once I got her home I tore the corner bumper caps off and found horrible rust on the back. i also found rusted out floors and a bad patch job on the rockers. so i welded in all new steel; 2x6 tubing on the rockers, 10 ga steel for the floors, and an old furnace panel for the body. once I had that all buttoned up she became my daily driver.












Did a road trip up north with her and she ran great, 323 miles on one tank. I was pretty content with her. That following fall I went off to college and during 3 of the weekends I had off I put on a 4.5" lift with 33" tires.



Then one weekend on my way home from school the thermostat got stuck and the temp sensor went bad all in one shot. Ended in catastrophe. She sat for the winter until I pulled her out the next spring and began tearing her apart to prepare her for the transplant.

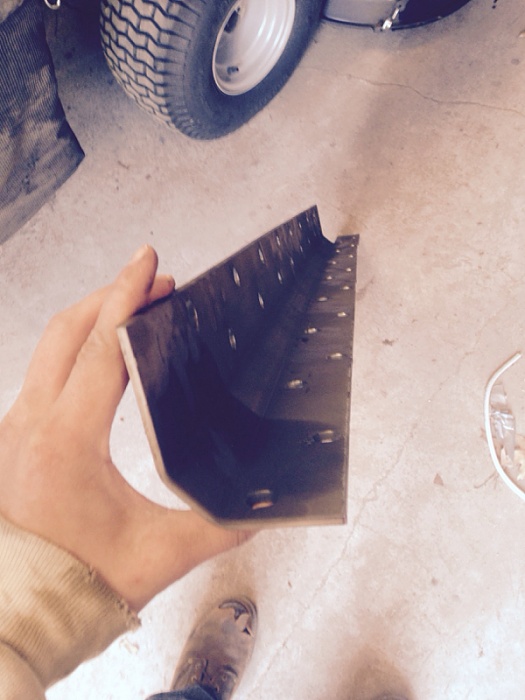

What I also plan on doing is plating the frame, all three sides, bumper to bumper, with 3/16 steel. So I drew up some stiffeners on cad and cut em out on a plasma cutter

kylelangereis is offline
Old 04-24-2015, 08:41 AM
  #2
CF Veteran

HS00XJ's Avatar

Join Date: Apr 2012
Location: Ross Vegas, Ga
Posts: 1,843
Year: 2000
Model: Cherokee
Engine: 4.0 w/ tupy head
Default

I'm watching.
HS00XJ is offline
Old 04-24-2015, 08:45 AM
  #3
Senior Member

Join Date: Nov 2009
Location: Mt. Sidney, Va
Posts: 624
Year: 1997
Model: Cherokee
Engine: 4.0
Default

I'm watching too!
PUNISHER is offline
Old 04-24-2015, 08:53 AM
  #4
CF Veteran

94XjSport94's Avatar

Join Date: Apr 2011
Location: Carrollton, GA
Posts: 14,553
Year: 1994
Model: Cherokee
Engine: Inline 6 4.0L High Output
Default

Nice work. Plating the frame is key to having a rig that lasts.
94XjSport94 is offline
Old 04-26-2015, 12:10 AM
  #5
Junior Member
Thread Starter

kylelangereis's Avatar

Join Date: Mar 2014
Posts: 79
Year: 2000
Model: Cherokee
Engine: soon to be 5.3 L vortec
Default

Thanks. And yea they way I plan on beating it I feel I better plate everything
kylelangereis is offline
Old 04-30-2015, 11:40 AM
  #6
Junior Member
Thread Starter

kylelangereis's Avatar

Join Date: Mar 2014
Posts: 79
Year: 2000
Model: Cherokee
Engine: soon to be 5.3 L vortec
Default

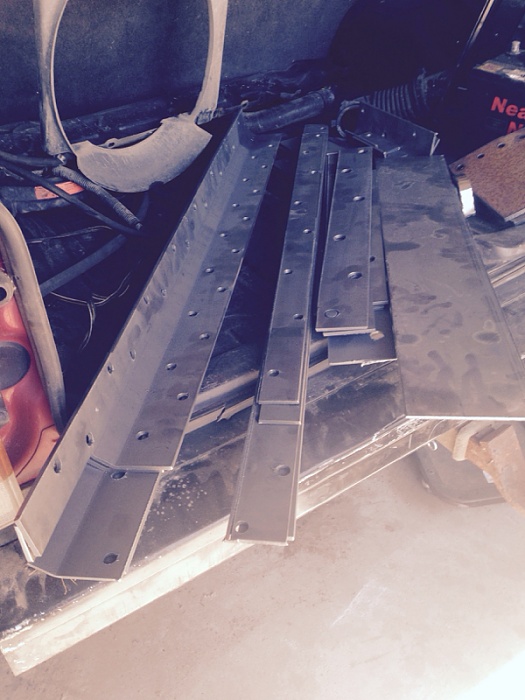

Got the stiffeners home now I just gotta get a bottle of argon so I can burn em in

2000 Ls xj-image-2985716054.jpg
kylelangereis is offline
Old 04-30-2015, 11:40 AM
  #7
Junior Member
Thread Starter

kylelangereis's Avatar

Join Date: Mar 2014
Posts: 79
Year: 2000
Model: Cherokee
Engine: soon to be 5.3 L vortec
Default

2000 Ls xj-image-2856963146.jpg
kylelangereis is offline
Old 04-30-2015, 12:33 PM
  #8
Member

Join Date: May 2013
Location: Martinsburg, IL
Posts: 156
Year: 1997
Model: Cherokee
Engine: 4.0
Default

Sub'd
OneArmRedneck is offline
Old 05-30-2015, 11:59 PM
  #9
Junior Member
Thread Starter

kylelangereis's Avatar

Join Date: Mar 2014
Posts: 79
Year: 2000
Model: Cherokee
Engine: soon to be 5.3 L vortec
Default

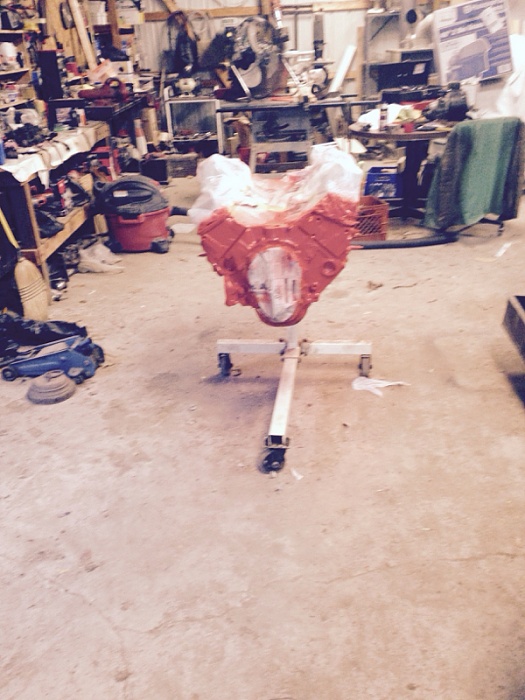

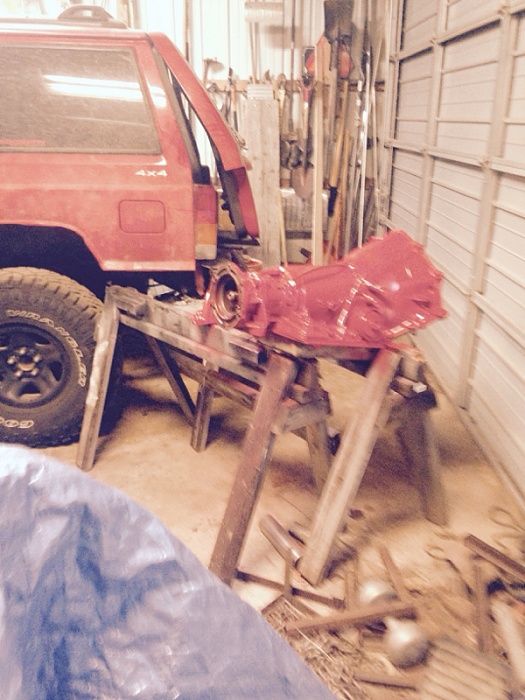

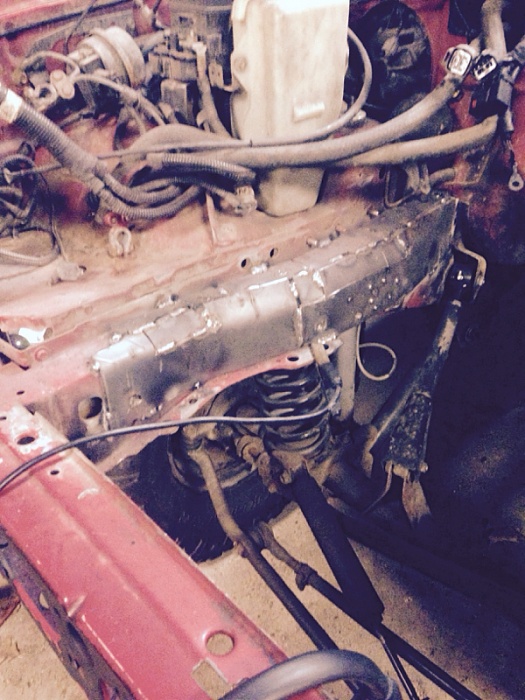

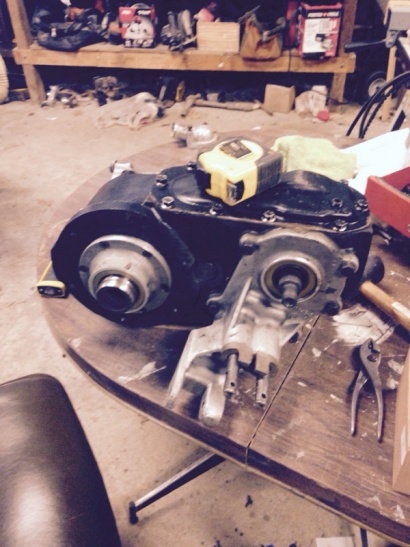

So a couple things have happened in the last couple weeks. Picked up a Dana 300 that was freshly rebuilt with all new seals bearings and two new gears. Ended up going with a tbi 350 instead of LS because I got a rebuilt motor and a th350 for $350 so I jumped on it. Ended up getting a 700r4 because I wanted a 4 speed instead of 3 plus the tail housing for the th350 cost more than the 700r4. So I painted those up and began plating the frame.

2000 Ls xj-image-1689889690.jpg
kylelangereis is offline
Old 05-30-2015, 11:59 PM
  #10
Junior Member
Thread Starter

kylelangereis's Avatar

Join Date: Mar 2014
Posts: 79
Year: 2000
Model: Cherokee
Engine: soon to be 5.3 L vortec
Default

2000 Ls xj-image-2863207216.jpg
kylelangereis is offline
Old 05-31-2015, 12:00 AM
  #11
Junior Member
Thread Starter

kylelangereis's Avatar

Join Date: Mar 2014
Posts: 79
Year: 2000
Model: Cherokee
Engine: soon to be 5.3 L vortec
Default

2000 Ls xj-image-2736326554.jpg
kylelangereis is offline
Old 05-31-2015, 12:00 AM
  #12
Junior Member
Thread Starter

kylelangereis's Avatar

Join Date: Mar 2014
Posts: 79
Year: 2000
Model: Cherokee
Engine: soon to be 5.3 L vortec
Default

2000 Ls xj-image-202856982.jpg
kylelangereis is offline
Old 05-31-2015, 12:03 AM
  #13
CF Veteran

Join Date: Oct 2008
Location: Hell, CA
Posts: 2,127
Year: 1989
Model: Cherokee
Engine: 4.0L I6
Default

Are you going to make your own engine mounts, or go with the novak ones?
Metmknice is offline
Old 05-31-2015, 12:06 AM
  #14
Junior Member
Thread Starter

kylelangereis's Avatar

Join Date: Mar 2014
Posts: 79
Year: 2000
Model: Cherokee
Engine: soon to be 5.3 L vortec
Default

I'm gonna make my own
kylelangereis is offline
Old 05-31-2015, 12:07 AM
  #15
Junior Member
Thread Starter

kylelangereis's Avatar

Join Date: Mar 2014
Posts: 79
Year: 2000
Model: Cherokee
Engine: soon to be 5.3 L vortec
Default

Problem I'm having right now is trying to figure out what to do for a harness. I can almost always figure out how to fabricate things but when it comes to wiring I'm lost
