2.5 to 4.0 motor swap on comanche
#1
2.5 to 4.0 motor swap on comanche
I'm a newbie to this forum and I have been impressed with the knowledge of most people on it. Ive own a '86 jeep Comanche (2.5) since about 1997, it's my work truck, and now my next project. A few weeks ago i bought a '89 jeep cherokee laredo that was wrecked. I took the 4.0 with auto trans, all wiring harness, bucket seats, doors, dash, computer, anything shiney and pretty much everything. I plan on putting this motor into my comanche. Has anybody ran into major problems with this motor swap? It looks like i might have some problems with the whole radiator thing. let me know. -joe
#2
CF Veteran
Join Date: Oct 2008
Location: Hell, CA
Posts: 2,127
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1989
Model: Cherokee
Engine: 4.0L I6
86 and previous had a shorter front piece, but depending on the build date (I would check your local dealer with your vin and see what info they have), you might have a later model body. Which would mean, with proper wiring you should be able to do the swap pretty easy.
#3

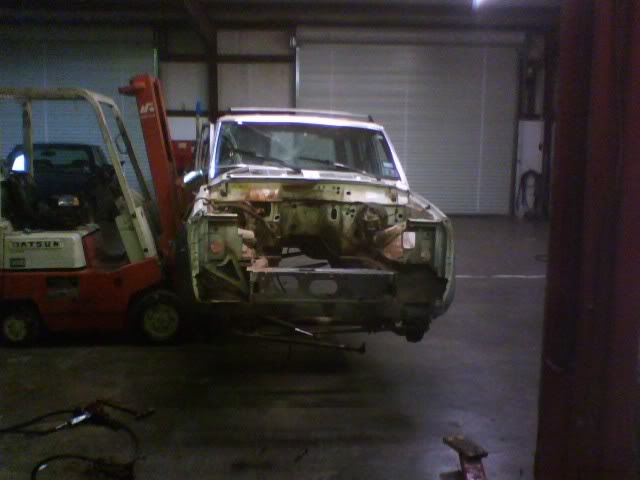

Now, I removed the fuel pump out of the 89 cherokee, will that fit in my fuel pump module for the comanche? on yeah, here what's left of that cherokee... not much..
Last edited by Blackz28joe; 02-10-2009 at 08:19 PM.
#4
Senior Member
Join Date: Feb 2009
Location: Highlands Ranch Co.
Posts: 717
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1985 shell
Model: Cherokee
Engine: 1996 6 cylinder Briggs & Stratton
I have an 85 that had 2.5 & 4 speed- Bought wrecked 91 w/ 4.0,5 speed, & 231tc I had to use upper rad. support and sides of front that are spot welded on, seemed like i had to drill out 100 spot welds between both xjs to get the parts i needed, as the hood latch set up is diff. for the 4.0 The lower rad. support is also diff. I cut and fit 2.5 upper support to use as lower support for 4.0 rad. as doner lower support was trashed beyond use.
#5
CF Veteran
Join Date: Jan 2009
Posts: 2,740
Likes: 0
Received 0 Likes
on
0 Posts
Year: 87
Model: Cherokee
Engine: 4.0
I had a friend do this swap, and I gave him 90% of the hard parts out of my spare parts boxes. I dont want to pimp another club site but if you go to Comanche club.com and look up Post by MJjeff he did a real complete write up, and a super clean install. He is also the man to see about PNP parts.. he got me a lot of the parts I have used in the turd build.
#6
Thanks for all info. I check out that post on Comanche club, very nice and answered a ton of questions. I'm kinda kicked myself now because I didn't keep the gas pedal out of the cherokee. or the cable.. Well see, I broke the cable and out of anger i just left the whole thing in there.. But I'll have a good swap to post in the coming months. I'm an autotech at a mom & pop shop in tx, and I plan I taking plently of pictures.
#7
CF Veteran
Join Date: Jan 2009
Posts: 2,740
Likes: 0
Received 0 Likes
on
0 Posts
Year: 87
Model: Cherokee
Engine: 4.0
Search for post by Mjeff87 he has done lots of super clean installs on his rig. His sriteup on the swap is about as detailed as they get. He also includes the "lil" things, and debunks a bunch of myths about the swap
Trending Topics
#8
Started my project this weekend and I've ran into a problem. The motor mount bracket on the left of the 4.0 engine is an 1.5-2" to far foward. The mounts on my 2.5 were even but these mounts on this 4.0 are offset. Can anybody help?
I know the pic is kinda hard see, but that's the bracket off the block sitting on the bracket where the mount should bolt to...what?
I know the pic is kinda hard see, but that's the bracket off the block sitting on the bracket where the mount should bolt to...what?
Last edited by Blackz28joe; 05-10-2009 at 09:32 PM.
#9
Well, thought about it all day, Talked with a friend that works in parts at the dodge place... And I think I'm just gonna break out the welder and start making my own crap. I can make anything run, but i'm not a body man. So, it's gonna be a bumpy road with many bad words. Why is the 86 jeep comanche the odd ball? neways, doesn't matter because I got too much into it now. After finding a donor jeep, getting a transfer case, and front diff... and driving the camaro @8mpg.. I've spent enough. If nebody has any info on getting my jeep on the road quicker, let me know!
After working on everybody else's cars all day, I don't want to work on mine. I don't think I'm gonna touch it til this weekend.
After working on everybody else's cars all day, I don't want to work on mine. I don't think I'm gonna touch it til this weekend.
Last edited by Blackz28joe; 05-11-2009 at 07:22 PM. Reason: i can't spell
#10
Senior Member
Join Date: Feb 2009
Location: Highlands Ranch Co.
Posts: 717
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1985 shell
Model: Cherokee
Engine: 1996 6 cylinder Briggs & Stratton
mounts
Well, thought about it all day, Talked with a friend that works in parts at the dodge place... And I think I'm just gonna break out the welder and start making my own crap. I can make anything run, but i'm not a body man. So, it's gonna be a bumpy road with many bad words. Why is the 86 jeep comanche the odd ball? neways, doesn't matter because I got too much into it now. After finding a donor jeep, getting a transfer case, and front diff... and driving the camaro @8mpg.. I've spent enough. If nebody has any info on getting my jeep on the road quicker, let me know!
After working on everybody else's cars all day, I don't want to work on mine. I don't think I'm gonna touch it til this weekend.
After working on everybody else's cars all day, I don't want to work on mine. I don't think I'm gonna touch it til this weekend.
#11
My doner is now crushed... again.. (first by a pole, now by a car crusher)
so, I guess I'm gonna be out hunting in the junk yard to see what I can come up with. thank you for helping!
#12
Senior Member
Join Date: Feb 2009
Location: Highlands Ranch Co.
Posts: 717
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1985 shell
Model: Cherokee
Engine: 1996 6 cylinder Briggs & Stratton
engine mount
I,m pretty sure that the 4.0 mounts stayed the same thru at least 93, I,ll dig thru my stuff and post back unless somebody else chimes in before i log back on.
#14
Senior Member
Join Date: Feb 2009
Location: Highlands Ranch Co.
Posts: 717
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1985 shell
Model: Cherokee
Engine: 1996 6 cylinder Briggs & Stratton
I don't know if he finished his, but if you have , or can get a complete donor and have time and some skills--- go for it! If you need some help let me know!
https://www.cherokeeforum.com/member...ng-took-place/
https://www.cherokeeforum.com/member...ng-took-place/
