'01 XJ Project Busted Knuckles
Hey all. This is my first XJ and my first build thread. I've had other jeeps, but for the last year or so, I've really had the XJ bug. I kept my eyes peeled every time I passed a used car dealership, and I had saved searches on all of the big websites. Low and behold, this '01 Sienna Pearl Sport showed up right under my nose at a dealership here in the little town of 2600 that I live in.

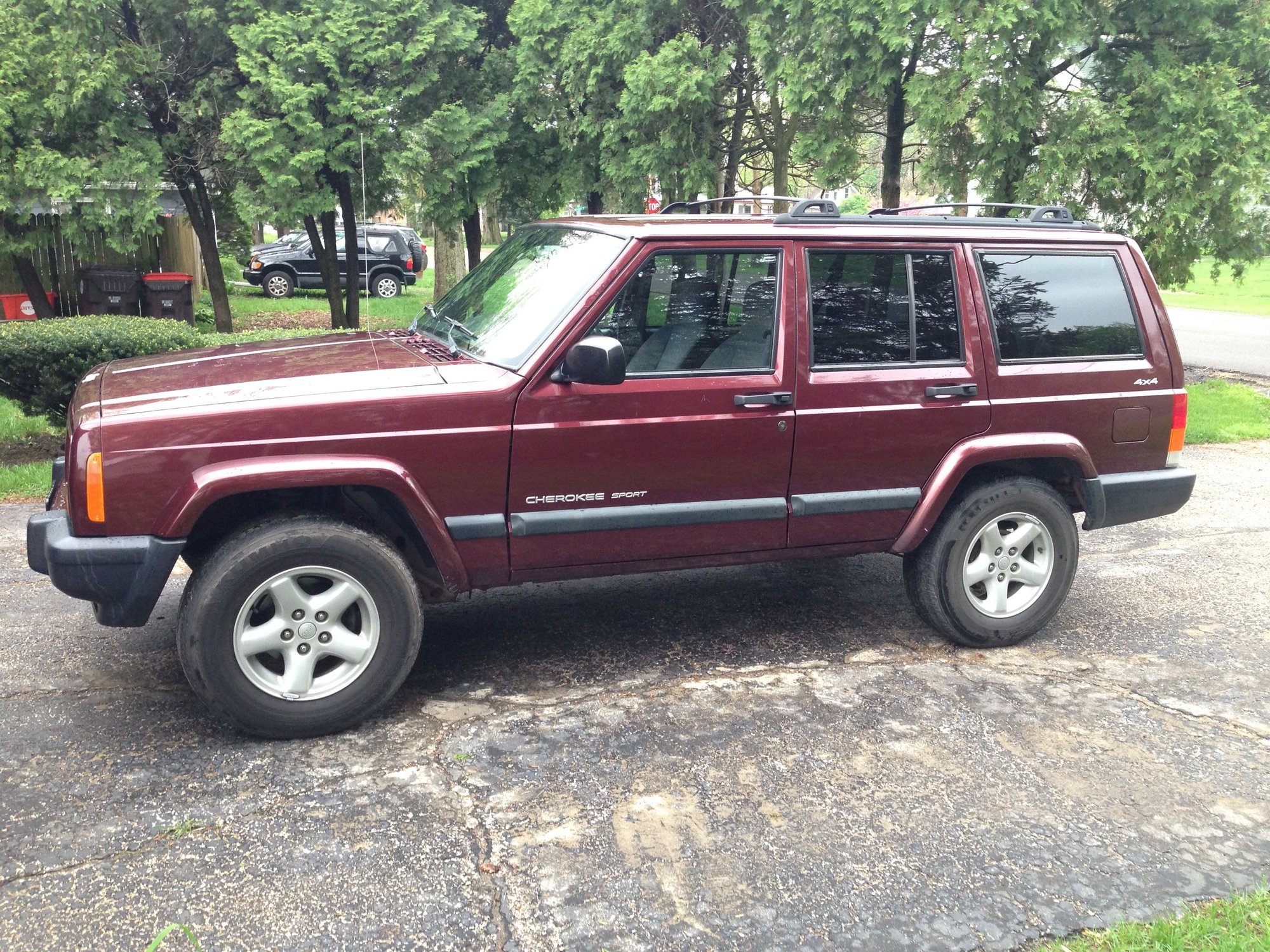

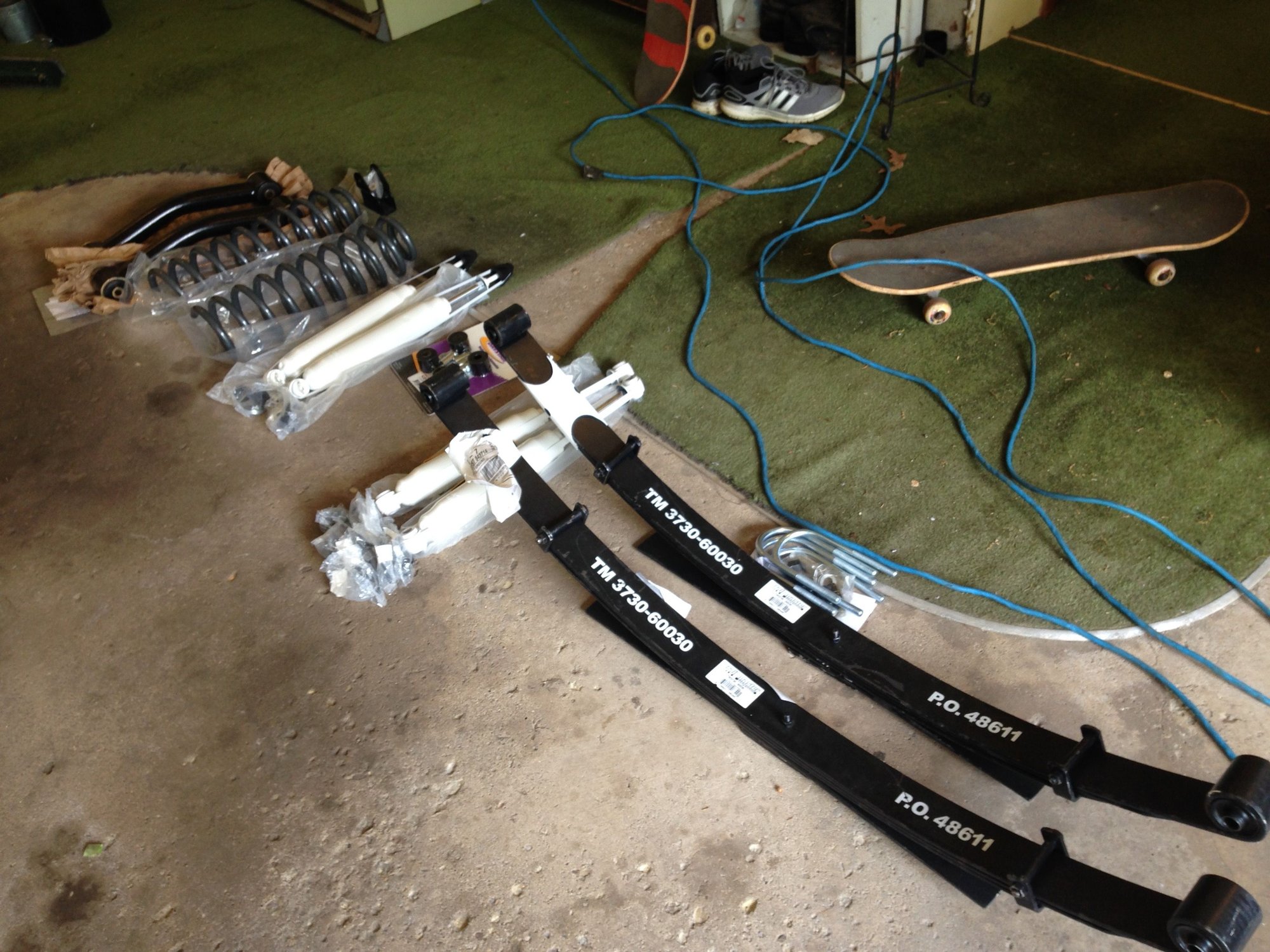

I ordered a Trailmaster 3" lift kit with full leaf packs, Rough Country lower control arms, a Skyjacker trackbar reloacating bracket, a Daystar transfer case drop kit, ProComp 252 wheels and Westlake SL 369 31x10.50 tires.
While I was waiting for the big brown truck to get here, I went to work on the cosmetics.
First, I removed the trim:

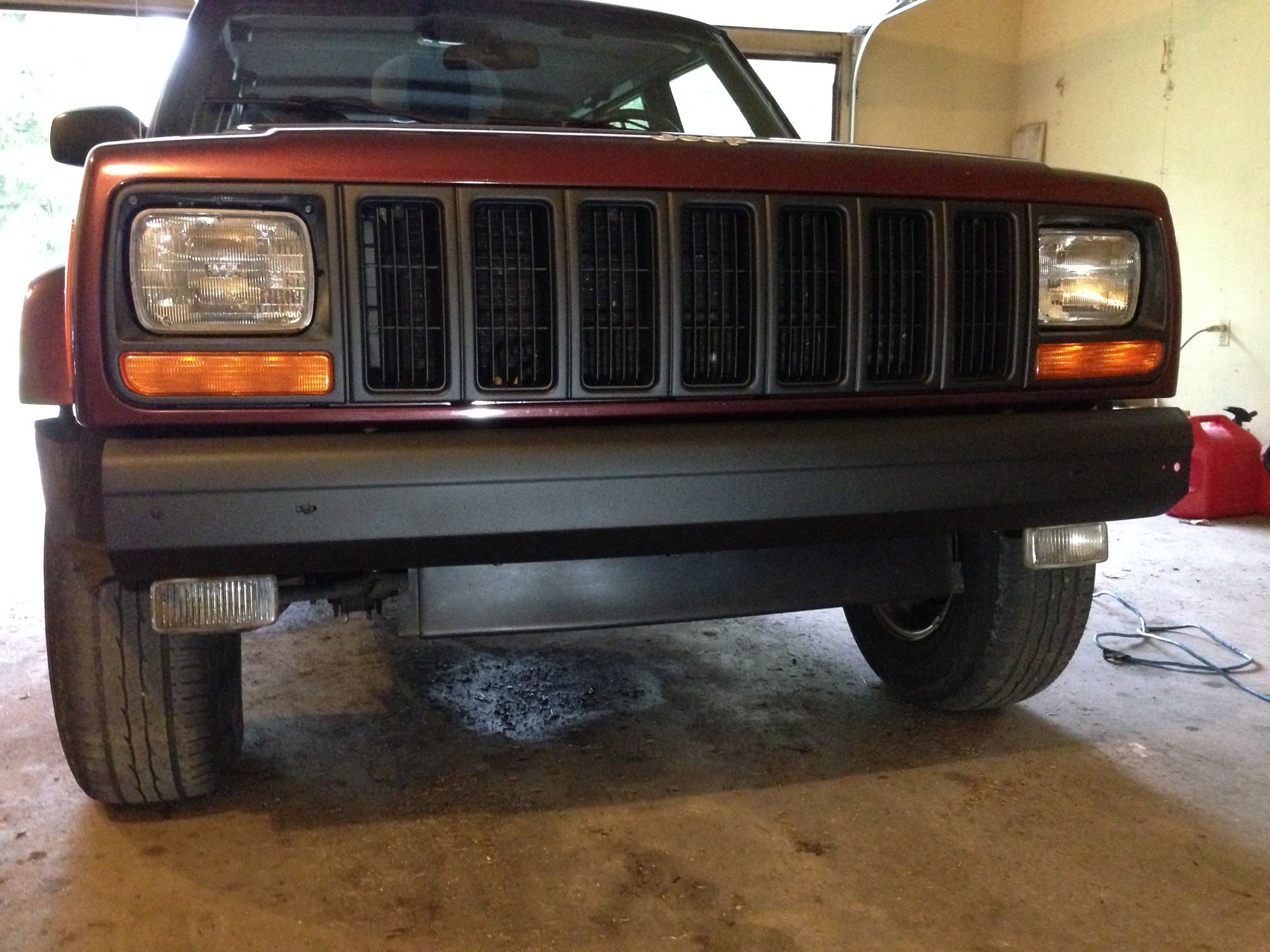

Then I blacked out the bumpers, grille and headlight bezels with Duplicolor Bedliner spray:

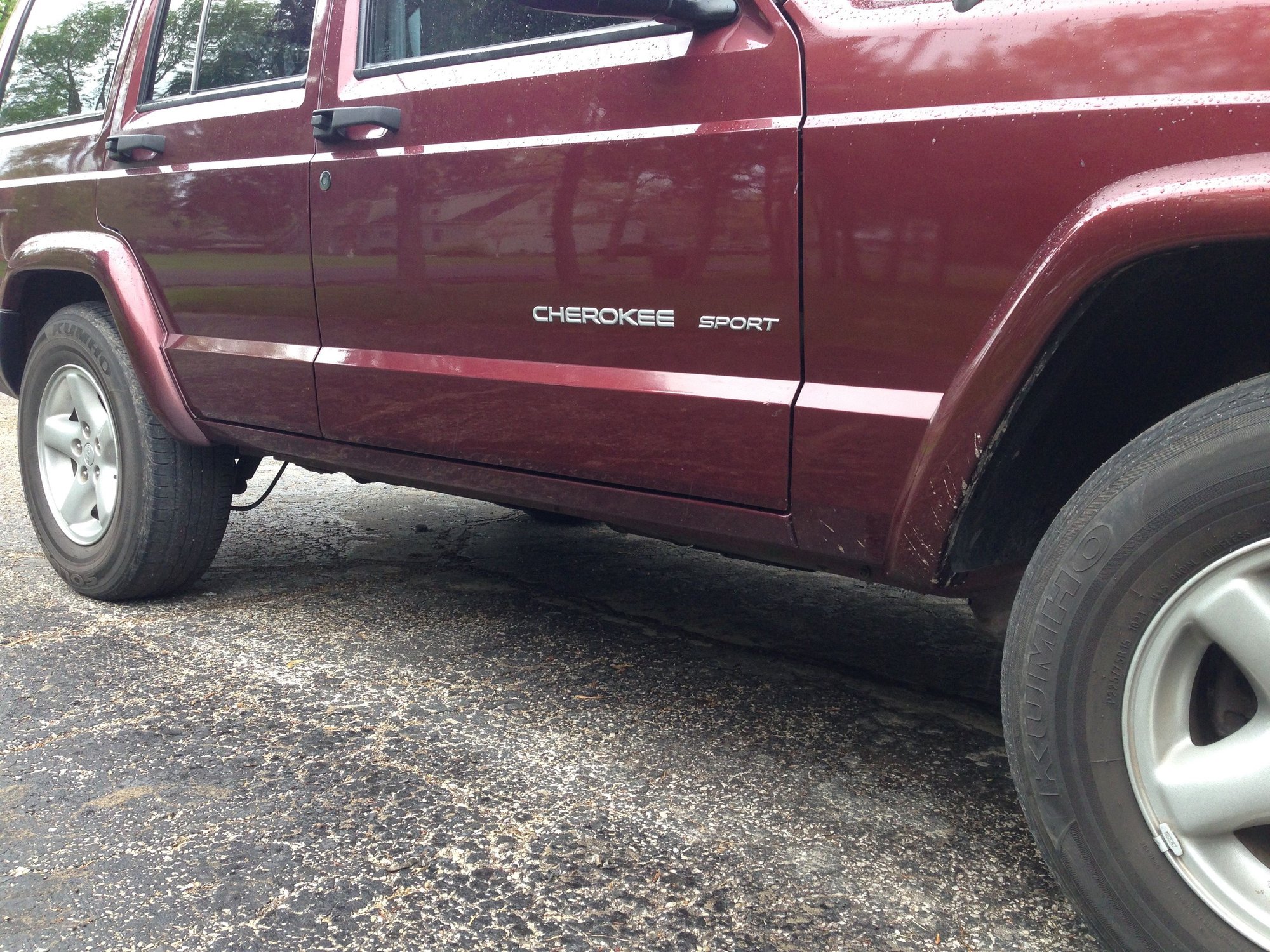

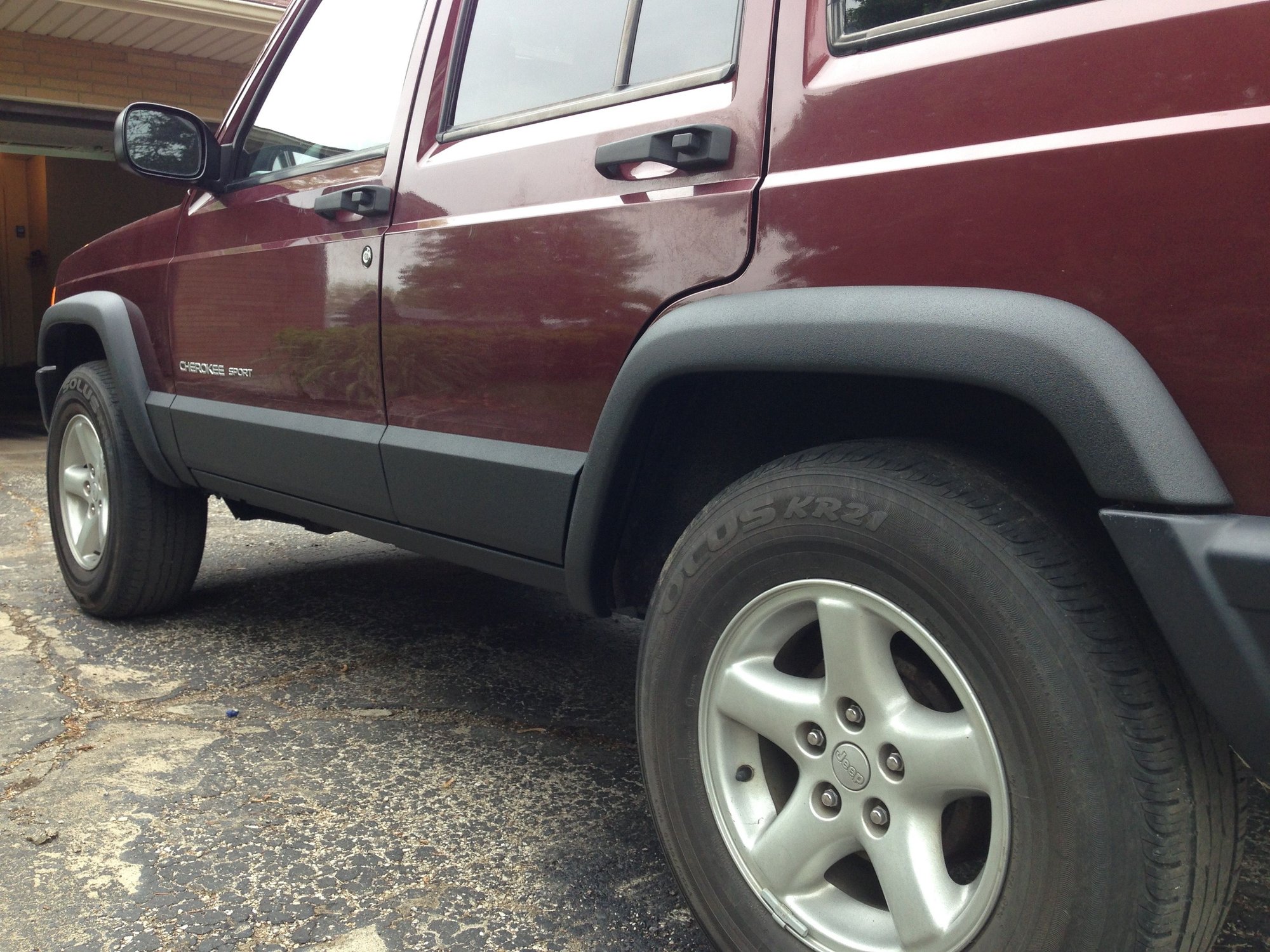

I masked off the stock flares, rockers and doors from the cut-line down and did the same bedliner spray treatment. I highly recommend the Duplicolor Bedliner spray. It goes on easily, dries really hard, and looks great.
Now for the fun part... How hard can it be?
Everything that could fight me, did. I'm sure it doesn't hurt to soak things for a week with PB Blaster (I did), but I quickly came to realize that it was going to take a grinder, a number of cutting wheels, a sawzall and a propane torch not to mention a 1/2 inch breaker bar and a chunk of pipe if I was going to have any chance of getting this thing done.
The first bolt I touched to remove the track bar from the axle twisted the head off in the socket. That kind of set the tone for the rest of the lift project. I ended up cutting the bolt off between the track bar and the bracket with a cutting wheel. I also had to cut both leaf springs off. The rear bolt in the shackle was was trapped by the receiver hitch, and the front bolt was seized to the inner bushing and would not come out. Getting it apart was miserable, but it went back together great. I'm really happy with the Liftmaster kit. I haven't measured, but the rear leaves have to be close to 4 inches of lift. Maybe it will settle... we'll see.
Anyhow, after the better part of two weekends and a little each night in between, I had the first real glimpse of what I'd been seeing in my head for 3 weeks.

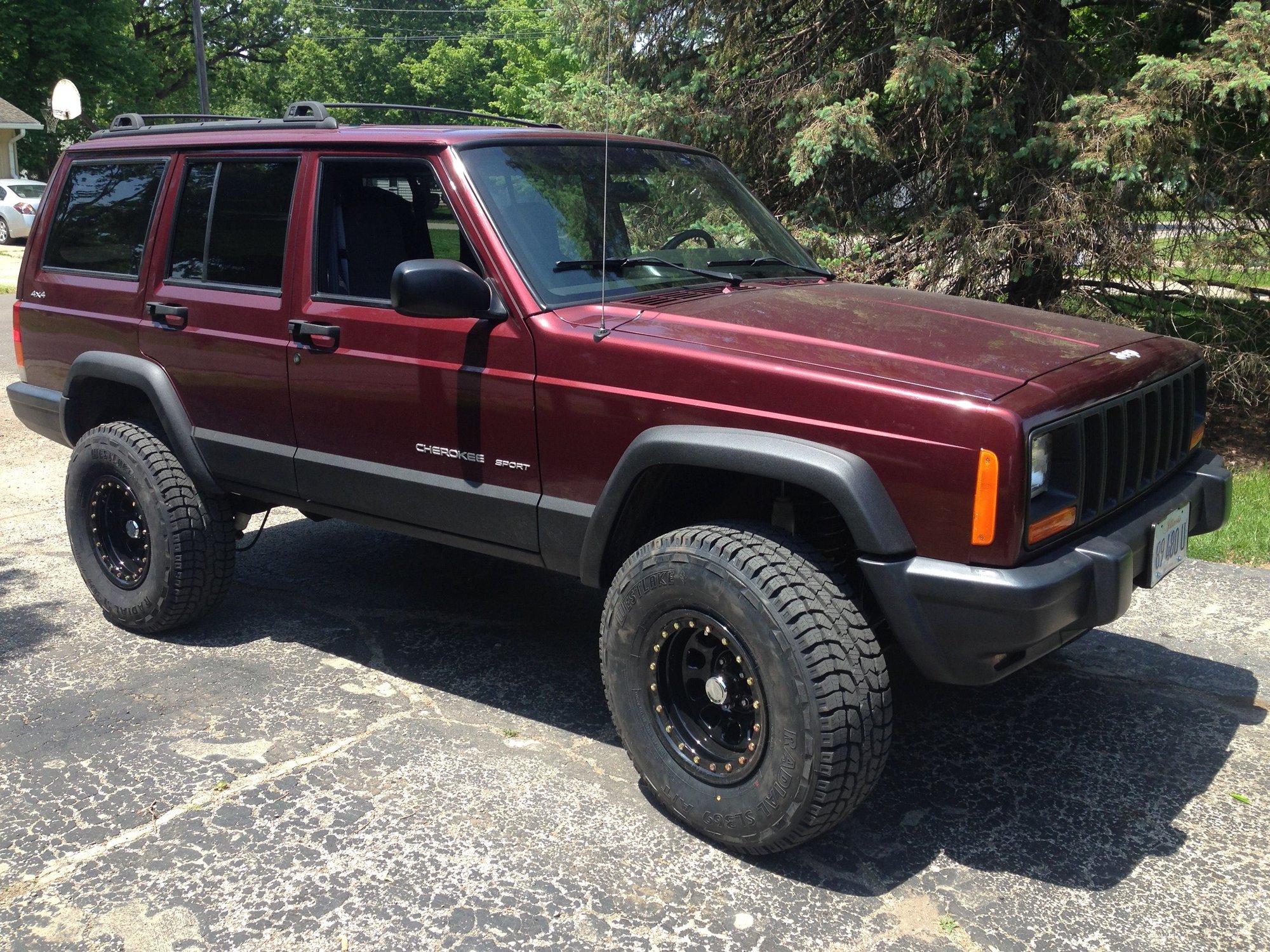

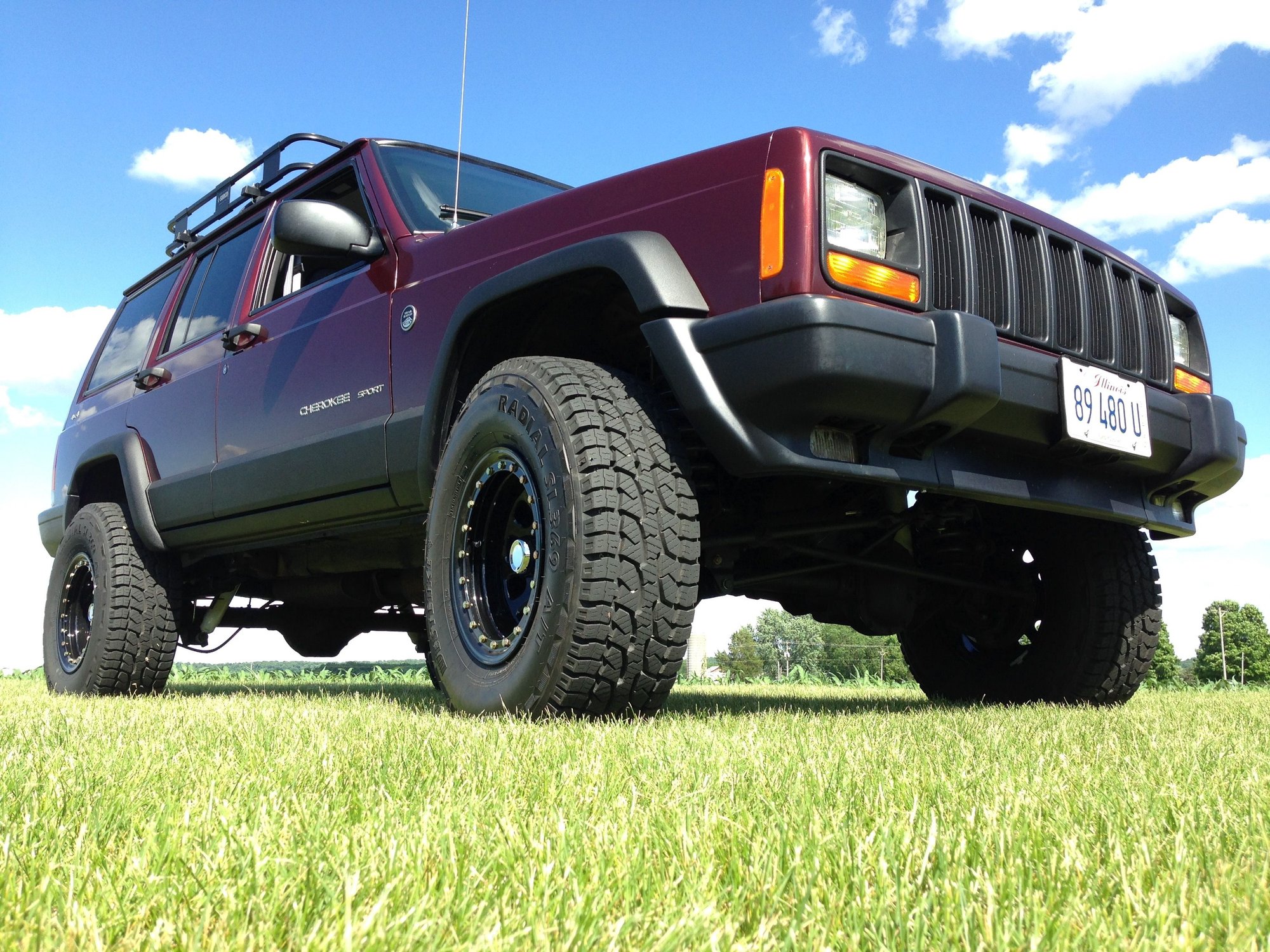

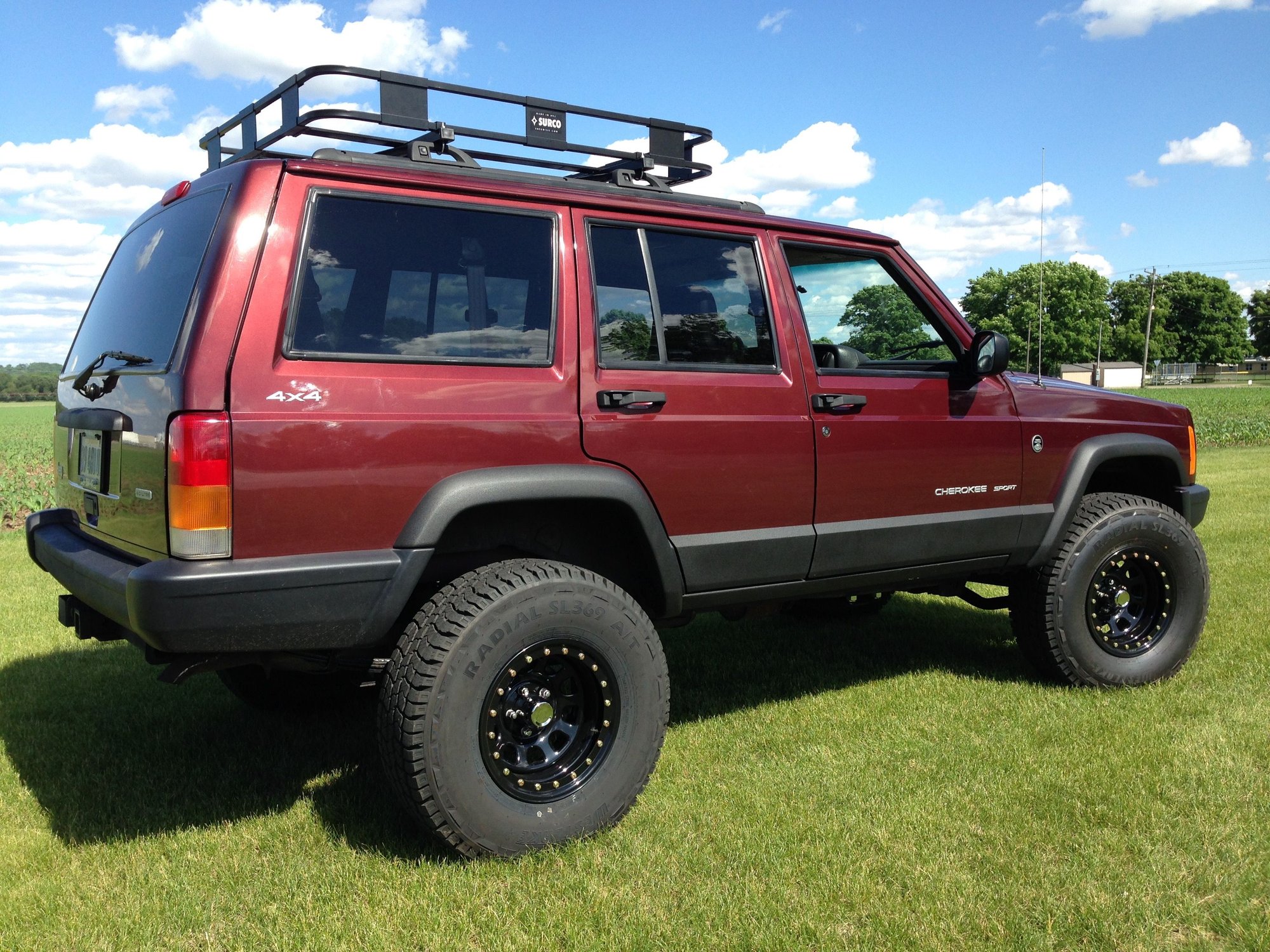

Here are the first rays of sunshine striking my newly lifted XJ:
Once I had it up in the air, I realized that I had a developed a driveline vibration that irritated me to no end. I called the guys at Trailmaster, and they said that the Daystar 1-1/4 TC drop kit I ordered (which I hadn't installed yet) was probably too much, and to start with 3/4".
I used the Big A** Nut spacer method, and started at 3/4". It was better, but not there yet. I was fearful that I was going to have to go the SYE route, which I dreaded for many reasons, money not being the least of which.
I stepped up to a 1" Nut spacer, snugged her down and went out for another test run. Thankfully, it solved the problem! No more vibration, and no more grinding when I backed off the throttle at speed. I was starting to see the finish line.

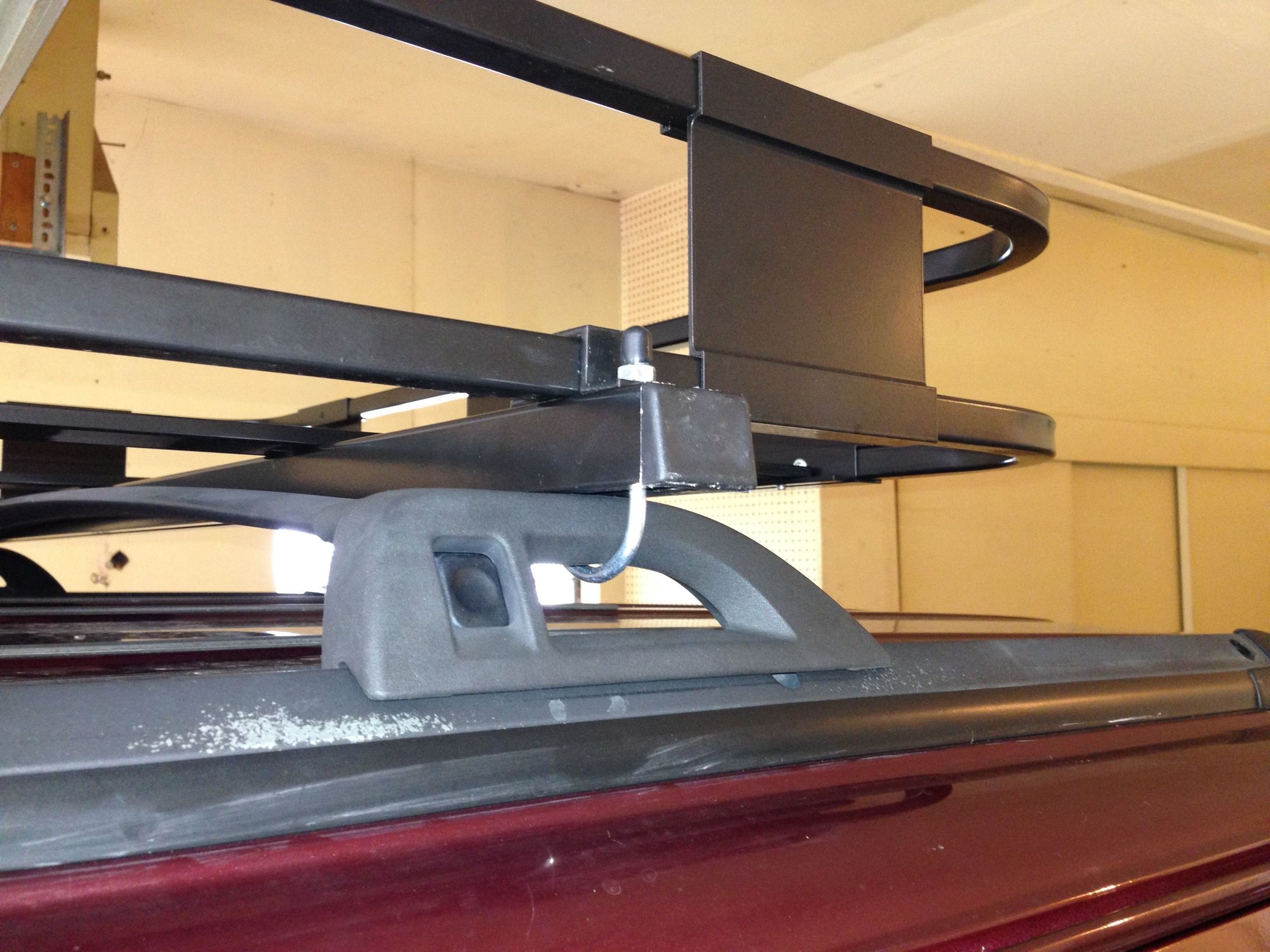

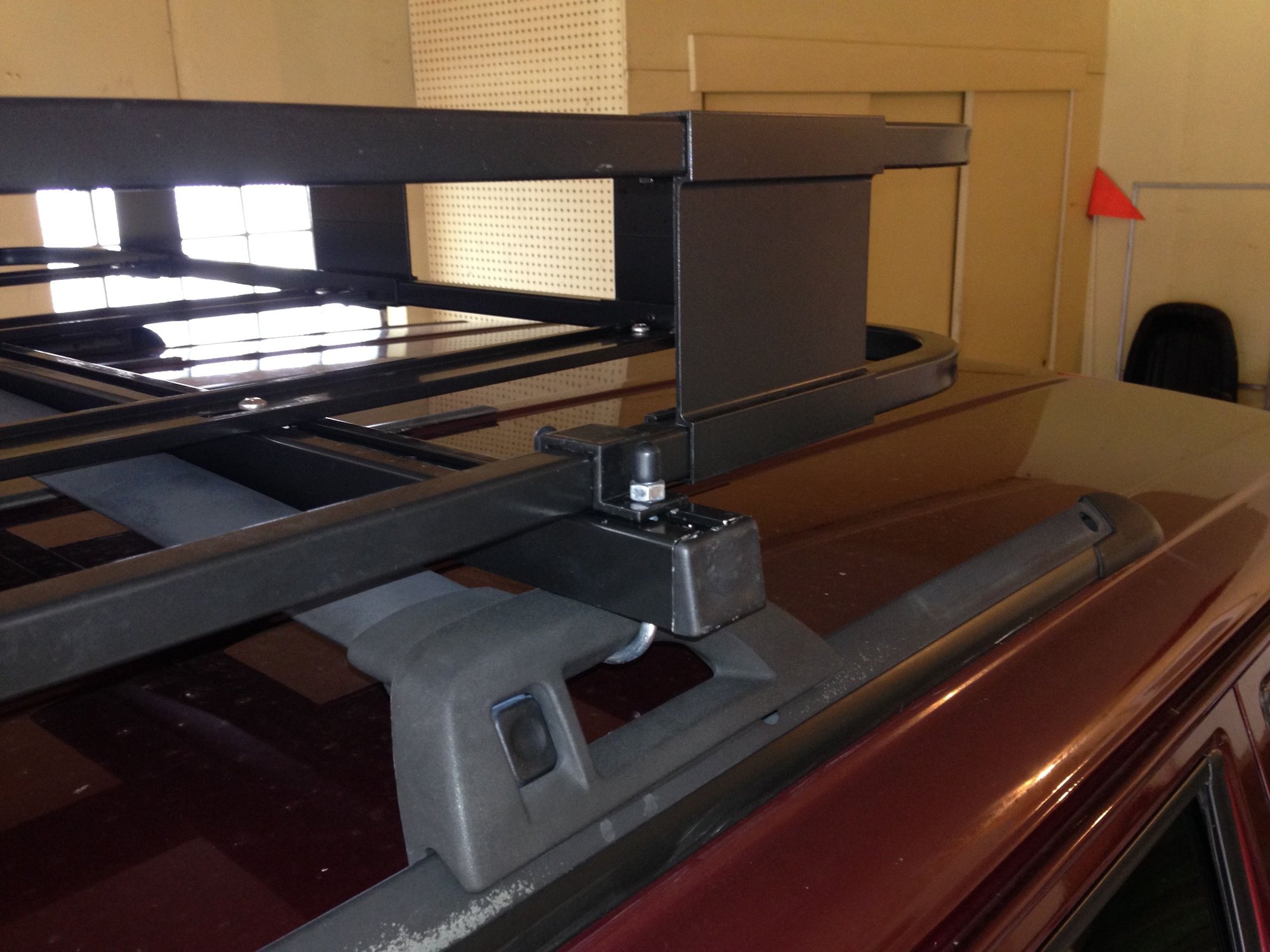

The last thing I've added (so far) is a Surco 4550 safari rack. I came up with a slick way of using the existing roof rails and some 5/16 U-bolts to mount it up. A quick trip through the car wash and a coat of wax and here's how she looks now:
A shoutout goes to the members of this forum, YouTube (bleepin' jeep) and everybody who posted their experiences with their XJ... Like how to deal with broken rear shock bolts, what to do when the front leaf spring bolt is fused to the bushing and won't come out, and how to address the bumps, rubs and vibrations that come along with lifting your Jeep. It ALL happened to me, and ALL of those little tricks were priceless.
I ordered a Trailmaster 3" lift kit with full leaf packs, Rough Country lower control arms, a Skyjacker trackbar reloacating bracket, a Daystar transfer case drop kit, ProComp 252 wheels and Westlake SL 369 31x10.50 tires.
While I was waiting for the big brown truck to get here, I went to work on the cosmetics.
First, I removed the trim:
Then I blacked out the bumpers, grille and headlight bezels with Duplicolor Bedliner spray:
I masked off the stock flares, rockers and doors from the cut-line down and did the same bedliner spray treatment. I highly recommend the Duplicolor Bedliner spray. It goes on easily, dries really hard, and looks great.
Now for the fun part... How hard can it be?
Everything that could fight me, did. I'm sure it doesn't hurt to soak things for a week with PB Blaster (I did), but I quickly came to realize that it was going to take a grinder, a number of cutting wheels, a sawzall and a propane torch not to mention a 1/2 inch breaker bar and a chunk of pipe if I was going to have any chance of getting this thing done.
The first bolt I touched to remove the track bar from the axle twisted the head off in the socket. That kind of set the tone for the rest of the lift project. I ended up cutting the bolt off between the track bar and the bracket with a cutting wheel. I also had to cut both leaf springs off. The rear bolt in the shackle was was trapped by the receiver hitch, and the front bolt was seized to the inner bushing and would not come out. Getting it apart was miserable, but it went back together great. I'm really happy with the Liftmaster kit. I haven't measured, but the rear leaves have to be close to 4 inches of lift. Maybe it will settle... we'll see.
Anyhow, after the better part of two weekends and a little each night in between, I had the first real glimpse of what I'd been seeing in my head for 3 weeks.
Here are the first rays of sunshine striking my newly lifted XJ:
Once I had it up in the air, I realized that I had a developed a driveline vibration that irritated me to no end. I called the guys at Trailmaster, and they said that the Daystar 1-1/4 TC drop kit I ordered (which I hadn't installed yet) was probably too much, and to start with 3/4".
I used the Big A** Nut spacer method, and started at 3/4". It was better, but not there yet. I was fearful that I was going to have to go the SYE route, which I dreaded for many reasons, money not being the least of which.
I stepped up to a 1" Nut spacer, snugged her down and went out for another test run. Thankfully, it solved the problem! No more vibration, and no more grinding when I backed off the throttle at speed. I was starting to see the finish line.
The last thing I've added (so far) is a Surco 4550 safari rack. I came up with a slick way of using the existing roof rails and some 5/16 U-bolts to mount it up. A quick trip through the car wash and a coat of wax and here's how she looks now:
A shoutout goes to the members of this forum, YouTube (bleepin' jeep) and everybody who posted their experiences with their XJ... Like how to deal with broken rear shock bolts, what to do when the front leaf spring bolt is fused to the bushing and won't come out, and how to address the bumps, rubs and vibrations that come along with lifting your Jeep. It ALL happened to me, and ALL of those little tricks were priceless.
