Technical Write-Up/How To Section This section is designed for both Cherokee and Grand Cherokee technical articles.

Steam cleaning your 4.0

Reply



Thread Tools Search this Thread
Old 06-17-2016, 12:18 PM   #1
HUH? WHAT?
Thread Starter

XJwonders's Avatar

Join Date: Jan 2013
Location: west chester, pa
Posts: 17,764

View XJwonders's Photo Album My Photos
Year: 1999
Model: Cherokee
Engine: 4.0
Default Steam cleaning your 4.0

I'm sure from time to time y'all see somebody mention steam cleaning your engine. You may wonder what that mean exactly or be skeptical of doing that, thinking it must be a joke.

Rest assured, it is not a joke at all.

Let's start with my jeep, it's a 99 XJ with 4.0 that has 150,000 miles on the clock. The engine has never been cleaned internally. To add to the description, I replaced the intake manifold at approximately 125,000 miles and I saw really thick gunk that was coated inside the intake and exhaust ports of the head.

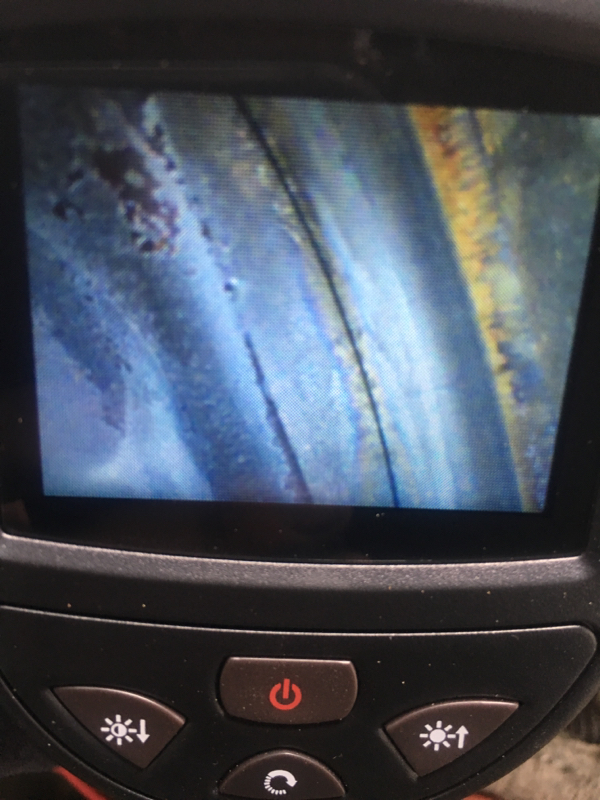

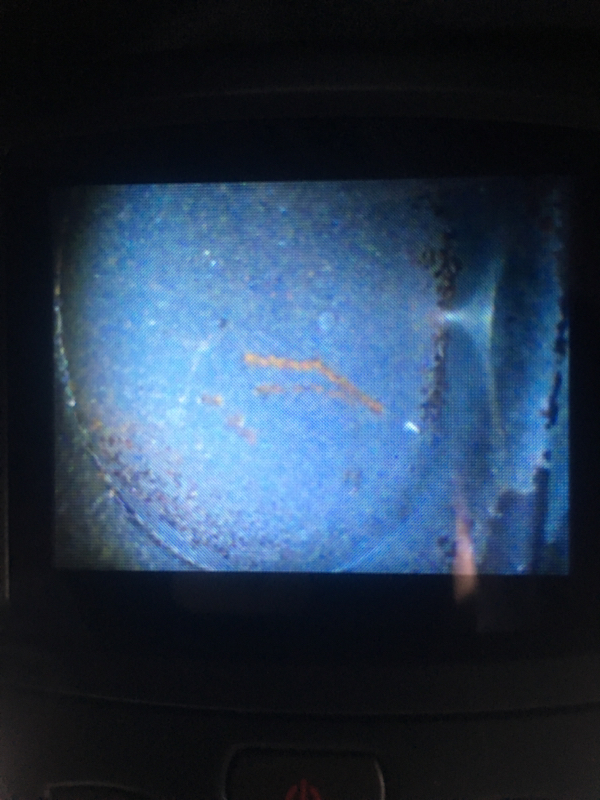

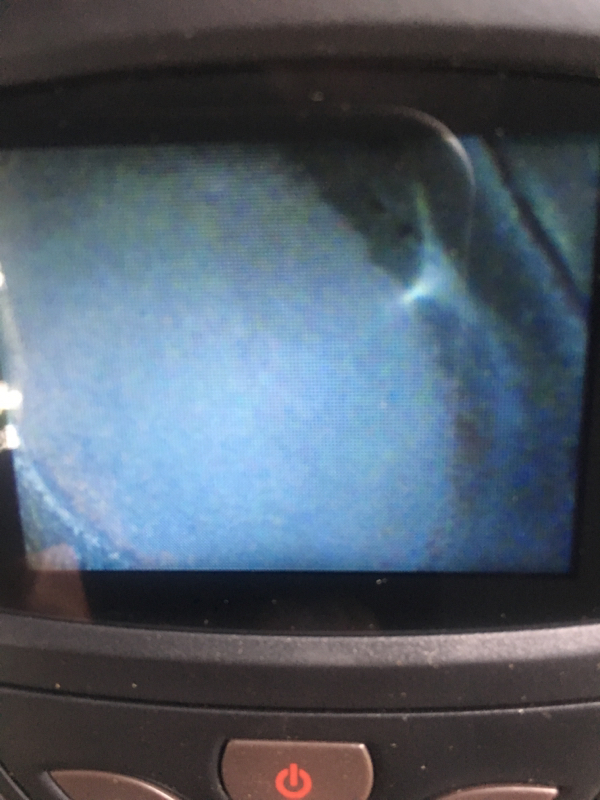

I used my borescope to look inside the cylinders and the intake manifold & took pictures so you get the idea of what it look like before the steam cleaning.


(The scratches on the piston was caused by my camera when I put it in too far)
Steam cleaning your 4.0-image-2351070609.jpg



Steam cleaning your 4.0-image-3934311976.jpg



Steam cleaning your 4.0-image-3016884581.jpg

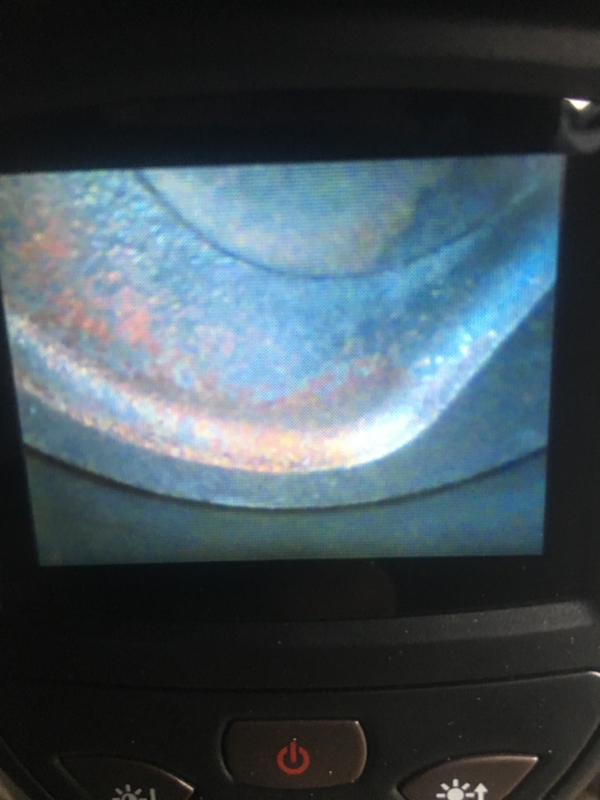

This is the internal wall of the intake manifold runners where it's about to enter the intake port of the head
Steam cleaning your 4.0-image-1387217649.jpg

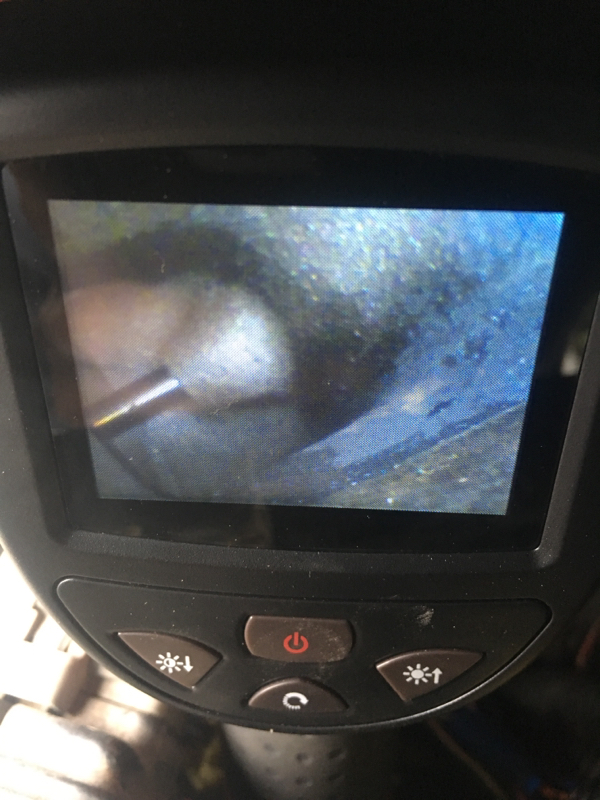

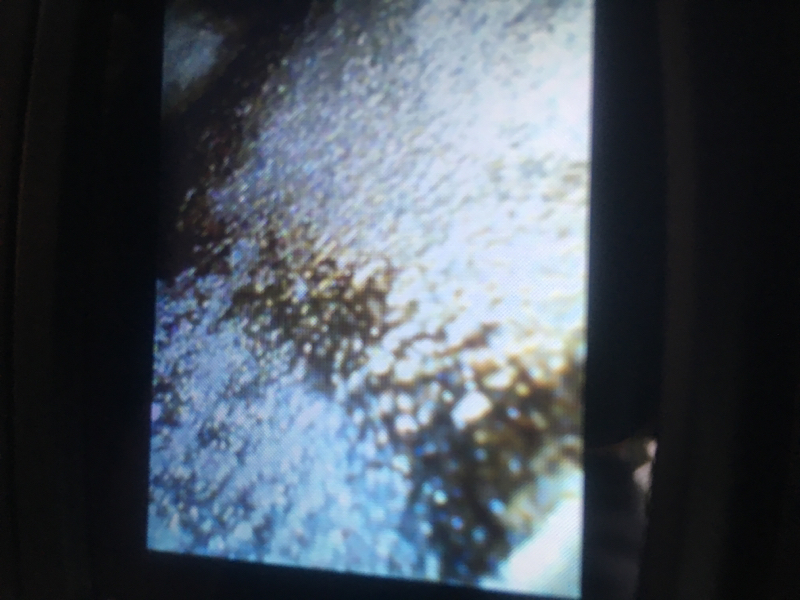

This is the intake valve chamber, you can clearly see the intake valve stem here
Steam cleaning your 4.0-image-3823238143.jpg






Steam cleaning your 4.0-image-1166450497.jpg
XJwonders is online now   Reply With Quote
Old 06-17-2016, 12:23 PM   #2
HUH? WHAT?
Thread Starter

XJwonders's Avatar

Join Date: Jan 2013
Location: west chester, pa
Posts: 17,764

View XJwonders's Photo Album My Photos
Year: 1999
Model: Cherokee
Engine: 4.0
Default

The procedure/method that I used is really simple.

1: remove the hose from the air filter box leading into the throttle body.

2: start the engine

3: rev up the engine to approximately 2,500 rpms and keep it there. (I used a washer in between the throttle butterfly shaft and the screw on the bottom of the throttle body).

4: slowly dribble water from a 32 ounce container (large size drink cup from a fast food establishment works well)

VERY IMPORTANT NOTE; DO NOT DUMP THE WATER ALL AT ONCE!!!!

5: when the engine bogs down & the rpms drops, ease on the water until the engine catches up then resume.

6: continue until 32 ounces of water is gone.

7: turn the engine off once the rpms catches up.

8: put the hose back on the top of the throttle body.

Last edited by XJwonders; 06-17-2016 at 12:35 PM.
XJwonders is online now   Reply With Quote
Old 06-17-2016, 12:25 PM   #3
HUH? WHAT?
Thread Starter

XJwonders's Avatar

Join Date: Jan 2013
Location: west chester, pa
Posts: 17,764

View XJwonders's Photo Album My Photos
Year: 1999
Model: Cherokee
Engine: 4.0
Default

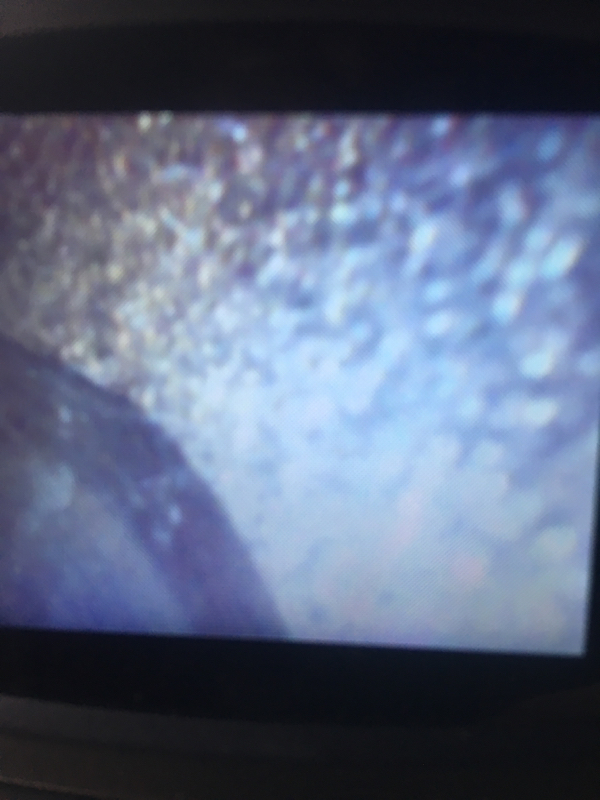

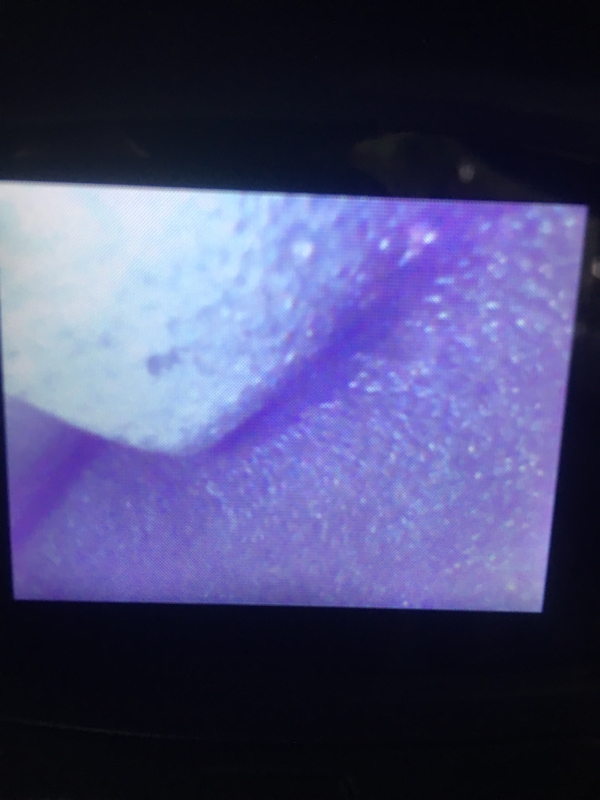

Here's the "after" pictures.



See how there's no black gunk or build up anywhere? It's all pure grey metal, it's like it's almost new!
Steam cleaning your 4.0-image-2147701018.jpg

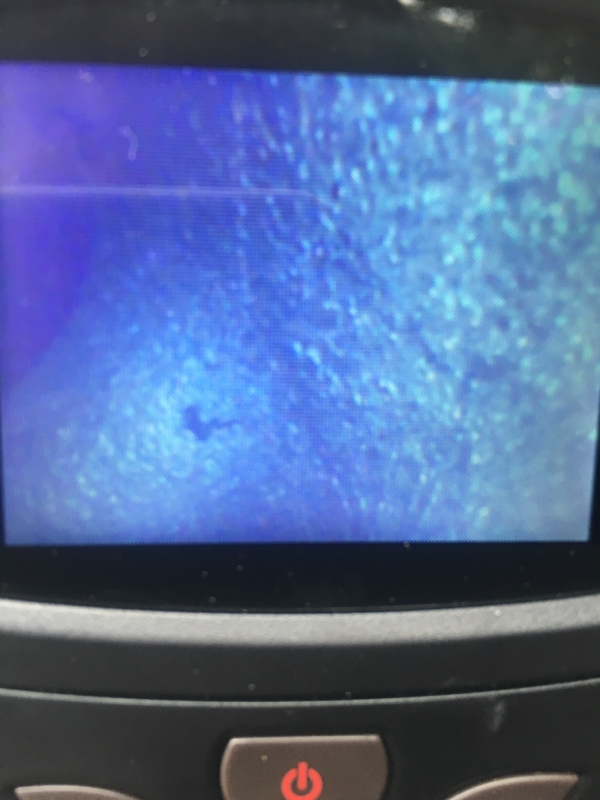

Ah one single remaining carbon spot!
Steam cleaning your 4.0-image-1349712539.jpg



Steam cleaning your 4.0-image-2033884559.jpg

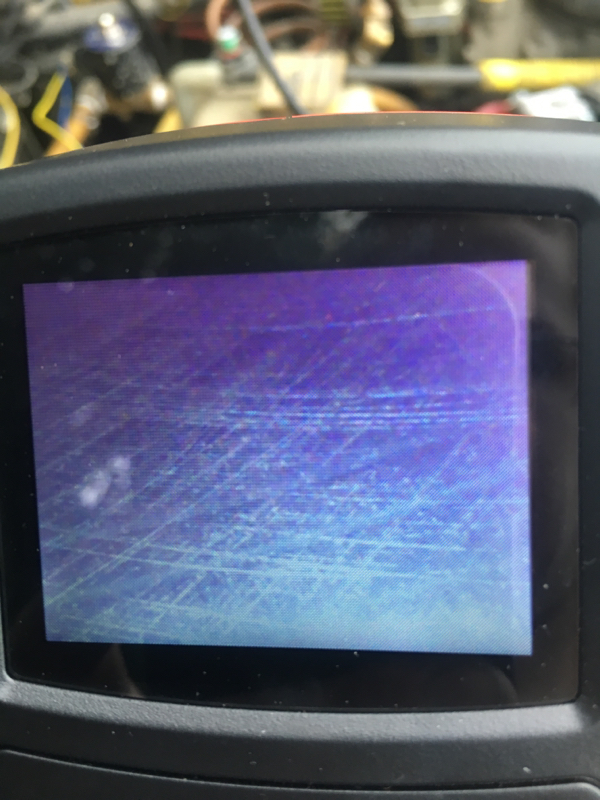

You now can see the cross hatching marks on the cylinder wall! Great success!
Steam cleaning your 4.0-image-1869447764.jpg

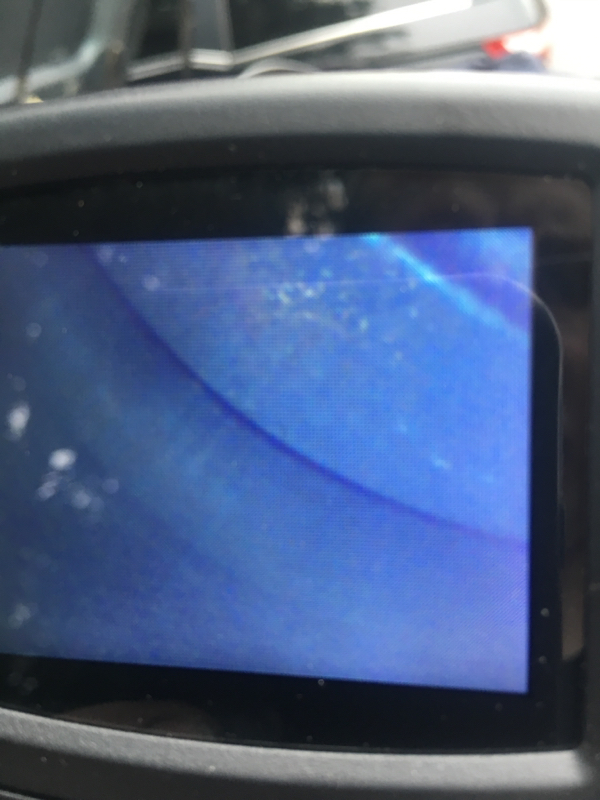

See how clean the piston is?
Steam cleaning your 4.0-image-160984010.jpg
XJwonders is online now   Reply With Quote
Old 06-17-2016, 12:27 PM   #4
HUH? WHAT?
Thread Starter

XJwonders's Avatar

Join Date: Jan 2013
Location: west chester, pa
Posts: 17,764

View XJwonders's Photo Album My Photos
Year: 1999
Model: Cherokee
Engine: 4.0
Default

The conclusion. The steam cleaning method is in fact a proven method of cleaning the engine internally.

(I did this twice in half hour total with 1/2 gallon of water). A total of a gallon.

VERY IMPORTANT NOTE; DO NOT DUMP THE WATER ALL AT ONCE!!!!

Last edited by XJwonders; 06-17-2016 at 12:34 PM.
XJwonders is online now   Reply With Quote
Old 06-17-2016, 07:14 PM   #5
Someone stole my badge!

Basslicks's Avatar

Join Date: Mar 2011
Location: Ocala, FL
Posts: 10,184

View Basslicks's Photo Album My Photos
Year: 1992
Model: Cherokee(XJ)
Engine: 4.0 HO
Default

Excellent post man! A good portion of us know this works already, but it's good to SEE the evidence of it working... plus for those who are leery about doing it, this can help set their minds at ease that what they're about to do is a GOOD thing.

Basslicks is offline   Reply With Quote
Old 06-17-2016, 10:48 PM   #6
CF Veteran

Join Date: May 2012
Location: Lost in the wilds of Virginia
Posts: 3,541

View BlueRidgeMark's Photo Album My Photos
Year: 1994 and 1997
Model: Cherokee
Engine: 4.0
Default




Wouldn't it be better to run the engine at 4000 RPM and dump the water in all at once? I mean, more is better, right?


/ducks/







Excellent write up!
BlueRidgeMark is offline   Reply With Quote
Old 06-17-2016, 10:52 PM   #7
Junior Member

Heap'99's Avatar

Join Date: Dec 2015
Location: W.Michigan
Posts: 43

View Heap'99's Photo Album My Photos
Year: 1999
Model: Cherokee
Engine: 4.0
Default

Bet there still at least one person that dumps it in all at once, then posts "Jeep won't start after steam cleaning it!" Lol
Heap'99 is offline   Reply With Quote
Old 06-18-2016, 01:30 AM   #8
CF Veteran

Join Date: Apr 2012
Location: Wisconsin
Posts: 5,296

View Radi's Photo Album My Photos
Model: Cherokee
Default

Quote:
Originally Posted by Heap'99 View Post
Bet there still at least one person that dumps it in all at once, then posts "Jeep won't start after steam cleaning it!" Lol
Or uses the garden hose....
Radi is offline   Reply With Quote
Old 06-18-2016, 02:15 AM   #9
Someone stole my badge!

Basslicks's Avatar

Join Date: Mar 2011
Location: Ocala, FL
Posts: 10,184

View Basslicks's Photo Album My Photos
Year: 1992
Model: Cherokee(XJ)
Engine: 4.0 HO
Default

Quote:
Originally Posted by Radi View Post
Or uses the garden hose....
What, you're NOT supposed to use the soaker setting on the hose nozzle?
Basslicks is offline   Reply With Quote
Old 06-18-2016, 12:18 PM   #10
Senior Member

Join Date: Dec 2015
Location: PA
Posts: 907

View fb97xj1's Photo Album My Photos
Year: 1997
Model: Cherokee
Engine: 4.0L
Default

Forget the garden hose. Take it to your local firehouse and borrow their pumper. Pressure wash them babies. Add a little sand to get them all nice and shiny.

Just kidding. DONT DO THAT!
fb97xj1 is offline   Reply With Quote
Old 06-18-2016, 01:18 PM   #11
Load the Parts Cannon!

Jeepin'_Aint_EZ's Avatar

Join Date: Jan 2012
Location: Ocean County, NJ
Posts: 2,073

View Jeepin'_Aint_EZ's Photo Album My Photos
Year: 1998
Model: Cherokee
Engine: 4.0L
Default

I've done a seafoam treatment but pulled the vac line off the booster. boy did that sucker smoke for a bit after the shut-down and restart. #mesquitorepellent.

I'd also like to add that the 4.0L is prone to carbon build up. If you've never done a top-end cleaning, than it's highly recommended especially higher mileage engines. To prolong carbon buildup in the future, take your XJ for a high RPM run down the highway time to time.

EDIT* notice I said high RPM run... I feel the need to correct that and mention that this does not mean high speed! Simply wind out first or second gears. You can keep the RPM's high by keeping her out of OD too.

Last edited by Jeepin'_Aint_EZ; 06-18-2016 at 01:20 PM. Reason: So people don't die
Jeepin'_Aint_EZ is offline   Reply With Quote
Old 06-18-2016, 01:32 PM   #12
Member

scooterc's Avatar

Join Date: Jul 2015
Location: westville nj
Posts: 187

View scooterc's Photo Album My Photos
Year: 1994
Model: Cherokee
Engine: 4.0
Default

in the old days I did this with tranny fluid...boy did it smoke but ran great after.going to try with water this time.
scooterc is offline   Reply With Quote
Old 06-18-2016, 02:23 PM   #13
Load the Parts Cannon!

Jeepin'_Aint_EZ's Avatar

Join Date: Jan 2012
Location: Ocean County, NJ
Posts: 2,073

View Jeepin'_Aint_EZ's Photo Album My Photos
Year: 1998
Model: Cherokee
Engine: 4.0L
Default

Quote:
Originally Posted by scooterc View Post
in the old days I did this with tranny fluid...boy did it smoke but ran great after.going to try with water this time.
haha yes I was waiting for someone to mention tranny fluid! I just don't know how o2 sensors would like burnt tranny fluid passing by them which is why I didn't try it on my xj.
Jeepin'_Aint_EZ is offline   Reply With Quote
Old 06-18-2016, 06:29 PM   #14
CF Veteran

DJKnightmare's Avatar

Join Date: Dec 2008
Location: Philadelphia, Pa
Posts: 1,187

View DJKnightmare's Photo Album My Photos
Year: 1989
Model: Cherokee
Engine: 4.0 6cyl
Default

I've done the steam clean before. It was on my 1967 Mustang with the straight 6. Ran like a champ after that, but I havn't done it to my Jeep yet.

What would be the advantage of Trans Fluid over Water? Is there a chemical make-up that cleans better, or other type of more thorough cleaning property?
DJKnightmare is offline   Reply With Quote
Old 06-18-2016, 10:37 PM   #15
Junior Member

Join Date: Jun 2016
Location: Chicago
Posts: 78

View jaydubz's Photo Album My Photos
Year: 97 SE
Model: Cherokee
Engine: 4.0L
Default

I need to try this, been using seafoam. Is seafoam worse then water would be?
