XJ Driveline Angles
#1
XJ Driveline Angles

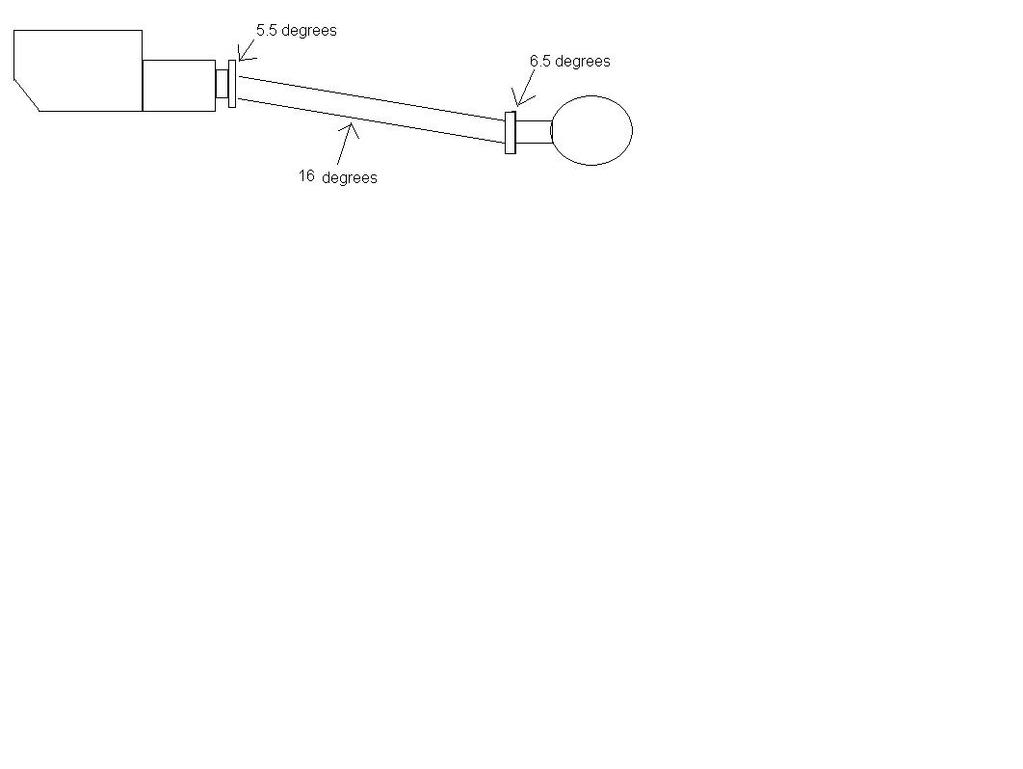

After installing my lift a little more than a week ago, I measured my driveline angles. The lift is an RE 3.5" SR with full springs. As noted in the drawing, the output shaft and the pinion shaft are within 1 degree of each other, while the shaft angle is 16 degrees. I understand that an SYE is in order, but my vibes aren't bad enough to get in a hurry. Can anybody tell me how this compares to their non SYE angles? I'm not trying to solve a problem here,,, just curious.
#2
Do you hear banjos?
What year is your XJ? In 1999 or 2000 they switched to a lower front pinon "TJ style" D30. When you lift these models they are more prone to vibes than earlier models due to the increased angle on the front DL. Prior to that the XJs had a high pinon D30 in them. If you are experiencing vibes it might be from the front driveline. At 3.5" you really don't have to put a SYE in it. And if it is the front, a SYE will not help. Personally I have 6.5" with a T-case drop kit and no SYE and I don't have any vibes in my drivelines. Hope this helps!! Good luck!!!
#5
Renix Super Guru
Join Date: Mar 2008
Location: In yourz postez fissin jurr spelinzs
Posts: 24,653
Likes: 0
Received 16 Likes
on
12 Posts
Year: 1990XJ/1989MJ
Model: Comanche
Engine: 4.0L Renix
I disagree...It reduces the rear driveshaft angle while increasing the front driveshaft angle. Transfercase drops are just band-aids for the problems of vibrations in a Jeep's power conversion. The multitude of variables are too great to try and fix with a t/c drop. A SYE kit is a more permanent solution and places no additional stress upon the front driveline. Just my opinion. Do as you wish, but a t/c drop is a stop gap measure.
#6
CF Veteran
Join Date: Apr 2008
Location: Burlington, NC
Posts: 2,340
Likes: 0
Received 8 Likes
on
8 Posts
Year: 1994...mostly...
Model: Cherokee (XJ)
Engine: 4.0L I6 HO, Lot's of Bolt Ons
I disagree...It reduces the rear driveshaft angle while increasing the front driveshaft angle. Transfercase drops are just band-aids for the problems of vibrations in a Jeep's power conversion. The multitude of variables are too great to try and fix with a t/c drop. A SYE kit is a more permanent solution and places no additional stress upon the front driveline. Just my opinion. Do as you wish, but a t/c drop is a stop gap measure.
#7
CF Veteran
Join Date: Oct 2007
Location: W-PA
Posts: 3,883
Likes: 0
Received 6 Likes
on
4 Posts
Year: 2001
Model: Cherokee
Engine: 4.0
A t-case drop mainly buys you time to do it right, which is the sye setup. It's ok for a while but not a permanent solution. When it comes to an xj, the sye is a wise choice. say you bust ur rear cv driveshaft out on the trail. You have no spare so you can take the front off and put it in the rear this is good if you run a front locker cuz you can't drive on the street in FWD with a locker.
Trending Topics
#8
Seasoned Member
Join Date: Dec 2007
Location: raleigh, nc
Posts: 491
Likes: 0
Received 3 Likes
on
1 Post
Year: 1999
Model: Cherokee
Engine: 4.0L HO
...also takes away groudn clearance ang most possibilties for t-case skids. t-case's are vulnerable enough, the last thing you want is to make it stick out further to the rocks... SYEs with tom woods shafts are also a significantly stronger setup.
#10
Thanks for the input everyone.
I did drop the TC when I put in the lift. Thanks to the guy who lost the bar that keeps an outboard boat motor in place while travelling. It's one inch square tubing. Cost - 0, except for carrying it from the front yard to the garage, oh, my back hurts.
Anyways, I put in the 2.5 degree shims. Made it worse so out they came. I'm satified untilo I get the SYE kit.
I did drop the TC when I put in the lift. Thanks to the guy who lost the bar that keeps an outboard boat motor in place while travelling. It's one inch square tubing. Cost - 0, except for carrying it from the front yard to the garage, oh, my back hurts.
Anyways, I put in the 2.5 degree shims. Made it worse so out they came. I'm satified untilo I get the SYE kit.
