Stock XJ Cherokee Tech. All XJ Non-modified/stock questions go here XJ (84-01)
All OEM related XJ specific tech. Examples, no start, general maintenance or anything that's stock.
Old Sep 21, 2015, 03:49 PM
How-Tos on this Topic
Last edit by: IB Advertising
See related guides and technical advice from our community experts:

Browse all: General Overview
Print Wikipost

XJ Ask the Question Thread

Thread Tools

Search this Thread

Old Dec 9, 2012 | 09:02 AM
  #17986
94XjSport94's Avatar
CF Veteran

Joined: Apr 2011
Posts: 14,553
Likes: 1
From: Carrollton, GA
Year: 1994
Model: Cherokee
Engine: Inline 6 4.0L High Output
Default

That's the tie rod end on the drag link
Old Dec 9, 2012 | 10:43 AM
  #17987
zombie jeep101's Avatar
CF Veteran

Joined: Oct 2011
Posts: 2,613
Likes: 0
From: Summerville, South Carolina
Year: 99
Model: Cherokee
Engine: 4.0
Default

Originally Posted by BimmerJeeper

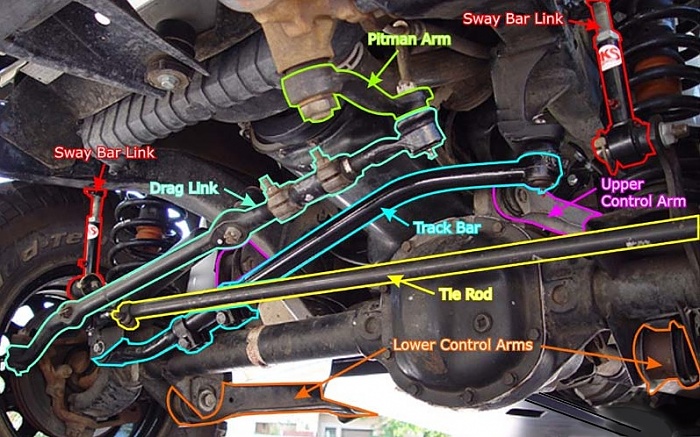

Can someone post a photo of exactly what bolt you are supposed to check for a loose track bar? I don't even know where that part is. DO you check the bolt on both ends, or just one side? Thank you.
Hur
Attached Thumbnails XJ Ask the Question Thread-image-2407686359.jpg
Old Dec 9, 2012 | 11:09 AM
  #17988
94XjSport94's Avatar
CF Veteran

Joined: Apr 2011
Posts: 14,553
Likes: 1
From: Carrollton, GA
Year: 1994
Model: Cherokee
Engine: Inline 6 4.0L High Output
Default

Yep but thats a TJ
Old Dec 9, 2012 | 11:22 AM
  #17989
riggs2007's Avatar
Newbie

Joined: Dec 2012
Posts: 1
Likes: 0
Model: Cherokee
Default

i have a 89 cherokee 4.0 i am not getting any spark to the coil or plugs . replaced plugs wires coil cap and rotor only other things i can think of is ignition pickup in the distributor.
am i on the right track? or do u have any other ideas?
Old Dec 9, 2012 | 11:23 AM
  #17990
odgreen's Avatar
CF Veteran

Joined: Nov 2010
Posts: 15,581
Likes: 8
From: some small town oregon
Year: 1989
Model: Cherokee
Engine: 4.0
Default

Originally Posted by riggs2007
i have a 89 cherokee 4.0 i am not getting any spark to the coil or plugs . replaced plugs wires coil cap and rotor only other things i can think of is ignition pickup in the distributor.
am i on the right track? or do u have any other ideas?
Crank position sensor.
Old Dec 9, 2012 | 11:38 AM
  #17991
NewKindOfClown's Avatar
Moderator of Jeeps

Joined: Jul 2011
Posts: 21,029
Likes: 3
From: Frederick, MD from Cleveland, OH
Year: 1993 YJ Wrangler
Engine: 4.0 I6
Default

Originally Posted by 94XjSport94
Yep but thats a TJ
TJ copied the QuadraLink setup that was pioneered on the XJ. I'm hoping you know due to the wink, but other people may not realize it's the same.
Old Dec 9, 2012 | 12:49 PM
  #17992
94XjSport94's Avatar
CF Veteran

Joined: Apr 2011
Posts: 14,553
Likes: 1
From: Carrollton, GA
Year: 1994
Model: Cherokee
Engine: Inline 6 4.0L High Output
Default

Originally Posted by NewKindOfClown

TJ copied the QuadraLink setup that was pioneered on the XJ. I'm hoping you know due to the wink, but other people may not realize it's the same.
Oh well yeah lol I do I was just saying its on a TJ but all that list is still the same... TJ rock in the back to with coils and a rear track bar and it flexes better than leaves on the XJ and the JK's control arms even longer
Old Dec 9, 2012 | 01:46 PM
  #17993
BimmerJeeper's Avatar
Banned

Joined: Oct 2012
Posts: 1,744
Likes: 2
From: USA
Year: 1998
Model: Cherokee
Engine: 4.0L i6
Default

While replacing my center console, I pulled up the 4WD selector towards 4LO/N/4HI area. Now, it seems sort of stuck.
I can movie it, but I just can't get it back all the way down to 2WD. I don't want to force anything and bent or snap it.

I just got this XJ and have never used 4WD. Does it not shift in and out of 4WD while parked?
I am afraid to drive it. But, will it be easier to push back into 2WD while I am driving it forwards?

Is there a special way to move this selector handle?
I noticed it has lateral play, and the shifter diagram has diagonal lines on it.

EDIT: I was able to move it back down. Not sure why it was stuck.

Last edited by BimmerJeeper; Dec 9, 2012 at 02:37 PM.
Old Dec 9, 2012 | 01:52 PM
  #17994
jeeper jason's Avatar
Seasoned Member

Joined: Jul 2012
Posts: 405
Likes: 0
From: Western, Pa (5 mins away from ohio border)
Year: 1999
Model: Cherokee
Engine: straight 6 (4.0L)
Default

does anybody know if their is a thread about what to look for when buying a cherokee, i'm looking to get a second one
Old Dec 9, 2012 | 01:59 PM
  #17995
my89xj's Avatar
CF Veteran

Joined: Sep 2011
Posts: 10,447
Likes: 0
From: Frederick, MD
Year: 1989
Model: Cherokee
Engine: 4.0
Default

Originally Posted by BimmerJeeper
While replacing my center console, I pulled up the 4WD selector towards 4LO/N/4HI area. Now, it seems sort of stuck.
I can movie it, but I just can't get it back all the way down to 2WD. I don't want to force anything and bent or snap it.

I just got this XJ and have never used 4WD. Does it not shift in and out of 4WD while parked?
I am afraid to drive it. But, will it be easier to push back into 2WD while I am driving it forwards?

Is there a special way to move this selector handle?
I noticed it has lateral play, and the shifter diagram has diagonal lines on it.
Put tranny in N and try again
Old Dec 9, 2012 | 02:06 PM
  #17996
DieselD's Avatar
CF Veteran

Joined: Apr 2011
Posts: 4,825
Likes: 2
From: Indianapolis
Year: '99 and '91
Model: Cherokee
Default

What should I look for when buying a used ring and pinion? How bad is surface rust? Is 20k a lot? I mean I know my stock gears last a long time but what about aftermarket 4.88s ?
Old Dec 9, 2012 | 02:10 PM
  #17997
NewKindOfClown's Avatar
Moderator of Jeeps

Joined: Jul 2011
Posts: 21,029
Likes: 3
From: Frederick, MD from Cleveland, OH
Year: 1993 YJ Wrangler
Engine: 4.0 I6
Default

[Ignore this. Posted in wrong thread.]
Old Dec 9, 2012 | 02:18 PM
  #17998
conker's Avatar
Member

Joined: Mar 2012
Posts: 195
Likes: 0
From: Atlantic City, New Jersey
Year: 1987
Model: Comanche
Engine: 4.0
Default

I've got a 87 Comanche with a D44 rear.

I'd like to get a locker for it, keep myself from getting stuck in the mud as easily.

What brand should i get/ where should i purchase it?
I see a lot of guys on here getting spartan lockers, don't know how much they are on cost though. (I want an auto locker, not an air or electric one)
Old Dec 9, 2012 | 02:24 PM
  #17999
NewKindOfClown's Avatar
Moderator of Jeeps

Joined: Jul 2011
Posts: 21,029
Likes: 3
From: Frederick, MD from Cleveland, OH
Year: 1993 YJ Wrangler
Engine: 4.0 I6
Default

Originally Posted by conker
I've got a 87 Comanche with a D44 rear.

I'd like to get a locker for it, keep myself from getting stuck in the mud as easily.

What brand should i get/ where should i purchase it?
I see a lot of guys on here getting spartan lockers, don't know how much they are on cost though. (I want an auto locker, not an air or electric one)
I'm gonna Aussie lock my front axle. I'm leaving my rear open until I can afford an electronic locker because I want it to stay predictable in the snow. If you want auto, though, I've read nothing but good reviews about Aussie. And they're reasonably priced.
Old Dec 9, 2012 | 02:37 PM
  #18000
BimmerJeeper's Avatar
Banned

Joined: Oct 2012
Posts: 1,744
Likes: 2
From: USA
Year: 1998
Model: Cherokee
Engine: 4.0L i6
Default

Originally Posted by jeeper jason
does anybody know if their is a thread about what to look for when buying a cherokee, i'm looking to get a second one
Do a search for terms including: jeep buyers guide checklist inspecting used
