Wrong fly wheel/ advance auto

Thread Tools

Search this Thread

Old May 8, 2013 | 07:26 AM
  #1
siglincasey's Avatar
Thread Starter
Junior Member

Joined: Jan 2013
Posts: 55
Likes: 0
Default Wrong fly wheel/ advance auto

I need some napa know how. It would work if I didn't have that dang cps
Reply
Old May 8, 2013 | 07:33 AM
  #2
Cherockee's Avatar
CF Veteran

Joined: Aug 2010
Posts: 1,168
Likes: 4
From: Williamsport, Pa
Year: 1997
Model: Cherokee
Engine: 4.0L
Default

What would work? Guess I don't understand what you want to know. Just order the correct flywheel for your Jeep's engine and year.

I have a good used one in the basement I'd sell ya.
Reply
Old May 8, 2013 | 07:44 AM
  #3
SeriousOffroad's Avatar
CF Veteran

Joined: Apr 2008
Posts: 13,952
Likes: 17
Model: Cherokee
Default

Manual Tranny = Flywheel
Automatic Tranny = Flex Plate

Try providing some info that will help answer your question.
Adding a question would help too, so would info about your rig and what you are trying to do.

Help us help you.
Reply
Old May 8, 2013 | 07:46 AM
  #4
siglincasey's Avatar
Thread Starter
Junior Member

Joined: Jan 2013
Posts: 55
Likes: 0
Default

Well, I bought the one for my year and it was to small wouldn't bolt up to the torque converter. So, I bought one for a 90 , but it had to many slots found this out trying to crank the engine
Reply
Old May 8, 2013 | 07:49 AM
  #5
SeriousOffroad's Avatar
CF Veteran

Joined: Apr 2008
Posts: 13,952
Likes: 17
Model: Cherokee
Default

Good lord........

Make?
Model?
Year?
Engine?
Transmission?
Reply
Old May 8, 2013 | 07:51 AM
  #6
Cherockee's Avatar
CF Veteran

Joined: Aug 2010
Posts: 1,168
Likes: 4
From: Williamsport, Pa
Year: 1997
Model: Cherokee
Engine: 4.0L
Default

Again, for the last time, what is it that you have? Start with the basics, year, engine, tranny. Don't you have the old one? Take the original with you to the store and match it up.
Reply
Old May 8, 2013 | 08:10 AM
  #7
siglincasey's Avatar
Thread Starter
Junior Member

Joined: Jan 2013
Posts: 55
Likes: 0
Default

Originally Posted by Cherockee
Again, for the last time, what is it that you have? Start with the basics, year, engine, tranny. Don't you have the old one? Take the original with you to the store and match it up.
That's what i did. The 90 matched up in size and bolt pattern. Just not not cps slots. It's production date was 94 title date is 95. I don't know what the tranny is.
Reply
Old May 8, 2013 | 12:51 PM
  #8
siglincasey's Avatar
Thread Starter
Junior Member

Joined: Jan 2013
Posts: 55
Likes: 0
Default

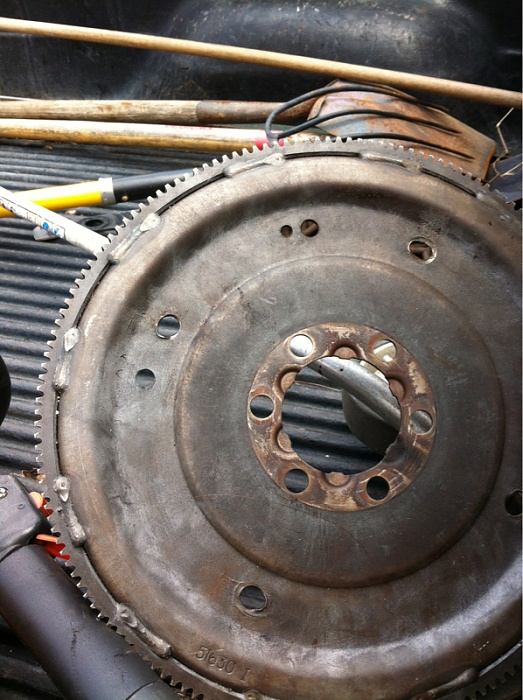

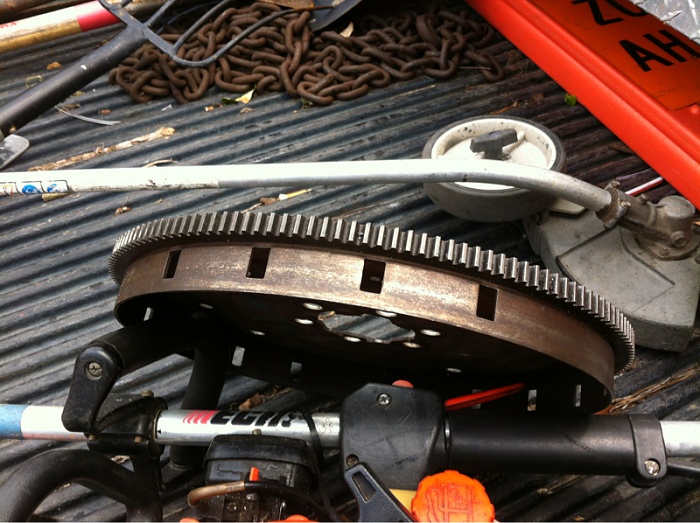

This is the flex plate ( fly wheel) there are 3 sets of 4 slots
Attached Thumbnails Wrong fly wheel/ advance auto-image-1907710052.jpg   Wrong fly wheel/ advance auto-image-2080208086.jpg
Reply
Old May 8, 2013 | 03:50 PM
  #9
cruiser54's Avatar
::CF Moderator::

Joined: Aug 2011
Posts: 43,971
Likes: 1,579
From: Prescott, Az
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default

What year Jeep are you working on?

You have an AW4 trans.
Reply
Old May 8, 2013 | 04:11 PM
  #10
freegdr's Avatar
CF Veteran

Joined: Mar 2010
Posts: 47,923
Likes: 38
From: Broward County Fl.
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Default

91.5 up ?
Reply
Old May 8, 2013 | 04:19 PM
  #11
cruiser54's Avatar
::CF Moderator::

Joined: Aug 2011
Posts: 43,971
Likes: 1,579
From: Prescott, Az
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default

91 and up. But, we're still not sure what we're trying to accomplish here.
Reply
Old May 8, 2013 | 05:20 PM
  #12
freegdr's Avatar
CF Veteran

Joined: Mar 2010
Posts: 47,923
Likes: 38
From: Broward County Fl.
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Default

Originally Posted by cruiser54
91 and up. But, we're still not sure what we're trying to accomplish here.
I have seen 91 renix build date was 4/91 hey at least were zeroing in on some thing. I did read a post somewhere about a flex plate ring welded wrong causing issues .
Reply
Old May 8, 2013 | 05:33 PM
  #13
cruiser54's Avatar
::CF Moderator::

Joined: Aug 2011
Posts: 43,971
Likes: 1,579
From: Prescott, Az
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default

Originally Posted by freegdr
I have seen 91 renix build date was 4/91 hey at least were zeroing in on some thing. I did read a post somewhere about a flex plate ring welded wrong causing issues .
I remember the thread about the "mis-oriented" flexplate rings, too.
Reply
Old May 8, 2013 | 05:36 PM
  #14
freegdr's Avatar
CF Veteran

Joined: Mar 2010
Posts: 47,923
Likes: 38
From: Broward County Fl.
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Default Found it but there renix ?

They appear to be clocked wrong...http://www.naxja.org/forum/showthread.php?t=1091241

Last edited by freegdr; May 8, 2013 at 06:05 PM.
Reply
Old May 8, 2013 | 06:08 PM
  #15
cruiser54's Avatar
::CF Moderator::

Joined: Aug 2011
Posts: 43,971
Likes: 1,579
From: Prescott, Az
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default

Originally Posted by freegdr
They appear to be clocked wrong...http://www.naxja.org/forum/showthread.php?t=1091241
Yeah, but we don't know what teh OP is doing anyway. Swap, replacement?
