Year: 1992
Model: Cherokee
Engine: 4.0 I6
Default wire

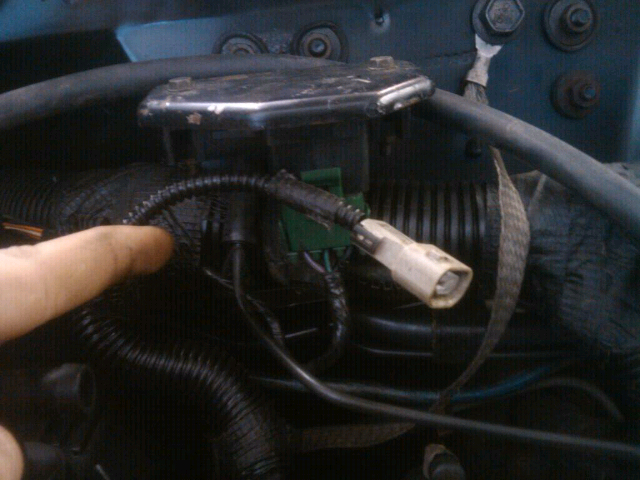

Where does this go. Its on a short leash so it can't go far. Haynes calles it the AIS stepper motor(Bwn/white). Its a brown wire with a white line.
Attached Thumbnails wire-forumrunner_20111024_152134.jpg   wire-forumrunner_20111024_152212.jpg   wire-forumrunner_20111024_152313.jpg
Jor2010dan is offline
Reply Like
Old 10-24-2011, 04:51 PM
  #2
CF Veteran

TheJerm's Avatar

Join Date: Jun 2010
Location: Flint/Asheville
Posts: 2,501
Likes: 0
Received 4 Likes on 4 Posts
Year: 1995
Model: Cherokee
Engine: 4.0 HO
Default
Thats for temp sensor!
TheJerm is offline
Reply Like
Old 10-24-2011, 04:55 PM
  #3
CF Veteran

Jeepjunky's Avatar

Join Date: Oct 2009
Location: somewhere Gee oh Dee cant find me...
Posts: 4,529
Likes: 0
Received 0 Likes on 0 Posts
Year: 1995
Model: Cherokee
Engine: I6 4.0L
Default
thats what i thought, but my 95 is purple and yellow
Jeepjunky is offline
Reply Like
Old 10-24-2011, 04:58 PM
  #4
Senior Member
Thread Starter

Jor2010dan's Avatar

Join Date: Oct 2009
Location: Southern Utah
Posts: 532
Likes: 0
Received 1 Like on 1 Post
Year: 1992
Model: Cherokee
Engine: 4.0 I6
Default
But its right next to the map sensor and it can only move 3 inches away from the harness
Jor2010dan is offline
Reply Like
Old 10-24-2011, 05:01 PM
  #5
Senior Member
Thread Starter

Jor2010dan's Avatar

Join Date: Oct 2009
Location: Southern Utah
Posts: 532
Likes: 0
Received 1 Like on 1 Post
Year: 1992
Model: Cherokee
Engine: 4.0 I6
Default
Maybe someone could do me a solid and go clicky me a picture so I can get my stroker started!
Jor2010dan is offline
Reply Like
Old 10-24-2011, 05:09 PM
  #6
CF Veteran

Jeepjunky's Avatar

Join Date: Oct 2009
Location: somewhere Gee oh Dee cant find me...
Posts: 4,529
Likes: 0
Received 0 Likes on 0 Posts
Year: 1995
Model: Cherokee
Engine: I6 4.0L
Default
ya there should b a sensor in the back of the head where that wire plugs into
Jeepjunky is offline
Reply Like
Old 10-24-2011, 06:21 PM
  #7
Senior Member
Thread Starter

Jor2010dan's Avatar

Join Date: Oct 2009
Location: Southern Utah
Posts: 532
Likes: 0
Received 1 Like on 1 Post
Year: 1992
Model: Cherokee
Engine: 4.0 I6
Default
I don't have one there. Clicky a picturey?
Jor2010dan is offline
Reply Like

Trending Topics

Old 10-24-2011, 06:31 PM
  #8
CF Veteran

Jeepjunky's Avatar

Join Date: Oct 2009
Location: somewhere Gee oh Dee cant find me...
Posts: 4,529
Likes: 0
Received 0 Likes on 0 Posts
Year: 1995
Model: Cherokee
Engine: I6 4.0L
Default

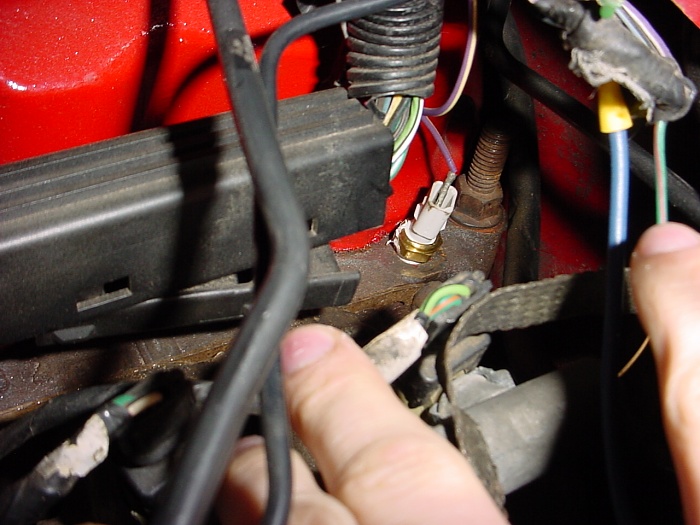

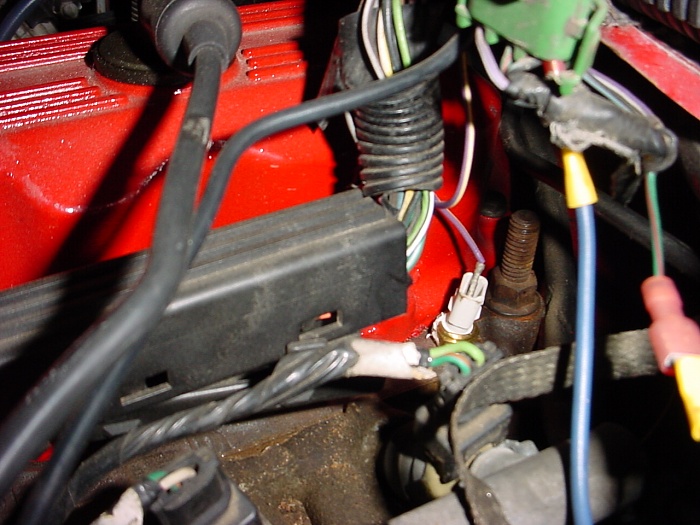

mine doesnt have a harness on it but here u go
Attached Thumbnails wire-dsc05173.jpg   wire-dsc05172.jpg
Jeepjunky is offline
Reply Like
Old 10-25-2011, 03:58 AM
  #9
Senior Member
Thread Starter

Jor2010dan's Avatar

Join Date: Oct 2009
Location: Southern Utah
Posts: 532
Likes: 0
Received 1 Like on 1 Post
Year: 1992
Model: Cherokee
Engine: 4.0 I6
Default
Thanks. Obviously mine went on a ride through the hot tank at the engine shop
Jor2010dan is offline
