Window Seal how-to

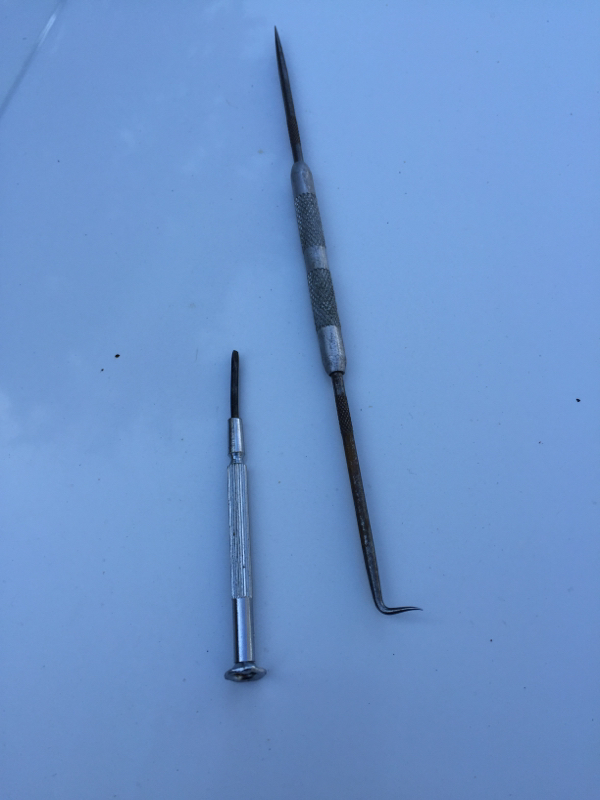

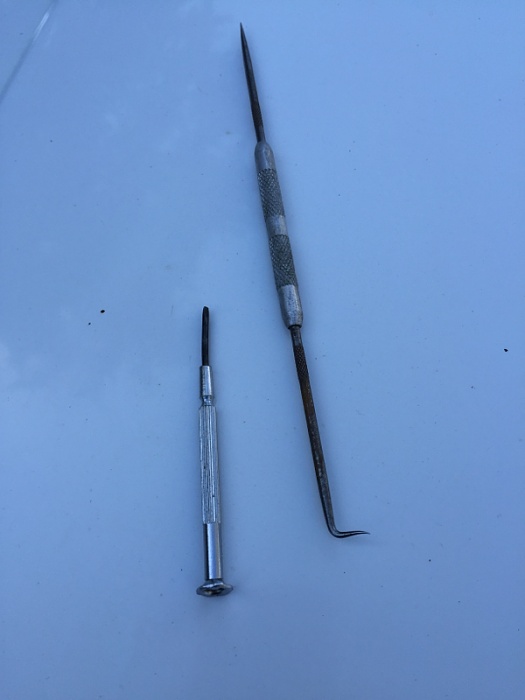

Tools small flat screw driver and a curved pick

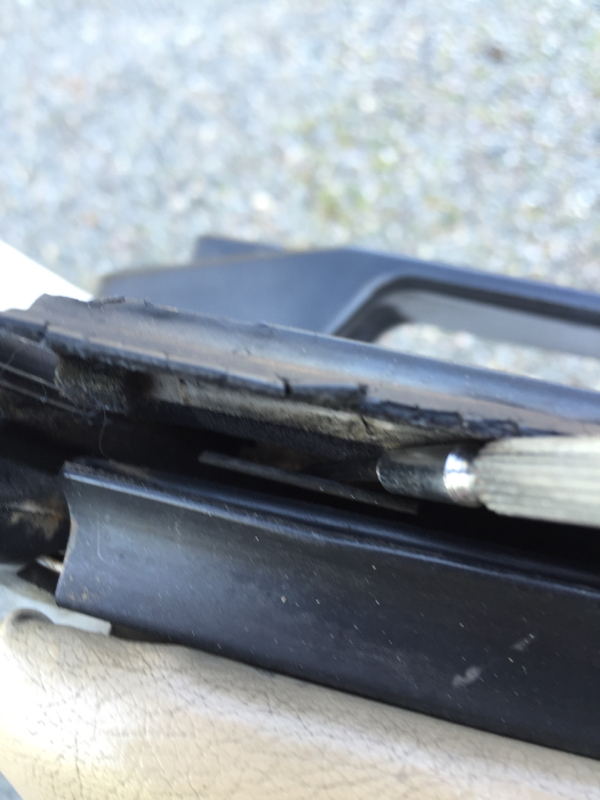

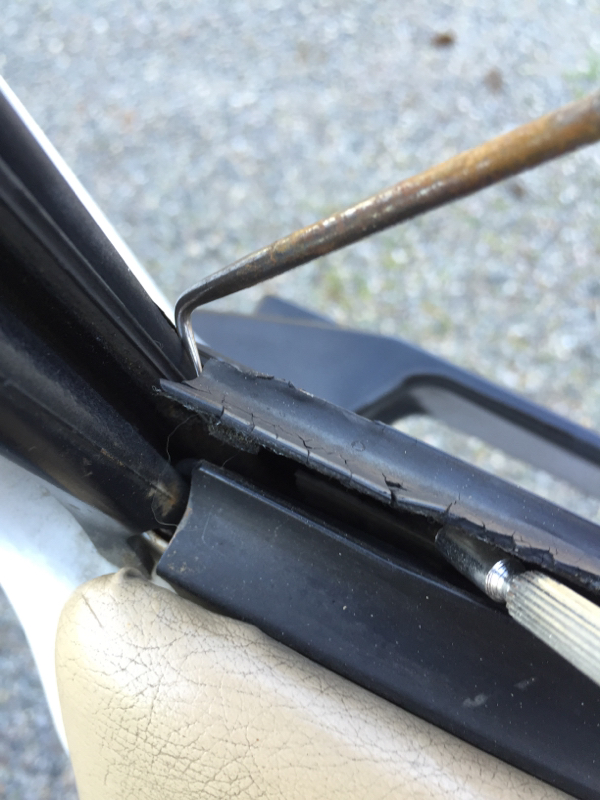

-Pull down inner metal tab closest to B pillar and dig out the corner with the pick

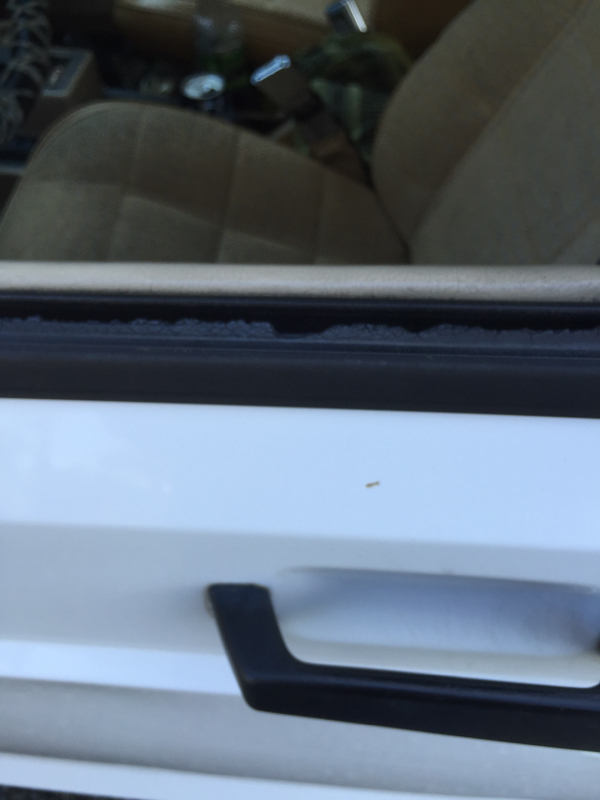

-Peel old seal out at an angle
-Clean out any debris from all 3 clips

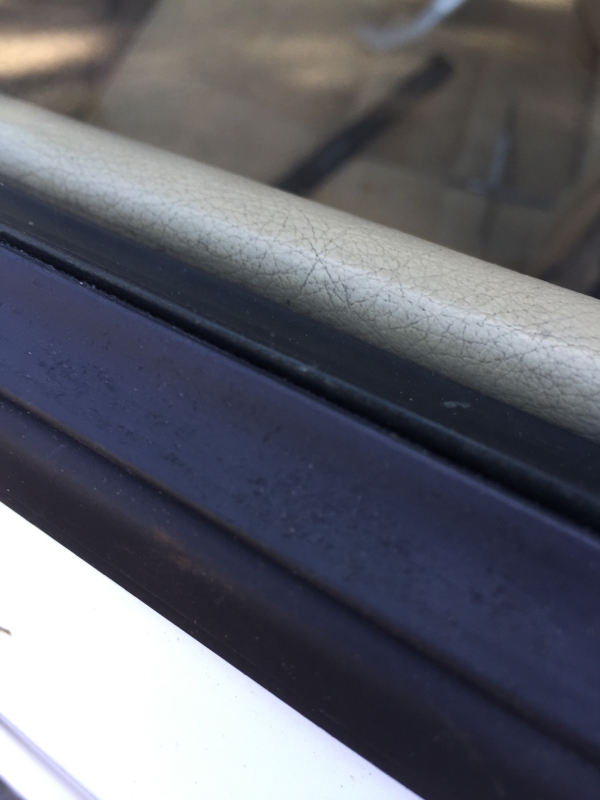

-snap in new seal
-No more water in your door speakers
-Pull down inner metal tab closest to B pillar and dig out the corner with the pick
-Peel old seal out at an angle
-Clean out any debris from all 3 clips
-snap in new seal
-No more water in your door speakers
Last edited by RED RIVER; Apr 8, 2016 at 07:15 PM.
Newbie
Joined: Sep 2013
Posts: 22
Likes: 0
From: Powder Springs, GA
Model: Cherokee
Excellent! I need to do this badly and now I don't have to fumble around figuring it out.

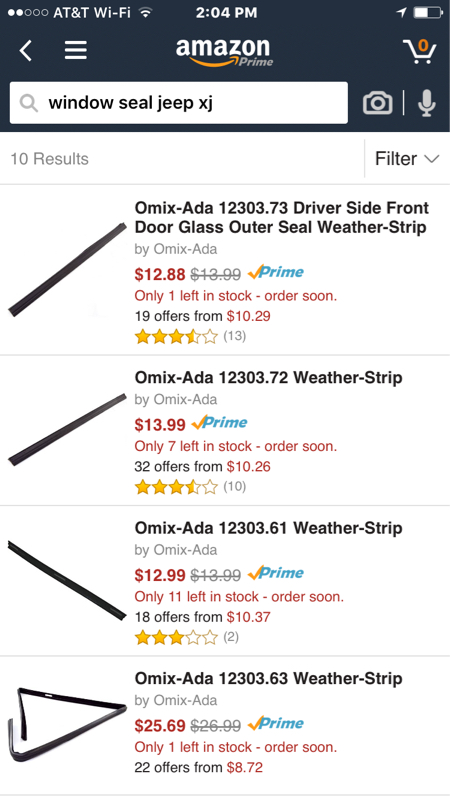

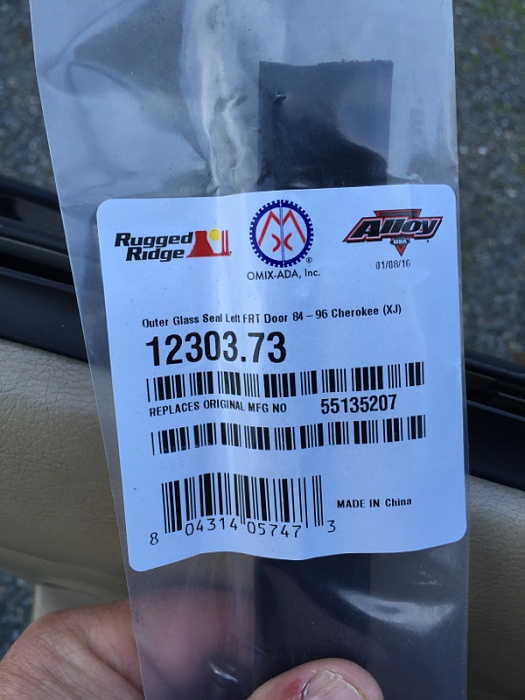

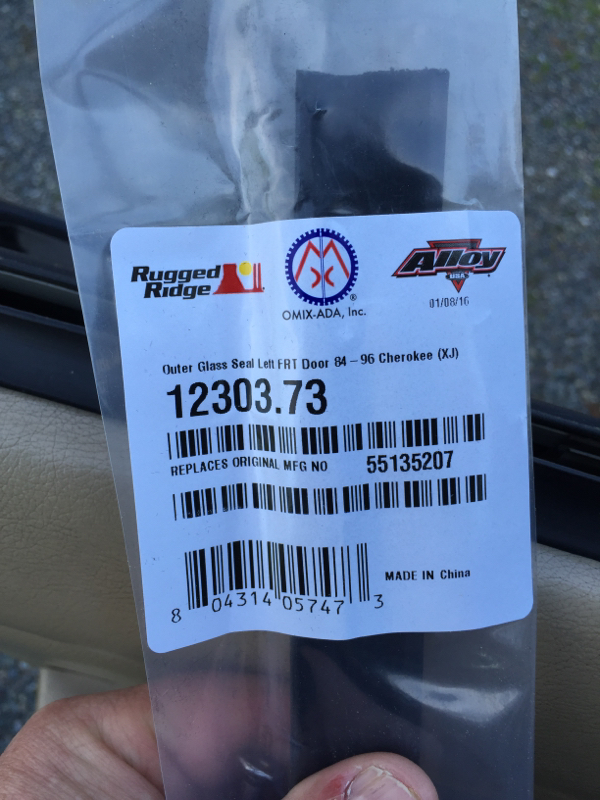

Thanks for the post and especially a close up of the parts you used (including part numbers). So many people don't do this and it's nice to not have to search for everything.
Thanks for the post and especially a close up of the parts you used (including part numbers). So many people don't do this and it's nice to not have to search for everything.
CF Veteran
Joined: May 2012
Posts: 7,965
Likes: 964
From: Lost in the wilds of Virginia
Year: 1998 Classic (I'll get it running soon....) and 02 Grand
Model: Cherokee (XJ)
Engine: 4.0
I usually just put duct tape over their mouths.
I don't know why some widows can talk so much, but sometimes....
I don't know why some widows can talk so much, but sometimes....
Thread Starter
Member
Joined: Feb 2016
Posts: 209
Likes: 1
From: Thurston County, Wa.
Year: 1994
Model: Cherokee
Engine: 4.0 HO
Trending Topics
::CF Moderator::
Joined: Aug 2011
Posts: 43,971
Likes: 1,579
From: Prescott, Az
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
CF Veteran
Joined: Apr 2013
Posts: 1,153
Likes: 7
From: Rowlett, Texas
Year: 1988
Model: Cherokee
Engine: 4.0 Inline 6
ok, was curious because i had ordered a seal from rockauto and it did not include the seal part to the triangle area. ( sorry dont know the term for the kind of window i have)
Not my actual vechile, as mine doesnt have the option to open that little window.
Not my actual vechile, as mine doesnt have the option to open that little window.
