Window issues
#1
CF Veteran
Thread Starter
Join Date: Dec 2011
Location: Roanoke, VA
Posts: 1,050
Likes: 0
Received 2 Likes
on
1 Post
Year: 1990
Model: Cherokee
Engine: 4.0
Window issues
Hey yall,
So heres the issue- the windows wont move, and only the passenger side door lock works (all power). Ive checked out the wires and phsically they look good, i put a little dielectric grease on the connections, and im thinkong maybe the relay is bad? The 30 amp fuse which is supposed to be on my driver side fuse board is mia...either that or i just dont see it right in front of me...
Any help would be great! Its starting to get warm and the little window vents just wont cut it for long!
So heres the issue- the windows wont move, and only the passenger side door lock works (all power). Ive checked out the wires and phsically they look good, i put a little dielectric grease on the connections, and im thinkong maybe the relay is bad? The 30 amp fuse which is supposed to be on my driver side fuse board is mia...either that or i just dont see it right in front of me...
Any help would be great! Its starting to get warm and the little window vents just wont cut it for long!
#2
CF Veteran
Join Date: Apr 2008
Location: Smiths Station, Al
Posts: 7,661
Likes: 0
Received 13 Likes
on
10 Posts
Year: 87
Model: Wagoneer
Engine: 4.0 I6
There is a write up in the write ups section on fixing this. A mod to make it run lots and lots better check it out. 1st or second page for XJ writeups.
#3
CF Veteran
Thread Starter
Join Date: Dec 2011
Location: Roanoke, VA
Posts: 1,050
Likes: 0
Received 2 Likes
on
1 Post
Year: 1990
Model: Cherokee
Engine: 4.0
I just read it, will actually do it after work tonight. Another question though, prior to them now working at all, they were EXTREMELY slow, as if the motor was barwly able to overcome the weight of the glass. Is this cleaning and such also supposed to fix that, or is that a regulator/ motor issue
#4
CF Veteran
Join Date: Apr 2008
Location: Smiths Station, Al
Posts: 7,661
Likes: 0
Received 13 Likes
on
10 Posts
Year: 87
Model: Wagoneer
Engine: 4.0 I6
I just read it, will actually do it after work tonight. Another question though, prior to them now working at all, they were EXTREMELY slow, as if the motor was barwly able to overcome the weight of the glass. Is this cleaning and such also supposed to fix that, or is that a regulator/ motor issue
I had to redo the ground wire for my main drivers window. It works faster. But when I replaced the motor I added a lil grease to the inside of where the window rides. And she shot up and down for a while. But has since gotten a little dirt in there and not so fast no mo.
#6
CF Veteran
Join Date: Apr 2008
Location: Smiths Station, Al
Posts: 7,661
Likes: 0
Received 13 Likes
on
10 Posts
Year: 87
Model: Wagoneer
Engine: 4.0 I6
oh you gots a old one like mines.

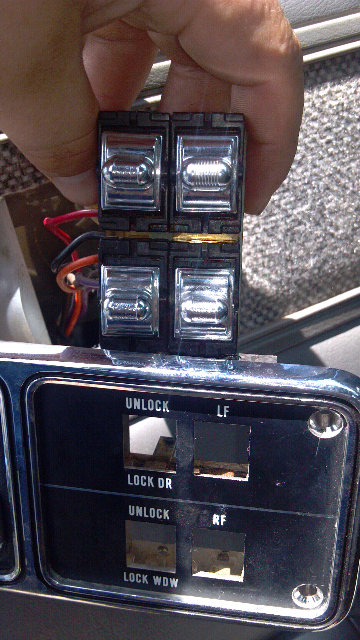

I would find the ground wire to each switch and then add a lead to the door with a self tapping screw at each window. I have read that helps our old tired renix wiring.
I would find the ground wire to each switch and then add a lead to the door with a self tapping screw at each window. I have read that helps our old tired renix wiring.
Trending Topics
#9
CF Veteran
Thread Starter
Join Date: Dec 2011
Location: Roanoke, VA
Posts: 1,050
Likes: 0
Received 2 Likes
on
1 Post
Year: 1990
Model: Cherokee
Engine: 4.0
Maybe...im gonna try grounding in a few diff spots because im not the worlds best electrician, but its also kinda odd how they both went simultaneously
#10
CF Veteran
Join Date: Apr 2008
Location: Smiths Station, Al
Posts: 7,661
Likes: 0
Received 13 Likes
on
10 Posts
Year: 87
Model: Wagoneer
Engine: 4.0 I6
Here is another write up i found while digging. Although it is geared for a 98 it may give you some ideas
https://www.cherokeeforum.com/f51/yo...ook-here-2531/
https://www.cherokeeforum.com/f51/yo...ook-here-2531/
