Will a 1992 2wd AX15 work in my 1998 4.0?

Subscribe
Dec 7, 2015 | 02:21 PM
  #1
Hey all, My 1998 Jeep Cherokee Ax15 finally bit the dust and is stuck in a false nuetral, stick is right between reverse and fifth, but the stick wont budge. Ive found a 1992 Ax15 from a U-pull with only 113k. What I am worried about is the internal slave cylinder that 1992 uses verse my external on the 1998. Would I be okay if i took the 1998 bell housing off and put it on the 1992 transmission?

Thanks
Antonio
Reply 0
Dec 7, 2015 | 04:01 PM
  #2
Id pull shifter sounds like shift forks are jammed.
Reply 0
Dec 7, 2015 | 04:05 PM
  #3
So when I pull theshifter out what should I be looking for? Sorry I'm A newbie when it comes to transmissions I normally pull the shifter out when changing the fluid out, I pour the fluid from the top.
Reply 0
Dec 8, 2015 | 06:01 PM
  #4
Pulled the shifter out of the jeep today, not really sure what I should be looking for. I can post pics of what I see to maybe get some ideas from you guys?
Thanks
Reply 0
Dec 8, 2015 | 06:53 PM
  #5
Quote: Pulled the shifter out of the jeep today, not really sure what I should be looking for. I can post pics of what I see to maybe get some ideas from you guys?
Thanks
Sure is plastic bushing still on bottom of shifter ?



Reply 0
Dec 8, 2015 | 07:01 PM
  #6
Read......590 post......https://www.cherokeeforum.com/f2/ax1...ny-gear-44839/
Reply 0
Dec 8, 2015 | 09:56 PM
  #7
Good info but I believe it's a bit worse than that. I took the shifter out, mine still has the little ring on the end of it on the shifter, and when trying to make it move with a screw driver it would not budge I have some pics that I'll post to help explain.

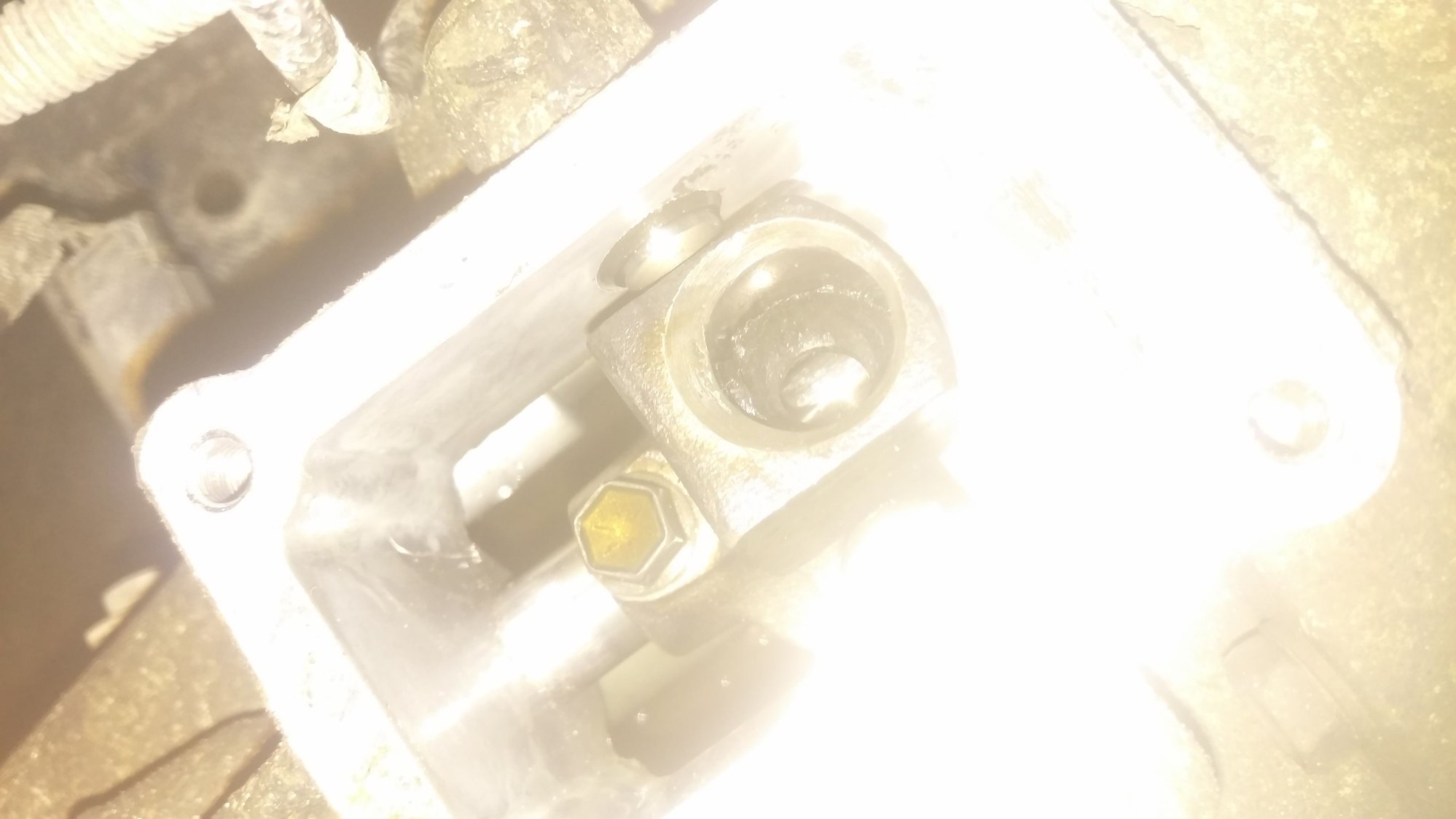

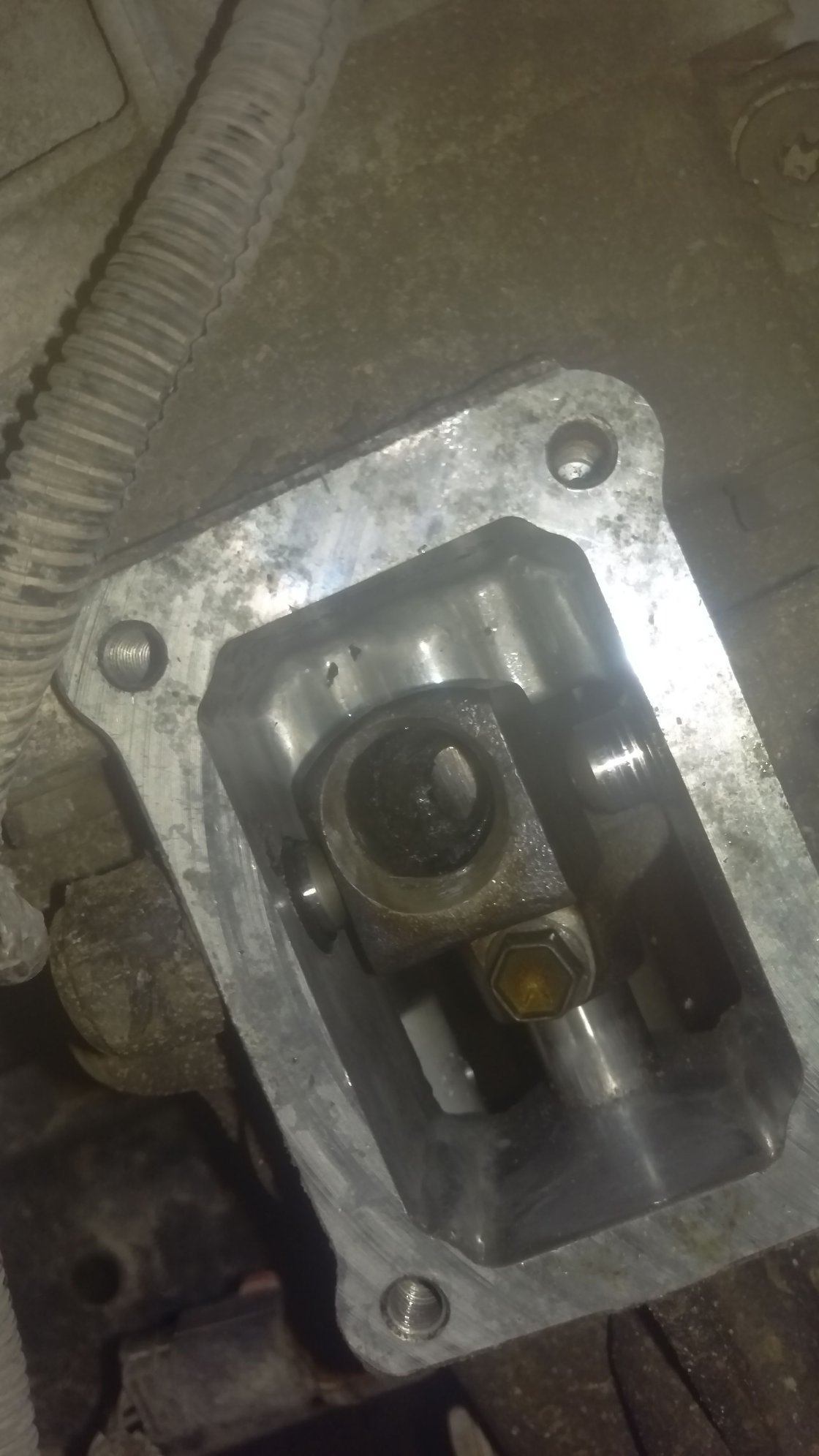

As you can see, that's where it's stuck and would not budge. I can push the two pins on each in just fine but I can not get the piece where the shifter ball goes in to move at all only a tiny, bit when using a ratchet on the bolt below.


Reply 0
Dec 8, 2015 | 11:01 PM
  #8
Theres no magic fix its got to be convinced to shift keep fiddling with it dont be afraid to be a little ruff. Those shaft below are shift tubes they move back and forth while the socket where shifter sits moves side to side .
Reply 0
