Wich trans line is wich?

Thread Tools

Search this Thread

Old Mar 5, 2012 | 11:47 PM
  #1
dacr89's Avatar
Thread Starter
Junior Member

Joined: Apr 2011
Posts: 85
Likes: 0
From: Jonesboro, Arkansas
Year: 1995
Model: Cherokee
Engine: 4.0
Default Wich trans line is wich?

Ok so I went to a local place and bottomed out at the top of a little hill climb. When I landed the upper control arm slammed against my trans lines and broke them both... I cut out the bad part and I am going to use bulk tubing and fittings to repair. The question is which line runs where???? I forgot to mark them somehow when I cut the lines
Reply
Old Mar 6, 2012 | 10:09 AM
  #2
dacr89's Avatar
Thread Starter
Junior Member

Joined: Apr 2011
Posts: 85
Likes: 0
From: Jonesboro, Arkansas
Year: 1995
Model: Cherokee
Engine: 4.0
Default

um is it ok to "bump" a thread????
Reply
Old Mar 6, 2012 | 10:16 AM
  #3
djb383's Avatar
CF Veteran

Joined: Nov 2009
Posts: 8,172
Likes: 17
From: The Republic of TEXAS
Year: 1998
Model: Cherokee
Engine: 4.0L HO
Default

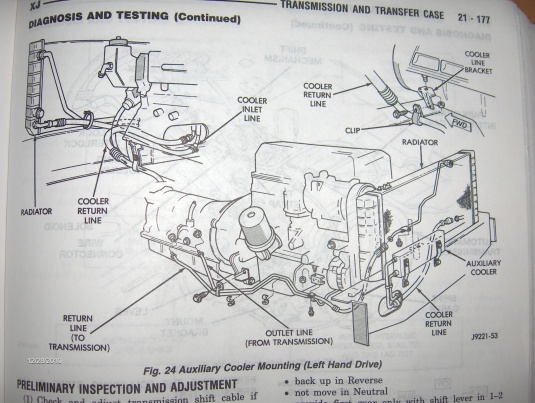

The front line (passenger side of tranny) is the hot fluid line that exits the tranny. Rear line is the cooled fluid being returned to the tranny.
Attached Thumbnails Wich trans line is wich?-039.jpg

Last edited by djb383; Mar 6, 2012 at 10:20 AM.
Reply
Old Mar 6, 2012 | 04:39 PM
  #4
dacr89's Avatar
Thread Starter
Junior Member

Joined: Apr 2011
Posts: 85
Likes: 0
From: Jonesboro, Arkansas
Year: 1995
Model: Cherokee
Engine: 4.0
Default

Thanx now to go fix it!
