White seal ring in dana 30?
10-08-2014, 04:24 PM
#1
Junior Member
Thread Starter
Join Date: Apr 2013
Location: MA
Posts: 96
Likes: 0
Received 0 Likes
on
0 Posts
Year: 99
Model: Cherokee
Engine: 4.0
White seal ring in dana 30?

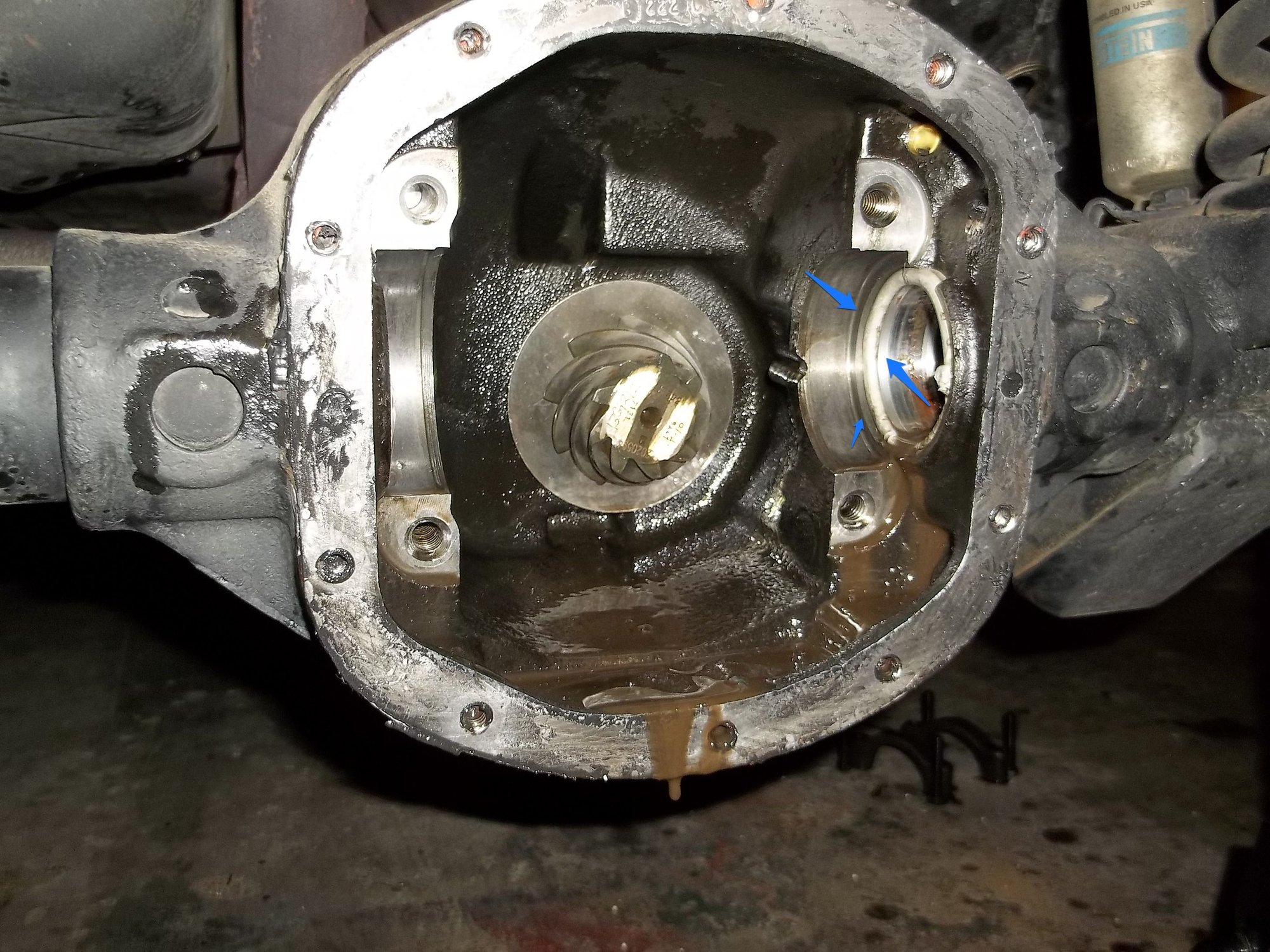

Anyone know what this white ring is? Looks almost like a seal kindof but appears more like caulk applied by hand..
I'm in the middle of re-gearing and ended up pulling it off on one side because it looked damaged. Can't find any reference to it anywhere.
I'm in the middle of re-gearing and ended up pulling it off on one side because it looked damaged. Can't find any reference to it anywhere.
10-08-2014, 04:43 PM
#2
Seasoned Member
Join Date: Aug 2014
Location: Lehigh Valley PA
Posts: 486
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1989
Model: Cherokee
Engine: 4.0 renix
Either the pinion seal or the axle seal, no?
Writeup (I think?) Is found here:
http://jeep-xj.info/HowtoD30AxlesSeals.htm
Writeup (I think?) Is found here:
http://jeep-xj.info/HowtoD30AxlesSeals.htm
10-08-2014, 05:01 PM
#3
CF Veteran
Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 17 Likes
on
17 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
No help here. It almost looks like some packaging "protection" that would be removed before installing. I don't recall ever seeing that, but it looks like both sides have a tab to get hold of to pull it off.
10-08-2014, 05:02 PM
#4
Moderator CF K9-unit
Join Date: Apr 2012
Location: Alaska
Posts: 5,842
Likes: 0
Received 9 Likes
on
8 Posts
Year: 2000 sport
Model: Cherokee (XJ)
Engine: New 4.0l from s&j engines
Last edited by Dumajones; 10-08-2014 at 05:05 PM.
10-08-2014, 05:48 PM
#5
Junior Member
Thread Starter
Join Date: Apr 2013
Location: MA
Posts: 96
Likes: 0
Received 0 Likes
on
0 Posts
Year: 99
Model: Cherokee
Engine: 4.0

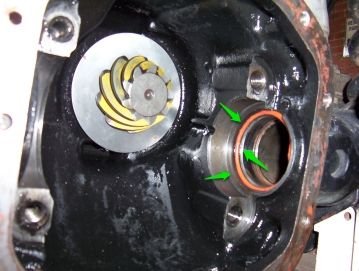

Yup that's it, thanks Dumajones!
Now I wonder what it's for.. =/ Guess I shouldn't have pulled it off, I guess I could attempt to replace it with some fresh rtv =/
For clarification to others, it isn't the axle seal.
Now I wonder what it's for.. =/ Guess I shouldn't have pulled it off, I guess I could attempt to replace it with some fresh rtv =/
For clarification to others, it isn't the axle seal.
Last edited by hobhayward; 10-08-2014 at 05:58 PM.
10-08-2014, 06:13 PM
#6
Moderator CF K9-unit
Join Date: Apr 2012
Location: Alaska
Posts: 5,842
Likes: 0
Received 9 Likes
on
8 Posts
Year: 2000 sport
Model: Cherokee (XJ)
Engine: New 4.0l from s&j engines
Yeah just stick a little RTV on it and put it back in. I have no clue whats its for, maybe so we can take it off then go hmmm what the hell is this..lol
Trending Topics
10-08-2014, 07:53 PM
#8
Seasoned Member
Join Date: May 2014
Location: Nor Cal
Posts: 371
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1993 & 1994
Model: Grand Cherokee
Engine: 4.0
It's the excess rtv from when they pressed the tubes in to the housing at the factory. You can leave it or remove it without any issues as it is just the excess.
Max
Max
10-09-2014, 07:23 AM
#11
Member
Join Date: May 2013
Location: The Interior of Alaska
Posts: 130
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Ya it's not a seal its just the over fill from the tubes getting sealed.Ripped mine up when I did my seals so I just took all of it off and it's been fine,no leaks.
