Where is the water leak coming from?
I have this leak and I can't seem to figure how to fix it. It is causing major rust inside my jeep.

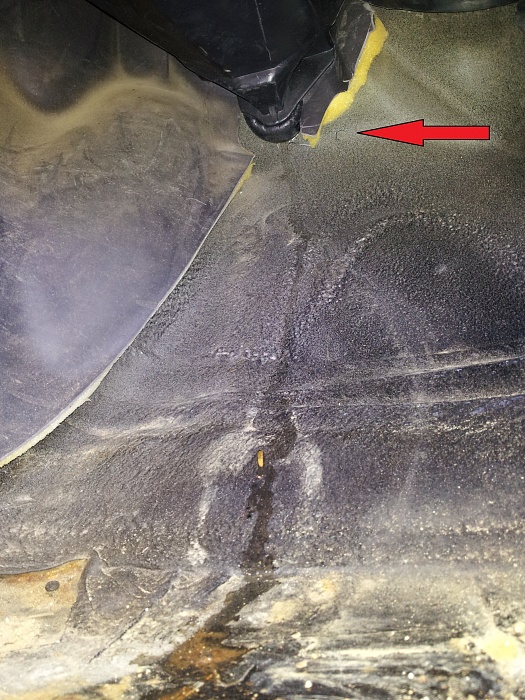

This leak is coming from the passenger side area.
I can take the panel out but I stuck figuring out what to do next....
Any ideas?
PS. Ignore the antenna hole. It was leaking prior to the antenna removal.
This leak is coming from the passenger side area.
I can take the panel out but I stuck figuring out what to do next....
Any ideas?
PS. Ignore the antenna hole. It was leaking prior to the antenna removal.
Last edited by apocolyps3; 05-10-2012 at 10:20 AM.
05-10-2012, 10:23 AM
#4
CF Veteran
Join Date: Feb 2010
Location: Oroville, CA
Posts: 12,367
Likes: 0
Received 19 Likes
on
18 Posts
Year: 1995
Model: Grand Cherokee
Engine: 4.0 with all of the noise and clatter
Look under the hood on the passenger side of the firewall, you'll see a black hose sticking out the goes to nothing, that is the HVAC case drain. It looks like water is coming in around there, or the drain is plugged with dirt and crap and the build up of condensation is seeping out someplace.
05-10-2012, 11:14 AM
#5
Newbie
Thread Starter
Join Date: Jan 2011
Posts: 19
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
I don't think it is the HVAC because it only happens whenever it rains. It thought it might be the condensor but the leaking is directly proportional to the amount of rain outside....sadly...
05-10-2012, 11:40 AM
#7
Seasoned Member
Join Date: Jun 2010
Location: Charleston, SC
Posts: 448
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990 - 2000
Model: Cherokee
Engine: 4.0
If you run the defrost of the ac, it would be. There is more water in the air.
Trending Topics
05-10-2012, 12:45 PM
#10
CF Veteran
Join Date: Apr 2011
Location: Raymore, Mo
Posts: 2,857
Likes: 0
Received 1 Like
on
1 Post
Year: 1995
Model: Cherokee
Engine: 4.0
Originally Posted by apocolyps3
Yea...I am going to get the windshield re-sealed and see. I am tempted to remove the fender and start cutting away parts if I can't find this issue.
Thanks!
Thanks!
05-10-2012, 03:13 PM
#11
Senior Member
Join Date: Apr 2010
Location: Marshall, WI
Posts: 720
Likes: 0
Received 1 Like
on
1 Post
Year: 1994
Model: Cherokee
Engine: 4.0L i6
Have ya checked the heater core??? Try bypassing it under the hood and see if it stops leaking. If it does ya know it's time to swap it out.
05-10-2012, 03:14 PM
#12
CF Veteran
Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 17 Likes
on
17 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5

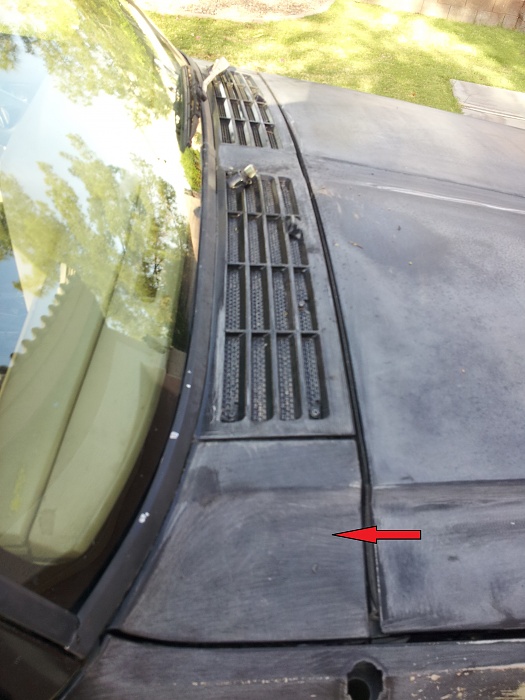

Something maybe easy to try. Sometime when it's dry leave a hose dribbling in the air inlet cowling there and see if it leaks. I still have the Rambler, enough crap got on there to block the drain and it would back up and leak in the cab there. My 90 has a pretty fine screen there, so it's doubtful assuming you have the same screen, but if you have a hose, it's something easy enough to check. Btw MY AC drain clogged and it leaked there. Also my Jag windshield leaks like a siv. (Limey rubber
)
)
Last edited by DFlintstone; 05-10-2012 at 04:43 PM. Reason: I still have the Rambler (63 American, made in CAN?)
05-10-2012, 03:55 PM
#13
CF Veteran
Join Date: Jun 2010
Location: Flint/Asheville
Posts: 2,501
Likes: 0
Received 4 Likes
on
4 Posts
Year: 1995
Model: Cherokee
Engine: 4.0 HO
Something maybe easy to try. Sometime when it's dry leave a hose dribbling in the air inlet cowling there and see if it leaks. I had a Rambler, enough crap got on there to block the drain and it would back up and leak in the cab there. My 90 has a pretty fine screen there, so it's doubtful assuming you have the same screen, but if you have a hose, it's something easy enough to check. Btw MY AC drain clogged and it leaked there. Also my Jag windshield leaks like a siv. (Limey rubber )
)
05-10-2012, 04:53 PM
#15
Member
Join Date: Apr 2010
Location: Newport, NC
Posts: 198
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0 L
On another thread about a similar leak information was given about a leak from inside the cowl. There is a seam that is apparently prone to harden up and leak. Mine is leaking there too. I believe.
