What is this relay for?

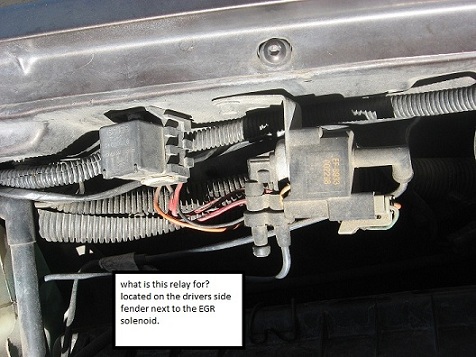

Can anyone identify what this relay on the left is for?
It is located on drivers side fender next to the EGR solenoid.

Thank you for your assistance.

Attached Images

Last edited by 87xjDave; Feb 8, 2013 at 01:48 PM.

Feb 8, 2013 | 01:22 PM

Parsnip

CF Veteran

Joined: Dec 2011

Posts: 1,050

Likes: 2

From: Roanoke, VA

Year: 1990

Model: Cherokee

Engine: 4.0

Probably for the egr itself

Feb 8, 2013 | 03:27 PM

87xjDave

Thread Starter

Junior Member

Joined: Sep 2010

Posts: 87

Likes: 0

From: San Antonio, TX

Year: 87

Model: Cherokee

Engine: 4.0

according to my manual it does not show a relay for the EGR system located next to the EGR vaccum solenoid.

Anyone ever identified this solenoid, on an 87 Renix 4.0L?

Feb 8, 2013 | 03:30 PM

freegdr

CF Veteran

Joined: Mar 2010

Posts: 47,923

Likes: 38

From: Broward County Fl.

Year: 1989 xj sport 2dr

Model: Cherokee

Engine: 12 hole bosch Injectors

cooling fan relay

Feb 8, 2013 | 03:58 PM

cruiser54

::CF Moderator::

Joined: Aug 2011

Posts: 43,971

Likes: 1,579

From: Prescott, Az

Year: 1990

Model: Cherokee (XJ)

Engine: 4.0

Quote:

Originally Posted by freegdr

cooling fan relay

Could be correct.

Feb 8, 2013 | 03:58 PM

freegdr

CF Veteran

Joined: Mar 2010

Posts: 47,923

Likes: 38

From: Broward County Fl.

Year: 1989 xj sport 2dr

Model: Cherokee

Engine: 12 hole bosch Injectors

Quote:

Originally Posted by cruiser54

Could be correct.

Correct deff ...

Feb 8, 2013 | 04:02 PM

cruiser54

::CF Moderator::

Joined: Aug 2011

Posts: 43,971

Likes: 1,579

From: Prescott, Az

Year: 1990

Model: Cherokee (XJ)

Engine: 4.0

Quote:

Originally Posted by freegdr

Correct deff ...

Smart a$$.
