What parts to order?
#1
Member
Thread Starter
What parts to order?
Hi guys I have an 89 Cherokee and I recently rolled it. Luckily on the fender got smashed. My roof rack hit the ground pretty good and I mounted it to the factory rails. Needless to say it pulled up one of my rails, my question is where can I find the grommets for the holes that the rail screws into on the roof? Thanks in advance.
#2
CF Veteran
Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 17 Likes
on
17 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
I think you will find there actually are nuts welded to the roof. (round deals) I ruined my headliner removing it Btw....It Can be done though...I'd look at it from above if you can...
You broke a golden rule! (Keep the rubber side down!)
You broke a golden rule! (Keep the rubber side down!)
#3
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Ace hardware. Take a bolt and sample of your "well nut".
#5
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
#6
CF Veteran
Im 99% sure they're called riv nuts. They are riveted in place to provide a good tight fit and seal. I recently rolled my XJ and ripped one out. The easiest/most cost effective way I found was to JB weld a nut in place. Placing it properly can be annoying though. Also it doesnt look great, but it's covered by the rail anyways. If you want you can replace those stupid torx screws wih allen drive ones. They're M6 1.0 thread. ( I did this cause I lost a couple lol)
Edit. I vaguely remember there being rubber grommet things on my 89's roof. Maybe im remembering wrong. My 99 definitely has the rivnuts though.
Edit. I vaguely remember there being rubber grommet things on my 89's roof. Maybe im remembering wrong. My 99 definitely has the rivnuts though.
#7
CF Veteran
Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 17 Likes
on
17 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
My 76 Wagoner has (spendy/$12 each at the dealer) Rubber grommets w/brass threads. If you could make the hole right for one of those, (bigger than a dime, IIRC), that might be a fix. (if yours is ripped out). My 90 has the "rivet nut" pictured above. It seems welded!
Trending Topics
#8
Member
Thread Starter
#9
CF Veteran

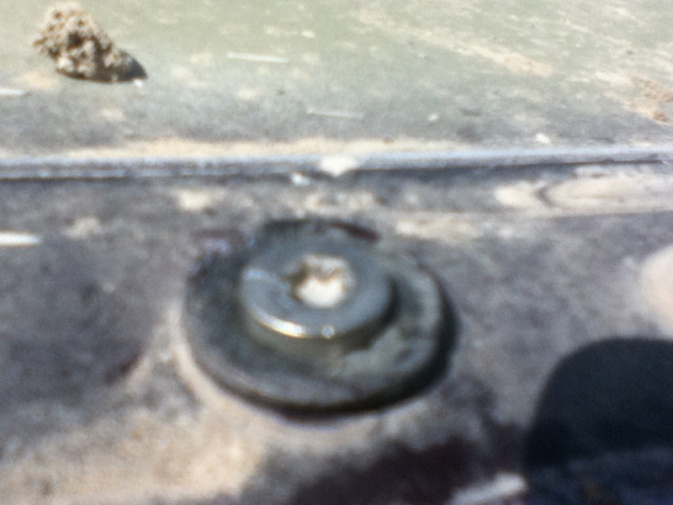

This is what I have on the outside of the roof (where the rail goes) That's why I thought there was a grommet there, what do these well nuts look like on their own?
Attachment 188765
Attachment 188765
#10
Member
Thread Starter
Thanks dan91, I thought it was a special grommet cause I didn't see anything when I redid my headliner. Do you know of a way to pull them out without destroying them?
#11
CF Veteran
Join Date: Feb 2012
Location: Hamburg AR
Posts: 1,249
Likes: 0
Received 12 Likes
on
11 Posts
Year: 1995
Model: Cherokee
Engine: 4.0 HO
Take all of the top trim off and fixtures off. I leave the retaining clips on the head liner and took them off the metal. Then it should just ease down.
#12
Member
Thread Starter
I know how to pull the headliner, I redid it a few months ago. I was asking about the grommet nuts. How to get them without tearing em up
#13
CF Veteran
Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 17 Likes
on
17 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
Sometimes with a rivet you can carefully grind, or drill off the flange, (the lip that holds it), sort of like the head of a nail. (a hollow nail in this case).
Once a rivet is expanded, it's really almost "one" with the material it's in. This is extra tricky being in thin steel. If you find the right Torx driver, (there will be one, (25?), on one of those multy bit packs). If you remove all 8 screws and the rack and post some pics maybe someone here will have an idea...
With the rack off you probably just rip out the "riv-nuts" with a dent puller. That would leave a bunch of messy holes though.
Once a rivet is expanded, it's really almost "one" with the material it's in. This is extra tricky being in thin steel. If you find the right Torx driver, (there will be one, (25?), on one of those multy bit packs). If you remove all 8 screws and the rack and post some pics maybe someone here will have an idea...
With the rack off you probably just rip out the "riv-nuts" with a dent puller. That would leave a bunch of messy holes though.
#14
CF Veteran
Join Date: Sep 2011
Location: new mexico
Posts: 1,874
Likes: 0
Received 1 Like
on
1 Post
Year: 88
Engine: 4.0
I re-read the question and didn't know if I answered it correctly if your just taking the screws out then its a t30 if I recall but if replacing the rivnut then it as I explained.
Last edited by hbracing13; 04-27-2013 at 06:39 AM.
#15
Member
Thread Starter
I do not have a rivnut. Those were on later models. I have the grommet that had a threaded part. I will be pulling the headliner down today and will post pics. There is a pic of what it looks like from the outside on one of my earlier posts. Thanks for the detailed answers though, I really appreciate them.
