Photos Added below.


I was trying to remove the u-joint on the passenger side front and bent the piece that the u-joint connects to, so now I need a new one. The part is behind the hub assembly and the hub assembly attaches it. The u-joint also attaches to it and it is not the axle shaft, it is the other part.

I need a name so I can get one.

Thanks,
qualm



I'm guessing you mean the outer axle shaft?



http://www.quadratec.com/products/52433%2002.htm



Yea this^^^^^



A pic would help



Yes that looks like the part. I am not sure what one to get though. I have a 1999 Cherokee and it uses the old style hub assembly, Timken 513084.



Without having been there (yet), on mine, I'd think you might want to just grab a whole axle at the JY. You might end up with some good spare U-Joints! I think they might be the same as on the drive-lines on mine btw.

Oh, and some heat really goes along ways pressing those caps in and out. Night and day.



Outer axle shaft. Junk yard or dealer.



Do you have ABS?



Both ABS and Non-ABS rigs use the same shaft.
The dust shields or Tone-Ring are removable.

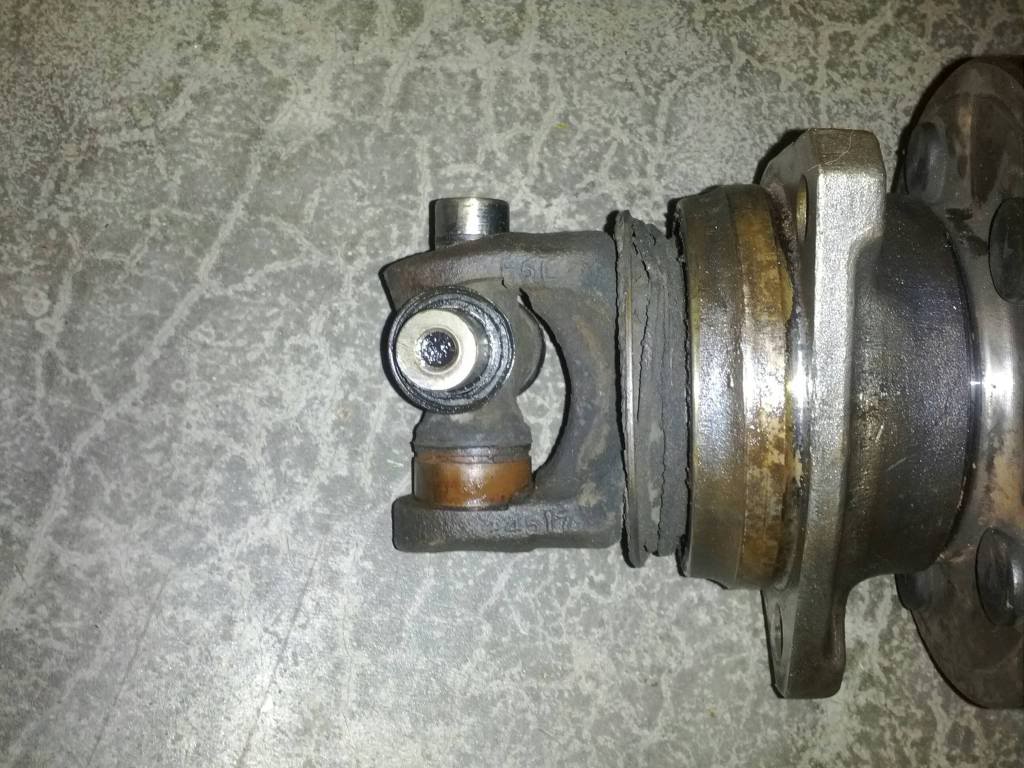

Here are some photos of the bent part









So in a 1999 Cherokee, with no ABS, it is a 27 spline 6.11" correct?



Stub Shaft



how the **** did you manage that?



Pretty easy. I was using a hydraulic press, to press the u-joints out. The u-joint was stuck pretty good, I had a socket on the underside to press into. I started pressing, then BAM bent shaft . I thought it was the u-joint letting go, but nope.

So is it a 27 spline 6.11"?



Yes.



That sucks.
