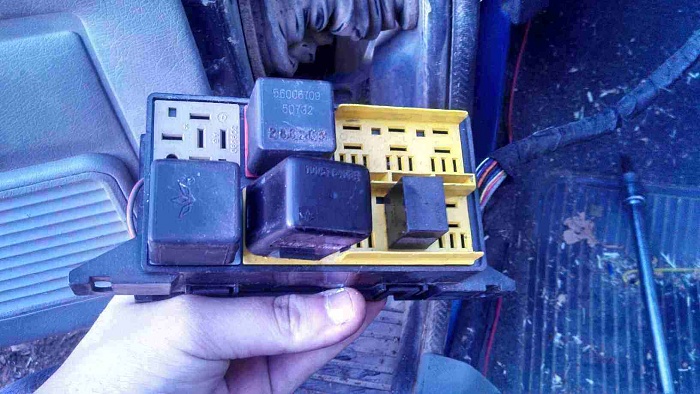

Okay, so I had to pull my dash today for better access to all my wiring and fuse panel for another thread of mine (turn signal stuff....). When I got it unbolted and was pulling it out, this little box of relays fell out onto the floor.

The one at the odd angle doesn't even have the electrical connections where it is, just open slots. The other two have them, though.... I can't find a single thing about it, so maybe someone can shed some light on this?



I just put my dash back together and don't remember seeing this box. I have a '96



Might be why, this is a '93. I didn't take the time to see if they cause anything to not work if they're unplugged



Well, if it makes you feel any better... At least you're not alone, lol.

https://www.cherokeeforum.com/f2/ele...e-dash-107329/



Lol I was literally JUST looking at that thread!



I'm searching my Haynes. My FSM is for Renix ('87-'90) and doesn't show that relay panel.



I couldn't find it in my Haynes or Chilton manuals either



Bingo!



A special thanks to Radi for posting this back in May.



Hey, whadda know!? Looks exactly like it! Any idea where it's SUPPOSED to be mounted? Mine just fell out from behind the dash as it was coming out



From the reading I've done, most have found them under the dash on the right side of the steering column.
