What does this adjust?
05-29-2012, 09:06 PM
#1
CF Veteran
Thread Starter
Join Date: Apr 2011
Location: Carrollton, GA
Posts: 14,553
Likes: 0
Received 1 Like
on
1 Post
Year: 1994
Model: Cherokee
Engine: Inline 6 4.0L High Output
What does this adjust?

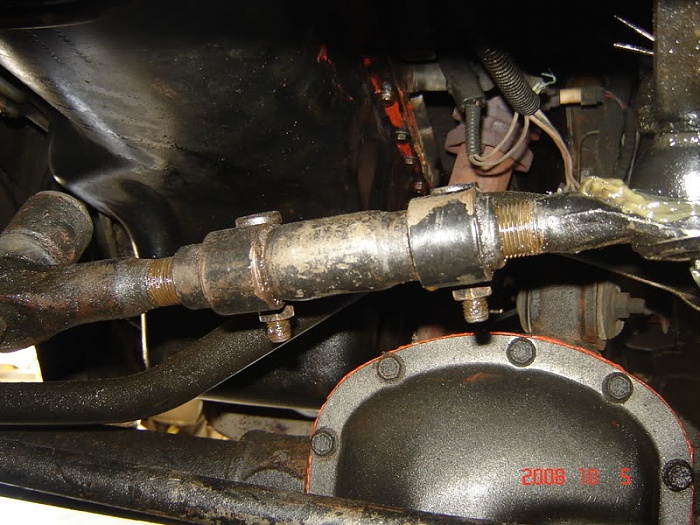

What does this adjustable sleeve adjust within the steering? Im looking for like the technical term and what is does with the jeep.
05-29-2012, 09:25 PM
#6
CF Veteran
Thread Starter
Join Date: Apr 2011
Location: Carrollton, GA
Posts: 14,553
Likes: 0
Received 1 Like
on
1 Post
Year: 1994
Model: Cherokee
Engine: Inline 6 4.0L High Output
Alright my wheel is rotated 90 degrees counterclockwise so if i turn it enough to get it straight will the toe be off too much and my alignment messed up?
Trending Topics
05-29-2012, 09:34 PM
#10
CF Veteran
Thread Starter
Join Date: Apr 2011
Location: Carrollton, GA
Posts: 14,553
Likes: 0
Received 1 Like
on
1 Post
Year: 1994
Model: Cherokee
Engine: Inline 6 4.0L High Output
Originally it was from when i replaced something in the steering column last year the wheel just got put on crooked lol and i just made it worse. Just want to set it straight and still be good to go im just worried turning it that much will geek the alignment up
05-29-2012, 09:46 PM
#11
CF Veteran
Join Date: Sep 2009
Location: ☼ Blackhole Sun
Posts: 8,567
Likes: 0
Received 18 Likes
on
16 Posts
Year: My Jeep is a GMC
First I would make sure the steering wheel is properly aligned with the column shaft. For instance if the wheel is off and your driving down the road straight, the pump is supplying and the box is using assist because they "think" you are making a turn, unnecessary wear. Once that is done bring the steering wheel back to center by adjusting the drag link. Plus it's easy enough to do a driveway alignment to check your toe out.
ETA: Plus I'm jelly I can actually see the different components. In the rust belt thats all I see....RUST.
ETA: Plus I'm jelly I can actually see the different components. In the rust belt thats all I see....RUST.
Last edited by Turbo X_J; 05-29-2012 at 09:49 PM.
05-29-2012, 09:50 PM
#12
CF Veteran
Thread Starter
Join Date: Apr 2011
Location: Carrollton, GA
Posts: 14,553
Likes: 0
Received 1 Like
on
1 Post
Year: 1994
Model: Cherokee
Engine: Inline 6 4.0L High Output
First I would make sure the steering wheel is properly aligned with the column shaft. For instance if the wheel is off and your driving down the road straight, the pump is supplying and the box is using assist because they "think" you are making a turn, unnecessary wear. Once that is done bring the steering wheel back to center by adjusting the drag link. Plus it's easy enough to do a driveway alignment to check your toe out.
05-29-2012, 10:46 PM
#13
CF Veteran
Join Date: Nov 2010
Location: some small town oregon
Posts: 15,581
Likes: 0
Received 8 Likes
on
8 Posts
Year: 1989
Model: Cherokee
Engine: 4.0
adjusting that will NOT affect your toe in any way.
alignment tech for many years here it will only set your steering wheel
tie rod ends will only set your toe like stated above
05-29-2012, 10:50 PM
#14
CF Veteran
Thread Starter
Join Date: Apr 2011
Location: Carrollton, GA
Posts: 14,553
Likes: 0
Received 1 Like
on
1 Post
Year: 1994
Model: Cherokee
Engine: Inline 6 4.0L High Output
I guess i just dont see hot turning that wouldnt in some way mess up your alignment or anything... School me
05-29-2012, 11:02 PM
#15
Junior Member
Join Date: Jun 2010
Location: Chicago, IL
Posts: 83
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0 L6
The total toe is adjusted on the jeep, by rotating the big tie rod sleeve, not individual toe on these cars. Then once the toe is good you adjust the drag link to center your steering wheel, adjusting the drag link will not adjust your toe angle.
