what is this?


Old 04-16-2010, 06:20 PM
  #1
Senior Member
Thread Starter

spahr69's Avatar

Join Date: Jun 2009
Location: pennsylvania
Posts: 562
Likes: 0
Received 0 Likes on 0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0 liter
Default what is this?

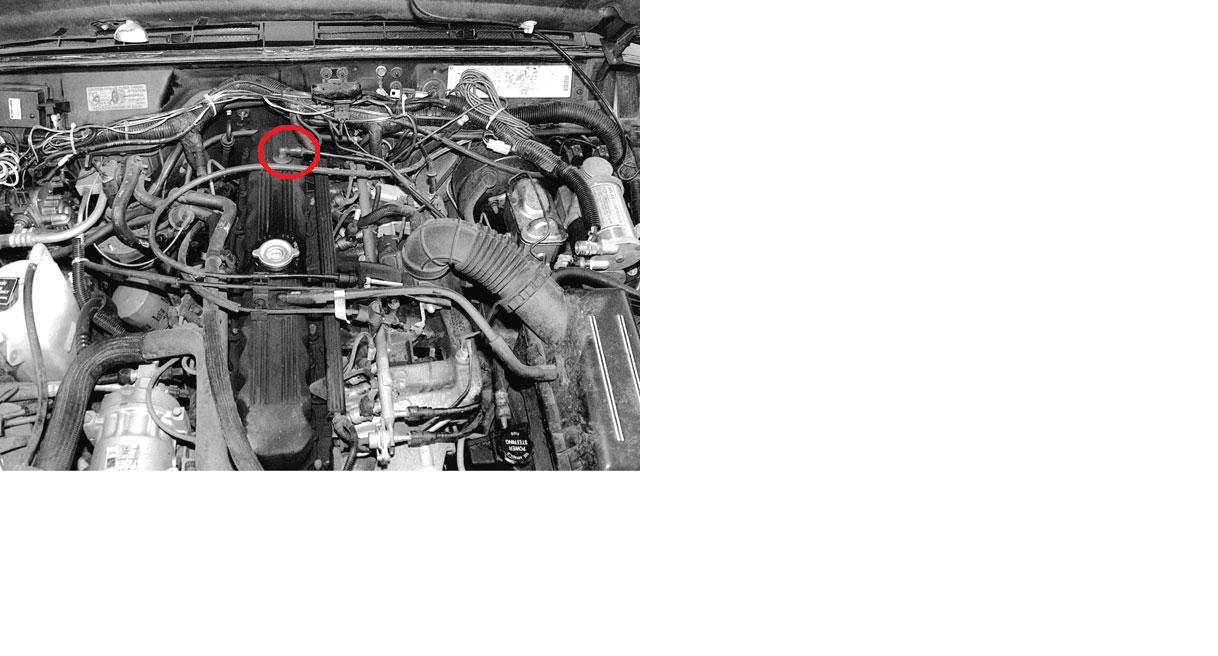

i opened up engine after over heating. and the wire going into the circled object wasnt in. this is not mine engine. but i duct taped mine in.

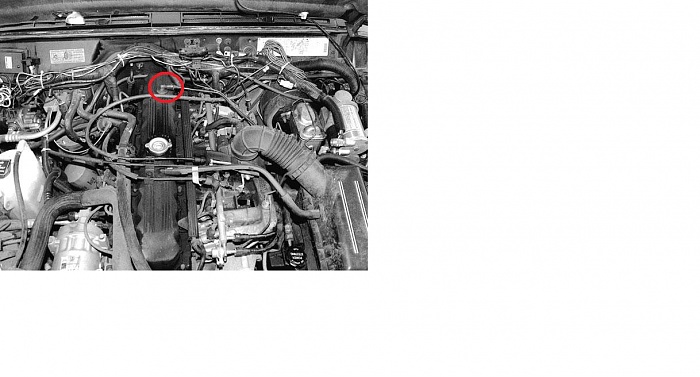

Attached Thumbnails what is this?-fix-.jpg
spahr69 is offline
Reply Like
Old 04-16-2010, 06:35 PM
  #2
Senior Member
Thread Starter

spahr69's Avatar

Join Date: Jun 2009
Location: pennsylvania
Posts: 562
Likes: 0
Received 0 Likes on 0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0 liter
Default
anyone?
spahr69 is offline
Reply Like
Old 04-16-2010, 06:40 PM
  #3
CF Veteran

ol"blue's Avatar

Join Date: Mar 2009
Location: Tenn. and Mich.
Posts: 28,068
Likes: 0
Received 6 Likes on 6 Posts
Year: 2004
Model: Grand Cherokee
Engine: 4.7L V8
Default
Originally Posted by spahr69
i opened up engine after over heating. and the wire going into the circled object wasnt in. this is not mine engine. but i duct taped mine in.
That thing circled is the crankcase ventilation system orifice, and that's a hose not a wire.
Dan
ol"blue is offline
Reply Like
Old 04-16-2010, 06:43 PM
  #4
Senior Member
Thread Starter

spahr69's Avatar

Join Date: Jun 2009
Location: pennsylvania
Posts: 562
Likes: 0
Received 0 Likes on 0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0 liter
Default
what could happen if that stayed unpluged? and is there a proper way to fix it?
spahr69 is offline
Reply Like
Old 04-16-2010, 06:50 PM
  #5
CF Veteran

ol"blue's Avatar

Join Date: Mar 2009
Location: Tenn. and Mich.
Posts: 28,068
Likes: 0
Received 6 Likes on 6 Posts
Year: 2004
Model: Grand Cherokee
Engine: 4.7L V8
Default
Originally Posted by spahr69
what could happen if that stayed unpluged? and is there a proper way to fix it?
Air is drawn into the valve cover through the front fitting Which gets air from the air cleaner. It then mixes with crankcase fumes and is drawn out trough that rear fitting into the intake or throttle body to be burned off. If left off it would cause a vacuum leak, as well as cause oil fumes making a mess on the engine.
You can buy new grommets/fittings at the dealer or at the auto parts store.
ol"blue is offline
Reply Like
Old 04-16-2010, 06:56 PM
  #6
Senior Member
Thread Starter

spahr69's Avatar

Join Date: Jun 2009
Location: pennsylvania
Posts: 562
Likes: 0
Received 0 Likes on 0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0 liter
Default
ok.. so i might be loosing power because of that being off. hopefully duct tape will suffice for now.
spahr69 is offline
Reply Like
Old 04-16-2010, 07:09 PM
  #7
Senior Member
Thread Starter

spahr69's Avatar

Join Date: Jun 2009
Location: pennsylvania
Posts: 562
Likes: 0
Received 0 Likes on 0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0 liter
Default
thanks tho blue!!!!
spahr69 is offline
Reply Like

Trending Topics

Old 04-16-2010, 07:16 PM
  #8
Senior Member

guest02's Avatar

Join Date: Sep 2009
Posts: 629
Likes: 0
Received 0 Likes on 0 Posts
Model: Cherokee
Default
CCV
guest02 is offline
Reply Like
Old 04-16-2010, 07:19 PM
  #9
Senior Member
Thread Starter

spahr69's Avatar

Join Date: Jun 2009
Location: pennsylvania
Posts: 562
Likes: 0
Received 0 Likes on 0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0 liter
Default
CCV?
spahr69 is offline
Reply Like
Old 04-16-2010, 07:23 PM
  #10
Senior Member
Thread Starter

spahr69's Avatar

Join Date: Jun 2009
Location: pennsylvania
Posts: 562
Likes: 0
Received 0 Likes on 0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0 liter
Default
i found pcv. not cCV
spahr69 is offline
Reply Like
Old 04-16-2010, 07:29 PM
  #11
Senior Member

guest02's Avatar

Join Date: Sep 2009
Posts: 629
Likes: 0
Received 0 Likes on 0 Posts
Model: Cherokee
Default
CCV= Crank Case Ventilation

The only place that i've replacements is...
http://www.teamgrandwagoneer.com/cgi...cover&catid=95
guest02 is offline
Reply Like
Old 04-17-2010, 07:04 AM
  #12
CF Veteran

ol"blue's Avatar

Join Date: Mar 2009
Location: Tenn. and Mich.
Posts: 28,068
Likes: 0
Received 6 Likes on 6 Posts
Year: 2004
Model: Grand Cherokee
Engine: 4.7L V8
Default
Originally Posted by jfxj67
CCV= Crank Case Ventilation

The only place that i've replacements is...
http://www.teamgrandwagoneer.com/cgi...cover&catid=95
Great find and thanks for the post. Didn't know about that site.
Dan
ol"blue is offline
Reply Like
Old 04-17-2010, 09:55 AM
  #13
Senior Member
Thread Starter

spahr69's Avatar

Join Date: Jun 2009
Location: pennsylvania
Posts: 562
Likes: 0
Received 0 Likes on 0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0 liter
Default
yeah, great site. i just have to check on how to replace those. easy install?
