What is this?
#1
Junior Member
Thread Starter
Join Date: Oct 2009
Location: Tacoma
Posts: 65
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1989
Model: Cherokee
Engine: 4.0
What is this?

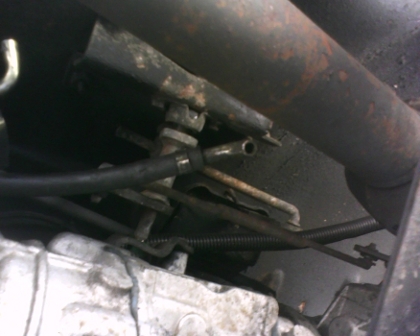

I was replacing the vacuum lines for my Select-Trac when I saw these rubber tubes near the top of the tranny. Could someone please tell me what they go to? They go up over the top of the tranny and connect somewhere. Where these ends connect to I have no idea.
Also, my 4WD still isn't working.
Thanks in advance.
Also, my 4WD still isn't working.
Thanks in advance.
#5
Junior Member
Thread Starter
Join Date: Oct 2009
Location: Tacoma
Posts: 65
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1989
Model: Cherokee
Engine: 4.0
I couldnt get my hand up there too far but they felt like they were connected somewhere to the left off the tranny...opposite side of the transfer case. I apologize for the vagueness of my description. Oh and I dont have AC.
Last edited by geeknik; 10-08-2009 at 02:41 AM.
#7
CF Veteran
it looks like your transmission vent tube.
but if your 4wd isn't working, you may have a broken/cracked vac line to engage your front diff, or your vac disconnect motor is rusted or broken.
common problem. google posi-lok cable.
but if your 4wd isn't working, you may have a broken/cracked vac line to engage your front diff, or your vac disconnect motor is rusted or broken.
common problem. google posi-lok cable.
Trending Topics
#8
Junior Member
Thread Starter
Join Date: Oct 2009
Location: Tacoma
Posts: 65
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1989
Model: Cherokee
Engine: 4.0
I have a 5 speed manual tranny so no cooling tubes for tranny fluid. And the vacuum tubes to the shift collar/vacuum motor thing are in good condition. I dont know a lot about 4WD. Its likely these tubes pictured go to something regarding the 4WD but I dont know. I will crawl back under my Jeep and see if I can at least get a picture of where those tubes are coming from. I appreciate everybodys input, thanx.
#9
Caracticus Potts The Mod
I believe they go to the vacuum control switch on the transfer case. Could be vent lines, one of the lines coming off the transfer case control switch will have a check valve in the end of it.
#10
Member
Join Date: Oct 2009
Location: Omaha, NE
Posts: 120
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1989
Model: Cherokee
Engine: 4.0L 6cyl
That line doesnt look like it would be a part of the 4wd system. The 4wd vacuum lines are colored (red - primary vacuum, yellow - 4wd engaged, green - 4wd disengage, and blue - air vent). I'd run out to mine and take a peak, but its 41 degrees outside and gettin colder and supposed to snow. But unless the 87s are that much different than the 89s, I would venture to say its not a part of the 4wd system (also assuming it wasnt some sort of re-engineering done by someone else).
#15
Junior Member
Thread Starter
Join Date: Oct 2009
Location: Tacoma
Posts: 65
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1989
Model: Cherokee
Engine: 4.0
Ok, looks like one comes from the top of the transfer case on the passenger side and the other comes from the top of the tranny. Could they just be vent tubes? If so were would they go?
Last edited by geeknik; 10-17-2009 at 01:04 AM.
