what is this?
So im new to jeeps and leaf springs and I searched but I dont know what the part is even called, so its kinda hard to search for it. The precious owner said they "beefed" up the rear suspension for towing so im not sure if I should post here or modified section.

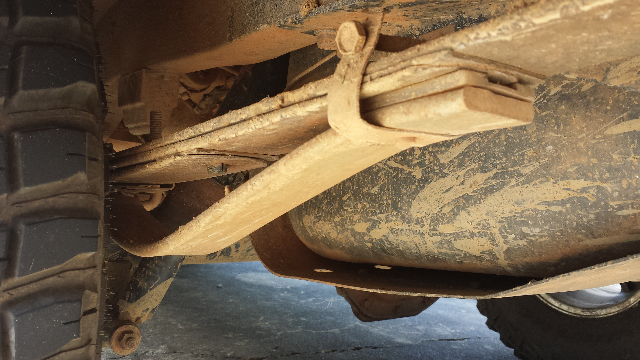

First pic is passenger side, which is about an inch lower than driver side. If you compare pics, you can see PS of the "mini-leafs"?? Is sitting lower on main leaf than driver side. First question.. what are they called, second question.. what is worn? Main leaf or that addon? Or did it just slide down and can be pushed back up? Ive looked in junkyards and online for the part, but none of the jeeps I saw had that add on leaf thing and I dont know the name of it so I had no luck searching online. Any help is greatly appreciated.
First pic is passenger side, which is about an inch lower than driver side. If you compare pics, you can see PS of the "mini-leafs"?? Is sitting lower on main leaf than driver side. First question.. what are they called, second question.. what is worn? Main leaf or that addon? Or did it just slide down and can be pushed back up? Ive looked in junkyards and online for the part, but none of the jeeps I saw had that add on leaf thing and I dont know the name of it so I had no luck searching online. Any help is greatly appreciated.
#3
Seasoned Member
Join Date: Jul 2010
Location: NE FL
Posts: 337
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0
Looks like a larger leaf added under the original leaf pack. It should not be bent like that. It was done incorrectly also, as it is a larger leaf under the bottom leaf of the original which is much smaller. Unless it is something I am not aware of.
#4
Junior Member
Thread Starter
Join Date: Mar 2012
Location: rock hill, sc
Posts: 99
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1994
Model: Cherokee
Engine: 4.0
#7
Junior Member
Thread Starter
Join Date: Mar 2012
Location: rock hill, sc
Posts: 99
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1994
Model: Cherokee
Engine: 4.0
Ok, so the sagging, is it the overload spring or the leaf? And from how it looks, it seems the ps has slid down some in comparison to the ds. Is that the case where I can re adjust it, or is it time to remove/ replace it. That brings me to another question. Are the overload springs giving more of a lift? If so I need to replace it until I get my lift put together. Sorry for so many questions. Im a REAL noob with jeeps.
Trending Topics
#8
CF Veteran
Join Date: Aug 2011
Location: San Jose
Posts: 1,994
Likes: 0
Received 7 Likes
on
7 Posts
Year: 89
Model: Cherokee
Engine: 4.0 I6
From the top of the axle tube to the frame should be 6&3/4 in the front, and 6 in the rear for stock height.
Those are "helper" springs, I don't believe I've heard of those as overload springs. the overloads I have on mine are thick and near flat, while not clamped to the rest of the pack so in the event the suspension is "overloaded" they are there to stiffen things up. Where as those ones are there doing their thing the whole time. Issue with having those is that they could be the only thing holding up your jeep. I've yet to see a stock xj under a 98 with "intact" leaf springs: they sag easily.
I wouldn't put another 1500 miles on those, they seem sketchy. What kind of rear suspension does your lift come with?
Those are "helper" springs, I don't believe I've heard of those as overload springs. the overloads I have on mine are thick and near flat, while not clamped to the rest of the pack so in the event the suspension is "overloaded" they are there to stiffen things up. Where as those ones are there doing their thing the whole time. Issue with having those is that they could be the only thing holding up your jeep. I've yet to see a stock xj under a 98 with "intact" leaf springs: they sag easily.
I wouldn't put another 1500 miles on those, they seem sketchy. What kind of rear suspension does your lift come with?
#9
Junior Member
Thread Starter
Join Date: Mar 2012
Location: rock hill, sc
Posts: 99
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1994
Model: Cherokee
Engine: 4.0
From the top of the axle tube to the frame should be 6&3/4 in the front, and 6 in the rear for stock height.
Those are "helper" springs, I don't believe I've heard of those as overload springs. the overloads I have on mine are thick and near flat, while not clamped to the rest of the pack so in the event the suspension is "overloaded" they are there to stiffen things up. Where as those ones are there doing their thing the whole time. Issue with having those is that they could be the only thing holding up your jeep. I've yet to see a stock xj under a 98 with "intact" leaf springs: they sag easily.
I wouldn't put another 1500 miles on those, they seem sketchy. What kind of rear suspension does your lift come with?
Those are "helper" springs, I don't believe I've heard of those as overload springs. the overloads I have on mine are thick and near flat, while not clamped to the rest of the pack so in the event the suspension is "overloaded" they are there to stiffen things up. Where as those ones are there doing their thing the whole time. Issue with having those is that they could be the only thing holding up your jeep. I've yet to see a stock xj under a 98 with "intact" leaf springs: they sag easily.
I wouldn't put another 1500 miles on those, they seem sketchy. What kind of rear suspension does your lift come with?
since we bought this last year in march weve put about 21K miles on her, trails, gulches, mountains, beach, etc.. I'll check the height on her in a bit. have some errands to do.
the rear on PS side is 7" from tube to frame with the 31's on. DS is 7 1/4" from tube to frame.
Last edited by Bluemister2; 08-30-2013 at 02:07 PM.
#11
Junior Member
Thread Starter
Join Date: Mar 2012
Location: rock hill, sc
Posts: 99
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1994
Model: Cherokee
Engine: 4.0
Looks like 1/2 of one of these:
http://www.suspensionconnection.com/...FalcMgodUDgAxQ
http://www.suspensionconnection.com/...FalcMgodUDgAxQ
I really want to know if what you can see in the pictures(each side) is fixable, like lifting PS rear and manually lining the helper/overload spring like driverside is,(passenger side is not on the black bump like driverside is) or I need to start on replacing with a lift. I was hoping to wait a little longer before getting a lift because I wanted to research more, but if I need to I can start getting my rear lift together.
#13
Junior Member
Thread Starter
Join Date: Mar 2012
Location: rock hill, sc
Posts: 99
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1994
Model: Cherokee
Engine: 4.0
agreed, which is why I was hoping everything would last until I was ready the PO was an engineer and they used the jeep for towing they're camper. they were an older couple and he even told me afterwards that if I ever needed to do any work on it I could call him and bring it over and he'd let me use him workshop. He was a pretty cool guy and the jeep was in immaculate condition.... then I got a hold of it. :/
