Water Pump

Thread Tools

Search this Thread

Old 06-21-2012, 03:18 AM
  #1
CF Veteran
Thread Starter

F1Addict's Avatar

Join Date: Nov 2011
Location: SoCal
Posts: 2,381
Received 5 Likes on 5 Posts
Year: 1989
Model: Cherokee
Engine: 4.0
Default Water Pump

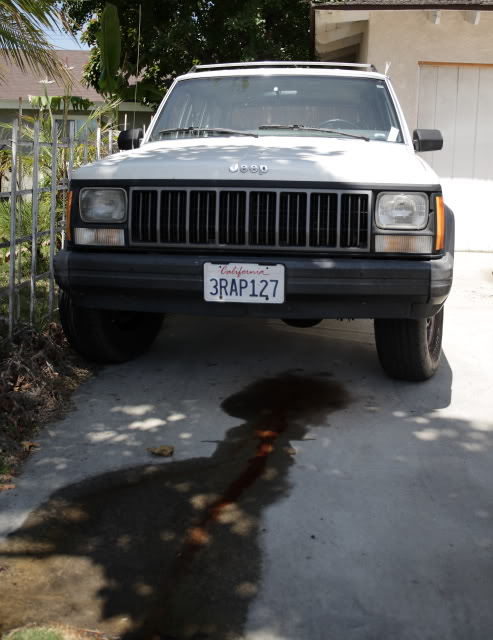

I woke up this morning to discover my Jeep had gotten sick overnight and barfed its guts all over my driveway...

Name:  IMG_8467.jpg
Views: 31
Size:  56.0 KB

I replaced the upper and lower hoses along with the t-stat and housing but when I went to refill it started dripping again. I pulled the pump and discovered that whoever last replaced it used RTV instead of a regular gasket. I checked the pump and the bearings seem perfect so, would it be okay to just clean it up and slap a new gasket on there or do I have to buy a new pump?

The leak was definitely coming from the mating surface where the RTV had failed, not from the pulley.
Old 06-21-2012, 05:01 AM
  #2
CF Veteran

Cherockee's Avatar

Join Date: Aug 2010
Location: Williamsport, Pa
Posts: 1,168
Likes: 0
Received 3 Likes on 3 Posts
Year: 1997
Model: Cherokee
Engine: 4.0L
Default

I would replace the pump while I was in there. They're not that expensive, and besides, it's not the bearings that leak its the seal inside. I installed what I thought was a good water pump, shaft was tight with no play, but once installed it leaked like a sieve.
Old 06-21-2012, 05:31 AM
  #3
Junior Member

w-stev29's Avatar

Join Date: Feb 2011
Location: Near Wilmington, NC
Posts: 49
Likes: 0
Received 0 Likes on 0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0L
Default

Replace the pump. I like to make sure when I pull something that is prone to failure to replace it to save time in the long run.
Old 06-21-2012, 07:39 AM
  #4
::CF Moderator::

cruiser54's Avatar

Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes on 1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default

And I bet they used LOTS of RTV, didn't they?
Old 06-21-2012, 08:54 AM
  #5
CF Veteran

ZINGGG's Avatar

Join Date: Oct 2011
Location: Seal Beach, CA
Posts: 4,440
Likes: 0
Received 2 Likes on 1 Post
Year: 1996
Model: Cherokee
Engine: 4.0 HO Straight Six
Default

Dang, well thats unfortunate. Since a new pump costs $30-$40 I'd definitely replace it. Great reassurance, especially with it being summer and all, even though it hasnt gotten too hot around here yet.
Old 06-21-2012, 08:59 AM
  #6
Wheel, break, fix, repeat

Elexwiz's Avatar

Join Date: Dec 2011
Location: Chesapeake, VA
Posts: 205
Likes: 0
Received 0 Likes on 0 Posts
Year: 1987
Model: Cherokee
Engine: AMC I6 4.0
Default

^^ What everyone else says, replace the pump. Use a new gasket and some high-temp RTV (red stuff). Put a THIN coating on the mating surfaces of the pump and engine, then sandwich the gasket in there. Torque to specs.
Old 06-21-2012, 09:05 AM
  #7
CF Veteran

djb383's Avatar

Join Date: Nov 2009
Location: The Republic of TEXAS
Posts: 8,172
Likes: 0
Received 14 Likes on 14 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L HO
Default

Is that rusty water or red coolant?
Old 06-21-2012, 09:29 AM
  #8
CF Veteran

ZINGGG's Avatar

Join Date: Oct 2011
Location: Seal Beach, CA
Posts: 4,440
Likes: 0
Received 2 Likes on 1 Post
Year: 1996
Model: Cherokee
Engine: 4.0 HO Straight Six
Default

Originally Posted by djb383
Is that rusty water or red coolant?
Or did you put some kind of additive in it? Mine looked like that because I had put Water Wetter in it
Old 06-21-2012, 09:39 AM
  #9
CF Veteran

DFlintstone's Avatar

Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 17 Likes on 17 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
Default

Boy, that'ed be a real tough one for me, I could almost flip a coin. Toss a good pump and spend $40? Maybe. You do know there is a "weep" hole where coolant will leak when the seal is bad. If you could see any evidence it leaked there that would make it easy. (sometimes there will be a streak). Maybe while you have it out you will see something. I'm thinking of changing mine, only because I'm sure it has been in there for almost 10 years. Stuck bolts and/or some unexpected hassle will likely be the "hard" part. If you just install a gasket and have a problem, doing it the second time might seem relatively easy.

Got mote time than money, or more money than time?

Last edited by DFlintstone; 06-21-2012 at 09:41 AM.
Old 06-21-2012, 10:15 AM
  #10
Senior Member

cherokeelaredo'90's Avatar

Join Date: Aug 2011
Location: California
Posts: 604
Likes: 0
Received 1 Like on 1 Post
Year: 1990
Model: Cherokee
Engine: 4.0 i6
Default

I don't mean to thread jack but which place would the past water pump come from? I'm currently just looking at napa's since I'm planning on getting the zj fan cluth as well.. Is napa's pump refered to as "good"?
Old 06-21-2012, 10:22 AM
  #11
Senior Member

partsguyct's Avatar

Join Date: Apr 2012
Location: connecticut
Posts: 691
Likes: 0
Received 0 Likes on 0 Posts
Year: 1993
Model: Cherokee
Engine: 4.0l
Default

I'd replace the pump, I went through and replaced everything else, radiator, hoses, t stat, even the housing and after everyone the water pump looked great no leaks no bearing play then about a month later if that wouldn't you know it the pump decided to take a leak when I was away from home and had to get it towed home. So if its off you might as well replace it and save time later on.
Old 06-21-2012, 11:28 AM
  #12
CF Veteran

DFlintstone's Avatar

Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 17 Likes on 17 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
Default

Originally Posted by cherokeelaredo'90
Is napa's pump refered to as "good"?
I generally trust Napa. That 10 year old pump I referred to came from there.
Old 06-21-2012, 11:39 AM
  #13
Senior Member

cherokeelaredo'90's Avatar

Join Date: Aug 2011
Location: California
Posts: 604
Likes: 0
Received 1 Like on 1 Post
Year: 1990
Model: Cherokee
Engine: 4.0 i6
Default

Originally Posted by DFlintstone

I generally trust Napa. That 10 year old pump I referred to came from there.
Oh okay, thanks. And if it ever does poop I can get a new one through warranty
Old 06-21-2012, 12:19 PM
  #14
Former Sponsor

1ATony's Avatar

Join Date: Apr 2010
Posts: 3,578
Likes: 0
Received 1 Like on 1 Post
Default

I have this on my list of things to do on the ZJ. I grabbed a water pump off the shelf over here.

We carry replacement water pumps over here. If anyone needs a price on one PM me .
Old 06-21-2012, 03:02 PM
  #15
Senior Member

digger21's Avatar

Join Date: Apr 2011
Location: parker, co
Posts: 858
Likes: 0
Received 0 Likes on 0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0 HO
Default

Originally Posted by cherokeelaredo'90
I don't mean to thread jack but which place would the past water pump come from? I'm currently just looking at napa's since I'm planning on getting the zj fan cluth as well.. Is napa's pump refered to as "good"?
Mine is from napa and has worked like a champ.
