Transmission vacuum lines
I have a dangling what appears to be a vacuum line connected to the top of my transmission. It has metal tubing on the end with rubber tubing. Is there such an animal. Where does it go to from there? Thanks for any help. 91 Laredo 4x4
#3
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Like this.
#5
Junior Member
Join Date: May 2018
Location: Indiana
Posts: 86
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1994
Model: Cherokee (XJ)
Engine: 4.0 I6 H.O.
#6
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Ziptie it to the trans dipstick tube.
#7
CF Veteran
Join Date: Oct 2015
Posts: 7,357
Likes: 0
Received 1,530 Likes
on
1,173 Posts
Year: 2000
Model: Cherokee (XJ)
[QUOTE=Romans715;3526955]
I am guessing that because there is a check valve there water can't get in. Same for the transfer case. That being said I extended all my breather lines up front to where the front diff goes.
Trending Topics
#8
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
The one that usually goes under a bolt at the bell housing to engine has no check valve. Just shaped kinda like an upside down U.

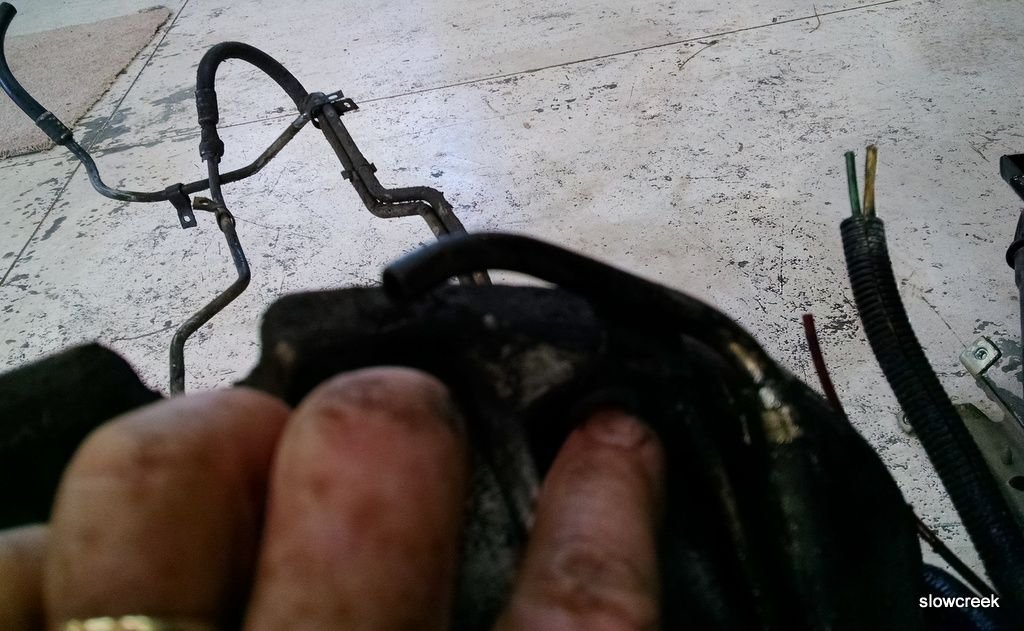

Look above my fingers in that really crappy pic I posted.....
Last edited by cruiser54; 11-21-2018 at 06:06 AM.
#9
CF Veteran
[QUOTE=Ralph77;3526999]Where did you get those breather valves? I need to do the same thing to mine.
#10
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
They're standard equipment from the XJ's inception and earlier on older Jeeps.......
#11
CF Veteran
Join Date: Oct 2015
Posts: 7,357
Likes: 0
Received 1,530 Likes
on
1,173 Posts
Year: 2000
Model: Cherokee (XJ)
[QUOTE=00t444e;3527059]Like cruiser said. Factory part for the front diff breather. Sometimes referred to as the top hat breather. Part number J5352955. Runs a little under $4
#12
CF Veteran
I guess I need to order them, when I ask for them at the parts store they don't have a clue about what I am talking about, but that doesn't surprise me.
#13
CF Veteran
Join Date: Oct 2015
Posts: 7,357
Likes: 0
Received 1,530 Likes
on
1,173 Posts
Year: 2000
Model: Cherokee (XJ)
