Go and download a 95 FSM. All of the connectors and their locations on the XJ are listed.



I already have it and I couldnt find that connector

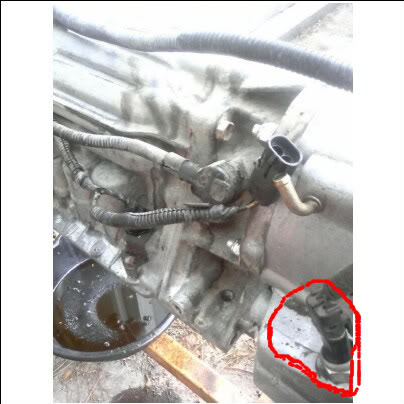

Can anyone help me with this. I just spent about 3 hours going through 2 different FSM and could not find that wire. I thought I was a o2 sensor but I dont know. The red circle is the connector i am talking about.

and at the other end are these 2 plugs.

Than also whats is sensor in the red circle?

And whats this sensor?

Please help me out. Its stressing me out.



That looks like the speed sensor where the speedo gear is at..



The last pic is the speedo connection.



I honestly don't know..I can look at mine in the morning and see where it goes but I don't remember seeing one on mine..



Whatever that circle connector is, its not in the FSM



I have a feeling since it's a 96 tcase that it's some computer thing our older jeeps don't have..



Well whatever it is doesnt plug into the transfer case or tranny. I just pass over the tranny to get to where its going. Im almost tempted to cut it off. But I dont want to do that till I know whats its for.



Let's try it this way. What is the tranny and transfercase. What year are they?



The transmission is from a 94 and the transfer case is from a 96.



Aw4?



Yes.



The circled connector is the O2 connector for the after-cat sensor.



Thats what i thought. I can just cut it off then. Now I just have to find the factory plug for the harness to plug into.
