Transfer case install/motor mounts.
So I've had the parts for a while, and I've finally got the time to put it all together. Here are some pictures, I'll write up the whole thing later.
Old motor mount on the left, new on right.
NP231 out of my 1995 xj cherokee on the left, NP231 out of a 1998 wrangler with sye on the right.
Wrangler on left, cherokee on right
AW4 output shaft.

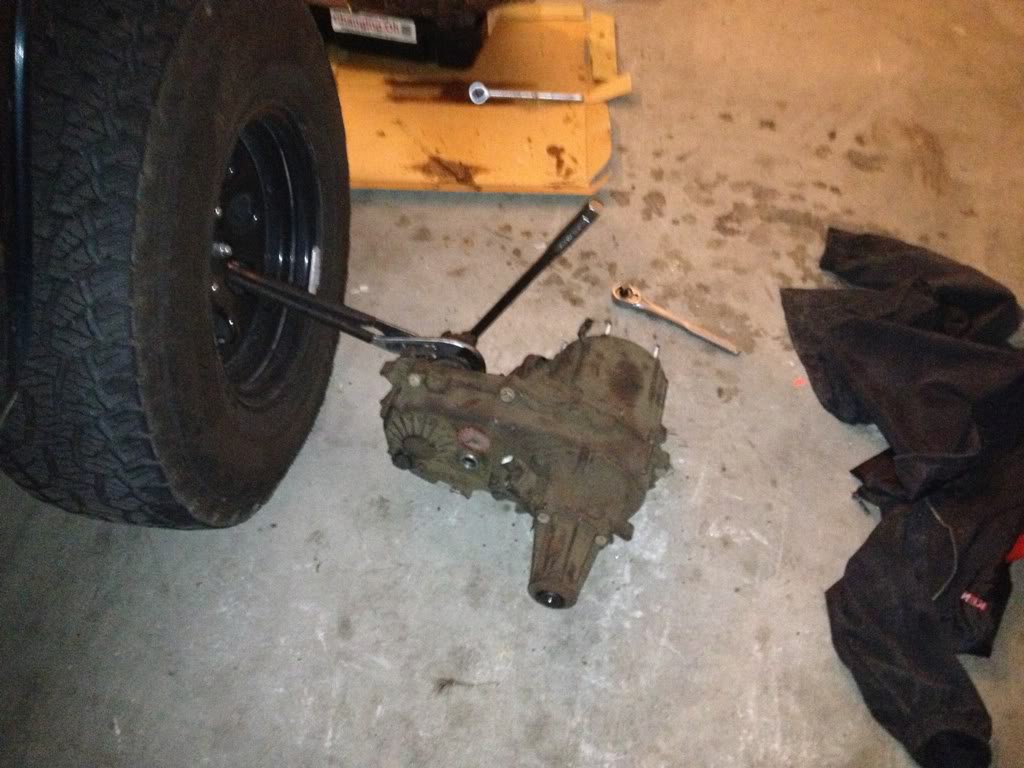

If you have to swap input shafts like I do, don't forget to loosen the front output yoke while the t-case is still bolted up, like I did, it's a lot easier lol
Old motor mount on the left, new on right.
NP231 out of my 1995 xj cherokee on the left, NP231 out of a 1998 wrangler with sye on the right.
Wrangler on left, cherokee on right
AW4 output shaft.
If you have to swap input shafts like I do, don't forget to loosen the front output yoke while the t-case is still bolted up, like I did, it's a lot easier lol
