Tranny leak

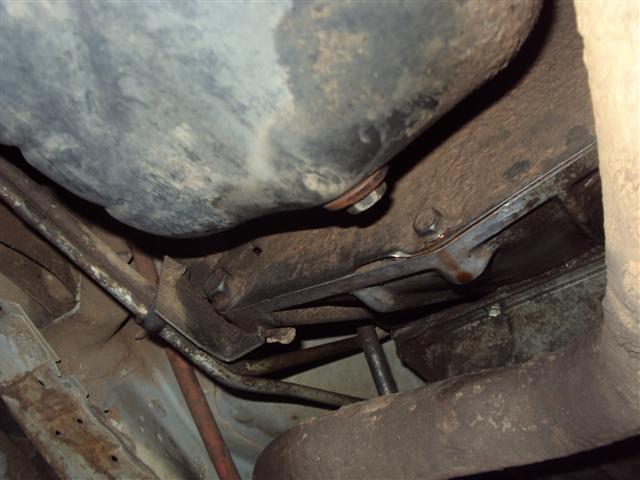

I was headed into the mountains to hit a couple trails when the guy that was following me up called and said I was smoking badly and spraying something on him. I stopped and looked underneath to see my whole underside covered in transmission fluid. I checked my level and it was ok, so I got it back to my house and thats where im at. Im thinking a seal or pump problem. Ive never dealt with a leak from this area so opinions would help. Here are some pics, any help would be great, thanks.
#2
Seasoned Member
Join Date: Dec 2010
Location: NY
Posts: 275
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
If ur running your under "pressure" which would make someone behind see a plume of smoke.. Leaks run from front to back from top to bottom so take a good look and if its not leaking start it up and take a second look.
#3
Senior Member
Thread Starter
Join Date: Apr 2011
Location: parker, co
Posts: 858
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0 HO
Well I know where it's leaking from. I've already cleaned up the underside and located it. Right where you see the drip in the pictures is where the leak is.
#4
Senior Member
Thread Starter
Join Date: Apr 2011
Location: parker, co
Posts: 858
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0 HO
Also he said the smoke was from underneath so it's the fluid hitting the hot exhaust. It was leaking pretty good once I pulled over and I could see the drips smoking on the exhaust. The leak has slowed as of now but still there, just waiting for it to cool down before I get under there
#5
Senior Member
Thread Starter
Join Date: Apr 2011
Location: parker, co
Posts: 858
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0 HO
Another question, once I take off that inspection plate on the bell housing, is it easy to tell whether its the front seal, pump seal, etc? This is just a new section to me so im trying to get it right. thanks
#6
Senior Member
Join Date: Feb 2011
Location: Apollo, PA
Posts: 517
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
U won't be able to tell. It's probably a seal. Main seal. Pain to replace any seals in the tranny.
Sent from my DROID INCREDIBLE using Cherokee Forum
Sent from my DROID INCREDIBLE using Cherokee Forum
Trending Topics
#13
Senior Member
Thread Starter
Join Date: Apr 2011
Location: parker, co
Posts: 858
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0 HO
So the rear main would have it running down the bellhousing? Im gonna end up dropping this damn transmission anyways to fix whatever so just trying to learn
#14
CF Veteran
Join Date: Feb 2010
Location: Oroville, CA
Posts: 12,367
Likes: 0
Received 19 Likes
on
18 Posts
Year: 1995
Model: Grand Cherokee
Engine: 4.0 with all of the noise and clatter
Your front pump seal or torque converter seal is leaking, the transmission will have to come out in order to fix it. If it's the torque converter seal you can replace it without removing the pump. But if it's the front pump seal you have to remove the pump and it is tricky to get the pump installed without damaging the new seal. Once you have the transmission and torque converter out you should check for a groove worn into the sealing area on the converter. If there is a groove worn into the converter, you may have a problem with leaks even with a new seal. Also check the flexplate for any signs of cracking while you have everything apart.
#15
Senior Member
Thread Starter
Join Date: Apr 2011
Location: parker, co
Posts: 858
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0 HO
Thanks I really appreciate all that. I'm pretty good with cars but haven't messed with a tranny since high school. I plan to start on this tomorrow
