tranmsission cooler instlation.
#1
Newbie
Thread Starter
Join Date: May 2010
Location: Bartow fl
Posts: 11
Likes: 0
Received 0 Likes
on
0 Posts
Year: 99
Model: Cherokee
Engine: 4.0
tranmsission cooler instlation.
Im having a hard time finding a spot to install a small after market tranmsission cooler. I wanted to mount it infront of the radiator but cant seam to find a good spot to secure it... Im just looking for a picture of someone who has one to help me with finding a home for it.
I have a
99
4door
2 wheel drive.
thanks.
-jon
I have a
99
4door
2 wheel drive.
thanks.
-jon
#2
Seasoned Member
Join Date: Sep 2009
Location: Coventry, CT
Posts: 273
Likes: 0
Received 1 Like
on
1 Post
Year: 2000
Model: Cherokee
Engine: 4.0 high output, Alabama Cylinder head, 60mm bored TB
Did it come with those plastic zip strips? People usually use those to mount it infront to the radiator. I'm going to install a tranny cooler on my XJ this weekend.
#3
CF Veteran
Join Date: Sep 2009
Location: Knoxville, TN
Posts: 1,471
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1998
Model: Cherokee
Engine: 4.0 inline 6 (o yea!)
x2, they should look like this.
I think autozone or any good parts store should sell them. Just make sure to trim the excess or you get to hear it hit your fan
#4
CF Veteran
Join Date: Feb 2010
Location: Soddy Daisy TN
Posts: 5,420
Likes: 0
Received 0 Likes
on
0 Posts
Year: 97
Model: Cherokee
Engine: 4.0L
There is actually a gap between the AC condenser and radiator so you need to pull your top support off to use those or else you'll never get them tight and they will end up bending and breaking fins. Mine is mounted behind the grill to the condenser and works great. I got the largest one the parts store had, it was for RVs. Mine is a crawler and I wanted the extra security.
#5
Newbie
Thread Starter
Join Date: May 2010
Location: Bartow fl
Posts: 11
Likes: 0
Received 0 Likes
on
0 Posts
Year: 99
Model: Cherokee
Engine: 4.0
It came with the zip tie looking things like in the picture but I could only find one spot to run them all the way through and it would only secure one side of the cooler. I just got fed up and wasn't wanting to take a bunch of stuff off to secure it.. It looks like I may have to spend more time to locate it when I want and securely as I want..
Thanks for the input
-Jon
Thanks for the input
-Jon
#6
CF Veteran
Join Date: Nov 2009
Location: The Republic of TEXAS
Posts: 8,172
Likes: 0
Received 14 Likes
on
14 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L HO
Used those zip tie thingys years ago on a cooler install....the cooler rubbed a hole in one of the a/c condenser tubes....I'll never use those again to mount a cooler.
#7
CF Veteran
Join Date: Oct 2009
Location: Fauquier County, Virginia
Posts: 2,867
Likes: 0
Received 15 Likes
on
13 Posts
Year: 1991
Model: Cherokee
Engine: I-6 4.0 HO

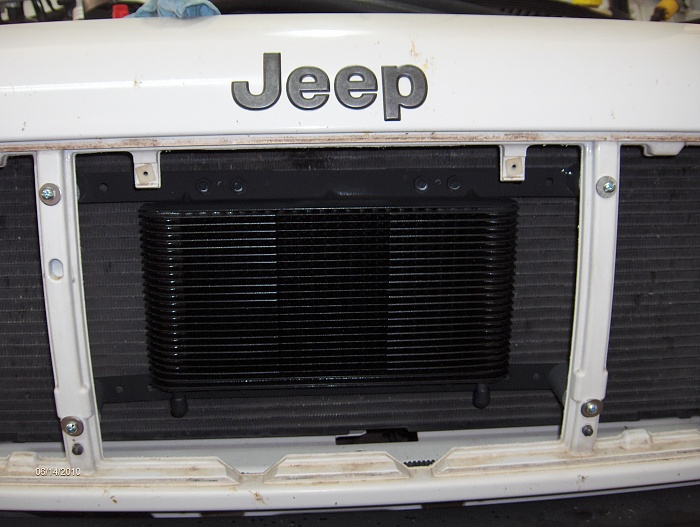

I love this setup. Did that cooler come with the cross supports or did you fab them? Also, where did you get the cooler? I've heard they are WAY more efficient than the tube ones.
Trending Topics
#8
CF Veteran
Join Date: Nov 2009
Location: The Republic of TEXAS
Posts: 8,172
Likes: 0
Received 14 Likes
on
14 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L HO

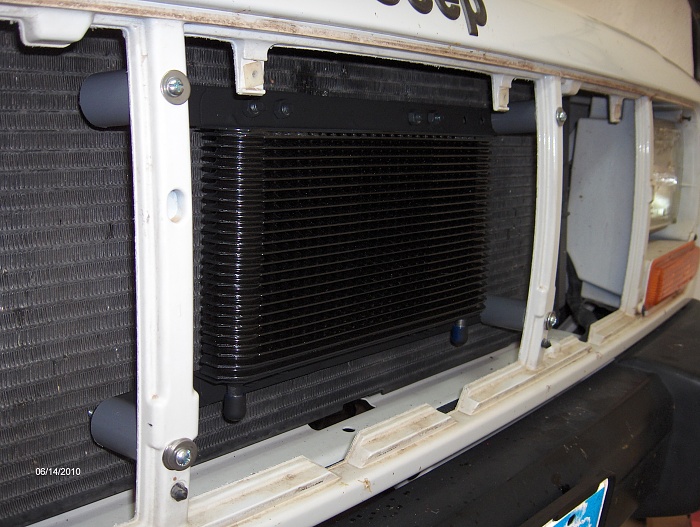

It's a B&M #70264 and yes the supports and hose come with it.......got it at either Jeg's or Summit (about $65).....bought so much stuff from both over the years, can't remember what from where.....both places have it. Used 4 pieces of scrap PVC tube to space it back from the grill. U can see one of them, bottom right, gray PVC.
Last edited by djb383; 05-03-2011 at 10:00 PM.
#9
CF Veteran
Join Date: Sep 2010
Location: Salt Lake City, UT
Posts: 4,968
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0L
I like that style never saw it when I bought mine... I ended up going with a cheap "universal" one and tapped it inline with the factory cooler. it was 23$. this is the best pic i have of it. the hoses go around the radiator on the drivers side. tucked in there pretty nicely. i placed it in front of the electric fan seeing how it turns on with AC(so its hot outside) and when the vehicle hits 210* (so its hot) that way it almost has a fan that it timed to kick on when it would need to be cooled even more.
Last edited by Gorillaxj; 05-04-2011 at 12:14 AM. Reason: spelling
#10
CF Veteran
Join Date: Nov 2009
Location: The Republic of TEXAS
Posts: 8,172
Likes: 0
Received 14 Likes
on
14 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L HO
Maybe u can give a conformation on '00/'01 XJ efans. Some have posted that the '00/'01 XJ efans do not turn on when the a/c is used (like '99 down)....they only turn on when coolant temp reaches 218F. It's also been posted that the dealer can re-program the ECU on '00/'01 XJs so that the efan WILL turn on with the a/c.
#11
☠ CF Sheriff ☠
how big is it? The one i used as my power steering cooler fit nicely behind the rad support
