Trac bar question need help asap

Thread Tools

Search this Thread

Old Nov 4, 2011 | 08:21 PM
  #16
Zack92MJ's Avatar
Thread Starter
CF Veteran

Joined: Jun 2011
Posts: 2,460
Likes: 0
From: Dayton, Ohio
Year: 1992
Model: Comanche
Engine: 4.0
Default

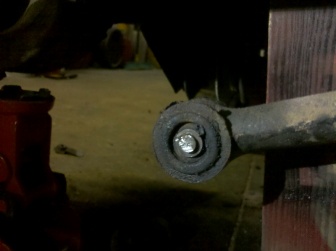

Well I spent literally 5 hours tring to get it out with cutting it..and this is what I'm left with..

And ideas on how to get the seized (sp?) bolt out?
Reply
Old Nov 4, 2011 | 08:22 PM
  #17
Zack92MJ's Avatar
Thread Starter
CF Veteran

Joined: Jun 2011
Posts: 2,460
Likes: 0
From: Dayton, Ohio
Year: 1992
Model: Comanche
Engine: 4.0
Default

This crap.
Attached Thumbnails Trac bar question need help asap-forumrunner_20111104_212206.jpg
Reply
Old Nov 4, 2011 | 08:26 PM
  #18
4.3L XJ's Avatar
CF Veteran

Joined: Aug 2008
Posts: 6,588
Likes: 495
From: Chico, CA
Year: 1986
Model: Cherokee
Engine: 4.3L with headers and full 3" exhaust system
Default

If you can't drive the bolt out with a punch, then you will need to burn the bushing out and replace it with a new bolt.
Reply
Old Nov 4, 2011 | 09:15 PM
  #19
Zack92MJ's Avatar
Thread Starter
CF Veteran

Joined: Jun 2011
Posts: 2,460
Likes: 0
From: Dayton, Ohio
Year: 1992
Model: Comanche
Engine: 4.0
Default

Originally Posted by 4.3L XJ
If you can't drive the bolt out with a punch, then you will need to burn the bushing out and replace it with a new bolt.
punch...like a punch that you hammer? sorry I'm still a noob. and if i burn it out wouldn't i need a new bushing too?
Reply
Old Nov 4, 2011 | 09:36 PM
  #20
4.3L XJ's Avatar
CF Veteran

Joined: Aug 2008
Posts: 6,588
Likes: 495
From: Chico, CA
Year: 1986
Model: Cherokee
Engine: 4.3L with headers and full 3" exhaust system
Default

Originally Posted by Zacks98
punch...like a punch that you hammer? sorry I'm still a noob. and if i burn it out wouldn't i need a new bushing too?
Yes. Use a vice or a piece of metal with a hole in it under the bushing sleeve and use a pin punch, which is straight, not tapered. You should be able to knock it out with a decent sized hammer.
Reply
Old Nov 5, 2011 | 06:09 AM
  #21
Zack92MJ's Avatar
Thread Starter
CF Veteran

Joined: Jun 2011
Posts: 2,460
Likes: 0
From: Dayton, Ohio
Year: 1992
Model: Comanche
Engine: 4.0
Default

Originally Posted by 4.3L XJ

Yes. Use a vice or a piece of metal with a hole in it under the bushing sleeve and use a pin punch, which is straight, not tapered. You should be able to knock it out with a decent sized hammer.
oh cause i tried that, it didn't work :/

I'm gonna try the vice with a slightly smaller bolt pushing on the seized on, with a block on the other side with a whole in it for the other one to push out.

thanks for all the help guys. I'm really kinda sad that, that too hours to do.
Reply
Old Nov 5, 2011 | 06:19 PM
  #22
Zack92MJ's Avatar
Thread Starter
CF Veteran

Joined: Jun 2011
Posts: 2,460
Likes: 0
From: Dayton, Ohio
Year: 1992
Model: Comanche
Engine: 4.0
Default

Still not coming out
Reply
Old Nov 5, 2011 | 06:24 PM
  #23
4.3L XJ's Avatar
CF Veteran

Joined: Aug 2008
Posts: 6,588
Likes: 495
From: Chico, CA
Year: 1986
Model: Cherokee
Engine: 4.3L with headers and full 3" exhaust system
Default

If all else fails, you will have to burn out the bushing and replace it. I do it that way. But mine are always shot when I pull them.
Reply
Old Nov 5, 2011 | 09:05 PM
  #24
mdcmn7's Avatar
Senior Member

Joined: Sep 2010
Posts: 704
Likes: 0
Model: Cherokee
Engine: 4.0
Default

Burn it out with a torch and replace the nudging
Reply
Old Nov 5, 2011 | 09:05 PM
  #25
mdcmn7's Avatar
Senior Member

Joined: Sep 2010
Posts: 704
Likes: 0
Model: Cherokee
Engine: 4.0
Default

That should say bushing, I was autocorrected
Reply
Old Nov 5, 2011 | 09:15 PM
  #26
Zack92MJ's Avatar
Thread Starter
CF Veteran

Joined: Jun 2011
Posts: 2,460
Likes: 0
From: Dayton, Ohio
Year: 1992
Model: Comanche
Engine: 4.0
Default

Yeah I've gone through more bits than i have girlfriends and that's saying something ..haha anyone know where i can get a new bushing off if the top of your head and can i drive it with out a trac bar?
Reply
Old Nov 5, 2011 | 09:53 PM
  #27
sparknutz07's Avatar
Junior Member

Joined: Mar 2011
Posts: 37
Likes: 0
From: Chetek, WI
Year: 1996
Model: Cherokee
Engine: 4.0 I6 high output
Default

buy a new trac bar haha. i just replaced it for 40 bucks becuase i was under the impression you can change the old ball joint on the old one anyway. so i just chucked the old one and used the new one.
Reply
Old Nov 5, 2011 | 10:21 PM
  #28
Zack92MJ's Avatar
Thread Starter
CF Veteran

Joined: Jun 2011
Posts: 2,460
Likes: 0
From: Dayton, Ohio
Year: 1992
Model: Comanche
Engine: 4.0
Default

Originally Posted by sparknutz07
buy a new trac bar haha. i just replaced it for 40 bucks becuase i was under the impression you can change the old ball joint on the old one anyway. so i just chucked the old one and used the new one.
you got a new bar for 40 bucks??

well I'd need an adjustable one anyways
Reply
Old Nov 6, 2011 | 01:25 PM
  #29
mdcmn7's Avatar
Senior Member

Joined: Sep 2010
Posts: 704
Likes: 0
Model: Cherokee
Engine: 4.0
Default

NO, you cannot drive it without a track bar. you need to replace it, or at least the bushing before you can drive it. You can get a new bushing at autozone, but get the two peice if you can, you wont need to press it in
Reply
Old Nov 6, 2011 | 07:06 PM
  #30
Zack92MJ's Avatar
Thread Starter
CF Veteran

Joined: Jun 2011
Posts: 2,460
Likes: 0
From: Dayton, Ohio
Year: 1992
Model: Comanche
Engine: 4.0
Default

Well I finally got it out, but I melted the bushing. So I'll try and get the two piece one tomorrow.
And I wasnt going to drive it with out it, I'm not that dumb. I was just wondering more of what would happened if i drove with out it. haha
Reply
