timing problems help please
#1
Junior Member
Thread Starter
Join Date: Jun 2009
Location: sevierville,tn
Posts: 90
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0L
timing problems help please
Ok I have a 96 jeep Cherokee 4.0 l 5 speed. So I pulled out the engine and did a stock rebuild on it and put it back in and now it won't start. I did pull out the distributor and didn't mark anything but I tried putting it at tdc but when I put the dist in this is only sometimes it shoots flame out the intake so I'm stuck and not sure what to do
#4
CF Veteran
Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes
on
22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
to find tdc compression stroke remove no 1 spark plug turn the motor over by hand with a finger over the hole where plug was removed air pressure will push on you finger this confims compression stroke then turn the timing mark to tdc on crank pulley set dist rotor to no 1 in cap,it sounds like you might be 180 degrees out with the dist, what you can do is remove dist cap note which way rotor is pointing pull dist and rotate rotor 180 degrees and reinstall dist put cap back on and try to start
#5
Junior Member
Thread Starter
Join Date: Jun 2009
Location: sevierville,tn
Posts: 90
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0L
Ok on the crank pulley is there a mark or something and where do set it to
Last edited by ronnorman_6; 05-21-2011 at 01:56 AM.
#6
CF Veteran
Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes
on
22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors

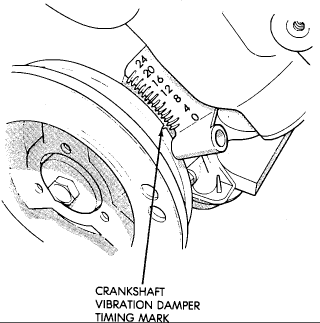

theres a small mark/groove in the crank pully when you fell air pressure pushing on you finger turn slowly untill the mark lines up on zero that tdc compression stroke install dist with rotor pointinfg to no 1 plug wire on cap
Trending Topics
#8
Junior Member
Thread Starter
Join Date: Jun 2009
Location: sevierville,tn
Posts: 90
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0L
Ok I did all that and still nothing my question is how are u supposed to set the timing chain. I just want to make sure I did it right
