Throttle Position Sensor
09-10-2011, 08:22 PM
#1
Senior Member
Thread Starter
Join Date: May 2011
Location: Flagstaff, Arizona
Posts: 609
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L I6
Throttle Position Sensor
Today my Check Engine light came on, went to Auto Zone and had them test it, TPS. I want to try to clean it before I go and buy a replacement. Can someone tell me where it is, how to get it out and suggestions on cleaning it?
09-10-2011, 08:28 PM
#2
Seasoned Member
Join Date: Jun 2011
Location: Catasauqua PA
Posts: 287
Likes: 0
Received 1 Like
on
1 Post
Year: 1996
Model: Cherokee
Engine: 4.0
Originally Posted by 98_XJ Sport
Today my Check Engine light came on, went to Auto Zone and had them test it, TPS. I want to try to clean it before I go and buy a replacement. Can someone tell me where it is, how to get it out and suggestions on cleaning it?
09-10-2011, 08:32 PM
#5
Senior Member
Join Date: Jul 2011
Location: Wilmington, NC
Posts: 598
Likes: 0
Received 1 Like
on
1 Post
Year: 1997
Model: Cherokee
Engine: 4.0L

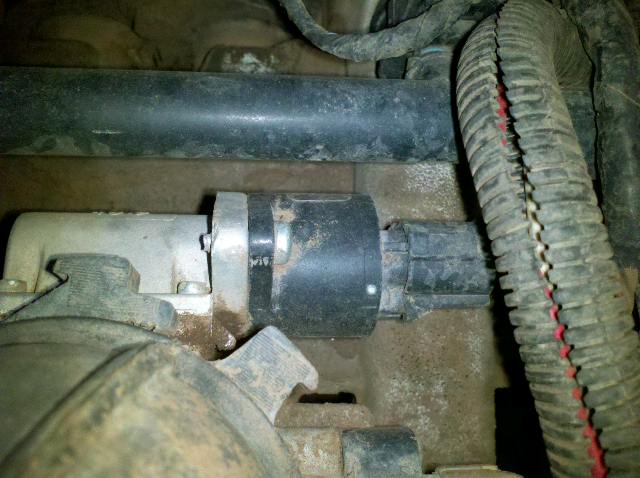

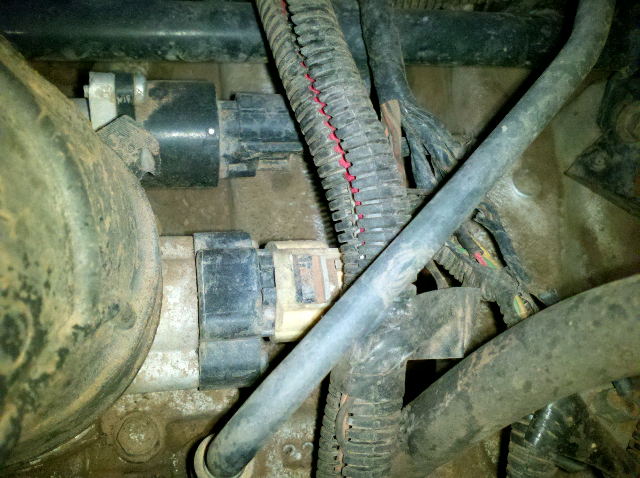

On your throttle body opposite side from the linkage (But in line with it - it reads the position of the throttle shaft). Should be held on with 2 Torx screws.
I've never felt the need to clean one so I will let someone else field that part of your question.
I've never felt the need to clean one so I will let someone else field that part of your question.
09-10-2011, 08:33 PM
#6
CF Veteran
Join Date: Jul 2010
Location: 802
Posts: 4,930
Likes: 0
Received 3 Likes
on
3 Posts
Year: 99
Model: Cherokee
Engine: 4.0
Aww! He still had a chance to get it right!! Haha... But your right; why keep a 13 y/o part if the codes indicated it was bad? You might find it worth while to replace a lot of the ignition/firing components... IMHO, that is... I did a bunch of replacing on my 99... Mostly just chasing this electrical gremlin, but it was still worth it.
Last edited by VTJeep; 09-10-2011 at 08:37 PM.
09-10-2011, 08:35 PM
#7
Newbie
Join Date: Aug 2011
Location: Chino Valley, AZ
Posts: 26
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1994
Model: Cherokee
Engine: 4.0
On my '94 its attached to the throttle body on the back toward the passenger side. Black - 2 screws hold it on and there's a clip for the wiring. But I don't think its a part that you can clean. The idle air control is also attached to the throttle body and that you can clean. Very simple change out. For the extra $10 I'd go with a napa part but just my 2 bits.
Trending Topics
09-10-2011, 09:35 PM
#12
CF Veteran
Join Date: Apr 2011
Location: Carrollton, GA
Posts: 14,553
Likes: 0
Received 1 Like
on
1 Post
Year: 1994
Model: Cherokee
Engine: Inline 6 4.0L High Output
Just put a new one on today. It has two T20 torx bits and thats it. Easy replacement but didnt fix my problems...
