tether anchor for child seat
Thread Starter
Junior Member
Joined: Oct 2009
Posts: 35
Likes: 0
From: Brooklin, Ontario
Year: 1998
Model: Cherokee
Engine: 4.0L
tether anchor for child seat
Hey, I have a 98 XJ and I need to put in a tether anchor for my kids car seat. Does anyone know the best way to do this aside from paying $90 (plus install) for a $10 part at the dealer?
Thanks in advance.
Thanks in advance.
Newbie
Joined: Jan 2010
Posts: 13
Likes: 1
From: East Tennessee
Year: 2000
Model: Cherokee
Engine: 4.0
Only one way.
I am actually a Child Safety Seat Technichian for the Fire dapartment I work for and the dealer is the only safe way. If it is a forward facing seat the tether can be used but not on a rear facing. Also the tether does add some stability to car seats but it is not a necessity for the child seat to protect your child. Best thing to do is if you feel it is needed than have the dealer install this. Also it is a good idea to go to a local police or fire dept and see if they have Child safety seat techs on staff. Because 98% of all parents install there car seats incorrectly and cause harm to the child. For example all the little hanging mirrors and toys and sunshades people use are really dangerous and become projectiles during an accident. Just make sure you use the right belt path on the car seat and it should only shift less than two inches at the belt path and that is secure enough. It will shift a lot more at the top and that is normal (big misconception) so just grab at the bottom of the seat and try to move it and thats how you judge it. One more thing, if it has the harness straps the clip on thise to clip them together needs to be across the childs nipple line not at the stomach. There is a lot more to check to like how to make sure the seat belt locks (and not just emergency locking where it locks under breaking) but lock 100% of the time. And if there is a need for that locking clip, you might not need it and if used wrong can be bad. Just pm me for any questions you might have, this is serious stuff when it comes to child safety and I would be happy to help.
Thread Starter
Junior Member
Joined: Oct 2009
Posts: 35
Likes: 0
From: Brooklin, Ontario
Year: 1998
Model: Cherokee
Engine: 4.0L
it's not a matter of safety, obviously my child's safety comes before all else. I just know you can buy your own kit and install it yourself, just need specs on how to do it the best way in my XJ. The dealer is giving me a huge run around on the whole thing. One dealer even said there was no such thing for my XJ.
Newbie
Joined: Jan 2010
Posts: 13
Likes: 1
From: East Tennessee
Year: 2000
Model: Cherokee
Engine: 4.0
it's not a matter of safety, obviously my child's safety comes before all else. I just know you can buy your own kit and install it yourself, just need specs on how to do it the best way in my XJ. The dealer is giving me a huge run around on the whole thing. One dealer even said there was no such thing for my XJ.
Newbie
Joined: Jan 2010
Posts: 13
Likes: 1
From: East Tennessee
Year: 2000
Model: Cherokee
Engine: 4.0
More info
Found something on NHTSA website.
"What many people don't understand is that the lap portion of the seatbelt is the part responsible for keeping the car seat secure. The shoulder belt portion must be "locked down" if the lap portion isn't locked on its own, which is what usually happens. Dodge and Chrysler vehicles, however, have a special mechanism on the lap portion of their shoulder/lap belt that locks the lap belt securely, so that the shoulder belt portion becomes irrelevant.
It's important to remember that, after a car seat is installed, the seatbelt's latch plate should NOT lie against the curved opening of the car seat. If it does, try to make the buckle shorter, even if it means twisting it a full turn or two around. If that still doesn't work, your car seat might not be the right choice for your car."

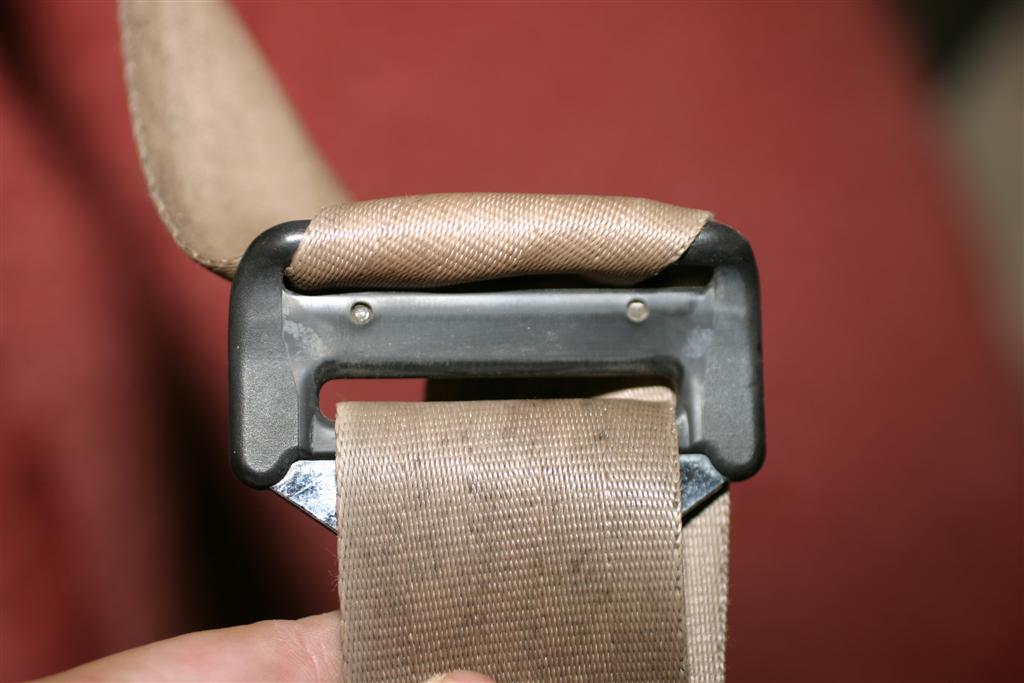

The special mechanism they are refering to is the part that actually buckles in to the reciever. If it moves freely up and down the belt then it doesn't have it. However if it has an extra piece causing the belt to be fed through two seperate holes then it does. Just like a uniform belt or a strap on a duffel bag, same concept. Thought this might explain better. See pics. First doesn't second pic does.
https://www.cherokeeforum.com/attach...1&d=1264805556
https://www.cherokeeforum.com/attach...1&d=1264805556
"What many people don't understand is that the lap portion of the seatbelt is the part responsible for keeping the car seat secure. The shoulder belt portion must be "locked down" if the lap portion isn't locked on its own, which is what usually happens. Dodge and Chrysler vehicles, however, have a special mechanism on the lap portion of their shoulder/lap belt that locks the lap belt securely, so that the shoulder belt portion becomes irrelevant.
It's important to remember that, after a car seat is installed, the seatbelt's latch plate should NOT lie against the curved opening of the car seat. If it does, try to make the buckle shorter, even if it means twisting it a full turn or two around. If that still doesn't work, your car seat might not be the right choice for your car."
The special mechanism they are refering to is the part that actually buckles in to the reciever. If it moves freely up and down the belt then it doesn't have it. However if it has an extra piece causing the belt to be fed through two seperate holes then it does. Just like a uniform belt or a strap on a duffel bag, same concept. Thought this might explain better. See pics. First doesn't second pic does.
https://www.cherokeeforum.com/attach...1&d=1264805556
https://www.cherokeeforum.com/attach...1&d=1264805556
Trending Topics
CF Veteran
Joined: Aug 2009
Posts: 1,047
Likes: 3
From: Hanover,Ont, Canada
Year: 1991
Model: Cherokee
Engine: 4.o
The dealer should install tether anchors for free! see attached:
TSB#
23-029-08
TSB#
23-029-08
DISCUSSION:
User-ready child restraint tether strap anchors will be provided in passenger cars in the
2000 Model Year, and in light trucks in the 2001 Model Year and later. Tether straps
improve the performance of child restraints in collisions. Because of the publicity that has
accompanied the "Fit for a Kid" Program, owners of earlier products are expected to
approach dealers for the
2000 Model Year, and in light trucks in the 2001 Model Year and later. Tether straps
improve the performance of child restraints in collisions. Because of the publicity that has
accompanied the "Fit for a Kid" Program, owners of earlier products are expected to
approach dealers for the
free provision and installation of the anchor hardware.
Chrysler is offering child seat tether anchors for the selected vehicles listed above. Each
tether anchor is packaged in a kit containing all necessary parts and a detailed instruction
sheet.
tether anchor is packaged in a kit containing all necessary parts and a detailed instruction
sheet.
NOTE: This bulletin is provided to identify the parts and labor operation numbers
necessary to install a Child Seat Tether Anchor. Each dealer is encouraged to
install these kits based on customer request and Chrysler will reimburse any
Chrysler / Dodge / or Jeep dealer installing these kits regardless of vehicle
age or mileage.
necessary to install a Child Seat Tether Anchor. Each dealer is encouraged to
install these kits based on customer request and Chrysler will reimburse any
Chrysler / Dodge / or Jeep dealer installing these kits regardless of vehicle
age or mileage.
23-029-08 -2-
PARTS REQUIRED:
BODY MODEL YEAR CENTER OUTBOARD
AA Lebaron Sedan/Spirit/Acclaim 89 - 95 04519071AB 04519071AB
AB Ram Wagon 89 - 00 04358469AB 04358469AB
AC New Yorker/Landau/Dynasty 89 - 93 04519073AB 04519072AB
AG Daytona 89 - 90 NA 05003422AB
AG Daytona 91 - 94 NA 04519074AB
AH Lancer/Lebaron GTS 1989 04519076AB 05003422AB
AJ LeBaron Coupe 89 - 93 04519077AB 04519077AB
AK Aries/Reliant 89 - 90 04519077AB 04519077AB
AL Horizon/Omni 89 - 90 04519081AB 04519080AB
AM Diplomat/Gran Fury/New Yorker Fifth
Avenue
1989 04519077AB 04519077AB
AN Dakota 88 - 99 05014765AA 05014765AA
AN Dakota, AN84 2000 05016573AA 05016573AA
AN Dakota, Extended Cab 2000 05016572AA 05016572AA
AN Dakota, Standard Cab 2000 05017683AC 05017683AC
AP Shadow/Sundance 89 - 94 04519292AB 04519292AB
AS Town & Country/Caravan/Voyager 89 - 95 05017529AB 05017529AB
AY Imperial/New Yorker Fifth Avenue 90 - 93 04519071AB 04519071AB
BB Monaco/Premier 89 - 92 04519077AB 04519077AB
BD Laser/Talon 90 - 94
Anchor MB590094 MB590094
Bolt MF140227 MF140227
Bracket Left MB593349 MB593349
Bracket Right MB593350 MB593350
BR/BE Ram Truck, Built Prior To Sept. 20,
2000
94 - 01 05017032AB 05017032AB
B2 Colt/Summit 89 - 92
4-Door MB597261 MB612814
2-Door MB865730 MB597261
B3 Vista 92 - 95 MB583400 MB583400
B5 Chrysler Conquest 87 - 89 MB597261 MB597261
B7 2000GTX Dodge/Eagle-Canada 89 - 91 MB597261 MB597261
Stealth 92 - 95 MB597261 MB597261
-3- 23-029-08
B8 Colt Vista/Summit Wagon 92 - 95 MB583400 MB583400
B9 Colt/Summit 93 - 94
4-Door MB865730 MB865730
2-Door MB597261 MB597261
DN Durango 98 - 00
Standard Seat (60/40) NA 05015403AA
40/20/40 Seat 05012007AB
FJ Avenger/Sebring 95 - 99 MB597261 MB612814
FJ Talon 95 - 97 MB583400 MB583400
JA Breeze.Cirrus/Stratus 95 - 99 04519077AB 04519077AB
LH Intrepid/Concorde/Vision 93 - 99 04519077AB 04519077AB
New Yorker/LHS 94 - 97 04519077 05017645AA
LHS/300M 1999 04519077AB 04519077AB
NS Town & Country/Caravan/Voyager 96 - 00
2nd Row Seats 04864118AB 04864118AB
3rd Row Seats 05018506AA 05018506AA
PL Neon, Built Prior To July 26, 1999 95 - 00 05017563AB 05017563AB
PR Prowler 97 - 99 NA 05017570AA
SR Viper 96 - 99 NA 04883004AB
TJ Wrangler 2000 NA 05066347AA
WJ Jeep Grand Cherokee - Canada 99 - 00 NA 05016871AA,
Camel Trim
05016873AA,
Taupe Trim
WJ Jeep Grand Cherokee - US 99 - 00 NA 05016869AA,
Camel Trim
05016870AA,
Taupe Trim
XJ Jeep Cherokee 89 - 99 NA 05003422AB
2000 NA 05066385AA
ZJ Jeep Grand Cherokee/Grand
Wagoneer
93 - 98 04728952AB NA
23-029-08 -4-
AA Lebaron Sedan/Spirit/Acclaim 89 - 95 04519071AB 04519071AB
AB Ram Wagon 89 - 00 04358469AB 04358469AB
AC New Yorker/Landau/Dynasty 89 - 93 04519073AB 04519072AB
AG Daytona 89 - 90 NA 05003422AB
AG Daytona 91 - 94 NA 04519074AB
AH Lancer/Lebaron GTS 1989 04519076AB 05003422AB
AJ LeBaron Coupe 89 - 93 04519077AB 04519077AB
AK Aries/Reliant 89 - 90 04519077AB 04519077AB
AL Horizon/Omni 89 - 90 04519081AB 04519080AB
AM Diplomat/Gran Fury/New Yorker Fifth
Avenue
1989 04519077AB 04519077AB
AN Dakota 88 - 99 05014765AA 05014765AA
AN Dakota, AN84 2000 05016573AA 05016573AA
AN Dakota, Extended Cab 2000 05016572AA 05016572AA
AN Dakota, Standard Cab 2000 05017683AC 05017683AC
AP Shadow/Sundance 89 - 94 04519292AB 04519292AB
AS Town & Country/Caravan/Voyager 89 - 95 05017529AB 05017529AB
AY Imperial/New Yorker Fifth Avenue 90 - 93 04519071AB 04519071AB
BB Monaco/Premier 89 - 92 04519077AB 04519077AB
BD Laser/Talon 90 - 94
Anchor MB590094 MB590094
Bolt MF140227 MF140227
Bracket Left MB593349 MB593349
Bracket Right MB593350 MB593350
BR/BE Ram Truck, Built Prior To Sept. 20,
2000
94 - 01 05017032AB 05017032AB
B2 Colt/Summit 89 - 92
4-Door MB597261 MB612814
2-Door MB865730 MB597261
B3 Vista 92 - 95 MB583400 MB583400
B5 Chrysler Conquest 87 - 89 MB597261 MB597261
B7 2000GTX Dodge/Eagle-Canada 89 - 91 MB597261 MB597261
Stealth 92 - 95 MB597261 MB597261
-3- 23-029-08
B8 Colt Vista/Summit Wagon 92 - 95 MB583400 MB583400
B9 Colt/Summit 93 - 94
4-Door MB865730 MB865730
2-Door MB597261 MB597261
DN Durango 98 - 00
Standard Seat (60/40) NA 05015403AA
40/20/40 Seat 05012007AB
FJ Avenger/Sebring 95 - 99 MB597261 MB612814
FJ Talon 95 - 97 MB583400 MB583400
JA Breeze.Cirrus/Stratus 95 - 99 04519077AB 04519077AB
LH Intrepid/Concorde/Vision 93 - 99 04519077AB 04519077AB
New Yorker/LHS 94 - 97 04519077 05017645AA
LHS/300M 1999 04519077AB 04519077AB
NS Town & Country/Caravan/Voyager 96 - 00
2nd Row Seats 04864118AB 04864118AB
3rd Row Seats 05018506AA 05018506AA
PL Neon, Built Prior To July 26, 1999 95 - 00 05017563AB 05017563AB
PR Prowler 97 - 99 NA 05017570AA
SR Viper 96 - 99 NA 04883004AB
TJ Wrangler 2000 NA 05066347AA
WJ Jeep Grand Cherokee - Canada 99 - 00 NA 05016871AA,
Camel Trim
05016873AA,
Taupe Trim
WJ Jeep Grand Cherokee - US 99 - 00 NA 05016869AA,
Camel Trim
05016870AA,
Taupe Trim
XJ Jeep Cherokee 89 - 99 NA 05003422AB
2000 NA 05066385AA
ZJ Jeep Grand Cherokee/Grand
Wagoneer
93 - 98 04728952AB NA
23-029-08 -4-
POLICY:
Customer Satisfaction, Reimbursable regardless of mileage or age.
TIME ALLOWANCE:
Labor Operation
No:
Description Vehicle/Year Allowance
23-13-12-90 Anchor, Child Seat Tether -
Install One
1989-1995 (AA) 0.2 Hrs.
1989-1994 (AG,AP) 0.2 Hrs.
1989 (AH,AM) 0.2 Hrs.
1989-1993 (AJ) 0.2 Hrs.
1989-1990 (AK, AL) 0.2 Hrs.
1988-1992 ((BB) 0.2 Hrs.
1994-2001 (BR/BE) 0.2 Hrs.
1998-2000 (DN) 0.2 Hrs.
1995-1999 (JA) 0.2 Hrs.
1995-2000 (PL) 0.2 Hrs.
1996-1999 (SR) 0.2 Hrs.
2000 (TJ) 0.2 Hrs.
1989-1993 (AC) 0.3 Hrs.
1990-1993 (AY) 0.3 Hrs.
1995-1999 (FJ) 0.3 Hrs.
1993-1999 (LH) 0.3 Hrs.
2000 (XJ) 0.3 Hrs.
1989-1995 (AS) 0.4 Hrs.
1996-2000 (NS) 0.4 Hrs.
1989-1999 (XJ) 0.4 Hrs.
1993-1998 (ZJ) 0.4 Hrs.
1989-2000 (AB) 0.5 Hrs.
1989-1995 (B7) A/T
1990-1994 (BD) A/T
1989-1992 (B2) A/T
1992-1995 (B3,B8) A/T
1989 (B5) A/T
1993-1994 (B9) A/T
1999-2000 (PR) A/T
-5- 23-029-08
23-13-12-91 Anchor, Child Seat Tether -
Install Two
1994-2001 (BR/BE) 0.2 Hrs.
1989-2000 (DN) 0.2 Hrs.
1989-1995 (AA) 0.3 Hrs.
1989-1994 (AG) 0.3 Hrs.
1989 (AH, AM) 0.3 Hrs.
1989-1993 (AJ) 0.3 Hrs.
1989-1990 (AK, AL) 0.3 Hrs.
1989-1994 (AP) 0.3 Hrs.
1988-1992 (BB) 0.3 Hrs.
1995-1999 (JA) 0.3 Hrs.
1995-2000 (PL) 0.3 Hrs.
1999-2000 (WJ) 0.3 Hrs.
1989-1993 (AC) 0.4 Hrs.
1990-1993 (AY) 0.4 Hrs.
1993-1999 (LH) 0.4 Hrs.
1989-1995 (AS) 0.5 Hrs.
1996-2000 (NS) 0.5 Hrs.
1989-1999 (XJ) 0.6 Hrs.
1989-2000 (AB) 0.7 Hrs.
1989-2000 (AN) 1.0 Hrs.
23-13-12-92 Anchor, Child Seat Tether -
Install Three
1994-2001 (BR/BE) 0.2 Hrs.
1989-1995 (AA) 0.4 Hrs.
1989 (AH, AM) 0.4 Hrs.
1989-1993 (AJ) 0.4 Hrs.
1989-1990 (AK, AL) 0.4 Hrs.
1989-1994 (AP) 0.4 Hrs.
1988-1992 (BB) 0.4 Hrs.
1995-1999 (JA) 0.4 Hrs.
1995 2000 (PL) 0.4 Hrs.
1989-1993 (AC) 0.5 Hrs.
1990-1993 (AY) 0.5 Hrs.
1993-1999 (LH) 0.5 Hrs.
1996-2000 (NS) 0.6 Hrs.
1989-2000 (AN) 1.2 Hrs.
23-029-08 -6-
23-13-12-93 Anchor, Child Seat Tether -
Install One - Third Seat
1996-2000 (NS) 0.3 Hrs.
23-13-12-94 Anchor, Child Seat Tether -
Install Two Or Three - Third
Seat
1996-200 (NS) 0.4 Hrs.
No:
Description Vehicle/Year Allowance
23-13-12-90 Anchor, Child Seat Tether -
Install One
1989-1995 (AA) 0.2 Hrs.
1989-1994 (AG,AP) 0.2 Hrs.
1989 (AH,AM) 0.2 Hrs.
1989-1993 (AJ) 0.2 Hrs.
1989-1990 (AK, AL) 0.2 Hrs.
1988-1992 ((BB) 0.2 Hrs.
1994-2001 (BR/BE) 0.2 Hrs.
1998-2000 (DN) 0.2 Hrs.
1995-1999 (JA) 0.2 Hrs.
1995-2000 (PL) 0.2 Hrs.
1996-1999 (SR) 0.2 Hrs.
2000 (TJ) 0.2 Hrs.
1989-1993 (AC) 0.3 Hrs.
1990-1993 (AY) 0.3 Hrs.
1995-1999 (FJ) 0.3 Hrs.
1993-1999 (LH) 0.3 Hrs.
2000 (XJ) 0.3 Hrs.
1989-1995 (AS) 0.4 Hrs.
1996-2000 (NS) 0.4 Hrs.
1989-1999 (XJ) 0.4 Hrs.
1993-1998 (ZJ) 0.4 Hrs.
1989-2000 (AB) 0.5 Hrs.
1989-1995 (B7) A/T
1990-1994 (BD) A/T
1989-1992 (B2) A/T
1992-1995 (B3,B8) A/T
1989 (B5) A/T
1993-1994 (B9) A/T
1999-2000 (PR) A/T
-5- 23-029-08
23-13-12-91 Anchor, Child Seat Tether -
Install Two
1994-2001 (BR/BE) 0.2 Hrs.
1989-2000 (DN) 0.2 Hrs.
1989-1995 (AA) 0.3 Hrs.
1989-1994 (AG) 0.3 Hrs.
1989 (AH, AM) 0.3 Hrs.
1989-1993 (AJ) 0.3 Hrs.
1989-1990 (AK, AL) 0.3 Hrs.
1989-1994 (AP) 0.3 Hrs.
1988-1992 (BB) 0.3 Hrs.
1995-1999 (JA) 0.3 Hrs.
1995-2000 (PL) 0.3 Hrs.
1999-2000 (WJ) 0.3 Hrs.
1989-1993 (AC) 0.4 Hrs.
1990-1993 (AY) 0.4 Hrs.
1993-1999 (LH) 0.4 Hrs.
1989-1995 (AS) 0.5 Hrs.
1996-2000 (NS) 0.5 Hrs.
1989-1999 (XJ) 0.6 Hrs.
1989-2000 (AB) 0.7 Hrs.
1989-2000 (AN) 1.0 Hrs.
23-13-12-92 Anchor, Child Seat Tether -
Install Three
1994-2001 (BR/BE) 0.2 Hrs.
1989-1995 (AA) 0.4 Hrs.
1989 (AH, AM) 0.4 Hrs.
1989-1993 (AJ) 0.4 Hrs.
1989-1990 (AK, AL) 0.4 Hrs.
1989-1994 (AP) 0.4 Hrs.
1988-1992 (BB) 0.4 Hrs.
1995-1999 (JA) 0.4 Hrs.
1995 2000 (PL) 0.4 Hrs.
1989-1993 (AC) 0.5 Hrs.
1990-1993 (AY) 0.5 Hrs.
1993-1999 (LH) 0.5 Hrs.
1996-2000 (NS) 0.6 Hrs.
1989-2000 (AN) 1.2 Hrs.
23-029-08 -6-
23-13-12-93 Anchor, Child Seat Tether -
Install One - Third Seat
1996-2000 (NS) 0.3 Hrs.
23-13-12-94 Anchor, Child Seat Tether -
Install Two Or Three - Third
Seat
1996-200 (NS) 0.4 Hrs.
FAILURE CODE:
CG Customer Satisfaction
CF Veteran
Joined: Jul 2009
Posts: 1,640
Likes: 0
From: Keesler AFB, MS
Year: 1998 XJ
Model: Cherokee
Engine: 4.0L
The dealer should install tether anchors for free! see attached:
TSB#
23-029-08
TSB#
23-029-08
DISCUSSION:
User-ready child restraint tether strap anchors will be provided in passenger cars in the
2000 Model Year, and in light trucks in the 2001 Model Year and later. Tether straps
improve the performance of child restraints in collisions. Because of the publicity that has
accompanied the "Fit for a Kid" Program, owners of earlier products are expected to
approach dealers for the free provision and installation of the anchor hardware.
Chrysler is offering child seat tether anchors for the selected vehicles listed above. Each
tether anchor is packaged in a kit containing all necessary parts and a detailed instruction
sheet.
NOTE: This bulletin is provided to identify the parts and labor operation numbers
necessary to install a Child Seat Tether Anchor. Each dealer is encouraged to
install these kits based on customer request and Chrysler will reimburse any
Chrysler / Dodge / or Jeep dealer installing these kits regardless of vehicle
age or mileage.
23-029-08 -2-
PARTS REQUIRED:
BODY MODEL YEAR CENTER OUTBOARD
AA Lebaron Sedan/Spirit/Acclaim 89 - 95 04519071AB 04519071AB
AB Ram Wagon 89 - 00 04358469AB 04358469AB
AC New Yorker/Landau/Dynasty 89 - 93 04519073AB 04519072AB
AG Daytona 89 - 90 NA 05003422AB
AG Daytona 91 - 94 NA 04519074AB
AH Lancer/Lebaron GTS 1989 04519076AB 05003422AB
AJ LeBaron Coupe 89 - 93 04519077AB 04519077AB
AK Aries/Reliant 89 - 90 04519077AB 04519077AB
AL Horizon/Omni 89 - 90 04519081AB 04519080AB
AM Diplomat/Gran Fury/New Yorker Fifth
Avenue
1989 04519077AB 04519077AB
AN Dakota 88 - 99 05014765AA 05014765AA
AN Dakota, AN84 2000 05016573AA 05016573AA
AN Dakota, Extended Cab 2000 05016572AA 05016572AA
AN Dakota, Standard Cab 2000 05017683AC 05017683AC
AP Shadow/Sundance 89 - 94 04519292AB 04519292AB
AS Town & Country/Caravan/Voyager 89 - 95 05017529AB 05017529AB
AY Imperial/New Yorker Fifth Avenue 90 - 93 04519071AB 04519071AB
BB Monaco/Premier 89 - 92 04519077AB 04519077AB
BD Laser/Talon 90 - 94
Anchor MB590094 MB590094
Bolt MF140227 MF140227
Bracket Left MB593349 MB593349
Bracket Right MB593350 MB593350
BR/BE Ram Truck, Built Prior To Sept. 20,
2000
94 - 01 05017032AB 05017032AB
B2 Colt/Summit 89 - 92
4-Door MB597261 MB612814
2-Door MB865730 MB597261
B3 Vista 92 - 95 MB583400 MB583400
B5 Chrysler Conquest 87 - 89 MB597261 MB597261
B7 2000GTX Dodge/Eagle-Canada 89 - 91 MB597261 MB597261
Stealth 92 - 95 MB597261 MB597261
-3- 23-029-08
B8 Colt Vista/Summit Wagon 92 - 95 MB583400 MB583400
B9 Colt/Summit 93 - 94
4-Door MB865730 MB865730
2-Door MB597261 MB597261
DN Durango 98 - 00
Standard Seat (60/40) NA 05015403AA
40/20/40 Seat 05012007AB
FJ Avenger/Sebring 95 - 99 MB597261 MB612814
FJ Talon 95 - 97 MB583400 MB583400
JA Breeze.Cirrus/Stratus 95 - 99 04519077AB 04519077AB
LH Intrepid/Concorde/Vision 93 - 99 04519077AB 04519077AB
New Yorker/LHS 94 - 97 04519077 05017645AA
LHS/300M 1999 04519077AB 04519077AB
NS Town & Country/Caravan/Voyager 96 - 00
2nd Row Seats 04864118AB 04864118AB
3rd Row Seats 05018506AA 05018506AA
PL Neon, Built Prior To July 26, 1999 95 - 00 05017563AB 05017563AB
PR Prowler 97 - 99 NA 05017570AA
SR Viper 96 - 99 NA 04883004AB
TJ Wrangler 2000 NA 05066347AA
WJ Jeep Grand Cherokee - Canada 99 - 00 NA 05016871AA,
Camel Trim
05016873AA,
Taupe Trim
WJ Jeep Grand Cherokee - US 99 - 00 NA 05016869AA,
Camel Trim
05016870AA,
Taupe Trim
XJ Jeep Cherokee 89 - 99 NA 05003422AB
2000 NA 05066385AA
ZJ Jeep Grand Cherokee/Grand
Wagoneer
93 - 98 04728952AB NA
23-029-08 -4-
POLICY:
Customer Satisfaction, Reimbursable regardless of mileage or age.
TIME ALLOWANCE:
Labor Operation
No:
Description Vehicle/Year Allowance
23-13-12-90 Anchor, Child Seat Tether -
Install One
1989-1995 (AA) 0.2 Hrs.
1989-1994 (AG,AP) 0.2 Hrs.
1989 (AH,AM) 0.2 Hrs.
1989-1993 (AJ) 0.2 Hrs.
1989-1990 (AK, AL) 0.2 Hrs.
1988-1992 ((BB) 0.2 Hrs.
1994-2001 (BR/BE) 0.2 Hrs.
1998-2000 (DN) 0.2 Hrs.
1995-1999 (JA) 0.2 Hrs.
1995-2000 (PL) 0.2 Hrs.
1996-1999 (SR) 0.2 Hrs.
2000 (TJ) 0.2 Hrs.
1989-1993 (AC) 0.3 Hrs.
1990-1993 (AY) 0.3 Hrs.
1995-1999 (FJ) 0.3 Hrs.
1993-1999 (LH) 0.3 Hrs.
2000 (XJ) 0.3 Hrs.
1989-1995 (AS) 0.4 Hrs.
1996-2000 (NS) 0.4 Hrs.
1989-1999 (XJ) 0.4 Hrs.
1993-1998 (ZJ) 0.4 Hrs.
1989-2000 (AB) 0.5 Hrs.
1989-1995 (B7) A/T
1990-1994 (BD) A/T
1989-1992 (B2) A/T
1992-1995 (B3,B8) A/T
1989 (B5) A/T
1993-1994 (B9) A/T
1999-2000 (PR) A/T
-5- 23-029-08
23-13-12-91 Anchor, Child Seat Tether -
Install Two
1994-2001 (BR/BE) 0.2 Hrs.
1989-2000 (DN) 0.2 Hrs.
1989-1995 (AA) 0.3 Hrs.
1989-1994 (AG) 0.3 Hrs.
1989 (AH, AM) 0.3 Hrs.
1989-1993 (AJ) 0.3 Hrs.
1989-1990 (AK, AL) 0.3 Hrs.
1989-1994 (AP) 0.3 Hrs.
1988-1992 (BB) 0.3 Hrs.
1995-1999 (JA) 0.3 Hrs.
1995-2000 (PL) 0.3 Hrs.
1999-2000 (WJ) 0.3 Hrs.
1989-1993 (AC) 0.4 Hrs.
1990-1993 (AY) 0.4 Hrs.
1993-1999 (LH) 0.4 Hrs.
1989-1995 (AS) 0.5 Hrs.
1996-2000 (NS) 0.5 Hrs.
1989-1999 (XJ) 0.6 Hrs.
1989-2000 (AB) 0.7 Hrs.
1989-2000 (AN) 1.0 Hrs.
23-13-12-92 Anchor, Child Seat Tether -
Install Three
1994-2001 (BR/BE) 0.2 Hrs.
1989-1995 (AA) 0.4 Hrs.
1989 (AH, AM) 0.4 Hrs.
1989-1993 (AJ) 0.4 Hrs.
1989-1990 (AK, AL) 0.4 Hrs.
1989-1994 (AP) 0.4 Hrs.
1988-1992 (BB) 0.4 Hrs.
1995-1999 (JA) 0.4 Hrs.
1995 2000 (PL) 0.4 Hrs.
1989-1993 (AC) 0.5 Hrs.
1990-1993 (AY) 0.5 Hrs.
1993-1999 (LH) 0.5 Hrs.
1996-2000 (NS) 0.6 Hrs.
1989-2000 (AN) 1.2 Hrs.
23-029-08 -6-
23-13-12-93 Anchor, Child Seat Tether -
Install One - Third Seat
1996-2000 (NS) 0.3 Hrs.
23-13-12-94 Anchor, Child Seat Tether -
Install Two Or Three - Third
Seat
1996-200 (NS) 0.4 Hrs.
FAILURE CODE:
CG Customer SatisfactionUser-ready child restraint tether strap anchors will be provided in passenger cars in the
2000 Model Year, and in light trucks in the 2001 Model Year and later. Tether straps
improve the performance of child restraints in collisions. Because of the publicity that has
accompanied the "Fit for a Kid" Program, owners of earlier products are expected to
approach dealers for the free provision and installation of the anchor hardware.
Chrysler is offering child seat tether anchors for the selected vehicles listed above. Each
tether anchor is packaged in a kit containing all necessary parts and a detailed instruction
sheet.
NOTE: This bulletin is provided to identify the parts and labor operation numbers
necessary to install a Child Seat Tether Anchor. Each dealer is encouraged to
install these kits based on customer request and Chrysler will reimburse any
Chrysler / Dodge / or Jeep dealer installing these kits regardless of vehicle
age or mileage.
23-029-08 -2-
PARTS REQUIRED:
BODY MODEL YEAR CENTER OUTBOARD
AA Lebaron Sedan/Spirit/Acclaim 89 - 95 04519071AB 04519071AB
AB Ram Wagon 89 - 00 04358469AB 04358469AB
AC New Yorker/Landau/Dynasty 89 - 93 04519073AB 04519072AB
AG Daytona 89 - 90 NA 05003422AB
AG Daytona 91 - 94 NA 04519074AB
AH Lancer/Lebaron GTS 1989 04519076AB 05003422AB
AJ LeBaron Coupe 89 - 93 04519077AB 04519077AB
AK Aries/Reliant 89 - 90 04519077AB 04519077AB
AL Horizon/Omni 89 - 90 04519081AB 04519080AB
AM Diplomat/Gran Fury/New Yorker Fifth
Avenue
1989 04519077AB 04519077AB
AN Dakota 88 - 99 05014765AA 05014765AA
AN Dakota, AN84 2000 05016573AA 05016573AA
AN Dakota, Extended Cab 2000 05016572AA 05016572AA
AN Dakota, Standard Cab 2000 05017683AC 05017683AC
AP Shadow/Sundance 89 - 94 04519292AB 04519292AB
AS Town & Country/Caravan/Voyager 89 - 95 05017529AB 05017529AB
AY Imperial/New Yorker Fifth Avenue 90 - 93 04519071AB 04519071AB
BB Monaco/Premier 89 - 92 04519077AB 04519077AB
BD Laser/Talon 90 - 94
Anchor MB590094 MB590094
Bolt MF140227 MF140227
Bracket Left MB593349 MB593349
Bracket Right MB593350 MB593350
BR/BE Ram Truck, Built Prior To Sept. 20,
2000
94 - 01 05017032AB 05017032AB
B2 Colt/Summit 89 - 92
4-Door MB597261 MB612814
2-Door MB865730 MB597261
B3 Vista 92 - 95 MB583400 MB583400
B5 Chrysler Conquest 87 - 89 MB597261 MB597261
B7 2000GTX Dodge/Eagle-Canada 89 - 91 MB597261 MB597261
Stealth 92 - 95 MB597261 MB597261
-3- 23-029-08
B8 Colt Vista/Summit Wagon 92 - 95 MB583400 MB583400
B9 Colt/Summit 93 - 94
4-Door MB865730 MB865730
2-Door MB597261 MB597261
DN Durango 98 - 00
Standard Seat (60/40) NA 05015403AA
40/20/40 Seat 05012007AB
FJ Avenger/Sebring 95 - 99 MB597261 MB612814
FJ Talon 95 - 97 MB583400 MB583400
JA Breeze.Cirrus/Stratus 95 - 99 04519077AB 04519077AB
LH Intrepid/Concorde/Vision 93 - 99 04519077AB 04519077AB
New Yorker/LHS 94 - 97 04519077 05017645AA
LHS/300M 1999 04519077AB 04519077AB
NS Town & Country/Caravan/Voyager 96 - 00
2nd Row Seats 04864118AB 04864118AB
3rd Row Seats 05018506AA 05018506AA
PL Neon, Built Prior To July 26, 1999 95 - 00 05017563AB 05017563AB
PR Prowler 97 - 99 NA 05017570AA
SR Viper 96 - 99 NA 04883004AB
TJ Wrangler 2000 NA 05066347AA
WJ Jeep Grand Cherokee - Canada 99 - 00 NA 05016871AA,
Camel Trim
05016873AA,
Taupe Trim
WJ Jeep Grand Cherokee - US 99 - 00 NA 05016869AA,
Camel Trim
05016870AA,
Taupe Trim
XJ Jeep Cherokee 89 - 99 NA 05003422AB
2000 NA 05066385AA
ZJ Jeep Grand Cherokee/Grand
Wagoneer
93 - 98 04728952AB NA
23-029-08 -4-
POLICY:
Customer Satisfaction, Reimbursable regardless of mileage or age.
TIME ALLOWANCE:
Labor Operation
No:
Description Vehicle/Year Allowance
23-13-12-90 Anchor, Child Seat Tether -
Install One
1989-1995 (AA) 0.2 Hrs.
1989-1994 (AG,AP) 0.2 Hrs.
1989 (AH,AM) 0.2 Hrs.
1989-1993 (AJ) 0.2 Hrs.
1989-1990 (AK, AL) 0.2 Hrs.
1988-1992 ((BB) 0.2 Hrs.
1994-2001 (BR/BE) 0.2 Hrs.
1998-2000 (DN) 0.2 Hrs.
1995-1999 (JA) 0.2 Hrs.
1995-2000 (PL) 0.2 Hrs.
1996-1999 (SR) 0.2 Hrs.
2000 (TJ) 0.2 Hrs.
1989-1993 (AC) 0.3 Hrs.
1990-1993 (AY) 0.3 Hrs.
1995-1999 (FJ) 0.3 Hrs.
1993-1999 (LH) 0.3 Hrs.
2000 (XJ) 0.3 Hrs.
1989-1995 (AS) 0.4 Hrs.
1996-2000 (NS) 0.4 Hrs.
1989-1999 (XJ) 0.4 Hrs.
1993-1998 (ZJ) 0.4 Hrs.
1989-2000 (AB) 0.5 Hrs.
1989-1995 (B7) A/T
1990-1994 (BD) A/T
1989-1992 (B2) A/T
1992-1995 (B3,B8) A/T
1989 (B5) A/T
1993-1994 (B9) A/T
1999-2000 (PR) A/T
-5- 23-029-08
23-13-12-91 Anchor, Child Seat Tether -
Install Two
1994-2001 (BR/BE) 0.2 Hrs.
1989-2000 (DN) 0.2 Hrs.
1989-1995 (AA) 0.3 Hrs.
1989-1994 (AG) 0.3 Hrs.
1989 (AH, AM) 0.3 Hrs.
1989-1993 (AJ) 0.3 Hrs.
1989-1990 (AK, AL) 0.3 Hrs.
1989-1994 (AP) 0.3 Hrs.
1988-1992 (BB) 0.3 Hrs.
1995-1999 (JA) 0.3 Hrs.
1995-2000 (PL) 0.3 Hrs.
1999-2000 (WJ) 0.3 Hrs.
1989-1993 (AC) 0.4 Hrs.
1990-1993 (AY) 0.4 Hrs.
1993-1999 (LH) 0.4 Hrs.
1989-1995 (AS) 0.5 Hrs.
1996-2000 (NS) 0.5 Hrs.
1989-1999 (XJ) 0.6 Hrs.
1989-2000 (AB) 0.7 Hrs.
1989-2000 (AN) 1.0 Hrs.
23-13-12-92 Anchor, Child Seat Tether -
Install Three
1994-2001 (BR/BE) 0.2 Hrs.
1989-1995 (AA) 0.4 Hrs.
1989 (AH, AM) 0.4 Hrs.
1989-1993 (AJ) 0.4 Hrs.
1989-1990 (AK, AL) 0.4 Hrs.
1989-1994 (AP) 0.4 Hrs.
1988-1992 (BB) 0.4 Hrs.
1995-1999 (JA) 0.4 Hrs.
1995 2000 (PL) 0.4 Hrs.
1989-1993 (AC) 0.5 Hrs.
1990-1993 (AY) 0.5 Hrs.
1993-1999 (LH) 0.5 Hrs.
1996-2000 (NS) 0.6 Hrs.
1989-2000 (AN) 1.2 Hrs.
23-029-08 -6-
23-13-12-93 Anchor, Child Seat Tether -
Install One - Third Seat
1996-2000 (NS) 0.3 Hrs.
23-13-12-94 Anchor, Child Seat Tether -
Install Two Or Three - Third
Seat
1996-200 (NS) 0.4 Hrs.
FAILURE CODE:
CF Veteran
Joined: Aug 2009
Posts: 1,047
Likes: 3
From: Hanover,Ont, Canada
Year: 1991
Model: Cherokee
Engine: 4.o
Call your local dealer and provide them with the tsb# they should already know about it and do your install for free. If you get any hassle phone the Chrysler customer assistance hotline.
Newbie
Joined: Mar 2010
Posts: 1
Likes: 0
Model: Cherokee
Non locking Shoulder Belts
I have a 99 Dodge Intrepid. I know its not a Cherokee but I have a question with the seat belts and Child seats.
I currently have a Britax Child Seat that is installed in the center using the lap belt and a tether anchor which I actually bought from a dealer (was not easy to get the part) and put in myself, went to a dealer to help find the hole for it.
I will have another child soon so I want to put the rear facing child seat that has a base in the center and then put the forward facing Britax on the side.
I plan on moving the tether to the side.
My question is...
The Shoulder belts on the 99 Intrepid only lock in a braking situation. Should I call the dealer and see if they can put one in that has a locking ratchet or is that not needed. The belt clip male end has a mechanism that slides slightly and appears to hold the lap part from moving when you pull out on the center of the lap part. Is this all that is needed.
I don't exactly understand the posts above of the belt buckles. They don't look exactly like the one in the intrepid.
Thanks
I currently have a Britax Child Seat that is installed in the center using the lap belt and a tether anchor which I actually bought from a dealer (was not easy to get the part) and put in myself, went to a dealer to help find the hole for it.
I will have another child soon so I want to put the rear facing child seat that has a base in the center and then put the forward facing Britax on the side.
I plan on moving the tether to the side.
My question is...
The Shoulder belts on the 99 Intrepid only lock in a braking situation. Should I call the dealer and see if they can put one in that has a locking ratchet or is that not needed. The belt clip male end has a mechanism that slides slightly and appears to hold the lap part from moving when you pull out on the center of the lap part. Is this all that is needed.
I don't exactly understand the posts above of the belt buckles. They don't look exactly like the one in the intrepid.
Thanks
Newbie
Joined: Jan 2010
Posts: 13
Likes: 1
From: East Tennessee
Year: 2000
Model: Cherokee
Engine: 4.0
Elroy,
If the shoulder portion doesn't lock then yes it will have a moving part on the male end. To test it just sit in that seat, buckle the belt and pull the shoulder tight, then try and lift your hips, if it doesn't loosen around your lap then that is all you need. But just to make sure, pull the shoulder portion all the way out till it stops, let it back in about 2 or 4 inches and try to pull it back out if it doesn't then it will just lock under braking as you said. Just try all this and hit me up after. If you still need help let me know and I can get you all kinds of videos and junk on how to do it. Good luck
If the shoulder portion doesn't lock then yes it will have a moving part on the male end. To test it just sit in that seat, buckle the belt and pull the shoulder tight, then try and lift your hips, if it doesn't loosen around your lap then that is all you need. But just to make sure, pull the shoulder portion all the way out till it stops, let it back in about 2 or 4 inches and try to pull it back out if it doesn't then it will just lock under braking as you said. Just try all this and hit me up after. If you still need help let me know and I can get you all kinds of videos and junk on how to do it. Good luck
Thread
Thread Starter
Forum
Replies
Last Post
tleed
Stock Grand Cherokee Tech. All ZJ/WJ/WK Non-modified/stock questions go here!
3
Oct 4, 2015 01:20 PM
Freakn
Stock XJ Cherokee Tech. All XJ Non-modified/stock questions go here
52
Oct 4, 2015 06:34 AM
TNXJsleeper
Stock XJ Cherokee Tech. All XJ Non-modified/stock questions go here
1
Oct 2, 2015 08:04 PM
Currently Active Users Viewing This Thread: 1 (0 members and 1 guests)
