Temp control knob binding
#1
CF Veteran
Thread Starter
Join Date: Jul 2009
Location: Keesler AFB, MS
Posts: 1,640
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998 XJ
Model: Cherokee
Engine: 4.0L
Temp control **** binding
98 XJ 4.0L
The temp control **** in the cab is binded on me right now. I know there is a cable to some type of control box under the passenger side dash. My question is, Can i remove that box, take it apart and see whats going on? Can that control box be taken apart. By control box i mean the part that the cable attaches too.
Thanks
And has this happened to anyone else?
The temp control **** in the cab is binded on me right now. I know there is a cable to some type of control box under the passenger side dash. My question is, Can i remove that box, take it apart and see whats going on? Can that control box be taken apart. By control box i mean the part that the cable attaches too.
Thanks
And has this happened to anyone else?
#2
CF Veteran
Thread Starter
Join Date: Jul 2009
Location: Keesler AFB, MS
Posts: 1,640
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998 XJ
Model: Cherokee
Engine: 4.0L
OK i have done a little digging in the FSM and i believe my blend air door inside the heater a/c housing where the heater core is is stuck.
Does anyone know how to free this door without taking the whole heater a/c housing out. I would have to drain my refrigerant and coolant. Not something i want to do
Does anyone know how to free this door without taking the whole heater a/c housing out. I would have to drain my refrigerant and coolant. Not something i want to do
#5
CF Veteran
Thread Starter
Join Date: Jul 2009
Location: Keesler AFB, MS
Posts: 1,640
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998 XJ
Model: Cherokee
Engine: 4.0L
Yeah but the FSM doesn't give tricks or troubleshooting techniques for situations like this. I figured this might be a common problem with XJ's and someone would have a trick on how to free this door without taking the whole thing apart. And if i have to take the whole thing out and apart, what kind of time frames am i looking at? From my reading in the past on CF, there have been a lot of
people with heater core issues so i thought some would know some tricks about this this issue or time frames.
people with heater core issues so i thought some would know some tricks about this this issue or time frames.
#6
CF Veteran
Join Date: Jul 2008
Location: Schnecksville, PA
Posts: 1,217
Likes: 0
Received 5 Likes
on
5 Posts
Year: 94 XJ
Model: Cherokee
Engine: 4.0L
Warthog...
You will have to lay on your stomach and stick your nose under the passenger's side of the dash.
Trust me on this one...I've had to do it three times.
Your head will almost be against the center console (if you have one).
Turn your head to the right and look towards the firewall.
Shine a flashlight...Its dark and scary down there.

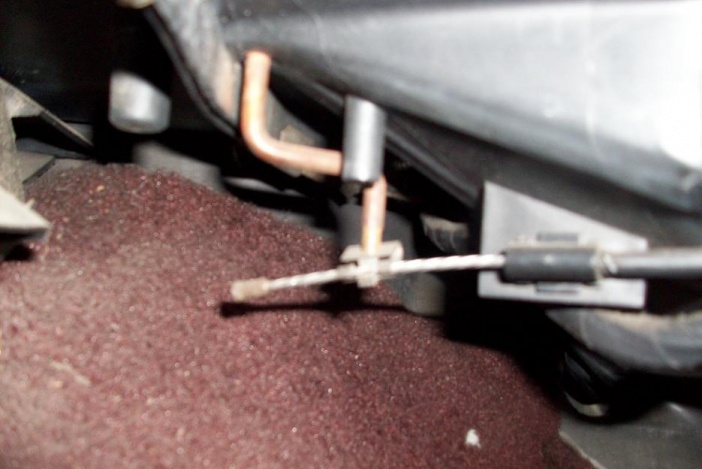

You will see the temp control cable.
With a free hand slide the dash control back and forth.
When the cable gets to the point where it wants to "bend"...grab a hold of it right at the clip and slide it straight. The clip on the blend door is designed to adjust ("give")
On the three I have done the end of the cable is about 2" PAST the clip.
Tried to attach image...sorry its like 10 degrees outside...shivering to much to take a clear pic.
You will have to lay on your stomach and stick your nose under the passenger's side of the dash.
Trust me on this one...I've had to do it three times.
Your head will almost be against the center console (if you have one).
Turn your head to the right and look towards the firewall.
Shine a flashlight...Its dark and scary down there.
You will see the temp control cable.
With a free hand slide the dash control back and forth.
When the cable gets to the point where it wants to "bend"...grab a hold of it right at the clip and slide it straight. The clip on the blend door is designed to adjust ("give")
On the three I have done the end of the cable is about 2" PAST the clip.
Tried to attach image...sorry its like 10 degrees outside...shivering to much to take a clear pic.
Trending Topics
#8
CF Veteran
Thread Starter
Join Date: Jul 2009
Location: Keesler AFB, MS
Posts: 1,640
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998 XJ
Model: Cherokee
Engine: 4.0L
Warthog...
You will have to lay on your stomach and stick your nose under the passenger's side of the dash.
Trust me on this one...I've had to do it three times.
Your head will almost be against the center console (if you have one).
Turn your head to the right and look towards the firewall.
Shine a flashlight...Its dark and scary down there.
You will see the temp control cable.
With a free hand slide the dash control back and forth.
When the cable gets to the point where it wants to "bend"...grab a hold of it right at the clip and slide it straight. The clip on the blend door is designed to adjust ("give")
On the three I have done the end of the cable is about 2" PAST the clip.
Tried to attach image...sorry its like 10 degrees outside...shivering to much to take a clear pic.
You will have to lay on your stomach and stick your nose under the passenger's side of the dash.
Trust me on this one...I've had to do it three times.
Your head will almost be against the center console (if you have one).
Turn your head to the right and look towards the firewall.
Shine a flashlight...Its dark and scary down there.
You will see the temp control cable.
With a free hand slide the dash control back and forth.
When the cable gets to the point where it wants to "bend"...grab a hold of it right at the clip and slide it straight. The clip on the blend door is designed to adjust ("give")
On the three I have done the end of the cable is about 2" PAST the clip.
Tried to attach image...sorry its like 10 degrees outside...shivering to much to take a clear pic.
Thanks again
#9
Senior Member
my 98 is doing the same thing, i can turn the temp **** anywhere in the hot range but it will not move into the cold range. i can force it to turn into the cold range but as soon as i let go of the **** it shoots back to the hot range, like a spring.
on another note i also need to change my heater core but dread pulling everything out that has to come out lol
on another note i also need to change my heater core but dread pulling everything out that has to come out lol
#11
CF Veteran
Thread Starter
Join Date: Jul 2009
Location: Keesler AFB, MS
Posts: 1,640
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998 XJ
Model: Cherokee
Engine: 4.0L
Sorry i never updated this but i figured it out. If you follow the cable down. IIRC you will see where the cable goes into or comes out of a tube. it was kinking itself right there. i used some duck bill pliers and straightened it out. Quick fix. Hopefully this helps. It has been a while since i fixed it so i may have some things backwards
#12
Newbie
Join Date: Apr 2017
Location: Columbia, SC
Posts: 4
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Cherokee
My XJ is doing that now. Won't turn left (to cold), will only stay about centered or to the right (to heat)... what did you do? How do I fix this?
It's starting to get hot here in South Carolina...
It's starting to get hot here in South Carolina...
