Sway bar lower link torx bolt snapped
#1
Newbie
Thread Starter
Join Date: Oct 2014
Location: Suburban Chicago
Posts: 15
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4L 6 cylinder
Sway bar lower link torx bolt snapped
Hi,
I'm a newbee here.
Working on replacing front sway bar links on my 95 XJ country and the torx bolt that holds the lower linkage just snapped.
Does anyone know where to look to buy this exact torx bolt?
Thank you for your help.
I'm a newbee here.
Working on replacing front sway bar links on my 95 XJ country and the torx bolt that holds the lower linkage just snapped.
Does anyone know where to look to buy this exact torx bolt?
Thank you for your help.
#2
I snapped off one of mine earlier this summer when I removed my front sway bar...............
My lift kit came with new bolts to replace them with..........But I could never get the original ones out of the brackets. They are seized in there pretty good.
When the time comes for me to put my front sway bar back on, I will probably cut/grind off what's left of the bolt, and drill the hole out to use the new bolts that I have............
I imagine you would have a hard time finding the factory original style, unless a Chrysler/Jeep dealer had some laying around.........
My lift kit came with new bolts to replace them with..........But I could never get the original ones out of the brackets. They are seized in there pretty good.
When the time comes for me to put my front sway bar back on, I will probably cut/grind off what's left of the bolt, and drill the hole out to use the new bolts that I have............
I imagine you would have a hard time finding the factory original style, unless a Chrysler/Jeep dealer had some laying around.........
#5
Newbie
Thread Starter
Join Date: Oct 2014
Location: Suburban Chicago
Posts: 15
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4L 6 cylinder
Thanks guys for your quick response.
While I was browsing more threads, I saw posts showing a puller that they use to push the pin out. So I'm going to try that as my last resort.
I guess the pin has been sitting there for the last 20 years completely rusted out, so it probably has become an happy one piece altogether with the bracket by now. I'll see if the puller works tomorrow...
J.F
While I was browsing more threads, I saw posts showing a puller that they use to push the pin out. So I'm going to try that as my last resort.
I guess the pin has been sitting there for the last 20 years completely rusted out, so it probably has become an happy one piece altogether with the bracket by now. I'll see if the puller works tomorrow...
J.F
#6
Newbie
Thread Starter
Join Date: Oct 2014
Location: Suburban Chicago
Posts: 15
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4L 6 cylinder
I've hammered it like Berserker but I guess it rusted out so much and it looks like I can't beat it. Thanks for the pic, tho. I guess I can try heat the bracket with a burner and try hitting it again tomorrow if the puller doesn't work.
Thanks!
J.F
Thanks!
J.F
Trending Topics
#8
CF Veteran
#9
CF Veteran

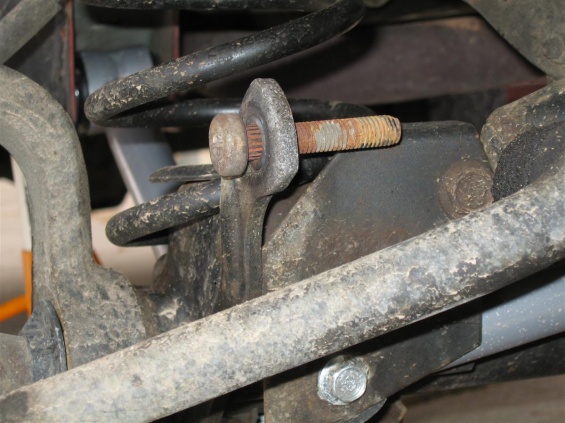

The site where freegdr 's pic came from, mentioned heating + hammer as the method that worked to remove that bolt.
#10
Newbie
Thread Starter
Join Date: Oct 2014
Location: Suburban Chicago
Posts: 15
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4L 6 cylinder
Picked up a pitman arm puller at AutoZone last night and it worked like a charm! Thanks for all your help here.
#11
Newbie
Thread Starter
Join Date: Oct 2014
Location: Suburban Chicago
Posts: 15
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4L 6 cylinder
#12
Member
Join Date: Oct 2014
Location: Alberta
Posts: 112
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1994
Model: Cherokee
Engine: 4.0L
<<<I've hammered it like Berserker but I guess it rusted out so much and it looks like I can't beat it. Thanks for the pic, tho. I guess I can try heat the bracket with a burner and try hitting it again tomorrow if the puller doesn't work.
Thanks!
J.F >>>
use a socket thats over sized and a c clamp that you can use an impact on, it will push it out
just play video and it should go to that spot if not its @ 9:15 or somthing
Thanks!
J.F >>>
use a socket thats over sized and a c clamp that you can use an impact on, it will push it out
just play video and it should go to that spot if not its @ 9:15 or somthing
Last edited by Mountaindog; 10-26-2014 at 11:58 AM. Reason: added video link
#13
CF Veteran
<<<I've hammered it like Berserker but I guess it rusted out so much and it looks like I can't beat it. Thanks for the pic, tho. I guess I can try heat the bracket with a burner and try hitting it again tomorrow if the puller doesn't work.
Thanks!
J.F >>>
use a socket thats over sized and a c clamp that you can use an impact on, it will push it out
just play video and it should go to that spot if not its @ 9:15 or somthing
RC Builds Episode 1 - XJ Budget Build - YouTube
Thanks!
J.F >>>
use a socket thats over sized and a c clamp that you can use an impact on, it will push it out
just play video and it should go to that spot if not its @ 9:15 or somthing
RC Builds Episode 1 - XJ Budget Build - YouTube
(side question out of interest: how did you make the youtube in the link start at that 09:16 time frame?)
