Stumped need help. Renix 4.0L
#16
Member
Thread Starter
Join Date: May 2012
Location: Cape breton
Posts: 111
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
It did it once, then the rest is all high rpms.
And the tps is brand new yes, and adjusted properly.
also.. is the IAC supposed to have a gasket between it and the throttle body?... my new one never came with one, and the old one didnt have one.. but just now skimming through your renix writeup i noticed this
"wiggle out the IAC from the throttle body. Gasket on the IAC can be re-used if it is not damaged "
Could this be the problem to all of this?, and can I make a new gasket out of gasket paper
And the tps is brand new yes, and adjusted properly.
also.. is the IAC supposed to have a gasket between it and the throttle body?... my new one never came with one, and the old one didnt have one.. but just now skimming through your renix writeup i noticed this
"wiggle out the IAC from the throttle body. Gasket on the IAC can be re-used if it is not damaged "
Could this be the problem to all of this?, and can I make a new gasket out of gasket paper
#17
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,867
Received 1,524 Likes
on
1,236 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
It's an o-ring, and that could be an issue.
#18
Member
Thread Starter
Join Date: May 2012
Location: Cape breton
Posts: 111
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
#19
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,867
Received 1,524 Likes
on
1,236 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
#20
Member
Thread Starter
Join Date: May 2012
Location: Cape breton
Posts: 111
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
#21
Member
Thread Starter
Join Date: May 2012
Location: Cape breton
Posts: 111
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
Well, I put the new gasket on annd... nothing. Still idles high. I double tripple checked all my vacuum lines, all my connections, I checked the upper intake bolts, their all tight as can be, EGR valve is working ok, IAC is working, TPS is adjusted to the right voltage, Throttle body is clean as a whistle, All the bolts are as tight as i can get them....
ARGH I'm running out of ideas for what in the hell this could be. Its driving me insane! I've allready missed mudfest cause of it, something I've been waiting 4 MONTHS for.
So, a list of everything I've replaced or done so far:
Replaced IAC
Replaced TPS and adjusted to 0.834 volts. Using a reference voltage of 4.91 volts
checked all the Connectors for resitance, with the meter only going as high as 1 ohm
Cleaned the throttle body to the point where it shines almost as good as chrome
Replaced the throttle body gasket with a new one
WD-40'd all of the throttle linkage
Replaced my main ground cable, cleaned the connections for the chassis ground and cleaned the dipstick stud area.
Replaced the plug wires, rotor, cap, and rotor button
Checked the MAF by using the one off my parts jeep [same result.]
So, I'm at a loss. If I dont have this port plugged at startup it idles at 2,000RPMs then creeps to 3,000RPMs [somewhat quickly]

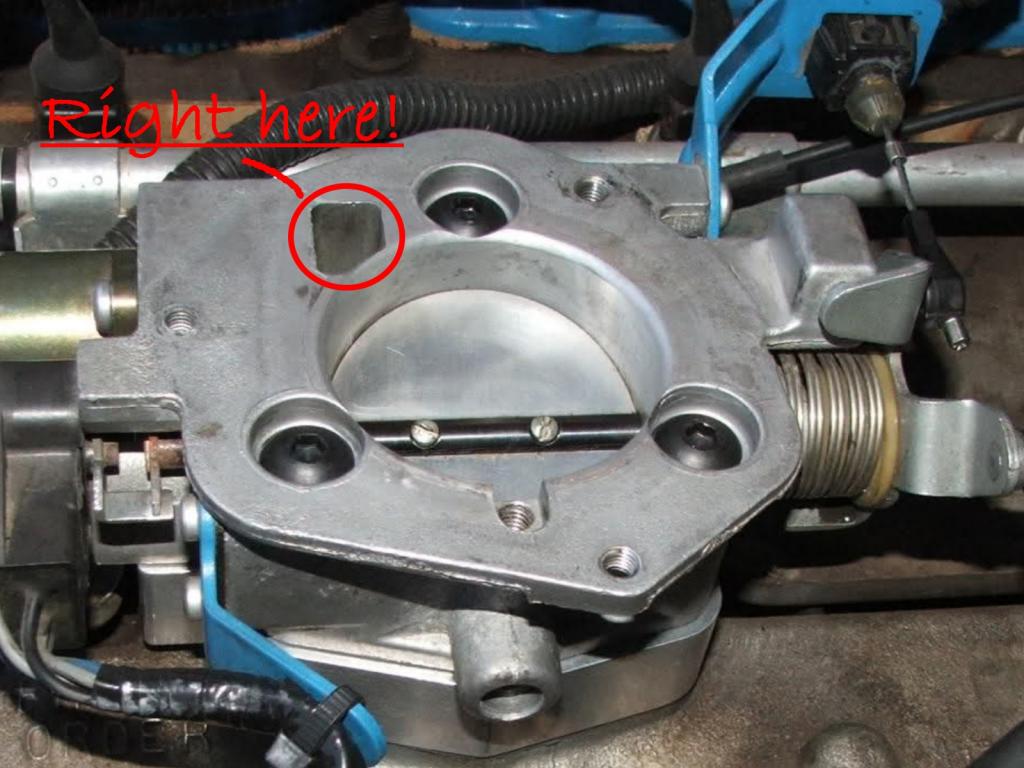

[also this is just a pic off the internet]
And there is a INSANE ammount of vacuum from it.
So... yea.. running out of ideas.. My brain is starting to hurt from thinking so much :x
ARGH I'm running out of ideas for what in the hell this could be. Its driving me insane! I've allready missed mudfest cause of it, something I've been waiting 4 MONTHS for.
So, a list of everything I've replaced or done so far:
Replaced IAC
Replaced TPS and adjusted to 0.834 volts. Using a reference voltage of 4.91 volts
checked all the Connectors for resitance, with the meter only going as high as 1 ohm
Cleaned the throttle body to the point where it shines almost as good as chrome
Replaced the throttle body gasket with a new one
WD-40'd all of the throttle linkage
Replaced my main ground cable, cleaned the connections for the chassis ground and cleaned the dipstick stud area.
Replaced the plug wires, rotor, cap, and rotor button
Checked the MAF by using the one off my parts jeep [same result.]
So, I'm at a loss. If I dont have this port plugged at startup it idles at 2,000RPMs then creeps to 3,000RPMs [somewhat quickly]
[also this is just a pic off the internet]
And there is a INSANE ammount of vacuum from it.
So... yea.. running out of ideas.. My brain is starting to hurt from thinking so much :x
#22
CF Veteran
Join Date: Apr 2012
Location: Wisconsin
Posts: 5,302
Likes: 0
Received 19 Likes
on
16 Posts
Model: Cherokee
Taking a longshot in the dark here, but the ecm may think your rpm's are dropping and opening the IAC to bring them back up.
It gets RPM information from the CPS, which may also be causing your misfire. Ever checked the CPS output voltage? I believe your year can be checked with a voltmeter. Plugs and connectors nice and clean?
When it's idling normally, unplug the IAC to freeze it in position and see if the idle speed remains normal after a short drive. If it does, something is telling the ecm to speed up the engine. Will have to weed out the sensors one by one to find the culprit. If they're all functioning normally you may have a failing ecm.
It gets RPM information from the CPS, which may also be causing your misfire. Ever checked the CPS output voltage? I believe your year can be checked with a voltmeter. Plugs and connectors nice and clean?
When it's idling normally, unplug the IAC to freeze it in position and see if the idle speed remains normal after a short drive. If it does, something is telling the ecm to speed up the engine. Will have to weed out the sensors one by one to find the culprit. If they're all functioning normally you may have a failing ecm.
#23
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,867
Received 1,524 Likes
on
1,236 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
I think we're on to something here. Someone probably messed with the throttle blade stop screw at one point.
Cruiser’s Renix Throttle Body Butterfly Adjustment
Okay. Let's start from scratch. First off, that's not an idle adjustment screw. It's a throttle butterfly stop screw. It's purpose is to allow the butterfly to be as close to completely closed as it can be without binding or wearing into the throttle body. It was never intended to be adjusted in the field. But, Uncle Bob didn’t know that, did he?
Engine off. Back off the butterfly stop screw with a 3/32" allen wrench until the butterfly is completely closed. Now. turn the screw in until the FAINTEST movement of the butterfly opening is detected. This can be done more easily with the throttle body removed. If you remove the throttle body, be sure to replace the gasket underneath it after thoroughly cleaning the old one off.
Revised 07/07/2012
Cruiser’s Renix Throttle Body Butterfly Adjustment
Okay. Let's start from scratch. First off, that's not an idle adjustment screw. It's a throttle butterfly stop screw. It's purpose is to allow the butterfly to be as close to completely closed as it can be without binding or wearing into the throttle body. It was never intended to be adjusted in the field. But, Uncle Bob didn’t know that, did he?
Engine off. Back off the butterfly stop screw with a 3/32" allen wrench until the butterfly is completely closed. Now. turn the screw in until the FAINTEST movement of the butterfly opening is detected. This can be done more easily with the throttle body removed. If you remove the throttle body, be sure to replace the gasket underneath it after thoroughly cleaning the old one off.
Revised 07/07/2012
#24
Member
Thread Starter
Join Date: May 2012
Location: Cape breton
Posts: 111
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
I think we're on to something here. Someone probably messed with the throttle blade stop screw at one point.
Cruiser’s Renix Throttle Body Butterfly Adjustment
Okay. Let's start from scratch. First off, that's not an idle adjustment screw. It's a throttle butterfly stop screw. It's purpose is to allow the butterfly to be as close to completely closed as it can be without binding or wearing into the throttle body. It was never intended to be adjusted in the field. But, Uncle Bob didn’t know that, did he?
Engine off. Back off the butterfly stop screw with a 3/32" allen wrench until the butterfly is completely closed. Now. turn the screw in until the FAINTEST movement of the butterfly opening is detected. This can be done more easily with the throttle body removed. If you remove the throttle body, be sure to replace the gasket underneath it after thoroughly cleaning the old one off.
Revised 07/07/2012
Cruiser’s Renix Throttle Body Butterfly Adjustment
Okay. Let's start from scratch. First off, that's not an idle adjustment screw. It's a throttle butterfly stop screw. It's purpose is to allow the butterfly to be as close to completely closed as it can be without binding or wearing into the throttle body. It was never intended to be adjusted in the field. But, Uncle Bob didn’t know that, did he?
Engine off. Back off the butterfly stop screw with a 3/32" allen wrench until the butterfly is completely closed. Now. turn the screw in until the FAINTEST movement of the butterfly opening is detected. This can be done more easily with the throttle body removed. If you remove the throttle body, be sure to replace the gasket underneath it after thoroughly cleaning the old one off.
Revised 07/07/2012
I've been taking a little break from the jeep to tinker with my old chevy, so i do get frustrated at the jeep and do anything stupid to it
#25
Member
Thread Starter
Join Date: May 2012
Location: Cape breton
Posts: 111
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
Well, time to revive this thread, as the problem is still there. I've just been taking a break from the jeep and been spending more time working on my chevy.
So, It still idles high when the IAC port is unplugged, But, we also found that, if you cover the throttle blade opening with your hand and unplug the IAC port the idle still goes up, so my friend said that ment it was getting air on the passenger side of the Throttle body? I'll be getting a new [to me] throttle body off a friend tomorrow to try.. And if thats not it, a family friend is going to scan it with his OBD1 scanner this friday. hopefully i can get it running good again soon... Because driving THIS
Is draining my wallet, [$40 to go 100kms/62 miles ] Giving me headaches [hitting my head off the roof, and dual straight through mufflers] and giving me carbon monoxide poisioning.... [exhaust leaks...] So, I need to figure out what the hell is wrong with my jeep soon. I also in the meantime, checked over all my grounds and what not again, and replaced the dodgy battery with a Red-top Optima.
So current suggestions from friends are:
Wrong IAC?
A nick in the throttle body somewhere causing it to suck air
Bad throttle body completely
And intake manifold gasket...
But alot of people are saying it could be the throttle body.. I dunno I'm still stumped
So, It still idles high when the IAC port is unplugged, But, we also found that, if you cover the throttle blade opening with your hand and unplug the IAC port the idle still goes up, so my friend said that ment it was getting air on the passenger side of the Throttle body? I'll be getting a new [to me] throttle body off a friend tomorrow to try.. And if thats not it, a family friend is going to scan it with his OBD1 scanner this friday. hopefully i can get it running good again soon... Because driving THIS
Is draining my wallet, [$40 to go 100kms/62 miles ] Giving me headaches [hitting my head off the roof, and dual straight through mufflers] and giving me carbon monoxide poisioning.... [exhaust leaks...] So, I need to figure out what the hell is wrong with my jeep soon. I also in the meantime, checked over all my grounds and what not again, and replaced the dodgy battery with a Red-top Optima.
So current suggestions from friends are:
Wrong IAC?
A nick in the throttle body somewhere causing it to suck air
Bad throttle body completely
And intake manifold gasket...
But alot of people are saying it could be the throttle body.. I dunno I'm still stumped
#26
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,867
Received 1,524 Likes
on
1,236 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Cruiser’s Renix Throttle Body Butterfly Adjustment
Okay. Let's start from scratch. First off, that's not an idle adjustment screw. It's a throttle butterfly stop screw. It's purpose is to allow the butterfly to be as close to completely closed as it can be without binding or wearing into the throttle body. It was never intended to be adjusted in the field. But, Uncle Bob didn’t know that, did he?
Engine off. Back off the butterfly stop screw with a 3/32” allen wrench until the butterfly is completely closed. Now. turn the screw in until the FAINTEST movement of the butterfly opening is detected. This can be done more easily with the throttle body removed. If you remove the throttle body, be sure to replace the gasket underneath it after thoroughly cleaning the old one off.
Revised 07/07/2012
Okay. Let's start from scratch. First off, that's not an idle adjustment screw. It's a throttle butterfly stop screw. It's purpose is to allow the butterfly to be as close to completely closed as it can be without binding or wearing into the throttle body. It was never intended to be adjusted in the field. But, Uncle Bob didn’t know that, did he?
Engine off. Back off the butterfly stop screw with a 3/32” allen wrench until the butterfly is completely closed. Now. turn the screw in until the FAINTEST movement of the butterfly opening is detected. This can be done more easily with the throttle body removed. If you remove the throttle body, be sure to replace the gasket underneath it after thoroughly cleaning the old one off.
Revised 07/07/2012
#27
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,867
Received 1,524 Likes
on
1,236 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Then, readjust the TPS on the engine side, flat 3 wire connector, to 17% of input voltage.
#28
Member
Thread Starter
Join Date: May 2012
Location: Cape breton
Posts: 111
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
#29
Member
Thread Starter
Join Date: May 2012
Location: Cape breton
Posts: 111
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
Well, i fixed my high idle! somewhat, I put on a different throttle body, pluged it all in adjusted everything, I started it, and it only went to 2,000 then settled back down to 900rpm. So, i took it for a drive.. the sputter was still there, so i parked at our useual parking spot, waited for a bit, and went home, I decided when i got home to see if it was pouring out black smoke like before, so i went behind the jeep and noticed there was white smoke coming from the tail pipe, and then i heard something leaking.
So, i shut the jeep off, popped the hood, and there was coolant pouring from the rad cap [brand new] the overflow bottle was over flowing, and there was steam everywhere So.. what would this mean?... mabey the sputtering and this are linked? bad head gasket mabey? we'll be doing a compression test tomorrow to check...
So, i shut the jeep off, popped the hood, and there was coolant pouring from the rad cap [brand new] the overflow bottle was over flowing, and there was steam everywhere So.. what would this mean?... mabey the sputtering and this are linked? bad head gasket mabey? we'll be doing a compression test tomorrow to check...
#30
Newbie
Join Date: Sep 2013
Posts: 16
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Engine: 4.0
I had this exact same issue on my mother's wrangler with the 4.0 it would idle at 3000 rpms like normal and would randomly drop in rpms and almost stall out. Replaced everything like you did to find out when replacing the intake manifold gasket that some of the o-rings on the fuel injectors were not there. I replaced those and voila fixed. A lot of times high idles are from vacuums leaks may not always be hoses I have had to fix weird idle issues on other vehicles from loose parts to worn or nonexistent gaskets to missing or shot o-rings and it seems once in a blue moon it is a bad sensor. Hopefully this helps and good luck
