Stripped lug nut BAD!!!!!! HELP!!!!
So i was trying to start my lift and I can't get one of my lugs loose. So I end up stripping it out and well long story short here we are.
11-14-2012, 09:28 PM
#4
Senior Member
Join Date: Nov 2011
Posts: 589
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Originally Posted by GearGrabbinXJ
I'm not sure how to get it out any further, it's all jacked up from my neighbor air chiseling.
Trending Topics
11-14-2012, 11:41 PM
#10
Senior Member
Join Date: Nov 2011
Posts: 589
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Originally Posted by kennzz05
i dont get it, what are we looking at here? shouldnt it just punch thru the other side no drilling required
11-15-2012, 12:53 AM
#11
Junior Member
Join Date: Aug 2011
Location: Indiana
Posts: 122
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
an older cherokee came into my work and needed the tire repaired. when i went to take off the lugs, 3 of them wouldnt budge with my impact. i lowered the vehicle and got two with a huge breaker bar. but one sheared right off. ive never seen anything like it. you could try drilling it out but what i did was took off the dif cover and got the c clip out and pulled the whole axle shaft out with the wheel and drum still attached. this way i could get to the back of the stud to grind it down. it is tapered so you will need to pound it out with a bfh. i drilled a hole in the back of it and it only took a couple whacks. this of course only works if this is on the rear of the vehicle with drum brakes. you will need new dif fluid, rtv, a stud and lug nut. it looks like that lug nut is sitting pretty far down in your wheel. they also make sockets that are specifically made for stripped nuts that will tighten as you turn. i forget their exact name. good luck man
11-15-2012, 05:55 AM
#12
Junior Member
Thread Starter
Join Date: Jul 2012
Location: Lebanon, PA
Posts: 59
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1994
Model: Cherokee
Engine: I6 4.0 High Output

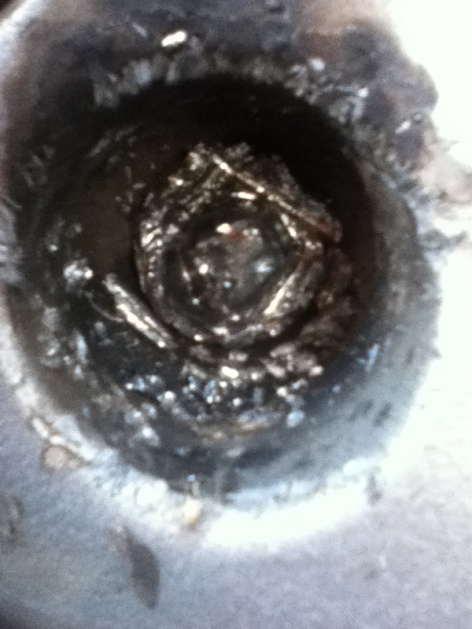

Basically what you see is a very short stud(from being chiseled) and the tapered part of the lug but is now the only portion left of the lug nut, and it is sitting even where it seat in the rim, and it's up front so it's disc brakes
11-15-2012, 06:09 AM
#13
Junior Member
You really only have two options.
1. Drill it out from the front like these other folks have said.
2. Unbolt the brake caliper bracket and unit bearing and slide the whole axle out. Remove the axle and grind the stud down from the back side and knock it thru the front. It won't be easy but you don't have much choice.
I'd attempt to drill it out first.
1. Drill it out from the front like these other folks have said.
2. Unbolt the brake caliper bracket and unit bearing and slide the whole axle out. Remove the axle and grind the stud down from the back side and knock it thru the front. It won't be easy but you don't have much choice.
I'd attempt to drill it out first.
11-15-2012, 06:18 AM
#14
Junior Member
Thread Starter
Join Date: Jul 2012
Location: Lebanon, PA
Posts: 59
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1994
Model: Cherokee
Engine: I6 4.0 High Output

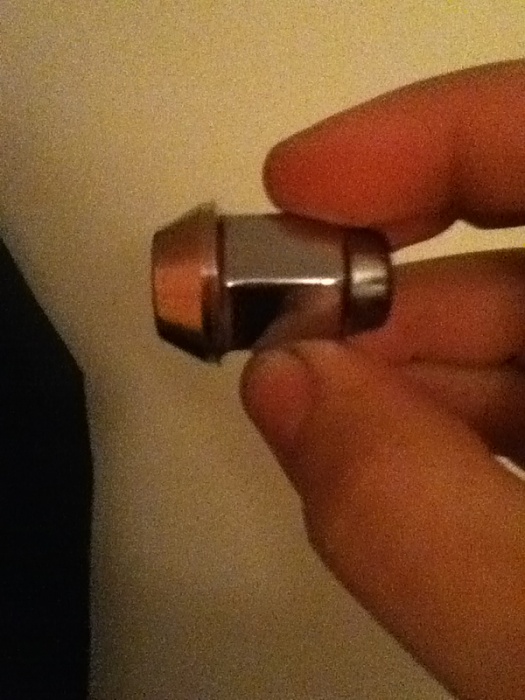

Alrighty, thanks should I try drilling the tapered part or the actual stud? And for the people that don't know what they are looking at everything silver in this photo is gone on the messed up lugnut
