Stock tire mount for rear bumper?
#1
Junior Member
Thread Starter
Join Date: Sep 2011
Location: Upstate SC
Posts: 57
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0 I6
Stock tire mount for rear bumper?

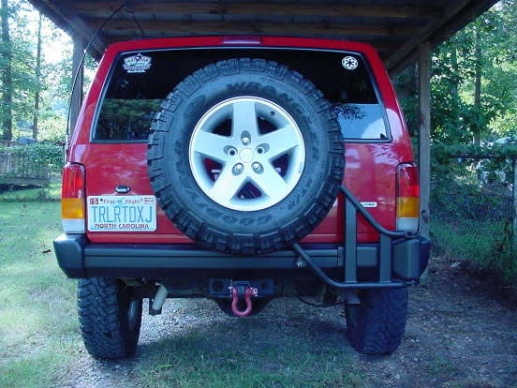

Hi everyone, I recently bought a tire mount for my 2001 xj that was supposedly an addition for 97-01 Cherokees. It mounts directly to the stock rear bumper, with no additional reenforcing. I'm wondering if anyone has a write up or install video handy, maybe even just some experience in installing such a tire mount? I'm guessing they were rare, as I've found very few on the Internet. Ill post some pictures tomorrow, but for now I found this example on the Internet, just as an idea of what I have. Thanks!
#2
Seasoned Member
Join Date: Feb 2012
Location: The FIRST State
Posts: 437
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1994
Model: Grand Cherokee (ZJ)
Engine: Straight 6
Are you sure it requires no reinforcing? The bumper is thin, flimsy sheet metal, I just can't see it holding a tire carrier when I could probably dent it with my teeth lol
#4
Yeah -- I wish I could skimp, but plan on spending 500-800 bucks when I bite the bullet for the tire carrier. You can buy or fab a hitch mount tire carrier.. CHEEEP CHEEP.
But your vested in what you have. I understand.
I'd be wary. Unless it braces the spindle within the bumper, then again somehow to the bumper mount or chassis - that setup is set for failure. Are you drilling out rear bumper? Please say a spindle was provided.
The stock bumpers are such a joke, I have never thought of upgrading them.
I bought my xj off my girlfriend after she wrecked it into a guard rail. First upgrade was an LandL front bumper. Beefcake. After pounding out my frame for 4 hours, my mind was set.
My rear bumper is a turd. Rather than upgrade it, I'll probably just pitch it out. (get it?)
Sweet looking setup though. Nice and clean. How much did it cost? Can you provide a link? Guys on here are pretty smart at this stuff. I just rant.
But your vested in what you have. I understand.
I'd be wary. Unless it braces the spindle within the bumper, then again somehow to the bumper mount or chassis - that setup is set for failure. Are you drilling out rear bumper? Please say a spindle was provided.
The stock bumpers are such a joke, I have never thought of upgrading them.
I bought my xj off my girlfriend after she wrecked it into a guard rail. First upgrade was an LandL front bumper. Beefcake. After pounding out my frame for 4 hours, my mind was set.
My rear bumper is a turd. Rather than upgrade it, I'll probably just pitch it out. (get it?)
Sweet looking setup though. Nice and clean. How much did it cost? Can you provide a link? Guys on here are pretty smart at this stuff. I just rant.
#5
Junior Member
Thread Starter
Join Date: Sep 2011
Location: Upstate SC
Posts: 57
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0 I6
Hey thanks for all the responses, the mount i got was previously mounted on an xj with a stock bumper, and didn't have the spindle you mentioned. What you're saying does make sense though, because I agree, the stock bumper does seem really crappy. Maybe ill do some additional reenforcing. I've been too busy today to snap some pics of it, but ill be them up tomorrow since im off. Hope everyone enjoys the holiday tomorrow, eat up!!
#6
Junior Member
Join Date: Jul 2011
Location: Western Washington
Posts: 85
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Engine: 4.0

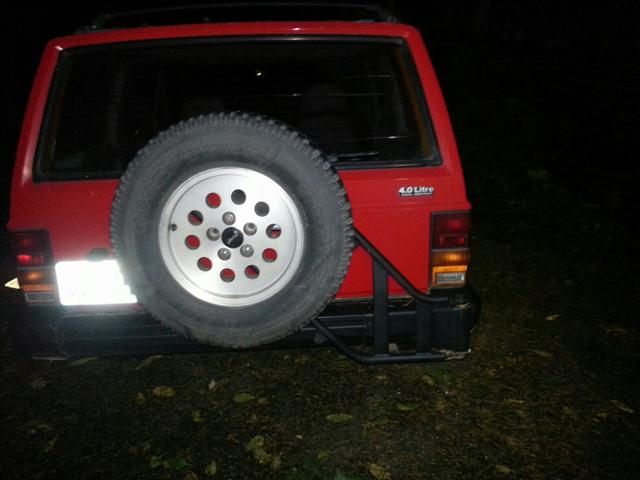

I've got a '93 Sport with the factory tire carrier. Very seldom see them. It's cold out, and Thanksgiving, but I snapped a few pics with the phone in the dark. I may be able to get some more in the morning if you need.

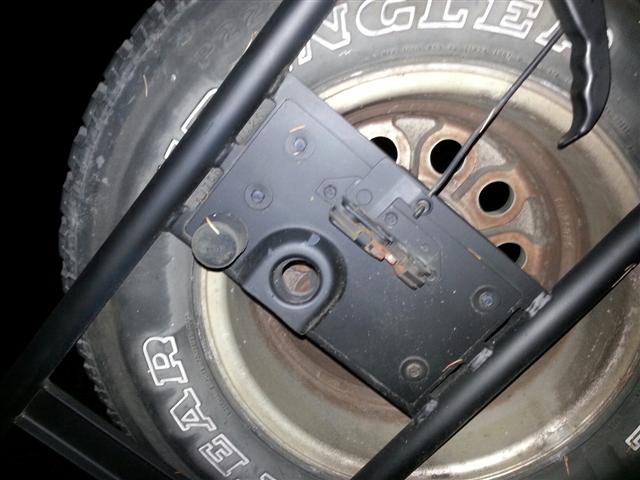

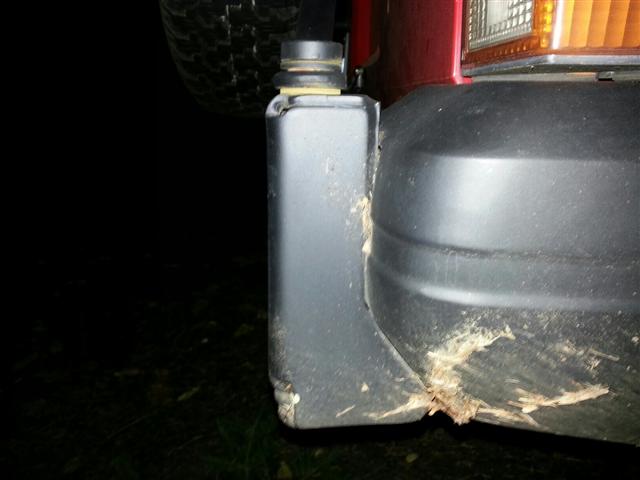

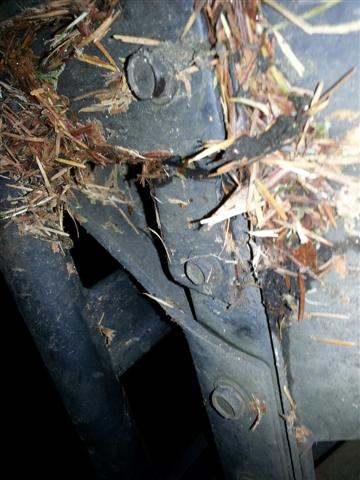

My carrier works great. No rattles, opens smooth. It appears that it bolts to the bumper, not through it. The photo of the bracket that attaches to the bumper is the pivot point - hopefully you got that with the deal. Anyway, hope these help some.
My carrier works great. No rattles, opens smooth. It appears that it bolts to the bumper, not through it. The photo of the bracket that attaches to the bumper is the pivot point - hopefully you got that with the deal. Anyway, hope these help some.
#7
Junior Member
Thread Starter
Join Date: Sep 2011
Location: Upstate SC
Posts: 57
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0 I6
Originally Posted by DarrellXJ
I've got a '93 Sport with the factory tire carrier. Very seldom see them. It's cold out, and Thanksgiving, but I snapped a few pics with the phone in the dark. I may be able to get some more in the morning if you need.
My carrier works great. No rattles, opens smooth. It appears that it bolts to the bumper, not through it. The photo of the bracket that attaches to the bumper is the pivot point - hopefully you got that with the deal. Anyway, hope these help some.
My carrier works great. No rattles, opens smooth. It appears that it bolts to the bumper, not through it. The photo of the bracket that attaches to the bumper is the pivot point - hopefully you got that with the deal. Anyway, hope these help some.
Trending Topics
#8
Senior Member
Join Date: Aug 2012
Location: Westminster, MD
Posts: 732
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1988
Model: Cherokee
Engine: 4.0

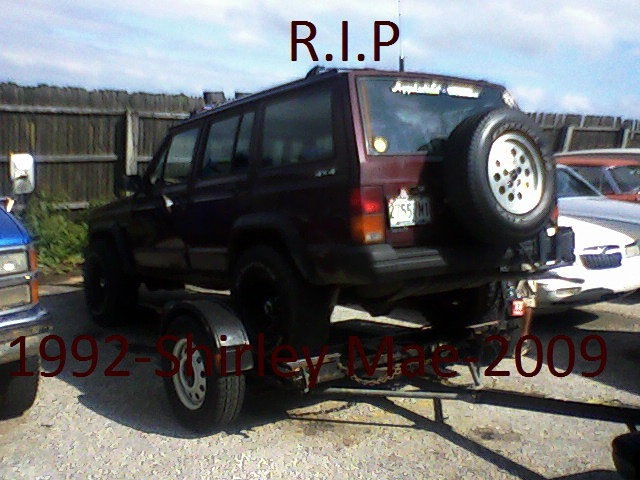

I had the same on my 92, it wasn't factory, pulled of at local jy, all I did was have a buddy hold it up on the bumper and drilled the holes then bolted it, then I took out the stock license plate light and marked the holes for the plate the. Bolted. I did mine under an hour without doing one before, I didn't reinforce it and it did just fine!
On a side note I got a 88 with the factory tire carrier and this one bolts to the passenger side body and locks on the bumper.
On a side note I got a 88 with the factory tire carrier and this one bolts to the passenger side body and locks on the bumper.
#9
Junior Member
Join Date: Jul 2011
Location: Western Washington
Posts: 85
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Engine: 4.0

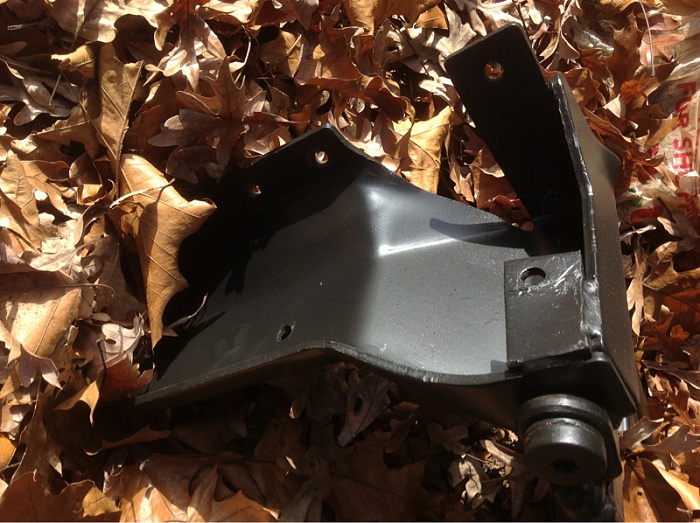

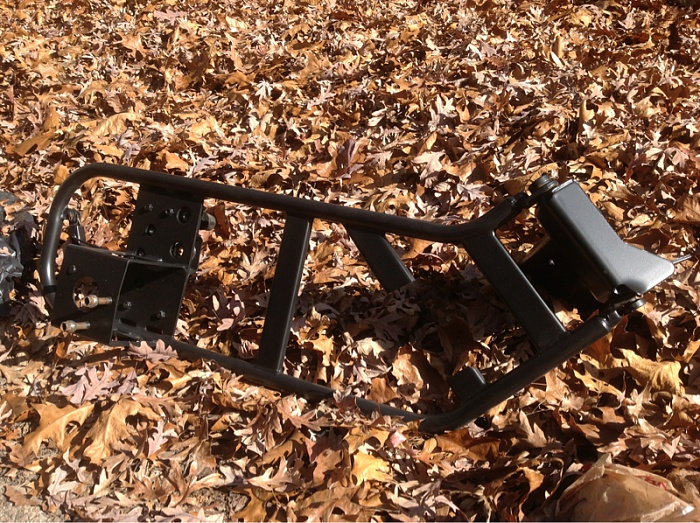

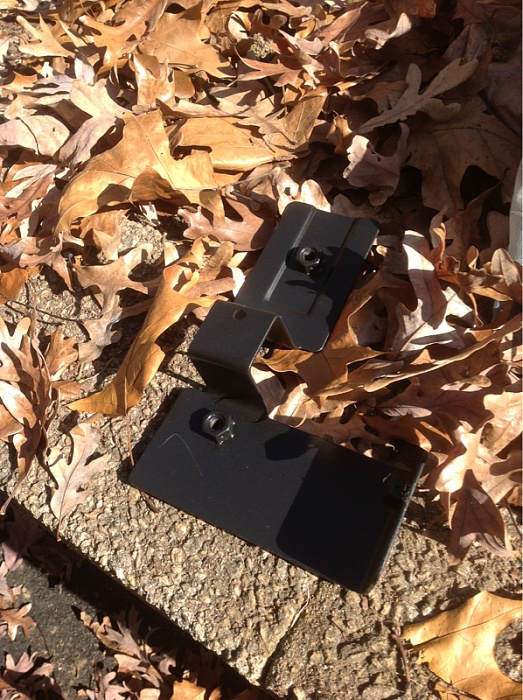

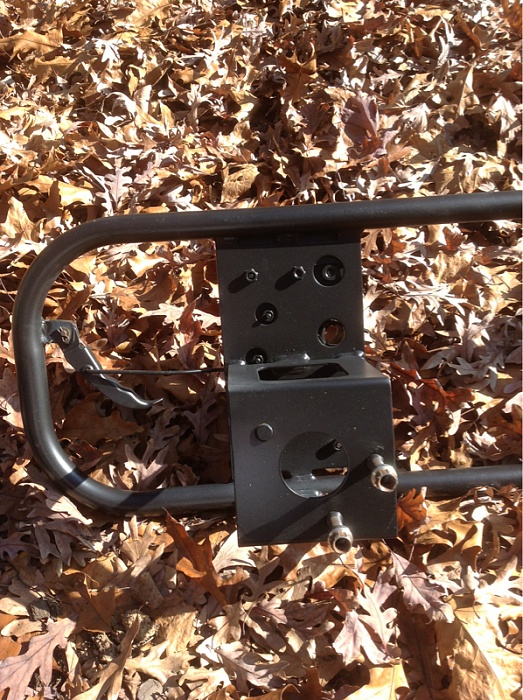

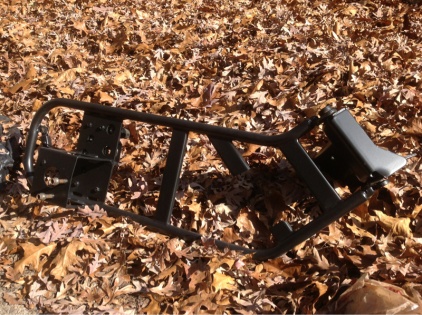

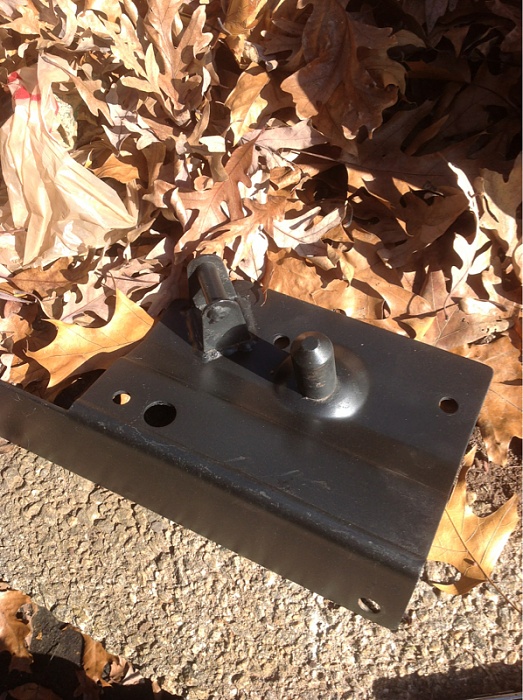

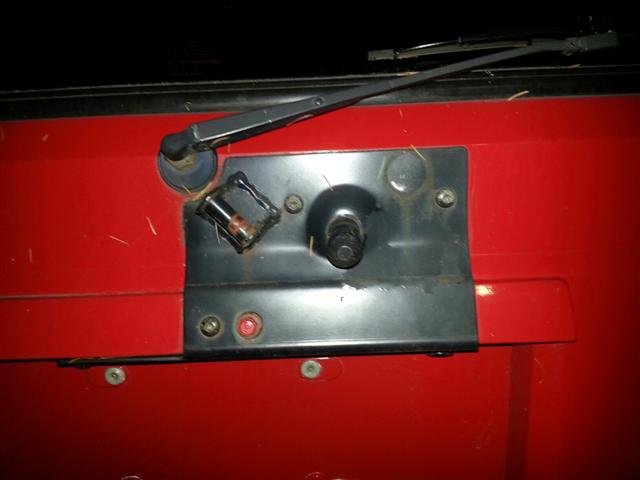

Hey man that's exactly what I have, I do have all the parts that you mentioned, i'll attach pics of each part. The piece that bolts to the hatch itself is identical, and im guessing that the third piece is like a spacer, does yours use that spacer? Is that something you installed yourself or has it always been on the jeep since the factory? Last question, any chance you could snap a pic of how it is bolted to the bumper? Im just a bit confused on how to get it secure enough, because it does seem like a pretty heavy load to put on the bumper. I really appreciate it
#10
Junior Member
Join Date: Jul 2011
Location: Western Washington
Posts: 85
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Engine: 4.0
Hey man that's exactly what I have, I do have all the parts that you mentioned, i'll attach pics of each part. The piece that bolts to the hatch itself is identical, and im guessing that the third piece is like a spacer, does yours use that spacer? Is that something you installed yourself or has it always been on the jeep since the factory? Last question, any chance you could snap a pic of how it is bolted to the bumper? Im just a bit confused on how to get it secure enough, because it does seem like a pretty heavy load to put on the bumper. I really appreciate it
Yes, it did come from the factory with the tire carrier. I have the build sheet. Listed as: "TBR Outside Tire Carrier". I'll try and clean the bumper up a bit this afternoon and get you some photos of the attachment points on the bumper so you can sort it out.
#11
Junior Member
Thread Starter
Join Date: Sep 2011
Location: Upstate SC
Posts: 57
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0 I6
Sorry, didn't read the full text.
Yes, it did come from the factory with the tire carrier. I have the build sheet. Listed as: "TBR Outside Tire Carrier". I'll try and clean the bumper up a bit this afternoon and get you some photos of the attachment points on the bumper so you can sort it out.
Yes, it did come from the factory with the tire carrier. I have the build sheet. Listed as: "TBR Outside Tire Carrier". I'll try and clean the bumper up a bit this afternoon and get you some photos of the attachment points on the bumper so you can sort it out.
#12
Junior Member
Thread Starter
Join Date: Sep 2011
Location: Upstate SC
Posts: 57
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0 I6
I had the same on my 92, it wasn't factory, pulled of at local jy, all I did was have a buddy hold it up on the bumper and drilled the holes then bolted it, then I took out the stock license plate light and marked the holes for the plate the. Bolted. I did mine under an hour without doing one before, I didn't reinforce it and it did just fine!
On a side note I got a 88 with the factory tire carrier and this one bolts to the passenger side body and locks on the bumper.
On a side note I got a 88 with the factory tire carrier and this one bolts to the passenger side body and locks on the bumper.
#13
Senior Member
Join Date: Aug 2012
Location: Westminster, MD
Posts: 732
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1988
Model: Cherokee
Engine: 4.0
Originally Posted by clichtenfelt
Did you have to take off the end cap to get it to mount flush to the bumper? looks like thats gonna have to happen, may have to use the dremmel to cut out a section if the end cap gets in the way. And yea I have seen that older version of the mount, both seem pretty reliable, I just happened to like the looks of the newer one a bit better, and was lucky to find one in my area. You dont have a picture of the one similar to mine on your 92 do you?

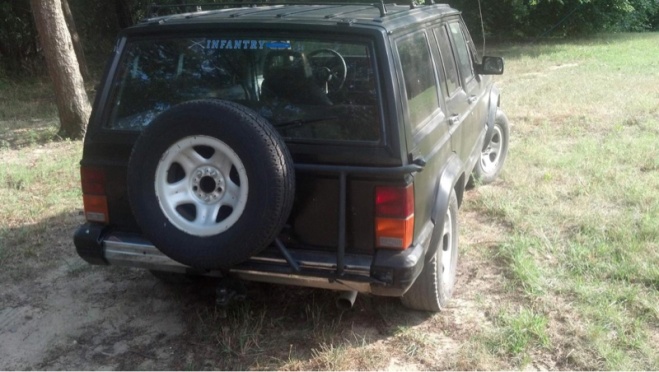

EDIT: got the photo, I will mention that you should use the grade 8 bolts, I was able to hold a 35" BFG mud terrain on it and drive for 40 miles including having four more in the cab
Last edited by elevol92; 11-23-2012 at 08:06 PM.
#14
Junior Member
Thread Starter
Join Date: Sep 2011
Location: Upstate SC
Posts: 57
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0 I6
I do, I just have to pull it off Facebook, I did take my end cap off, never did put it back on lol
EDIT: got the photo, I will mention that you should use the grade 8 bolts, I was able to hold a 35" BFG mud terrain on it and drive for 40 miles including having four more in the cab
EDIT: got the photo, I will mention that you should use the grade 8 bolts, I was able to hold a 35" BFG mud terrain on it and drive for 40 miles including having four more in the cab
Last edited by clichtenfelt; 11-23-2012 at 11:48 PM.
