Serpentine Belt
#1
Newbie
Thread Starter
Join Date: Feb 2012
Posts: 14
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Serpentine Belt
Ok I have a dumb question, I'm about to replace my serpentine belt. After I loosen the 4 bolts holding the power steering pump, should I just be able to swing it by hand, and is the tensonor bolt just for final adjustment? Thanks for your help.
#3
CF Veteran
Join Date: Aug 2011
Location: Lehigh Valley, Pennsylvania
Posts: 1,090
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0 stroked to 4.6, Thanks to Teasdale'sMachine!
On the 4.0 loosen the tensioner pulley about 3/4 turn, then turn down the adjust above it. That will move the pulley down and loosen the belt enough to remove it.
#4
#5
Herp Derp Jerp
Join Date: Nov 2011
Location: Parham, ON
Posts: 18,251
Likes: 0
Received 12 Likes
on
11 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L OBD-II
What year Cherokee? 99+ is via a tensioner pulley with the adjustment bolts, older models (square tube looking intake manifold instead of a big round hump under the throttle) you have to loosen the bolts of the power steering pump.
#7
Junior Member
Join Date: May 2011
Location: conowingo, MD
Posts: 44
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
no need to do power steering just loosen the tensioner pulley then back off the tension and go a little extra for the fitment of the new belt
Trending Topics
#8
CF Veteran
Maybe true for other years but on your 92, you'll need to loosen the bolts on your power steering pump and then back the tensioning adjustment bolt out until you can slip the belt off. Just did it on my '89 last week to replace the harmonic balancer.
#12
CF Veteran
Join Date: Oct 2010
Location: Ontario, Canada
Posts: 2,150
Likes: 0
Received 12 Likes
on
9 Posts
Year: 1989 Laredo
Model: Cherokee
Engine: 4.0 L 6 Renix

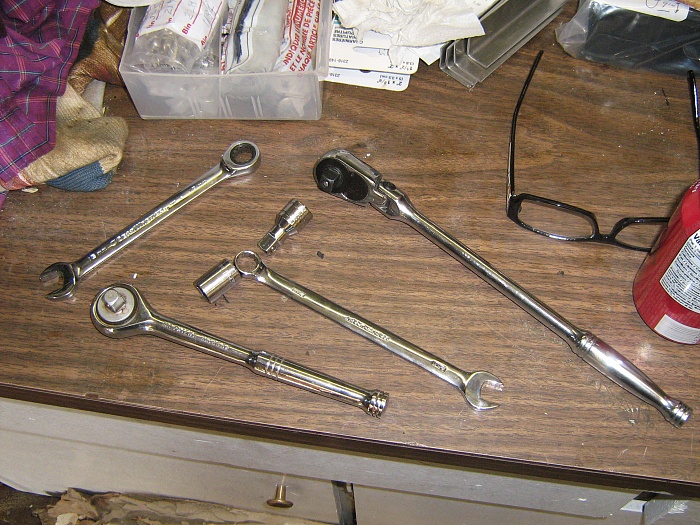

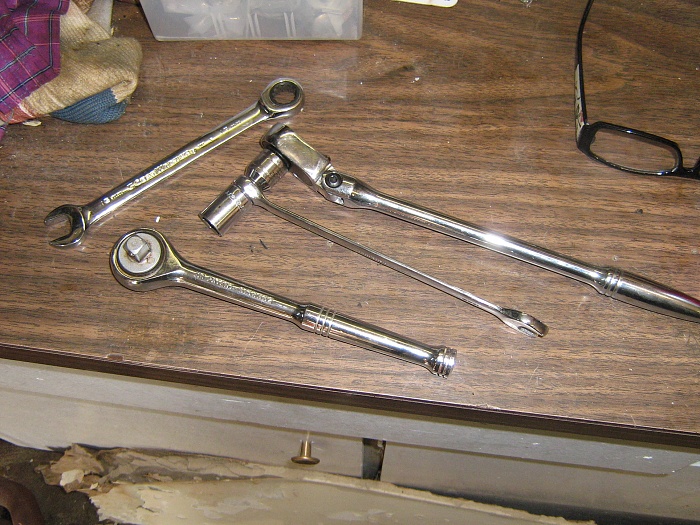

Loosen the Adjuster Tool
This is the tool construction I use to acces the tension adjust bolt under the power steering pump on my 89. Allows me a decent swing in tight spot and I can keep the socket engaged without trying to contorsion my other hand down in there.
#13
CF Veteran
Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes
on
22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
remove factory air box and aux fan better acess and you have to turn the adjuster to get belt off will not move by hand
