RMS issue.
I have been painstakingly working on my RMS all damn week. Issues with getting the pan out, etc but now I'm having issues getting the upper part of the seal out. Any recommendations?

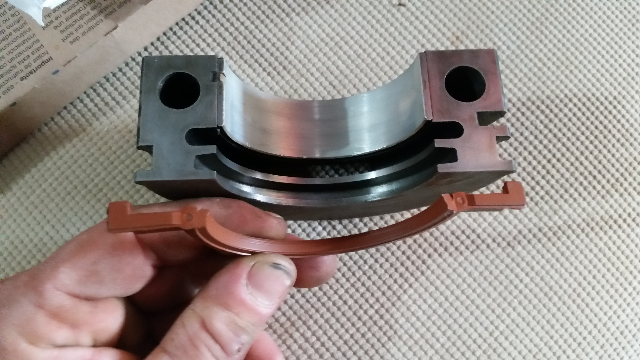

Also, I believe I have the wrong bearing cap in my jeep or the wrong bottom section of the seal.... the wings on the bottom of the seal have no seat in my bearing cap. Any input would be greatly appreciated!
Also, I believe I have the wrong bearing cap in my jeep or the wrong bottom section of the seal.... the wings on the bottom of the seal have no seat in my bearing cap. Any input would be greatly appreciated!
12-31-2014, 03:19 PM
#3
Member
Join Date: Dec 2011
Location: Utah
Posts: 226
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
I have been painstakingly working on my RMS all damn week. Issues with getting the pan out, etc but now I'm having issues getting the upper part of the seal out. Any recommendations? Also, I believe I have the wrong bearing cap in my jeep or the wrong bottom section of the seal.... the wings on the bottom of the seal have no seat in my bearing cap. Any input would be greatly appreciated!
RSWiser
12-31-2014, 04:37 PM
#4
CF Veteran
Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes
on
22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
While pushing seal out rotate motor with crank bolt . Do same to install coat with oil when installing.
12-31-2014, 06:46 PM
#5
Member
Join Date: Jul 2009
Location: Los Angeles CA
Posts: 188
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L 6 Cyl
from some quick research it looks like the cap you have seems is of a grand cherokee. the seal you have is correct for a 99 xj..
maybe the engine was swapped at some point? can you take your cap to the dealer?
maybe the engine was swapped at some point? can you take your cap to the dealer?
12-31-2014, 06:54 PM
#6
Junior Member
Thread Starter
Join Date: Nov 2011
Posts: 95
Likes: 0
Received 0 Likes
on
0 Posts
Yea something doesn't add up with the cap and the seal? I could tell work had been done in there since it was clear the pan had been dropped before I did this removal.
12-31-2014, 06:56 PM
#7
Member
Join Date: Jul 2009
Location: Los Angeles CA
Posts: 188
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L 6 Cyl
i just checked Rock auto.com. the seal that would fit the cap you have is for a 2001 xj. looks like the seal changed in 2001.
Trending Topics
12-31-2014, 07:17 PM
#10
Member
Join Date: Jul 2009
Location: Los Angeles CA
Posts: 188
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L 6 Cyl
no problem. You may have a newer engine than you thought. Maybe the dealer can help with the casting number?
for the upper part of the seal like said use a punch (brass if you can) and push it out. there is a wire inside the seal, that's what you want to hit on. be careful not to hit the crankshaft. use a good size hammer (whatever that means). but too small of a hammer will make it more difficult. at least that was my experience.
for the upper part of the seal like said use a punch (brass if you can) and push it out. there is a wire inside the seal, that's what you want to hit on. be careful not to hit the crankshaft. use a good size hammer (whatever that means). but too small of a hammer will make it more difficult. at least that was my experience.
12-31-2014, 07:19 PM
#11
Member
Join Date: Jul 2009
Location: Los Angeles CA
Posts: 188
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L 6 Cyl
12-31-2014, 07:30 PM
#12
Junior Member
Thread Starter
Join Date: Nov 2011
Posts: 95
Likes: 0
Received 0 Likes
on
0 Posts
12-31-2014, 07:57 PM
#13
CF Veteran
Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 17 Likes
on
17 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
It happens that I waz just researching that myself. Besides Freedgrs excelent tip, IIRC he mentioned driving the seal from the passenger side. I guess this guy loosened his other mains...IDK about that>. OK I deleted the Utube link due to really foul language. Looks like I'll be here soon myself.
Last edited by DFlintstone; 12-31-2014 at 08:42 PM.
12-31-2014, 08:15 PM
#14
Junior Member
Thread Starter
Join Date: Nov 2011
Posts: 95
Likes: 0
Received 0 Likes
on
0 Posts
It happens that I waz just researching that myself. Besides Freedgrs excelent tip, IIRC he mentioned driving the seal from the passenger side. I guess this guy loosened his other mains...IDK about that>. Video Link: https://www.youtube.com/watch?v=NVAF_hYyqPY Looks like I'll be here soon myself.
I only tried one side of the top seal as to not mash both sides and have the seal FUBAR and not be able to get it out. I'll keep picking at it tomorrow - no brass punch available. May need to invest in one, however, as this job has turned into a nightmare.
How do I turn the motor crank to loosen it?
